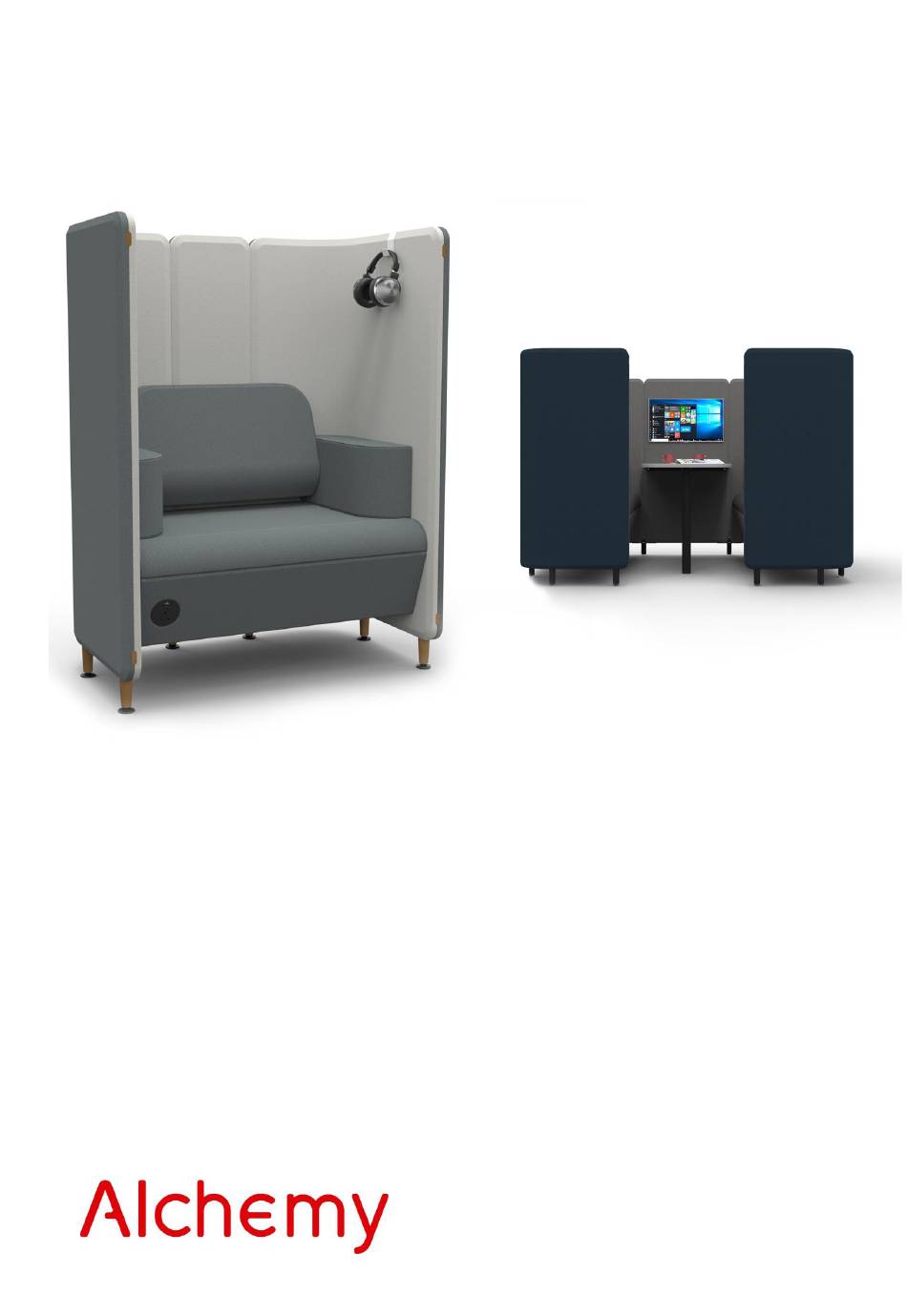

- Page 1 Product Manual with specifiers guide & O & M information Fjord Sofas & Meeting Booths Issue 1: June 2021...
-
Page 2: Table Of Contents
Contents Product Overview Specification Installation • Sofas • Meeting Booths Maintenance Warranty Contact Details... -
Page 3: Product Overview

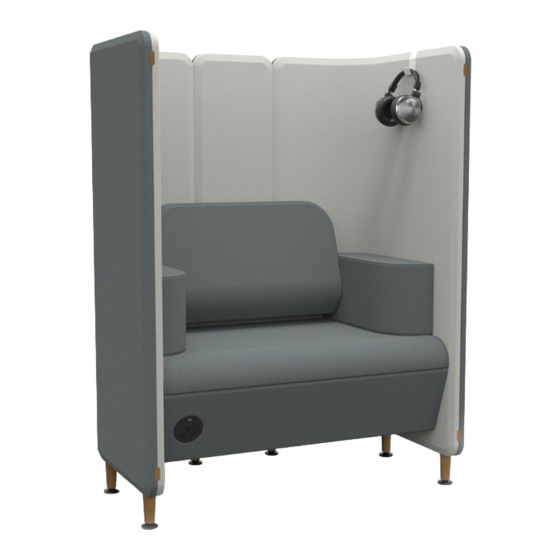

Product Overview The Fjord sofa & booth range combines high sided sofas, meeting booths & work carrel solutions in a beautifully detailed product offering a multitude of finish combinations. The 3 solutions have been developed with a common aesthetic so that product can be specified to meet specific requirements within SmartSpace. -
Page 4: Specification
2.0 Work tops – 25mm MFC square edge with brackets to attach to panels & option for black powder coat steel leg or oak leg to match Alchemy Involv table system. 3.0 Options: • Panels & sofas can be specified as mono-tone or two tone fabric combinations along with a button detail to sofa backs. - Page 5 Specification Meeting Booth Modules – 3 options Two Seater Meeting Booth Four Seater Meeting Booth 2100 x 1100 x 1440 2100 x 1600 x 1440 Six Seater Meeting Booth 2100 x 2200 x 1440...
- Page 6 Specification 5.0 Finishes This is a selection of the fabric options available. Only specify fabrics compatible with the relevant product type, panels or sofas. For more information or to discuss specific fabric requirements please contact sales@alchemyfurniture.co.uk. Fabrics are subject to differing lead times & minimum order quantities, this is dependent on the supplier.
- Page 7 Specification For any specific requirements that deviate from the banding above pricing is POA. To discuss please contact the sales office at sales@alchemyfurniture.co.uk.
- Page 8 For required finish, please suffix code with WH – White, GR – Grey. MA – Maple, AO – Alchemy Oak, RO – Rye Oak, BE – Beech, WL – Walnut. Standard specification will match the edge finish with the top finish. Contrast edge & ply effect edge are available at standard cost.
- Page 9 Specification Mono-tone sofa Mono-tone panel upholstery Two-tone panel upholstery Two-tone sofa upholstery upholstery & button Oak panel foot Black steel panel foot Work surface Oak work surface leg Black steel work surface leg Sofa charging module Media panel & monitor bracket...
-
Page 10: Sofas
Specification When ordering a sofa: • Select occupancy requirements – 1,2 & 3 person • Select mono tone or two tone combinations • Select foot option – oak or black steel • Select accessories – charging unit The graphic opposite explains where fabric choices feature on the panels &... - Page 11 Installation Panel Assembly – one & two seater sofa panels...
- Page 12 Installation Panel Assembly – three seater sofa panels...
- Page 13 Installation Sofa to Screens Assembly...
- Page 14 Installation Sofa to Screens Assembly Sofa to Screens Assembly...
- Page 15 Installation Panel Assembly – two & four seater meeting booth...
- Page 16 Installation Panel Assembly – six seater meeting booth...
- Page 17 Installation Sofa to Booth Screen Assembly...
- Page 18 Installation Sofa to Booth Screens Assembly...
- Page 19 Installation Meeting Table Assembly...
-
Page 20: Maintenance
Maintenance Aluminium & Steel These will be chrome plated, bright polished or powder coated depending on the components & finishes of your chair. These parts can be cleaned with a damp cloth & in the case of polished or chrome parts, buffed dry with a soft non-abrasive cloth to prevent streak marks. - Page 21 General - Following these simple maintenance procedures will enable trouble free use. Should any components appear to be loose the cause should be investigated without delay & the appropriate fixing tightened where possible. If this does not provide a solution please contact Alchemy Furniture.
-
Page 22: Warranty
& installed correctly as per Alchemy installation & relocation instructions. Alchemy reserve the right to refuse replacement or repair if we feel that the product has been abused or has been accidently damaged by another party. Alchemy also reserves the right to attempt to repair any damaged or faulty products before a decision is made to replace them. -
Page 23: Contact Details
Contact Details Alchemy Furniture Limited The Office Rye Wharf, Harbour Road Rye, East Sussex, TN31 7TE Showroom: 61 – 63 Church Street Caversham, Reading Berkshire, RG4 8AX Tel: 01424 839100 Fax: 01797 224877 Web: www.alchemyfurniture.co.uk E-mail: sales@alchemyfurniture.co.uk...
