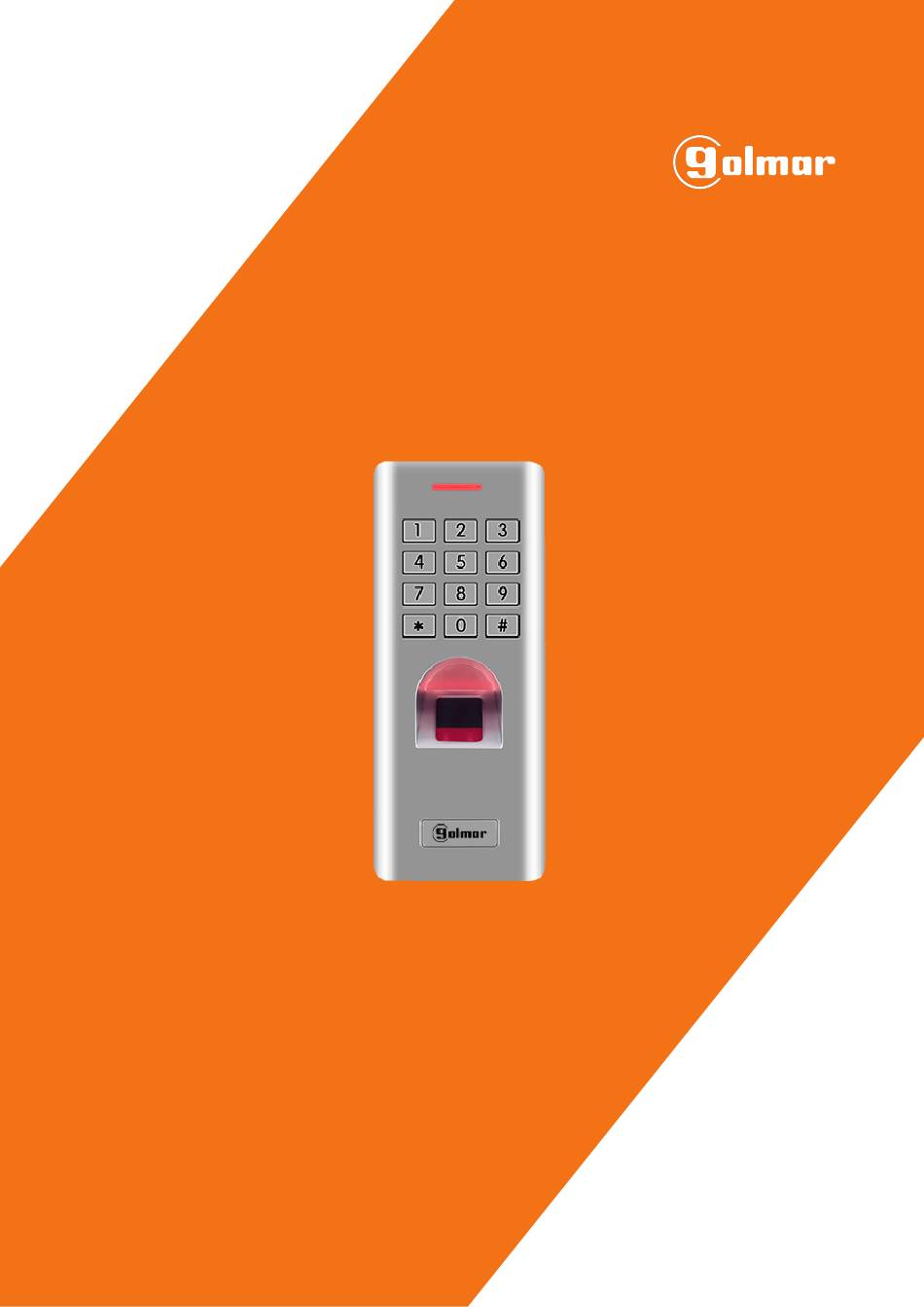

- Page 1 BKEY SE INSTALLATION MANUAL IM_ENG_REV0124_BKEY SE...
-
Page 2: Table Of Contents
BKEY SE 1.INDEX .................................2 1.Index ..............................3 2.Introduction ..............................3 3.Specifications ..............................3 4.Product content ................................3 5.Installation ................................4 6.Connection .................................4 7.Standalone ..............................7.1.Connection diagram ................................7.2.Programming ............................7.2.1.Change master code ............................7.2.2.PIN code registration ........................... 7.2.3.Fingerprint registration ..............................6 8.Other settings ................................8.1.Delete user ................................ -
Page 3: Introduction
BKEY SE 2.INTRODUCTION Installation manual for the BKEY SE reader, a reader that allows opening by fingerprint and/or PIN. 3.SPECIFICATIONS Material Zinc alloy Protection degree IP-66 Input voltage 12Vdc Current ≤45mA stand by, ≤150mA active Resolution: 500DPI Id time: <1s Fingerprint reader FAR: <0.01%... -
Page 4: Connection
BKEY SE Attach the reader to the bracket from Pass the cable through the Φ 9mm Drill the fixing holes in the wall (A and top to bottom. Once attached, fasten hole in the central part of the bracket C) and the hole for the cable, then place... -
Page 5: Programming
BKEY SE 7.2. PROGRAMMING Perform the following sequence to enter programming: Enter administrator mode MASTER CODE (By default: 123456) IMPORTANT The reader will indicate access to programming when the “green” LED lights up and then the LED will flash “red”. At the start of the programming sequence (function to be programmed) the led will be shown in “orange”. -
Page 6: Other Settings
BKEY SE 8.OTHER SETTINGS 8.1. DELETE USER Enter administrator mode MASTER CODE USER ID * 987654 # 2 105 # Example: 8.2. RELAY SETTINGS 8.2.1.PULSE MODE Enter administrator mode 1-99 MASTER CODE * 987654 # 3 15 # Example: The pulse can be active from 1 to 99 seconds. In the example, the value 15 has been entered, so it would be active for 15 seconds. -
Page 7: Lockout Alarm
BKEY SE 8.5. LOCKOUT ALARM The lock alarm will be triggered after 10 unsuccessful attempts to enter the PIN/fingerprint. The factory default is OFF, but can be set to deny access for 10 minutes or to activate the alarm after it is triggered. -
Page 8: Status Displays
Black 10.2. PROGRAMMING To integrate a BKEY SE reader in iP Opener it will be necessary to register a PIN code and/or fingerprint in the reader and then register a credential in iP Opener with the corresponding value. See example below:... - Page 9 Opener Manager. This is because iP Opener respects the data protection law and does not allow storing biometric data in the system itself. Golmar recommends the use of other types of identification whenever possible in order to have a centralized, simple and efficient management in iP Opener Manager.
-
Page 10: Annex
Black NOTE: The AP (door release) of the intercom does not activate the lock release until the pulse of the BKEY SE reader has finished. To avoid opening delays, set the minimum pulse to 1 second on the reader: Enter administrator mode MASTER CODE 11.1. - Page 11 Sistemas de comunicación S.A. C/ Silici 13. Poligon Industrial Famadas 08940 – Cornellà del llobregat – Spain golmar@golmar.es Tel: 93 480 06 96 www.golmar.es www.golmar-seguridad.es Golmar deserves the right for any modification without prior notice.
