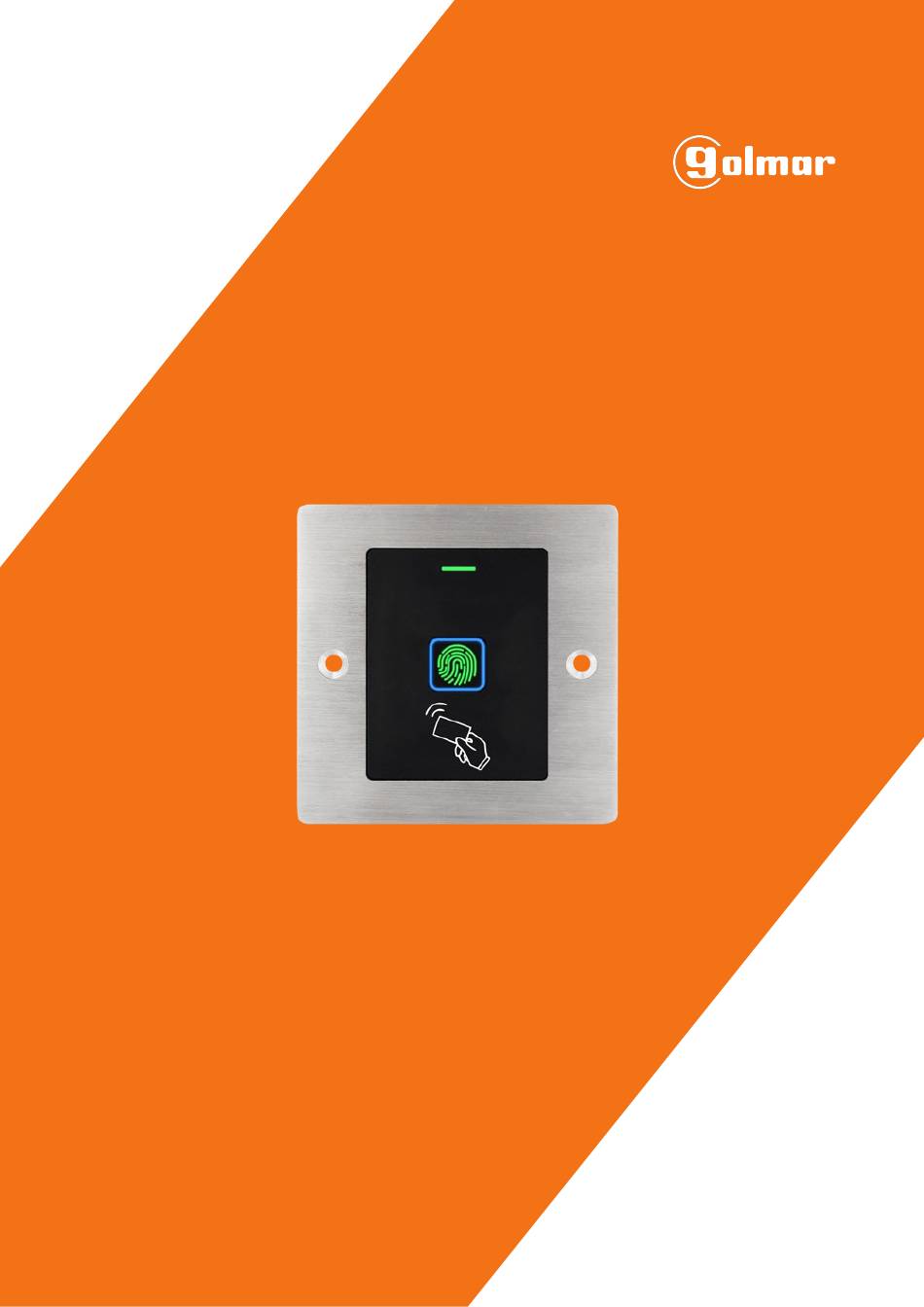

BIO-N
INSTALLER
MANUAL
IM_ENG_REV0122_BIO-N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIO-N and is the answer not in the manual?

Questions and answers

Related Manuals for golmar BIO-N

Summary of Contents for golmar BIO-N

  • Page 1 BIO-N INSTALLER MANUAL IM_ENG_REV0122_BIO-N...
  • Page 2 BIO-N 1.INDEX .................................2 1.Index ..............................3 2.Introduction ..............................3 3.Specifications ..............................3 4.Product content ................................4 5.Installation ................................4 6.Connection ........................4 7.Standalone connection diagram ............................5 8.Basic programming ............................... 8.1.User registration ................................8.2.User deletion ...........................5 9.Advanced programming ................................9.1.Programming ............................9.1.1.Change master code ..........................9.1.2.Card registration (auto ID) ........................

  • Page 3: Specifications

    ............................12 14.Types of installation ............................ 14.1.Stand-alone installation ..........................14.2.Installation on Nexa panel 2.INTRODUCTION Installation manual for BIO-N reader. Proximity and fingerprint reader for stand-alone and slave operation. 3.SPECIFICATIONS Material Stainless steel and black ABS plastic Protection degree IP-66 Input voltage...

  • Page 4: Installation

    BIO-N 5.INSTALLATION This reader is intended for mounting/integration in Nexa panels, which requires the use of an adapter module. However, it can also be mounted independently on a specific embedding box (universal embedding box is not valid). See chapter “14. TYPES OF INSTALLATION” to proceed.

  • Page 5: Basic Programming

    BIO-N 8.BASIC PROGRAMMING Basic programming (user registration/deletion) using the “Master Card” supplied with the product. 8.1. USER REGISTRATION 8.2. USER DELETION 1) Approach the “Master Card” card to the reader. 1) Approach the “Master Card” card to the reader 2 times at an interval shorter than 5 seconds.
  • Page 6 BIO-N 9.1.2.CARD REGISTRATION (AUTO ID) Card registration with automatic registration. Enter administrator mode APPROACH CARD MASTER CODE * 987654 # 1 APPROACH CARD Example: 9.1.3.CARD REGISTRATION (specific ID) Maximum number of records is 890. User IDs from 100 to 989.

  • Page 7: Other Settings

    BIO-N 10.OTHER SETTINGS 10.1. IDENTIFICATION MODE 10.1.1.IDENTIFICATION BY CARD OR FINGERPRINT (default value) Enter administrator mode MASTER CODE * 987654 # 30 # Example: 10.1.2.IDENTIFICATION BY FINGERPRINT ONLY Enter administrator mode MASTER CODE * 987654 # 31 # Example: 10.1.3.IDENTIFICATION BY CARD ONLY...
  • Page 8 BIO-N 10.4.2.10-MINUTE ACCESS LOCKOUT Enter administrator mode MASTER CODE * 987654 # 61 # Example: The LED will start blinking and the reader will be locked for 10 minutes. To return to the normal state, wait 10 minutes or restart the reader.
  • Page 9 12Vdc/270mA NOTE: The door opener (AP) does not activate the lock release until the pulse on the BIO-N reader has been finished. To avoid opening delays set the minimum pulse time to 1 second at the reader: Enter administrator mode MASTER CODE 13.WIEGAND...
  • Page 10 BIO-N 13.2. PROGRAMMING 13.2.1.PROGRAMMING CARD Generate a user with credential type “Other (decimal)” and enter in the field “code” the ID of the card or key fob: PROKEY ID TAGKEY ID Sistemas de comunicación S.A. 0009701804 PROKEY ID 0004601388 070,16868...
  • Page 11 BIO-N NOTE Do not use ID 0. Register in this case the fingerprint from ID 1 (ID 1 to 98, ID 0 is not interpreted by iP Opener). Generate a user with credential type “Other (decimal)” and with the user ID value registered in the reader:...

  • Page 12: Types Of Installation

    It is light-sensitive, so if light shines on the sensor after placing the reader, the tamper alarm will be triggered. 14.2. INSTALLATION ON NEXA PANEL The integration of the reader on the Nexa panel requires the use of the reader in kit format: N3000/BIO-N (20700015), kit for BIO-N reader mounting on Nexa Aluminium. NX3000/BIO-N...
  • Page 13 Sistemas de comunicación S.A. C/ Silici 13. Poligon Industrial Famadas 08940 – Cornellà del llobregat – Spain golmar@golmar.es Tel: 93 480 06 96 www.golmar-seguridad.es Golmar reserves the right to make any changes without notice.
