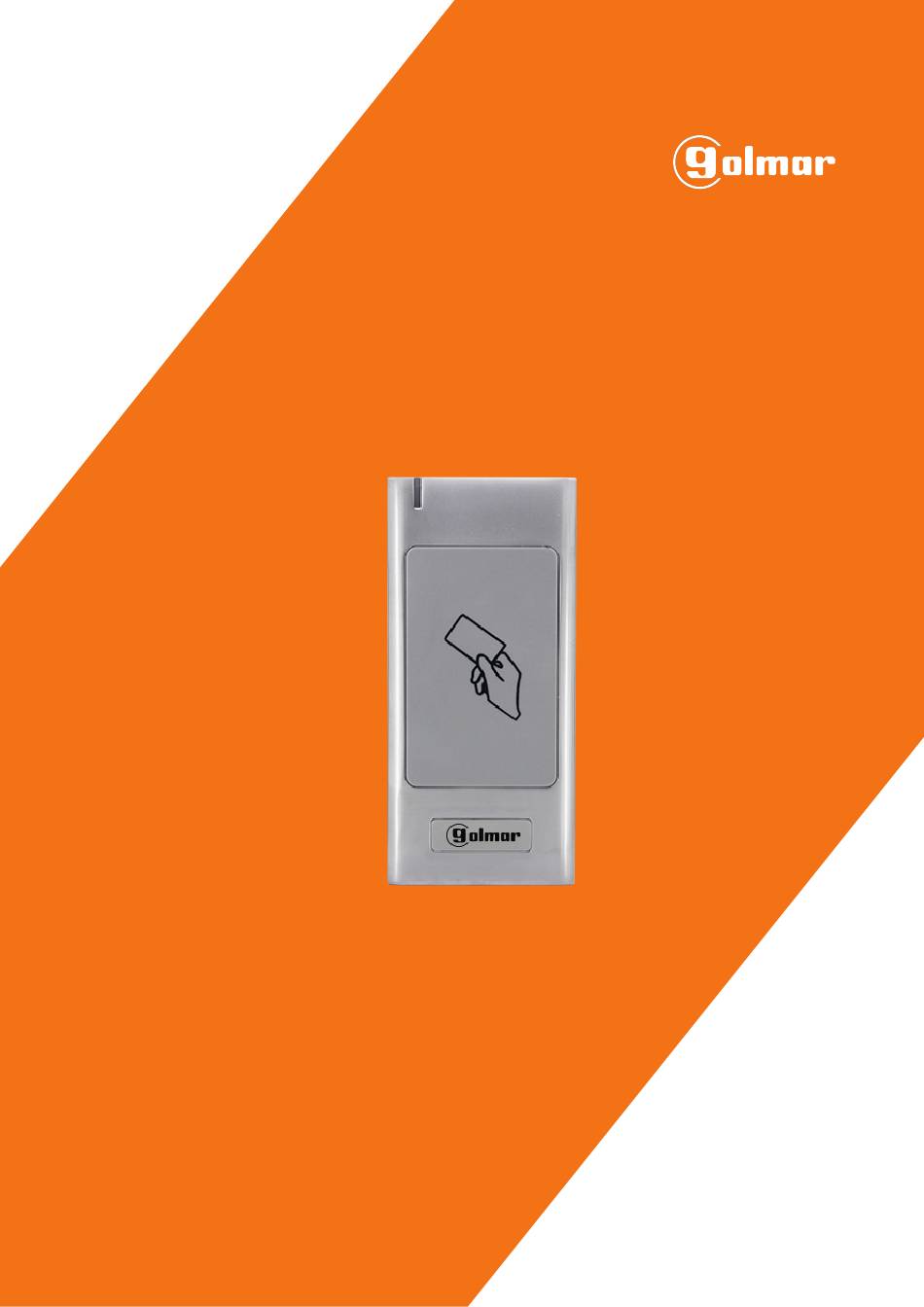

- Page 1 PROXEM INSTALLATION MANUAL IM_ENG_REV0124_PROXEM...
-
Page 2: Table Of Contents
PROXEM 1.INDEX .................................2 1.Index ..............................3 2.Introduction ..............................3 3.Specifications ..............................3 4.Product content ................................4 5.Installation ................................4 6.Connection ............................4 7.Connection diagram ............................5 8.Basic programming ...........................5 9.Advanced programming ................................9.1.Programming ............................9.1.1.Change master code ..........................9.1.2.Card registration (auto ID) ......................... 9.1.3.Card registration (specific ID) ........................ -
Page 3: Introduction
PROXEM 2.INTRODUCTION Installation manual for the PROXEM reader, stand-alone proximity reader. 3.SPECIFICATIONS Material Zinc alloy Protection degree IP-66 Input voltage 9/18Vdc Current 40mA Capacity 2000 cards Reading frequency EM 125KHz Reading range 3-6cm NO, NC, common Relay 2A max. Dimension (H x W x D):... -
Page 4: Installation
PROXEM 5.INSTALLATION Attach the reader to the mounting rail Pass the cable hose through the Drill the fixing holes in the wall (A and from top to bottom. Once attached, fix Φ 10mm hole in the central part of C) and the cable hole (B), then fit the... -
Page 5: Basic Programming
PROXEM 8.BASIC PROGRAMMING Basic programming (adding/deleting users) using the “Master Add Card” and “Master Delete Card” supplied with the product. 8.1. CARD REGISTRATION 8.2. CARD DELETION 1) Approach the “Master Add Card” to the reader. 1) Approach the “Master Delete Card” to the reader. -
Page 6: Card Registration (Auto Id)
PROXEM 9.1.2.CARD REGISTRATION (AUTO ID) Registration of cards with automatic registration. Enter administrator code APPROACH CARD MASTER CODE * 987654 # 1 APPROACH CARD # Example: 9.1.3.CARD REGISTRATION (SPECIFIC ID) Maximum number of records is 2000. User IDs from 1 to 2000. -
Page 7: 10-Minute Access Lockout
PROXEM 10.2.2.10-minute access lockout Enter administrator code MASTER CODE * 987654 # 41 # Example: The led will start flashing and the equipment will be blocked for 10 minutes. To return to the normal state, wait 10 minutes or restart the reader. -
Page 8: Status Displays
12Vdc/270mA NOTE: The AP (door release) of the intercom does not activate the door opener until the pulse of the PROXEM reader has finished. To avoid opening delays, set the minimum pulse to 1 second on the reader: Enter administrator code MASTER CODE www.golmar.es... - Page 9 PROXEM NOTES ............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................www.golmar.es www.golmar-seguridad.es...
- Page 10 PROXEM NOTES ............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................www.golmar.es www.golmar-seguridad.es...
- Page 11 PROXEM NOTES ............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................www.golmar.es www.golmar-seguridad.es...
- Page 12 Sistemas de comunicación S.A. C/ Silici 13. Poligon Industrial Famadas 08940 – Cornellà del llobregat – Spain golmar@golmar.es Tel: 93 480 06 96 www.golmar.es www.golmar-seguridad.es Golmar deserves the right for any modification without prior notice.
