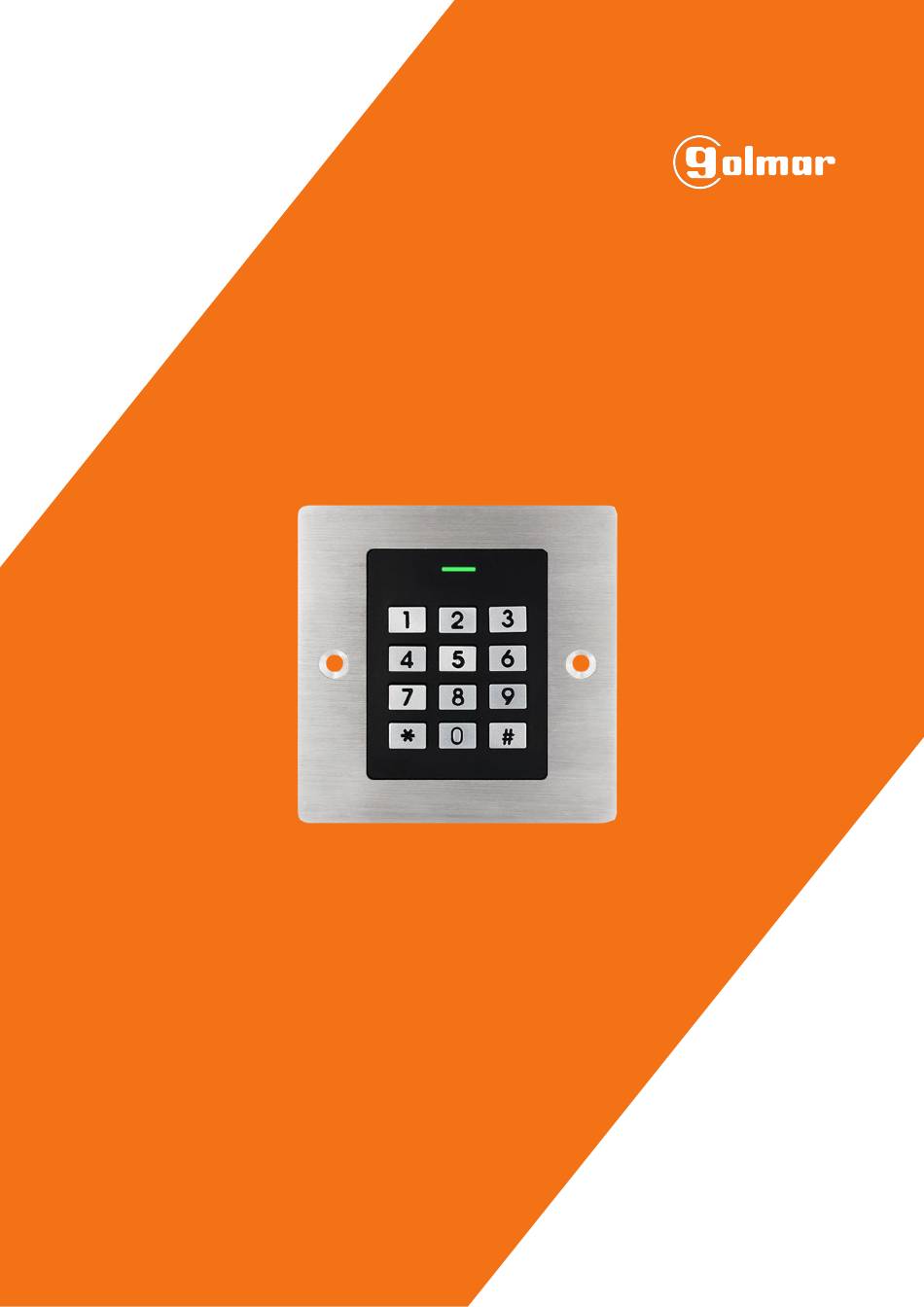

- Page 1 CODEPROX-N INSTALLER MANUAL IM_ENG_REV0122_CODEPROX-N...
-
Page 2: Table Of Contents
CODEPROX-N 1.INDEX .................................2 1.Index ..............................3 2.Introduction ..............................3 3.Specifications ..............................3 4.Product content ................................3 5.Installation ...............................4 6.Connection ........................4 7.Standalone connection diagram ............................4 8.Basic programming ............................... 8.1.User registration ................................8.2.User deletion ........................8.3.Basic programming with master card ...........................6 9.Advanced programming ................................9.1.Programming ............................ -
Page 3: Introduction
14.Types of installation ........................... 14.1. Stand-alone installation ..........................14.2.Installation on Nexa panel 2.INTRODUCTION Installation manual for CODEPROX-N reader. Proximity and PIN reader for stand-alone and slave operation. 3.SPECIFICATIONS Material Stainless steel and black ABS plastic Protection degree IP-66 Input voltage... -
Page 4: Connection
CODEPROX-N 6.CONNECTION WIRE COLOR FUNCTION DESCRIPTION 12Vdc Input 12-18V DC current Black Blue Normally open relay output Brown Common Common contact for relay output Grey Normally closed relay output Yellow Opening Exit pushbutton Green Wiegand Data 0 output White Wiegand Data 1 output 7.STANDALONE CONNECTION DIAGRAM... -
Page 5: User Deletion
CODEPROX-N 8.2. USER DELETION CARD DELETION Approach card Master code to the reader (by default: 123456) DELETION Master code (by default: 123456) (ac�va�on code 4-digit) 8.3. BASIC PROGRAMMING WITH MASTER CARD It is possible to perform basic programming using a MASTER card. To do this, a MASTER card must be created by following the procedure described in chapter “10.4. -
Page 6: Advanced Programming
CODEPROX-N 9.ADVANCED PROGRAMMING 9.1. PROGRAMMING Perform the following sequence to enter programming: Enter to administrator mode MASTER CODE (by default: 123456) IMPORTANT The reader will indicate the access to programming with the “green” lighting up and then the flashing LED in “red” . At the start of the program- ming sequence (function to be programmed) the led will be “orange”. -
Page 7: Card Deletion
CODEPROX-N 9.1.7.CARD DELETION Deletion of cards by approaching the card to be deleted. Enter administrator mode MASTER CODE APPROACH CARD * 987654 # 2 APPROACH CARD Example: 9.1.8.DELETING CARDS OR PIN (specific ID) Enter the ID corresponding to the user to be deleted. -
Page 8: Lockout Alarm
CODEPROX-N 10.4. LOCKOUT ALARM (FAILED ATTEMPTS) The lockout alarm will be triggered after 10 unsuccessful card/PIN entry attempts. The factory default is OFF, but it can be set to deny access for 10 minutes or to activate the alarm after triggering. -
Page 9: Connection Diagram With Video Door System
12Vdc/270mA NOTE: The door opener (AP) does not activate the lock release until the pulse on the CODEPROX-N reader has been finished. To avoid opening delays set the minimum pulse time to 1 second at the reader: Enter administrator mode MASTER CODE 13.WIEGAND... - Page 10 CODEPROX-N 13.2. PROGRAMMING 13.2.1.PROGRAMMING CARD Generate a user with credential type “Other (decimal)” and enter in the field “code” the ID of the card or key fob: PROKEY ID TAGKEY ID Sistemas de comunicación S.A. 0009701804 PROKEY ID 0004601388 070,16868...
- Page 11 CODEPROX-N Example with PIN code registration 4543: At this point the PIN code will be registered in iP Opener: NOTE: The use of the reader integrated in the iP Opener system implies the loss of the buzzer and led states ( there will be no visual and audi- ble confirmation on the reader of validated or denied accesses).
- Page 12 14.2. INSTALLATION ON NEXA PANEL The integration of the reader on the Nexa panel requires the use of the reader in kit format: N3000/CODEPROX-N (20700017), kit for CODEPROX-N reader mounting on Nexa Aluminium. NX3000/CODEPROX-N (20700018), kit for CODEPROX-N reader mounting on Nexa Inox.
- Page 13 Sistemas de comunicación S.A. C/ Silici 13. Poligon Industrial Famadas 08940 – Cornellà del llobregat – Spain golmar@golmar.es Tel: 93 480 06 96 www.golmar-seguridad.es Golmar reserves the right to make any changes without notice.
