Summary of Contents for twin busch TW F-00

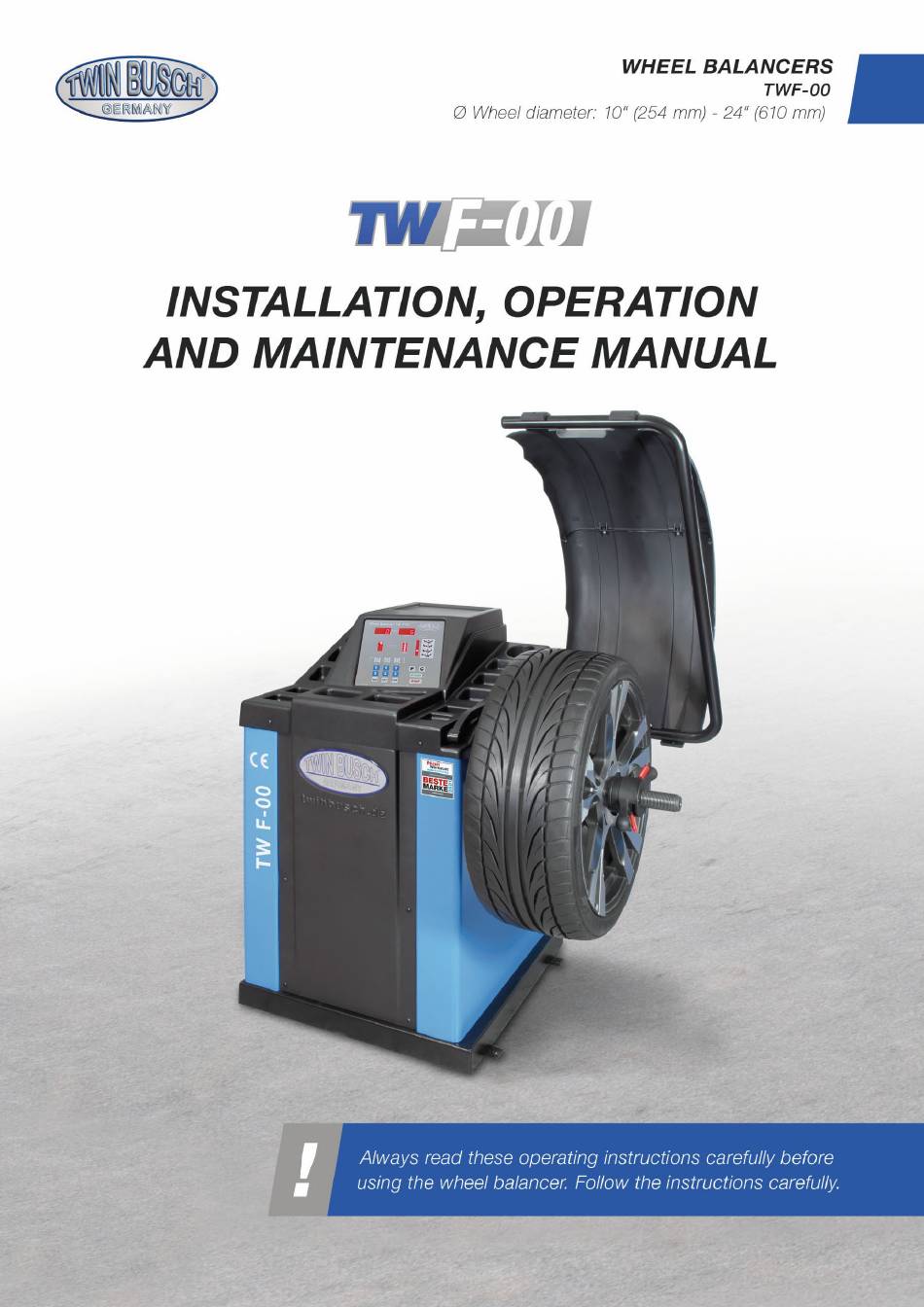

  • Page 1 Manual wheel balancer TWF-00 TWF-00_Wheel_Balancer_Manual_uk_00_20241209.pdf Version: -00, 09.12.2024...
  • Page 2: Table Of Contents

    Manual wheel balancer TWF-00 Table of contents 1. General information ............................1 2. Identification of the operating instructions...................... 1 3. Technical data ..............................1 4. Modification of the product ..........................2 5. Safety-related information ..........................2 5.1 Safety instructions ............................. 2 6.
  • Page 3 Manual wheel balancer TWF-00 Important information: ASSEMBLY You can find the assembly video for this machine https://youtu.be/q31r3E5ENEM on YouTube: or scan the QR code. PRODUCT PRESENTATION You can find the product presentation video for this machine on YouTube: https://youtu.be/KsR-IA5FKDE or scan the QR code. TWF-00_Wheel_Balancer_Manual_uk_00_20241209.pdf Version: -00, 09.12.2024...
  • Page 4 Manual wheel balancer TWF-00 CALIBRATION You can find the calibration video for this machine on YouTube: https://youtu.be/3RnXI-9hvME or scan the QR code. TWF-00_Wheel_Balancer_Manual_uk_00_20241209.pdf Version: -00, 09.12.2024...
  • Page 5 Manual wheel balancer TWF-00 TIPS & TRICKS In the "Tips & Tricks" section, we show you simple solutions, in videos to make your TWIN BUSCH® products even more efficient to work. Our technical specialist will explain the exact steps to you. https://www.twinbusch.co.uk/Tips-Tricks:_:74.html...
  • Page 6: General Information

    The semi-automatic TWF-00 tyre balancer with manual measuring programme for precise application of all hidden adhesive weights using a manual feeler arm. The TW F-00 has a 40mm shaft and an extended wheel holder for better balancing of wide tyres, e.g. Porsche, SUV, etc.
  • Page 7: Modification Of The Product

    Improper use also invalidates the CE certification and the validity of the certificate. If you require any changes, please contact your dealer or the expert staff at Twin Busch GmbH beforehand. 5. Safety-related information Read the operating instructions carefully before operating the tyre balancer. Keep the instructions for future reference.
  • Page 8: Compliance With The Product

    Manual wheel balancer TWF-00 5.3 Warnings The warning signs must be kept clean and replaced if they are damaged or missing. Please read the signs carefully and memorise their meaning for future use. 6. Conformity with the product The TWF-00 tyre balancer is CE-certified and complies with the Machinery Directive 2006/42/EC and fulfils the EN ISO 12100:2010 standard.
  • Page 9: Structure And Installation

    Manual wheel balancer TWF-00 8. Structure and installation 8.1 Ground conditions - The tyre balancer must be set up on firm concrete or a similarly solid surface; a soft or vibrating surface can cause measurement errors. - There should be a free space of 50 cm around the machine so that it can be operated comfortably. The safety regulations for the work area must also be observed.
  • Page 10 Manual wheel balancer TWF-00 b) You can place the remaining cone on the shaft. c) Place the clamping pot with tamping rubber on the wing nut. Then place the wing nut on the shaft. Illustration: Wing nut 7) Fit the protective hood bracket. From the front, use the left hole.
  • Page 11: Commissioning

    Manual wheel balancer TWF-00 9. Commissioning 9.1 Safety precautions a) If the safety devices are defective or show abnormalities, the machine must not be put into operation under any circumstances! b) Check that all connections are tight and functional. 9.2 Description of the keyboard on the monitor 1 Display of the inner imbalance position 10 EMERGENCY STOP button 2 Display of the external imbalance position...
  • Page 12: Button Function

    Manual wheel balancer TWF-00 9.3 Button function ↑a or ↓a Distance setting (dimension "a") ↑b or ↓b Width setting (dimension "b") Diameter setting (dimension "d") ↑d or ↓d Set new values Displays unbalance values below 5 g FINE Static Dynamic ALU Dynamic Self-calibration F + C...
  • Page 13 Manual wheel balancer TWF-00 3. Press F + C 4. Close the hood and press START. 5. Wait until the machine brakes and open the hood. 6. Add a 100 g weight to the outside in any angle position. 7. Press START . 8.
  • Page 14: Wheel Balancing Programmes

    Manual wheel balancer TWF-00 10. Wheel balancing programmes 10.1 Balancing programmes The available balancing programmes show where the correction weights should be placed. Steel or lightweight aluminium rims by attaching clamping weights on the rim edges. Balancing of rims with unusual shapes. Balancing lightweight aluminium rims by attaching adhesive weights on the rim edge.
  • Page 15: Inconsistent Unbalance Values

    Manual wheel balancer TWF-00 5. Press START. Right display: Percentage value of the possible reduction of the imbalance value in relation to the current condition of the wheel. Left display: Current static imbalance value in grams. This is the value that can be reduced by rotating the tyre and rim.
  • Page 16: Adjusting The Machine

    Manual wheel balancer TWF-00 11. Adjusting the machine 11.1 Checking and setting the STATIC values (STI) Perform self-calibration Wheel balancing Balance tolerance: 1 g Select STATIC. Apply 100 g to the inside of the rim. Start the balancing process. If the STATIC value is Select the Machine parameter setting inside between 98 and 102 g? function.
  • Page 17 Manual wheel balancer TWF-00 11.2 Checking and adjusting the unbalance position Perform self-calibration Wheel balancing Balance tolerance: Attach 100 g to the outside the rim and start the balancing process. If the counterweight is Select the function Setting the machine positioned at 6 o'clock? parameter, as described in point 4.2.
  • Page 18 Manual wheel balancer TWF-00 11.3 Check distance values and calibration (DF) Checking and calibrating the static value (DF) With 100 g on the inside (F.I.), the measured unbalance value is in dynamic mode: 100 g ± 5 g F.E. ≤ 5 Select "Machine Parameters", to adjust the "DF"...
  • Page 19: Troubleshooting

    12. Troubleshooting Please note: Do not hesitate to contact the expert staff at Twin Busch GmbH if you are unable to rectify a fault yourself. We will be happy to help you solve the problem. In this case, please document the fault and send us pictures and a precise description of the fault so that we can identify and rectify the cause as quickly as possible.
  • Page 20: Maintenance

    Manual wheel balancer TWF-00 13. Maintenance Disconnect the machine from the power supply before carrying out maintenance work! 13.1 Adjusting the flat belt tension Slightly loosen the motor fastening screws. Then move the motor this far, until the flat belt is correctly tensioned. Carefully retighten the motor fastening screws. Make sure that the belt does not run down to the side during operation.
  • Page 21: Correct Handling Of The Quick-Release Nut And Threaded Axle

    However, this is unavoidable and does not lead to faster wear of the axle. Both parts (quick-release nut and threaded axle) can be ordered from your TWIN BUSCH service centre. Please let us know the diameter of the thread axis in millimetres.
  • Page 22: Appendix

    Manual wheel balancer TWF-00 14. Appendix 14.1 Dimensions of the tyre balancer Page | 17 Misprints, errors and changes excepted.
  • Page 23: Detailed Drawing And Parts Description

    Manual wheel balancer TWF-00 14.2 Detailed drawing and parts description Page | 18 Misprints, errors and changes excepted.
  • Page 24 Manual wheel balancer TWF-00 Page | 19 Misprints, errors and changes excepted.
  • Page 25 Manual wheel balancer TWF-00 Name Quantity S/N Name Quantity Manual ASM Ruler Frame 800 Tension spring for ruler Switches Snap pin Cover Ruler handle Wire tube Base screw M6x20 Support plate 1 for shielding Spring for drive shaft Socket for shielding shaft Drive shaft Locked socket Microswitch...
  • Page 26 Notes...
