Summary of Contents for LXNAV DAQ+

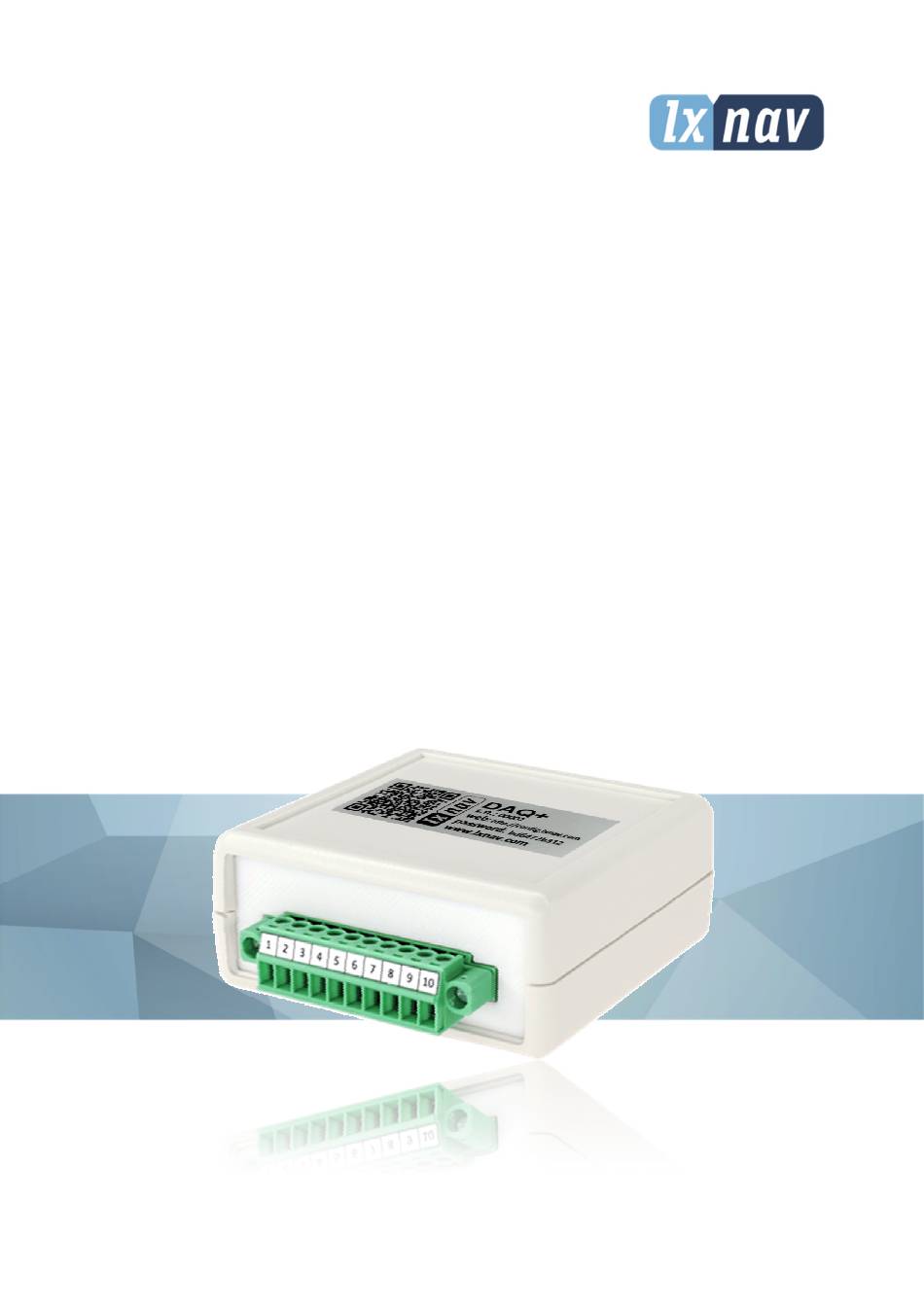

- Page 1 INSTALLATION MANUAL DAQ+ Version 1.00 February 2025 www.lxnav.com...
-
Page 2: Table Of Contents
Rev #1 Version 1.00 January 2025 Important Notices Limited Warranty Packing list Dimensions Installation Connecting sensors Connecting battery monitor Configuration Configuring sensors Configuring battery monitor Using internal Wi-Fi hotspot Sensors examples Oxygen bottle sensor concept with WIKA MH-2 Revision history Page 2 of 14... -
Page 3: Important Notices
This LXNAV DAQ+ product is warranted to be free from defects in materials or workmanship for two years from the date of purchase. Within this period, LXNAV will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labour, the customer shall be responsible for any transportation cost. -
Page 4: Packing List
Rev #1 Version 1.00 January 2025 2 Packing list 1x DAQ+ • 1x Terminal block plug 12pin • 3 Dimensions Page 4 of 14... -
Page 5: Installation
Rev #1 Version 1.00 January 2025 4 Installation Inside DAQ+ a Bluetooth antenna is built-in which is used to communicate with battery monitors. If a battery monitor is also installed in tail battery, it is recommended to install DAQ+ behind the pilot seat. On front side you will find D-Sub 9-pin connector, which connects to RS485 bus. -
Page 6: Connecting Sensors
Rev #1 Version 1.00 January 2025 4.1 Connecting sensors Picture below illustrates how to connect sensors. Up to four voltage sensors can be connected to DAQ+. Once sensors are connected you can configure them directly on your main device or through web-interface, which is described in Chapter 5.1 Maximum input voltage for analog input is 12.0V on any of four channels. -
Page 7: Configuration
Rev #1 Version 1.00 January 2025 5 Configuration 5.1 Configuring sensors On main device open Setup -> Hardware -> Analog inputs dialog. Select analog input, you would like to configure and press SETUP button. In left list you should enter at least two rows which will map analog input values in output value. -
Page 8: Using Internal Wi-Fi Hotspot
In third section you can set up input type, which is also setupable on LX90xx device. In the future we might add other settings as well. Use last section to update DAQ+ device using new firmware file, which you can download from our webpage www.lxnav.com or was sent to you with an email. -
Page 9: Sensors Examples
Rev #1 Version 1.00 January 2025 6 Sensors examples 6.1 Oxygen bottle sensor concept with WIKA MH-2 Page 9 of 14... - Page 10 Rev #1 Version 1.00 January 2025 Page 10 of 14...
- Page 11 Rev #1 Version 1.00 January 2025 Page 11 of 14...
- Page 12 Rev #1 Version 1.00 January 2025 Snips has been taken from the Wika MH-2 dataheet (WIKA Alexander Wiegand SE & Co. KG) Page 12 of 14...
-
Page 13: Revision History
Rev #1 Version 1.00 January 2025 7 Revision history Date Comment February 2025 Initial release based on DAQ manual Rev #3 Page 13 of 14... - Page 14 Rev #1 Version 1.00 January 2025 Page 14 of 14...
