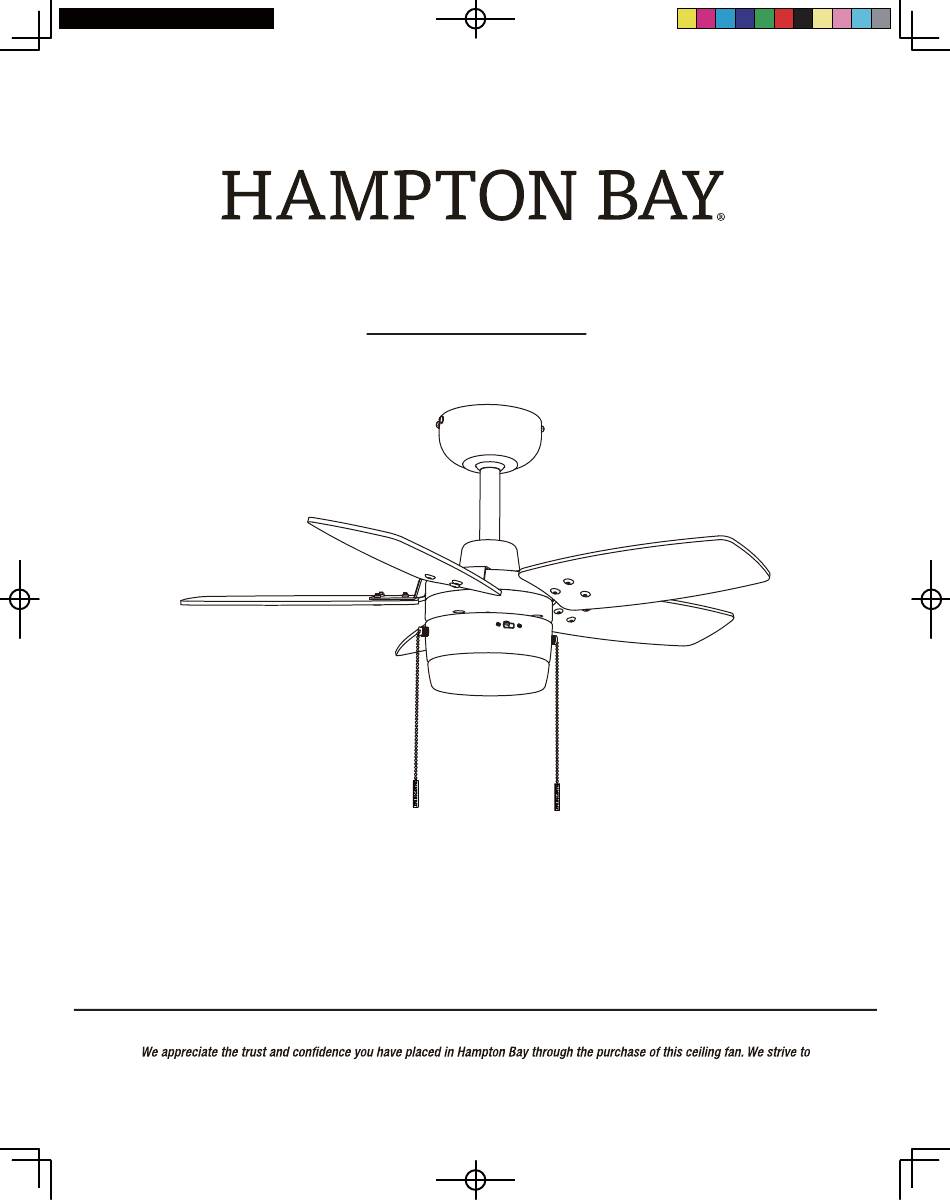

USE AND CARE GUIDE
WATERLY 32 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your
home improvement needs. Thank you for choosing Hampton Bay!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WATERLY 63086-BZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HAMPTON BAY WATERLY 63086-BZ

  • Page 1 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
  • Page 2 WARNING: To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed control device. CAUTION: To reduce the risk of injury to persons, the fan must be mounted with a minimum of 7 feet clearance from the trailing edge of the blades to the floor WARNING: To reduce the risk of fire, electric shock or injury...
  • Page 3 The retailer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for the lifetime of the fan motor for the original purchaser. The retailer warrants that the light kit, excluding any glass, to be free from defects in workmanship and material at the time of shipment from the factory for a period of three years after the date of purchase by the original purchaser.
  • Page 4: Package Contents

    PACKAGE CONTENTS NOTE: Unpack your fan and check the contents. You should have the following items listed below Part Description Quantity Mounting bracket Ceiling canopy Fan motor with switch housing (with blade holder screws pre-installed) Set of blade holders Set of blades Glass shade Pull chain pendant 6 in.
  • Page 5 Determining mounting method Installing the fan body Remove the mounting bracket (A) from the canopy (B) by WARNING: To reduce the risk of fire, electric shock, or loosening the two canopy screws and star washers located in personal injury, mount to outlet box marked acceptable for the L-shaped slots.
  • Page 6: Attaching The Fan Blades

    Attaching the fan blades Installing the mounting bracket NOTE: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped ceiling. The maximum angle allowable is 18° away from the pitch of the ceiling. Mount the blade holders (D) to the fan blades (E) using the hex screws (AA) and install with the Allen key (CC) provided REMEMBER to turn off the power.
  • Page 7: Making The Electrical Connections

    Making the electrical connections Figure 11 If you feel that you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician. Make sure there are no loose strands or connections. Use the plastic wire nuts (BB) supplied with your fan and secure the connectors with electrical tape.
  • Page 8: Finishing The Installation

    Finishing the installation Installing the light kit WARNING: When using the standard ball/downrod mounting, the tab in the ring at the bottom of the mounting bracket must rest in the groove of the hanger ball. Failure to properly seat the tab in the groove could cause damage to the wiring.
  • Page 9: Balancing The Blades

    Attaching the pull chain extensions Balancing the blades Attached the pull chain extensions (G) provided to the fan All blades are grouped by weight. Because natural wood varies in and light kit pull chain. (Figure 14) density, the fan may wobble even though the blades match in weight.
  • Page 10: Operation

    Operation Operating *NOTE: Wait for the fan to stop before changing the setting The slide switch controls the direction the fan rotates: forward (switch of the reverse switch. left) or reverse (switch right).* The pull chain controls the fan speed as follows: 1 pull - High, 2 pulls * Warm weather - (Forward) A downward air flow creates a cooling - Medium, 3 pulls - Low, and 4 pulls - Off.
  • Page 11 Here are some suggestions to help you maintain your fan: Some connections may become loose because of the fan's natural movement. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove the fan from the ceiling.) Clean your fan periodically to help maintain its new appearance over the years.
  • Page 12 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
  • Page 13: Guía De Uso Y Cuidado

    ¿Preguntas, problemas o piezas faltantes? Antes de devolverlo a la tienda, llamar al Servicio al Cliente de Hampton Bay de lunes a viernes, entre 8:00 a.m. a 7:00 p.m. (hora del Este), y los sábados de 9:00 a.m. a 6:00 p.m. (hora del Este) 1-855-HD-HAMPTON HAMPTONBAY.COM...
  • Page 14 ADVERTENCIA: Para reducir el riesgo de incendio descarga eléctrica o lesiones personales, no utilice piezas de repuesto que no hayan sido recomendadas por el fabricante (por ejemplo, piezas fabricadas en casa con una impresora 3D). 63086-BZ/BN RO4M...
  • Page 15 El distribuidor garantiza al comprador original que el motor del ventilador no contiene defectos de mano de obra ni de materiales en el momento del envío desde la fábrica durante la vida útil del motor del ventilador. El distribuidor garantiza, por un período de tres años a partir de la fecha de adquisicion por le comprador original, que el kit de luces, sin incluir ningun vidrio, no presentará...
  • Page 16 Pantalla de la lámpara 6 in. unidad de la vara Cubierta de la barra de suspensión 63086-BZ/BN...
  • Page 17 Retire el soporte de montaje (A) de la campana (B) aflojandolos dos tornillos y las arandelas de estrella de la campana ubicados en las ranuras en forma de L. Retire los dos tornillos y las arandelas de estrella de la campana en los orificios redondos y guárdelos para el uso posterior.
  • Page 18: Instalación Del Soporte De Montaje

    Instalación (continuación) Instalación de las aspas del Instalación del soporte de montaje ventilador NOTA : Puede necesitar un vástago de extensión para mantener un espacio libre de aspa adecuado cuando instale sobre un techo inclinado. El ángulo máximo permitido es de 18°...
  • Page 19 Figura 11 Siga los pasos a continuación para conectar el ventilador al cableado eléctrico de su vivienda. Utilice las tuercas para cables de plástico (BB) suministradas con el ventilador y asegure los conectores con cinta aislante. Asegure los conectores con cinta aislante.
  • Page 20: Finalización De La Instalación

    Instalación (continuación) Finalización de la instalación ADVERTENCIA : Cuando uses el montaje de tubo bajante/bola estándar, la pestaña en el aro en la parte inferior del soporte de montaje debe encajar en la ranura de la bola de soporte. Si la pestaña no se asienta correctamente en la ranura, se puede dañar Instale la pantalla de la lámpara (F) en el montador de la el cableado.
  • Page 21 Cómo instalas las extensiones de cadena Cómo equilibrar las aspas del interruptor Todas las aspas están agrupadas por peso. Debido a que las Conecta las extensiones de cadena de interruptor (G) maderas naturales varían en densidad, el ventilador puede suministradas a las cadenas de los interruptores del bambolearse aunque las aspas coincidan en peso.
  • Page 22 La cadena controla la velocidad del ventilador como sigue : El interruptor deslizante controla la dirección en que gira el ventilador: adelante (interruptor a la izquierda) o atrás (interruptor 1 tirón - Alta, 2 tirones - Media, 3 tirones - Baja, y 4 a la derecha).* tirones - Apagado.
  • Page 23 Algunas conexiones pueden aflojarse debido al movimiento natural del ventilador. Revise las conexiones del soporte, soportes y acoplamientos de las aspas dos veces al año. Asegúrese de que estén seguras. (No es necesario retirar el ventilador del techo.) Limpie su ventilador periódicamente para ayudar a mantener su apariencia nueva con el paso de los años. Use solamente un cepillo suave o paño sin pelusa para evitar rayar el acabado.
  • Page 24 ¿Preguntas, problemas o piezas faltantes? Antes de devolverlo a la tienda, llama al servicio al cliente de Hampton Bay entre 8:00 a.m. y 7:00 p.m. (hora del Este) de lunes a viernes o los sábados entre 9:00 a.m. y 6:00 p.m. (hora del Este).
