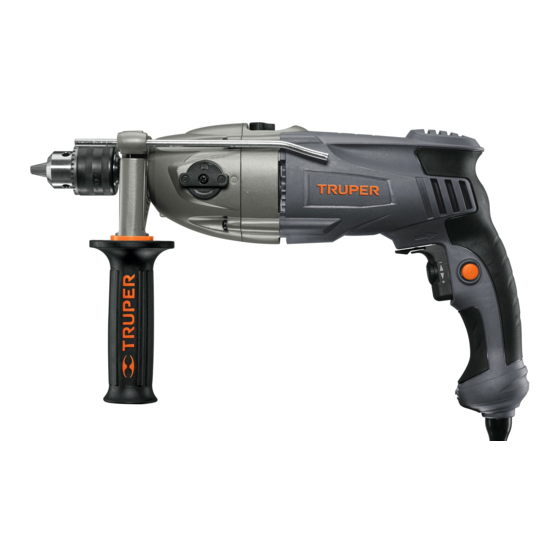

- Page 1 Manual Hammer drill 1.6 Hp 1/2” Power Chuck Applies for Code Model 16666 ROTO-1/2NX2 ROTO-1/2NX2 Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Contents WARNING Technical data Power requirements To gain the best performance of the tool, prolong the duty life, General power tool safety warnings make the Warranty valid if necessary and to avoid hazards Safety warnings for drills and hammer drills or fatal injuries please read and understand this Manual before Parts... -
Page 3: Technical Data
Technical Data ROTO-1/2NX2 Code 16666 Description Hammer drill Chuck 1/2” Voltage 127 V Frequency 60 Hz Current Power 1.6 Hp Functions Hammer drill - Drill Speed Position 1: 0 - 1 400 RPM Position 2: 0 - 3 300 RPM... -
Page 4: General Power Tool Safety Warnings
General power tool safety warnings WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Drills And Hammer Drills
Safety warnings for drills and hammer drills Choose the right bit While operating the hammer drill CAUTION • Choose the right bit for the work piece. • Use the auxiliary handles, if supplied with the tool. It reduces the risk of severe injury and makes the job easier. Loss of control may result in personal injury. -
Page 6: Parts
Parts Depth Multi-function control rod selector Handle Chuck Lock-on button Mechanical Variable speed speed gearing control trigger selector Forward / reverse control switch Auxiliary handle Switch light Power cord Power cord protector Chuck wrench Preparation Auxiliary handle and depth control rod Assembly. -
Page 7: Start Up
Preparation Bit Fitting Chuck • Put the bit into the chuck until it stops. Fasten with the chuck wrench and tighten alternately the chuck into each of the orifices. WARNING Clean off the bit and chuck burrs and any other debris. Otherwise the bit would not be properly fastened and cause severe personal injury. -
Page 8: Maintenance
Start-up Speed control • The tool can run in different speeds. Select by adjusting speed control (D) in the switch. • Turn speed control clockwise to increase the hammer drill speed and torsion. • Turn counterclockwise to lessen speed and torsion. Changing from hammer drill to drill •... - Page 9 Maintenance Cleaning and care • To guarantee an adequate motor cooling, always keep slots clean and free of obstructions. • Regularly inspect all the mounting screws. Double-check they are properly tighten. If any screw is loose tighten immediately. Service • Service should only be made in a Authorized Service Center.
-
Page 10: Notes
Notes ENGLISH... -
Page 11: Authorized Service Centers
Authorized service centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 018-7873 to get information about the nearest Service Center. -
Page 12: Warranty Policy
06060, where you can also purchase parts, components, consumables and accessories. The costs of transportation of the product that derive from its fulfillment of its service network are included. Truper will not require any proof of purchase to make the warranty effective. Phone number 800-018-7873. Made in China.
