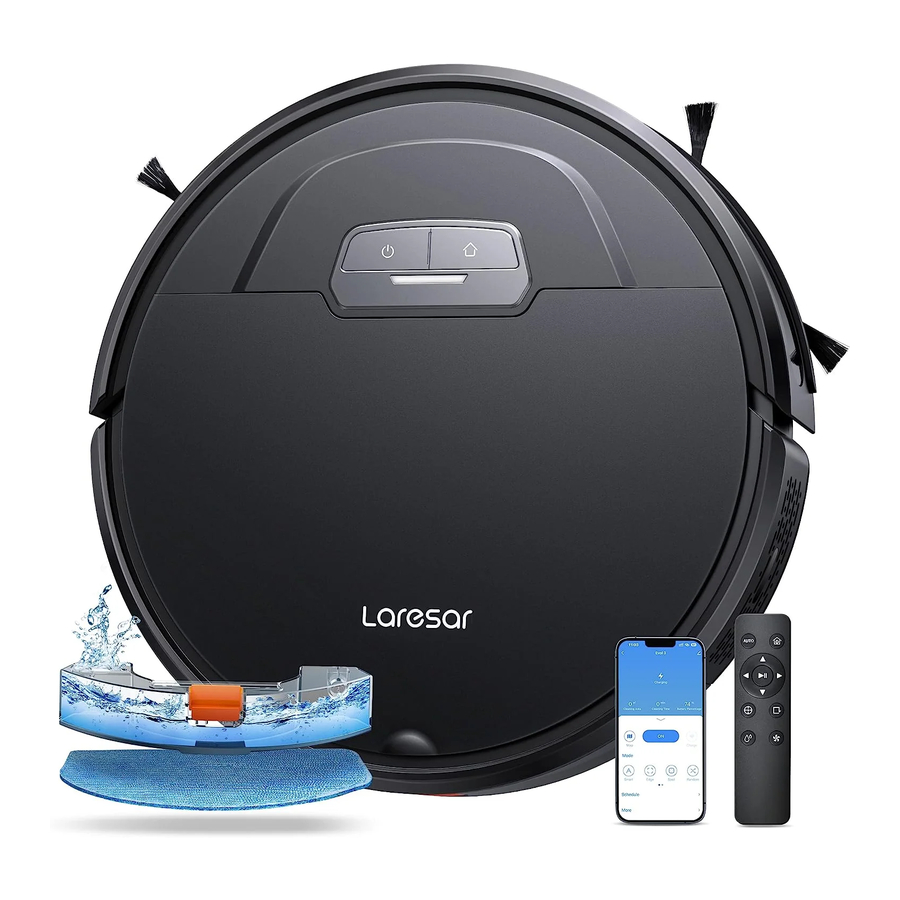

Laresar Evol 3 Manual

Packing List

Basic Parameters

Robot	Specification
Product Model	Evol 3
Dimensions	320 x 320 x 76 mm
Battery	3200 mAh
Rated voltage	14.4V
Rated power	42W
Charging time	300mins
Dust box capacity	450ml
Water tank capacity	250ml
Charging dock	Specification
Dimensions	158 x147 x84 mm
Rated input	19V 0.6A
Rated output	19V 0.6A

Product Introduction

Remote Control

Note: Set High, robot says 3"Di". Middle, robot says 2"Di". Low, robot says 1"Di".

Sensor and its Structure

1. Top Cover
2. Button
3. Bumper
4. Infrared Anti-Collision Sensor
5. Infrared Light Receiving Sensor

1. Cliff Sensor
2. Charging Contact
3. Universal Wheel
4. Side Brush
5. Battery Cover
6. Drive Wheel
7. Rolling Brush
8. Installation Hole for Mopping Cloth Holder

Electric Control Water Tank and Rag Components

1. Water Inlet
2. Water Tank Button
3. Mopping Cloth Holder
4. Mopping Cloth

Charging Station

1. Power Indicator
2. Signal Transmitting Area
3. Power Interface
4. Charging Pins

Preparation

Precautions

• Before starting the vacuum cleaner, clean up wires and sundries scattered on the ground, and remove easy-to-fall, fragile, valuable and potentially dangerous items. Avoid being entangled, jammed, dragged, or knocked down by the robot; otherwise, personal or property damage may be caused.

• Do not use the robot to vacuum liquid. otherwise it will damage the fan and affect the performance of the robot.

• When used in a suspended circumstance, it shall be protected by rails to avoid accidental falling or pushing other articles from falling.


1. Remove the protection material from both sides of the robot

2. Install side brushes
   • Put the left brush (L) and right brush (R) against the letters L and R on the bottom respectively; move down for "click" to finish installation.

3. Take out and place the dust collection charging base on a flat floor against the wall and tidy up the redundant wires.

4. Ensure space more than 0.5m from the left and right to the charging base and 1.5m in front of the charging base.

   Note:
   • Ensure a space more than 0.5 m from the left and right of the charging dock and 1.5 m in front of the charging dock.
   • The power line perpendicular to the ground may be dragged by the robot, resulting in the dock power-off.
   • The charging indicator is kept on when electrified.
5. Do not move the charging base at will, avoid direct sunlight on the charging base.

   Note:
   • Sunlight may interfere signals of return-for-charging, and then the robot fails to return back to the charging dock.
6. Power on and charging
   • Hold the button to power on the machine. When the indicator is on, put the robot against the charging dock for charging. The voice of "start charging" prompts successful charging.

     Note:
   • The machine cannot power on in case of insufficient battery. Please place the robot on the dock to allow automatic power on.

Use Instructions

Power on and off the machine

• Tap and hold the button for 3 seconds to power on the machine. Then, the power indicator is on, and the vacuum cleaner enters the standby state. Tap and hold the button for 3 seconds to power off the machine.
• Note: The robot in the charging state cannot be powered off.

Cleaning/Pause

Once the machine powers on, tap the button on the robot or use the controller or the smart APP to start cleaning.

Note:

• The machine cannot clean liquid.
• If the power is lower than 15%, the machine cannot work. Therefore, charge the machine before cleaning.
• If the power is lower than 15% during cleaning, the machine will automatically return back to the dock for charging.
• Before cleaning, tidy up all kinds of wires on the ground (including the power cord of the dock). Otherwise, the machine may drag the wires while cleaning, which may cause power failures of other electric appliance or damage items or wires.

Charging

Auto mode: After cleaning, the robot automatically returns to the dock for charging.

Manual mode: In the pause state, press the button to activate the "return for charging" mode or use the controller or the smart APP for charging.

Virtual wall

The magnetic strip can be set to separate restricted zones (such as washing rooms and kitchens).

Note: Fix the magnetic strip to the ground to avoid peeling off; otherwise affecting the result of the visual wall.

Automatic cleaning

Upon power on, the machine plans its cleaning route in a zigzag way and finishes cleaning the whole room in an orderly and efficient manner. Once cleaning ends, the machine will automatically return to the dock for charging (cleaning mode by default).

Spot cleaning

Use the button on the controller so that the machine will take itself as a center to sweep a round zone with the diameter of 1.2 m. Upon cleaning, the robot will automatically return to the starting point and stop work. (The direction key on the smart APP can also be used to manually control the machine to the cleaning position.)

DND mode

No voice prompt in DND mode. Use the smart APP to enable or disable the DND mode.

Scheduled cleaning

Use the smart APP to set the time for cleaning. The robot will start cleaning automatically at the scheduled time. Upon cleaning, it will return to the dock for charging (7x24h scheduling supported).

Spot cleaning

Use the button on the controller so that the machine will take itself as a center to sweep a round zone with the diameter of 1.2 m. Upon cleaning, the robot will automatically return to the starting point and stop work.(The direction key on the smart APP can also be used to manually control the machine to the cleaning position.)

Edge cleaning

• For indoor cleaning, the machine normally sweeps along a fixed object (such as walls). On ce cleaning finishes along all sides, it returns to the charging dock.
• Press the button of on the controller or use the smart APP to quickly enable the side cleaning function.


Suction control

• Use the smart APP to select the strong, normal and quiet modes (normal by default).
• Use the smart APP to select the high, medium and low modes (medium by default).

Routine Maintenance

Roller brush

(Recommended cleaning frequency: weekly)

1. Flip the machine, press the buckle on the roller brush cover, and remove the roller brush cover.

2. Remove the roller brush.

3. Use the cleaning brush that comes with the machine to remove the dust in the main brush and the roller brush cavity, and then clean the objects entangled on the roller brush.


Side brush

(Recommended cleaning frequency: weekly)

1. Flip the machine, and pull out the side brushes vertically
2. Remove the entangled hair and dirt, and then reinstall the side brushes.
3. Align the left side brush (L) and right side brush (R) with the letters L and R on the bottom cover, and press the side brushes to reinstall them.

Note: It is recommended that you replace the side brushes every 3 months to ensure the cleaning effect.

Dust box and filter

(Recommended cleaning frequency: after each cleaning)

1. Remove the machine cover, lift the handle of the dust box, and take out the dust box.

2. Press the switch of the dust box, open the dust box, and dump.


Clean the dust box

1. After the machine is used for a long time, remove the filter gauze and HEPA filter.
2. Put the removed prefilter and dust box under the faucet for washing (the HEPA filter cannot be washed by water).
3. Remove the water droplets, and dry the filter and dust box thoroughly before use. Press the switch of the dust box, open the dust box, and dump.


Note:

• Use clean water for washing, and do not add any detergent.
• Do not use a brush or fingers to clean the filter.
• Dry the filters thoroughly for at least 24 hours.
• It is recommended that you replace a set of filters every 3 months.

Clean the infrared anti-collision sensor

(Recommended cleaning frequency: monthly)

Clean the cliff sensor

(Recommended cleaning frequency: monthly)

Clean the charging contact

(recommended cleaning)

Upgrade the firmware

Start the smart phone app, and enter the firmware upgrade page. After the new firmware is detected, follow the instructions to upgrade the firmware. To upgrade the firmware, the power must be equal to or greater than 50%. It is recommended that you place the machine on the docking station for upgrade.

Clean the signal transmission zone

(Recommended cleaning frequency: monthly)

Battery

• Machine is equipped with a high-performance rechargeable lithium battery pack. To maintain battery performance, keep the machine in charging state in daily use.
• If you do not use the machine for a long time, power it off and store it properly. Charge the machine at least once every 3 months to avoid damage to the battery due to excessive discharge.

Common Problems

Troubleshooting

If you have any questions please email to support09@laresar.us

SAFETY INSTRUCTIONS

Use Restrictions

• This machine is only used for floor cleaning at home. Please do not use it outdoors (such as an open balcony), in non-ground areas (such as a sofa), and in commercial or industrial environments.
• Do not use the machine in suspended environments without protective fences, such as duplex floors, open balconies, and the top of the furniture.
• Do not use the product in an environment where the temperature is above 40°C or below 0°C, or there are liquids and viscous objects on the ground.
• Hang up the ground cable at home before use to avoid dragging the cable when the machine is running.
• Put away the fragile objects and sundries (such as vases and plastic bags) on the ground. Otherwise, the machine may be blocked or a slight collision may cause damage to valuables at home.
• Keep the machine away from people (including children) with physical, mental or sensory impairments.
• Do not allow children to use the machine as a toy. Please keep children and pets away from the machine when the machine is running.
• Keep the cleaning brush at a place that cannot be reached by children.
• Do not place any object (including children and pets) on the stationary or moving machine.
• When the machine is working, keep the hair of humans or pets or fingers far away from the suction port of the machine.
• Do not use the machine to clean-burning objects, such as unextinguished cigarette butts.
• Do not use the machine to clean long-haired carpets. Some dark carpets may not be cleaned normally.
• Do not use the machine to vacuum hard or sharp objects, such as decoration waste, glass, and iron nails.
• Please clean or maintain the machine and docking station when the machine is powered off or when the power supply is disconnected.
• Do not use a damp cloth or any liquid to wipe any part of the machine.
• Do not use the mopping function on the carpet or the top of the furniture.
• Please follow the instructions in this manual when using the machine. The user should be liable for any loss and injury caused by improper use.

Battery and Charging

• Do not use any third-party batteries, docking stations, or chargers.
• Do not disassemble, repair, or modify the battery or docking station without permission.
• Do not place the docking station near heat sources, such as radiators.
• Do not use a damp cloth or wet hands to wipe or clean the docking station shrapnel.
• Dispose of used batteries properly, and send them to professional recycling agencies.
• If the power cord is damaged or broken, stop using it immediately and buy a new one through official channels.
• To transport the machine, ensure that the machine is powered off. It is recommended that you use the original box for packaging.
• If you do not use the machine for a long time, power it off and keep it in a dry and cool place. Charge the machine at least once every 3 months to avoid damage to the battery due to excessive discharge.
