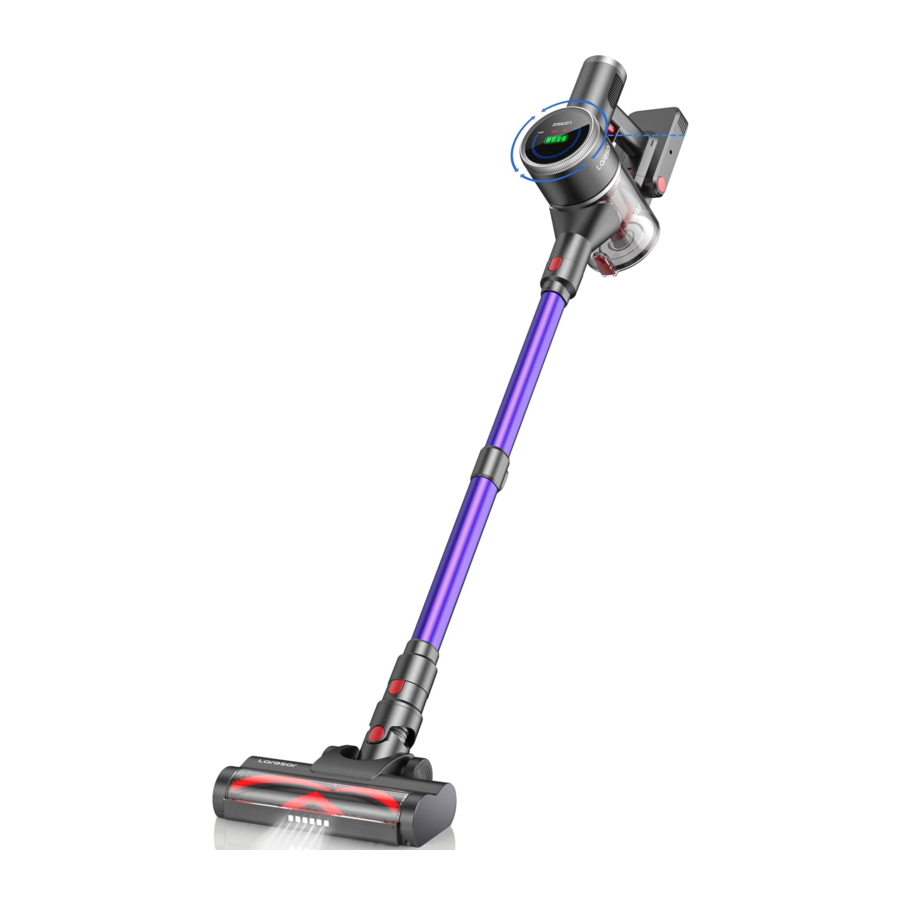

Laresar Elite 5 Manual

PACKAGE CONTENT

Please check and confirm the accessories and parts according to the following sheet before using.

OVERVlEW & ACCESSORIES

Digital Display Screen

1. Suction Power Indicator
2. Auto Mode
3. Dust Full Indicator
4. Floor Brush Block Indicator
5. Highest Power
6. Power Indicator

ASSEMBLlNG & WALL MOUNTING

Product Assembling

Install the Battery Pack

Install Cleaning Accessory

Wall Mount

Hold the charging wall mount against the wall through the Three fixing screw holes and fix it onto the wall with screws, and then hang the vacuum cleaner on the wall.

• Please make sure there is no gas, water or electrical cables and wires behind the mounting area.
• To avoid the dock dropping down, please make sure it must be installed firmly.


HOW TO USE

Before use, make sure that

• The battery is fully charged, and fixed in place.
• The dust cup and filters are cleaned, dried, and fixed in place.

Start to Work

Press the switch button, the appliance will start to work. Press the button again to shut down the appliance.

Select Cleaning Mode

• Power on, AUTO shows blue, for "Automatic" Mode.
• Adjust the knob clockwise to the right to enter the "Manual" Mode, AUTO shows white.
• Set to the highest gear, MAX shows red.
• Counterclockwise to the lowest gear back to "Automatic" Mode, AUTO becomes blue light.
• MAX red light state clockwise adjustment, back to "Automatic" Mode, AUTO light shows blue.

Abnormal Indicator

Charging Methods

Charging Indicator

• The battery indicator will flash blue when charging, and will be steady blue when fully charged.

• When charging, the 4 green light cycle flashing.


MAlNTENANCE

Please clean it regularly to prolong the service life of the vacuum cleaner.

Main Body Cleaning

• Turn off the power before cleaning the body.
• Please use a neutral detergent, wipe the body with half-wet cloth. Please avoid sun exposure and store in a cool and dry place.

Dust Cup & Filter Cleaning

Empty the Dust Cup

• Press the dust cup release button to empty the dust.
• When using, if the garbage in the dust cup exceeds MAX line, please empty it in time.

Clean the Dust Cup & Filter

• The dust cup release lever is pulled back and the dust cup can be disengaged and unlocked for cleaning.

Note:

• After long periods of use, the bristle may be jammed by hair or similar build-up. It's recommended to clean the brush roller periodically to ensure efficient operation and maintain suction.


SPEClFlCATlON

Product	Cordless Vacuum Cleaner
Model	Elite 5
Rated Voltage	25.9V
Cleaning Modes	Manual/Automatic

TROUBLESHOOTlNG

IMPORTANT SAFETY WARNING

ATTENTION: Before using this machine, please read all instructions in the manual and cautionary markings on the machine carefully.

Precautions When Using

1. This Laresar machine is not intended for use by persons (including children) with reduced physical, sensory or reasoning capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
2. Use only as described in this Laresar User Manual. If the machine is not working as it should, if it has received a sharp blow, if it has been dropped, damaged, left outdoors, or dropped into water, do not use and contact the Laresar Support Team.
3. Suitable for dry locations ONLY. Do not install, charge or use this machine outdoors, in a bathroom or within 10 feet (3 meters) of a pool. Do not use on wet surfaces and do not expose to moisture, rain or snow.
4. When using this machine, please keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts. Do not point the hose, aluminium alloy tube or other accessories at your eyes or ears or put them in your mouth.
5. Do not use to pick up hard objects, such as glass slag, needles, nails, etc.
6. Do not touch the charger with wet hands to avoid electric shock.
7. Use only Laresar recommended accessories and replacement parts.
8. Do not use without the dust cup and filter(s) in place.
9. When removing or replacing a motorized brush bar, be careful not to pull the power button until the cleaner head has been reassembled.
10. Do not water or spill liquid onto the vacuum cleaner. If that happens, it will increase the risk of electric shock.
11. Use extra care when cleaning on stairs.
12. Please do not use the vacuum cleaner to suck the detergent, kerosene, soot, wet dust, water, sewage, matches and other items.
13. Please do not use a vacuum cleaner to suck up small particles such as cement, gypsum powder, wall powder, or large objects such as toy paper balls, otherwise it will cause the vacuum cleaner to block and the motor to burn out.

Notes on the Battery Pack

1. Do not throw the battery pack away, and it should be safely disposed in accordance with local regulations.
2. Do not use a battery pack or machine that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
3. Do not incinerate batteries or expose to high temperatures, as they may explode.
4. The battery is a sealed unit and under normal circumstances poses no safety concerns. In the unlikely event that liquid leaks from the battery, do not touch the liquid as it may cause irritation or burns, and observe the following precautions:
   Skin contact - can cause irritation. Wash with soap and water.
   Inhalation - can cause respiratory irritation. Expose to fresh air and seek medical advice.
   Eye contact - can cause irritation. Immediately flush eyes thoroughly with water for at least 15 minutes. Seek medical attention.
   Disposal - wear gloves to handle the battery and dispose of immediately, following local ordinances or regulations.

5. When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.

Notes on Charging

1. Before use, check the charger cord for signs of damage or ageing. A damaged or entangled charger cord increases the risk of fire and electric shock.
2. Never modify the charger in any way.
3. The charger has been designed for a specific voltage. Always check that the mains voltage is the same as that stated on the rating plate
4. Unplug the charger when not in use for extended periods.
5. When your vacuum cleaner is fully charged, needs to be cleaned or repaired, please unplug the charger in time and do not pull the power cord directly.
6. Do not pull the cord to disconnect from a socket, grasp the plug and pull to disconnect.
7. Don't wrap the cord around the charger when storing.
8. Please fully recharge the battery, when first used or used after long time storage. If the product is not used for long time, please make sure the battery is recharged and used each three months at least.
9. If smoke or fire occurs during charging, unplug the charger immediately, and use a fire extinguisher to put out the fire. Do not use water to extinguish the fire, it will increase the risk of electric shock.
10. Follow all charging instructions and do not charge the battery pack or the machine outside of the temperature range specified in the instructions. Charging improperly or at a temperature outside of the specified range may damage the battery and increase the risk of fire. To ensure maximum battery life, Laresar recommends the following:
    When not in use the machine should be stored at room temperature. Recommended range: 64 F (18C) to 82F (28C).
    The ambient temperature range for operation and charging should be 50F (8C) to 86F (35C).

Storage and Maintenance Precautions

1. Please store the product under cool and dry environment. Please avoid long-time sunshine on the product.
2. The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.
3. Please use dry cloth to clean the vacuum cleaner. Please do not use gas or liquid that can make the surface cracked or color faded.
4. Do not apply any fragrance or scented product to the filter(s) of this machine. The chemicals in such products are known to be flammable and can cause the machine to catch fire.
5. Do not carry out any maintenance other than that shown in this manual, or advised by the Laresar Support Team.
6. Do not disassemble the machine as incorrect reassembly may result in an electric shock or fire. Contact the Laresar Support Team when a service or repair is required.
