Summary of Contents for Bolzzen ATOM PRO 4813

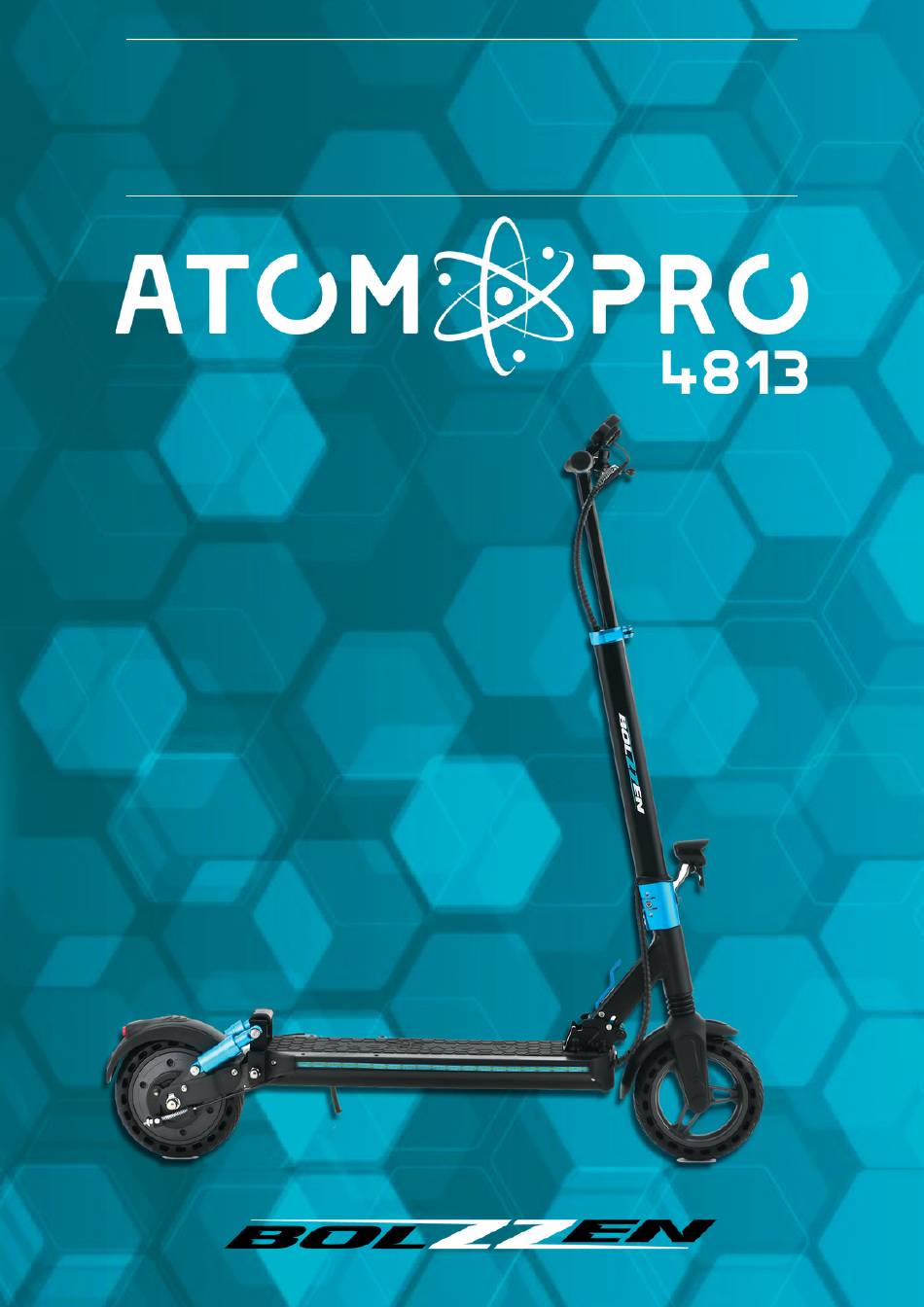

- Page 1 U S E R M A N U A L...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ATOM PRO 4813 USER MANUAL Introduction Basic Parameters Before Riding & Safety Scooter Components Folding/Unfolding Display Error Codes Charging your Scooter Lithium Battery Safety Safety Guidelines Care, Maintenance and Warranty www.bolzzen.com... - Page 3 TEAM BOLZZEN Thanks for choosing the Bolzzen Atom Pro 4813 Electric Scooter. Introducing the Bolzzen Atom Pro 4813, the latest and greatest in lightweight commuter e-scooters! This latest edition is an evolution of the ever-popular Atom Pro electric scooter. This lightweight, compact scooter packs 500 watts of power and boasts front and rear suspension for a smooth ride.
-
Page 4: Basic Parameters
BASIC PARAMETERS Unfolding Size 1120x560x1245 mm Folding Size 1050x180x440 mm Net Weight 17.8 kg Maximum Speed 25 km/h (Limited) 35/h (Private Property) Range Max 60km | Expected 45km Maximum Grade 15 degrees Maximum Load 120kg Battery Capacity 48V 13AH Power Requirement Input: AC 100-240V | Output: 54.6V 2A Charging Time Approx 8-10 hours... -
Page 5: Before Riding & Safety
BEFORE RIDING AND SAFETY Please read this manual carefully before using your Bolzzen Scooter: 1. General Safety Guidelines and Restrictions: Even if your scooter is within the warranty period, you may be liable for any accidents caused by the following factors. - Page 6 6. Laws and Regulations: Be aware that certain states and territories of Australia have specific laws and regulations regarding the use of Bolzzen scooters. Comply with the applicable laws and regulations of your location and operate the scooter safely and legally.
- Page 7 BEFORE RIDING AND SAFETY Night riding should be avoided where possible. If doing so, all scooter lights should be switched on and a high visibility vest is strongly encouraged. Select the mode that best suits your riding ability. In order to handle sudden situations, be prepared to slow down and brake at all times.
-
Page 8: Scooter Parts
SCOOTER PARTS 1. LCD display 11. Side light belt 2. Lever lock for handlebar 12. Parking stand 3. Brake handle with bell 13. Rear handle 4. Brake wire 14. Rear mudguard 5. Front light 15. Rear light 6. Front suspension 16. -
Page 9: Folding/Unfolding
FOLDING / UNFOLDING Instructions regarding installation and assembly, aimed at reducing noise and vibrations: Before using the equipment, tighten all the fastening bolts of the screen, accelerator and the brake lever, making sure that these components are fixed and do not move, to avoid vibrations. To prevent the handlebar vibrations and shaking adjust and, if necessary, loosen (anti-clockwise) the screws inside the handlebar sleeves when folded. -
Page 10: Display
DISPLAY 1. On/Off Switch 2. Gear switch 3. Acceleration handle 4. Gear indicator 5. Speed indicator 6. Multi-indication area/mileage indicator 7. Battery charge level indicator 8. USB charging port Wire Connections 1. Red Wire (D+): Positive pole input 4. Green Wire (RX): Communication 2. -
Page 11: Error Codes
Start mode selection For safety purposes the Bolzzen Atom Pro 4813's are set by default to non-zero start mode which means the motor will not engage until you push/kick-start the scooter first so that the speed is above zero: This can be changed in the P-settings (P09) see below. - Page 12 DISPLAY USB Charging Indicator The display is equipped with a USB port for you to be able to charge your electronic devices. When the device is connected, the USB indicator is lit. In case of problem the indicator starts to flash, and a safety mode will be automatically activated.
- Page 13 DISPLAY P16: Cruise control function 1: activated and 0: deactivated. P17: Light settings The lights are not lit automatically when the vehicle is on, 0: the lights are lit automatically when the vehicle is on. P99: Setting reset When in P99 settings, press and hold the M button for 5-6 seconds to reset all the parameters back to the initial settings.
-
Page 14: Charging Your Scooter
CHARGING YOUR SCOOTER Charging Instructions • Open the charging port cover on the electric scooter and insert the charger output connector into the charging port. • Insert the charger input power plug into the power socket (AC110V-220V). • Charger light is red to indicate that charging is in progress;... -
Page 15: Lithium Battery Safety Precautions
LITHIUM BATTERY SAFETY PRECAUTIONS 1) Care Lithium batteries should be protected from direct exposure to children and pets. 2)Performance Lithium batteries are affected by external temperature. In the winter, when the temperatures are low, the performance of the battery may be temporarily deteriorated, and the mileage and power output is reduced. -
Page 16: Safety Guidelines
SAFETY GUIDELINES BEFORE RIDING 1) Required checking before use 1. Check throttle and handle • Operate the accelerator throttle lever about 2 -3 times to check whether it returns to the home position. • Be careful that excessive throttle pressure and manipulation of the throttle can cause malfunction due to internal parts damage. -
Page 17: Care, Maintenance
3. General wear and tear of consumables like tyres and tubes, brake discs and pads etc 4. Damage caused by water. Although Bolzzen scooters have IP water ratings, use in raining conditions or hosing down can allow water into the deck of the scooter which will lead to certain damage.
