Summary of Contents for Bolzzen SUPERSTREET 4816
- Page 1 U S E R M A N U A L...
-
Page 2: Table Of Contents

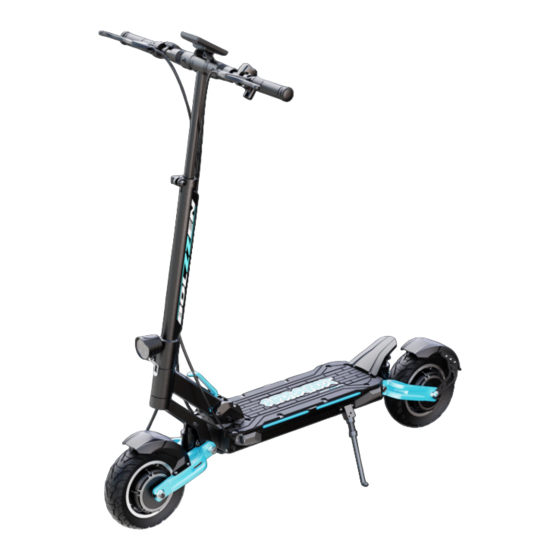

TABLE OF CONTENTS SUPERSTREET USER MANUAL Introduction Before Riding and Safety Scooter Components Controls and Display Error Codes Scooter Assembly Riding Operation Charging your Scooter Lithium Battery Safety Safety Guidelines Care, Maintenance and Warranty www.bolzzen.com... - Page 3 Get ready to turn heads on this super slick e-scooter, making you the talk of the town! With a whopping 50km range, and dual 800W motors, the Bolzzen SuperStreet 4816 opens up a whole new world of exploration and adventure. Impress your friends as you zoom by on this incredibly sleek and stylish e-scooter.
- Page 4 BASIC PARAMETERS Product Size 8.5 Inch Unfolding Size 1100*625*(900-1250)mm Folding Size 1050*205*380mm Net Weight Approx 24.5kg Maximum Speed 25 km/h (Limited) 52km/h (Private Property) Range Max 50km | Expected 40km Maximum Grade 18 degrees Maximum Load 100kg Battery Capacity 48V 16.5AH Power Requirement Input: AC 100-240V | Output: 54.6V 2A Charging Time...
-
Page 5: Before Riding And Safety
BEFORE RIDING AND SAFETY Please read this manual carefully before using your Bolzzen Scooter: 1. General Safety Guidelines and Restrictions: Even if your scooter is within the warranty period, you may be liable for any accidents caused by the following factors. - Page 6 6. Laws and Regulations: Be aware that certain states and territories of Australia have specific laws and regulations regarding the use of Bolzzen scooters. Comply with the applicable laws and regulations of your location and operate the scooter safely and legally.
- Page 7 BEFORE RIDING AND SAFETY Night riding should be avoided where possible. If doing so, all scooter lights should be switched on and a high visibility vest is strongly encouraged. Select the mode that best suits your riding ability. In order to handle sudden situations, be prepared to slow down and brake at all times.
-
Page 8: Controls And Display
CONTROLS & DISPLAY 1. Headlights 2. Right Turn Signal 3. Left Turn Signal 4. Single & Dual Mode 5. Horn 6. Thumb Throttle 7. Rear Brake 8. Front Brake 9. Power 10. Information 11. Cruise Control 12. Speed Mode +/- 1. - Page 9 CONTROLS & DISPLAY NFC startup mode: Press the power key briefly to power on the display. The display will show the sensor area. Use the NFC card close to the sensor for startup. WARNING: Super Card cannot be used to power on and can lead to unwanted reprogramming.
- Page 10 CONTROLS & DISPLAY P03: P04: P05: Mileage Unit Start mode Gear Setting 0=KM 1=MILE 0=Zero start 1=Non zero start P06: P07: P08: Automatic Cruise Value 2 / Do not adjust Speed limit Range 0-100% 0=Off 1=Open; P09: P10: P11: The standby power on The standby setting password Starting strength password is 8888 by default;...
- Page 11 CONTROLS & DISPLAY P12: P13: P14: Backlight brightness 1-3 Boost sensitivity Controller current Value 2 / Do not adjust limiting 7-30A; P15: P16: P17: Power assisted Turn lever gear enable N/A Do not adjust 0=no gear shifting 1=gear P18: P19: P20: Instrument sleep time Voltage level 24-36-48-60...
-
Page 12: Error Codes
ERROR CODES Error Code Meaning Solution Controller Failure Check wiring to the controller. If issue persists, change to a new controller E022 Throttle fault Check connection of waterproof plug. If ok, change throttle E023 Motor fault Change Motor E024 Motor Hall fault Change Hall E025 Brake lever sensor fault... -
Page 13: Scooter Assembly
SCOOTER ASSEMBLY 1. Take the scooter out of the box and place it on a flat surface. Open the kickstand. Unfold the stem and lock it with the folding lever. You'll hear a 'click' when the stem is securely locked in place. Ensure the small blue safety latch is facing the locking pin. -
Page 14: Riding Operation
RIDING Note: Beginners learning to ride electric scooters are at risk of OPERATION falling and injury. Please wear helmets and protective gear at all times. Scooter Operation 1. To start the scooter, place one foot on the deck, power the scooter on, choose the desired speed mode, single or dual motor and apply gentle pressure to the thumb throttle. -
Page 15: Charging Your Scooter
CHARGING YOUR SCOOTER 1) Basic Charging 1. Open the charger port cap and connect the charger lead to the charge port. Then connect to the wall outlet. 2. Charging status indicator (Red) Charging (Green) Charging complete 3. Be sure to close the charger port cap when riding or storing (only leave open when charging). -
Page 16: Lithium Battery Safety
LITHIUM BATTERY SAFETY PRECAUTIONS 1) Care Lithium batteries should be protected from direct exposure to children and pets. 2)Performance Lithium batteries are affected by external temperature. In the winter, when the temperatures are low, the performance of the battery may be temporarily deteriorated, and the mileage and power output is reduced. -
Page 17: Safety Guidelines
SAFETY GUIDELINES BEFORE RIDING 1) Things to check before use 1. Check throttle and handlebars. • Operate the accelerator throttle lever about 2 -3 times to check whether it returns to the home position. • Be careful that excessive throttle pressure and manipulation of the throttle can cause malfunction due to internal parts damage. -
Page 18: Care, Maintenance
3. General wear and tear of consumables like tyres and tubes, brake discs and pads etc 4. Damage caused by water. Although Bolzzen scooters have IP water ratings, use in raining conditions or hosing down can allow water into the deck of the scooter which will lead to certain damage.
Need help?
Do you have a question about the SUPERSTREET 4816 and is the answer not in the manual?
Questions and answers

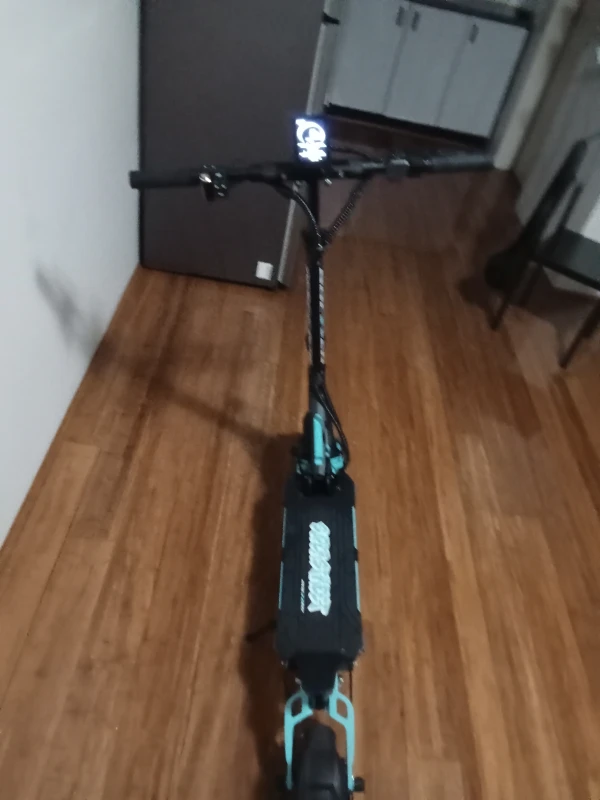

Bolzzen super street scooter NFC card to connect to phone
