Summary of Contents for Bolzzen PHOENIX

  • Page 1 U S E R M A N U A L...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PHOENIX USER MANUAL Introduction Before Riding and Safety Scooter Components Controls and Display Error Codes Scooter Assembly Riding Operation Charging your Scooter Lithium Battery Safety Safety Guidelines Care, Maintenance and Warranty www.bolzzen.com...

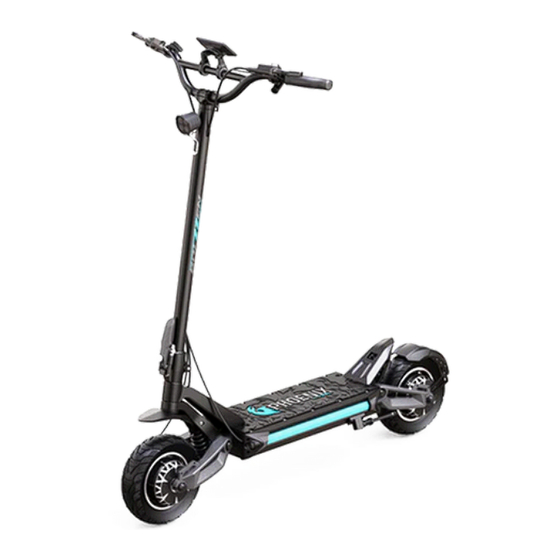

  • Page 3 CONGRATS AND WELCOME TO TEAM BOLZZEN Thanks for choosing the Bolzzen Phoenix 5223 Electric Scooter. Unleash the bold and daring Bolzzen Phoenix 5223! Experience ultimate performance with the dual 1200W motors, peaking at a whopping 2600W and ready to take on any challenge. Ignite your sense of adventure and power on this awesome performance E-Scooter.
  • Page 4 BASIC PARAMETERS Product Size 10 Inch Unfolding Size 1267*729*1314mm Folding Size 1267*729*530mm Net Weight Approx 32kg Maximum Speed 25 km/h (Limited) 60km/h (Private Property) Range Max 70km | Expected 55km Maximum Grade 18 degrees Maximum Load 120kg Battery Capacity 52V23.4AH Power Requirement Input: AC 100-240V | Output: 58.8V 2A Charging Time...

  • Page 5: Before Riding And Safety

    BEFORE RIDING AND SAFETY Please read this manual carefully before using your Bolzzen Scooter: 1. General Safety Guidelines and Restrictions: Even if your scooter is within the warranty period, you may be liable for any accidents caused by the following factors.
  • Page 6 6. Laws and Regulations: Be aware that certain states and territories of Australia have specific laws and regulations regarding the use of Bolzzen scooters. Comply with the applicable laws and regulations of your location and operate the scooter safely and legally.
  • Page 7 BEFORE RIDING AND SAFETY Night riding should be avoided where possible. If doing so, all scooter lights should be switched on and a high visibility vest is strongly encouraged. Select the mode that best suits your riding ability. In order to handle sudden situations, be prepared to slow down and brake at all times.
  • Page 8 CONTROLS CONTROLS & DISPLAY & DISPLAY 1. Headlights 2. Right Turn Signal 3. Left Turn Signal 4. Single & Dual Mode 5. Horn 6. Thumb Throttle 7. Rear Brake 8. Front Brake 9. Mode / Power 10. Information 11. Speed Mode +/-...
  • Page 9 CONTROLS & DISPLAY Key Pad Operation Press and Hold: means press and hold the key(s) for more than 2s. Press: means press the key(s) for less than 0.5s. On/Off Power On: NFC startup mode: Press the M/Power key briefly to power on the display. The display will show the sensor area.

  • Page 10: Error Codes

    ERROR CODES Error Code Meaning Solution Normal Status No aciton required Brake Error Check brake sensor / plugs. If ok, change to a new brake lever / sensor Charge scooter. If issue persists, you may need to change the battery to a battery Low Voltage Protection which matches the controller voltage.
  • Page 11 CONTROLS & DISPLAY Individual P Settings To Enter P Settings, press and hold the + and - simultaneously. Short press the M/Power to scroll through to the desired parameter. Short Press the + and - to adjust to the desired setting. To save settings, press and hold the + and - simultaneously.

  • Page 12: Scooter Assembly

    SCOOTER ASSEMBLY 1. Take the scooter out of the box and place it on a flat surface. Open the kickstand. Unfold the stem and lock it with the folding lever until it hits the stem. 2. Place handlebars in head stem, attach 1.

  • Page 13: Riding Operation

    RIDING Note: Beginners learning to ride electric scooters are at risk of OPERATION falling and injury. Please wear helmets and protective gear at all times. Scooter Operation 1. To start the scooter, place one foot on the deck, power the scooter on, choose the desired speed mode and single or dual motor and apply gentle pressure to the thumb throttle.

  • Page 14: Charging Your Scooter

    1. Open the charger port cap and connect the charger lead to either of the charge ports. Then connect to the wall outlet. Note: Adding a second 2A charger will reduce the charging time by 50%. Visit bolzzen.com to purchase. 2. Charging status indicator (Red) Charging (Green) Charging complete 3.

  • Page 15: Lithium Battery Safety

    LITHIUM BATTERY SAFETY PRECAUTIONS 1) Care Lithium batteries should be protected from direct exposure to children and pets. 2)Performance Lithium batteries are affected by external temperature. In the winter, when the temperatures are low, the performance of the battery may be temporarily deteriorated, and the mileage and power output is reduced.

  • Page 16: Safety Guidelines

    SAFETY GUIDELINES BEFORE RIDING 1) Required checking before use 1. Check throttle and handle • Operate the accelerator throttle lever about 2 -3 times to check whether it returns to the home position. • Be careful that excessive throttle pressure and manipulation of the throttle can cause malfunction due to internal parts damage.

  • Page 17: Care, Maintenance

    3. General wear and tear of consumables like tyres and tubes, brake discs and pads etc 4. Damage caused by water. Although Bolzzen scooters have IP water ratings, use in raining conditions or hosing down can allow water into the deck of the scooter which will lead to certain damage.
