Summary of Contents for Bolzzen Bandit

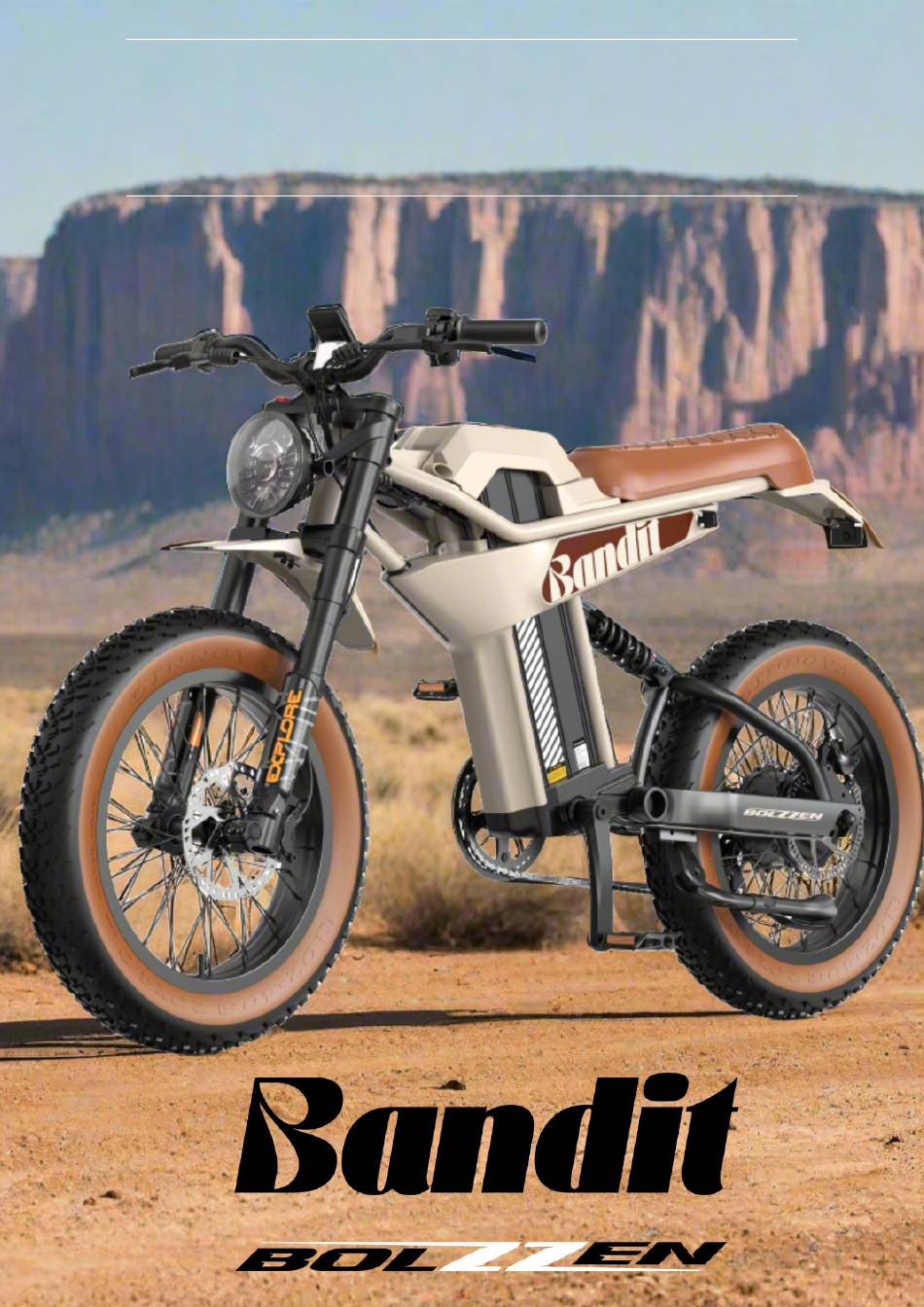

- Page 1 U S E R M A N U A L...
-
Page 2: Table Of Contents

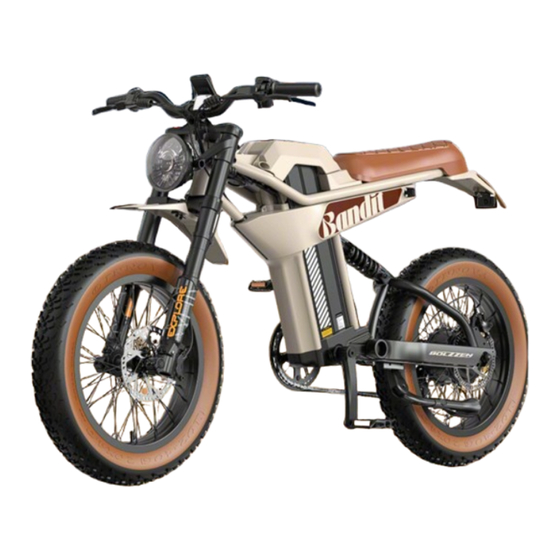

TABLE OF CONTENTS BANDIT USER MANUAL Introduction Before Riding & Safety Product & Accessories Installation Instructions Operating Instructions Moving & Storing Instructions How to Charge Maintenance Instructions Frame Code & Motor Code Safety Instructions Legal Statements www.bolzzen.com... - Page 3 Thanks for choosing the Bolzzen Bandit Electric Bike. Get ready to turn a lot of heads and be the envy of everyone that sees you riding the Bolzzen Bandit - the retro-inspired e-bike with killer design and epic colour ways. Enjoy a comfortable ride with amazing front and rear suspension.
-
Page 4: Before Riding & Safety
BEFORE RIDING AND SAFETY Safety Instructions Electric bikes are a recreational product. To ensure the safety of cyclists, please read this manual carefully before using this product. Practice and master the riding skills through the correct guidance. If the rider is inexperienced or does not use the product in accordance with this manual, the company will not bear any responsibility for any damage or injury. -
Page 5: Riding Precautions
BEFORE RIDING AND SAFETY Riding Environment and Pavement Avoid riding on steep slopes for long periods, heavy off-road, slippery roads, pits, sewage openings, stairs, snow, water edges etc. When riding, you should observe and avoid traffic wherever possible. For any reason, do not ride in rainy, snowy, slippery, muddy, or icy conditions. Doing so could cause the bike to lose its balance or grip, leading to a fall. - Page 6 BEFORE RIDING AND SAFETY Rider Requirements People who are not suitable to ride this product include: People under the influence of alcohol or drugs. People who are unable to perform strenuous physical activity due to medical conditions, especially those with heart, neck, and back problems. People who cannot keep their balance.
-
Page 7: Product And Accessories
PRODUCT AND ACCESSORIES Please carefully check that all items in the packaging are not missing, broken or incomplete. User manual Key*3 Headlight*1 Pedal*2 Front fender*1 Charger*1 User manual * 1 Tool kit 13-15# Open-ended wrench Bike body *1 Allen wrench * 3... -
Page 8: Installation Instructions
INSTALLATION INSTRUCTIONS 1.Unscrew the bolts to fit the handlebar. 2.Place the handle bar in position, then Remove wheel axle. align the bolts as shown below and tighten with #5 Allen key. Check the power cables are connected in order of colour 4.The disc brake/rotor is inserted into the 6.Insert the wheel axle. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Long seat Headlight Electric horn Front fender Battery lock Rear shock absorber Battery pack Reflector Front shock absorber Rear disc brake Front disc brake Kickstand LED dispaly Multi-function button Brake lever Power lock Taillight Reflector Steering control Charge port Pedal Rear wheel... - Page 10 OPERATING INSTRUCTIONS Display Navigation function Maintenance reminder Cruise control function Battery level Headlight Real-time speed Accumulated mileage Single trip mileage Power usage Speed mode...
-
Page 11: Error Codes
6. Power Unlock for Private Property The Bandit comes factory set at 500W with 3 speed modes. To unlock the full 750W and speed modes 4 & 5, follow these steps: When stationary, press and hold the “+” and “... -
Page 12: Moving & Storing Instructions
MOVING & STORING INSTRUCTIONS Check before riding To reduce the occurrence of accidental injuries, the following items should be checked before each ride: 1. Check bike status, tyre pressures and brakes, etc. Ensure that no parts including the handlebars, risers, tyres, brake lines, brake handles, fenders, and screws show any signs of loosening or damage. -
Page 13: How To Charge
HOW TO CHARGE Due to battery self consumption during transportation and storage, it is normal for the battery to be low or no battery when used for the first time. Please charge according to the following charging steps. There are two charging method options: 1. In e-bike charging. 2. Removed battery charging. Do not allow minors to use the charging equipment. 1 In e-bike charging Find the charging port on the right side of the e-bike, open the rubber plug of the charging port, connect the output of the charger, then connect the power supply, and fasten the rubber plug after charging. -
Page 14: Maintenance Instructions
MAINTENANCE INSTRUCTIONS Clean Wipe the main frame clean with a soft damp cloth. For hard-to-clean stains, use a professional cleaner to scrub repeatedly, then clean with a soft damp cloth. Note: Do not use alcohol, gasoline, kerosene or other corrosive and volatile solvents to clean. These substances may damage the exterior and interior structure of the vehicle body. - Page 15 MAINTENANCE INSTRUCTIONS Service schedule • The first service should be carried out at 1000km or 3 months after delivery (which ever comes first). • After the first service, it is recommended to maintain once every 1500km or 12 months (whichever comes first). Specific maintenance items and requirements Maintenance time (month)
-
Page 16: Frame Code & Motor Code
FRAME CODE & MOTOR CODE Motor numbering rules The number is engraved on the end cover of the motor, as shown in the figure below: Details of serial number : AKM 230404 00001 0001 AKM: Company initials 2304 04: Order year, month, day 0000 1 : Fixed code unchanged 0001:... -
Page 17: Safety Instructions
Electric bikes are a recreational product. To ensure the safety of cyclists, please read this manual carefully before using this product. If the rider lacks experience or does not use the bike according to this manual, Bolzzen will not be held responsible for any damage. - Page 18 Operation Notice Only use parts and accessories designated or approved by Bolzzen. Do not modify the e-bike, as this may affect its operation, leading to serious injury or damage, and voiding the warranty. The e-bike contains electrical components that should not be removed.
-
Page 19: Legal Statements
LEGAL STATEMENTS Product Legal Statement The more familiar you are with this product, the safer you will be when riding. Please pay attention to the following: Carefully read the product instructions. If you cannot operate the product according to the instructions, do not attempt to ride it. Do not allow anyone who has not read this manual thoroughly to use the product.
