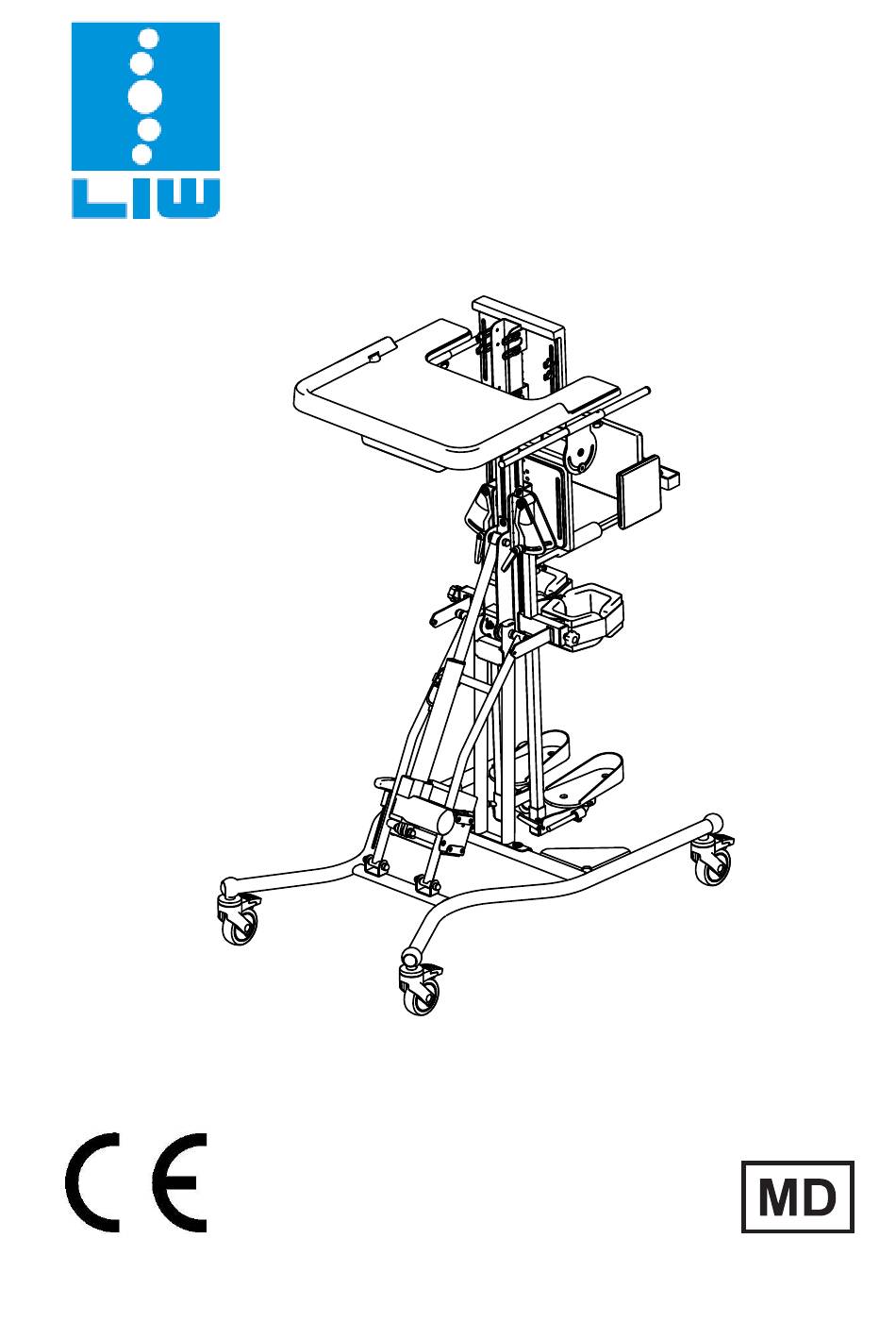

- Page 1 USER MANUAL LORI Electric edition 3 – 27.10.2022...
- Page 2 CAUTION! THE MANUFACTURER IS ONLY RESPONSIBLE FOR THE PRODUCT PURCHASED DIRECTLY FROM THE LOCAL REPRESENTATIVE OF LIW CARE TECHNOLOGY OR IN A SPECIALISED MEDICAL STORE REPRESENTING LIW CARE TECHNOLOGY WITHIN THE TERRITORY OF POLAND. CAUTION! THIS PRODUCT CAN ONLY BE USED INDOORS.
-
Page 3: Table Of Contents
4 Indications for using the device ............................5 Technical data ..................................6 5 LORI ELECTRIC Stander – design ............................7 6 Detailed description of the construction and adjustments of the LORI Stander ............... 8 6.1 Assembly of the stander ............................. 8 6.1.1 Disassembly of the frame ............................. -
Page 4: Introduction
We have used our best efforts to make sure that the LORI ELECTRIC Stander is as easy to use as possible. It is necessary to read the user manual carefully prior to using the product. Following all instructions and recommendations included in this user manual will allow you to avoid any situations which could damage the device, and you will also ensure the complete safety and comfort of use throughout the whole period of using the product. -
Page 5: Compliance With Requirements Concerning Medical Devices
Council (EU) 2017/745 dated from April 5th, 2017 on medical devices. LORI ELECTRIC Stander in accordance with Annex VIII of the Regulation of the European Parliament and of the Council (EU) 2017/745 dated from April 5th, 2017 on medical devices is a non-invasive, active class I medical device according to the rule 1. -
Page 6: Technical Data
23 ÷ 35 supports” size 3 3D Pelvic&Hip support and positioning system – distance LPW1 26 ÷ 38 between lateral supports Lower limb abduction 30° Maximum user weight 75 kg Total device weight 40 kg page 6 LORI Electric edition 3... -
Page 7: Lori Electric Stander - Design
LORI ELECTRIC Stander – design Pic. 2 Standing frame Wheels Foot platform Knee pad Remote controller Headrest Main hip support Main chest support Hip support 10. Tray 11. Abduction mechanism 12. Central controller 13. Power supply socket 14. Battery LORI Electric edition 3... -
Page 8: Detailed Description Of The Construction And Adjustments Of The Lori Stander
To disassemble the frame, first unscrew the screws (1), then set the frame support (2) in the correct position. After setting the frame support, the previously unscrewed screws (1) should be screwed to the frame through the support openings. Pic. 3 page 8 LORI Electric edition 3... -
Page 9: Installation Of The Column
(3). When aligning the column, make sure that the distance between the foot platform supports and the frame profiles (see Fig. 5.) is even. The last step of the installation is tightening the frame to the column with the previously unscrewed screws (1). Pic. 4 Pic. 5 LORI Electric edition 3 page 9... -
Page 10: Wheels
(1) by loosening the screws (2). You can also adjust the depth and lateral angle of the chest support. In order to adjust it, loosen the screws (3). After placing the chest support in a desired position, tighten the screws (2) and (3). Pic. 7 page 10 LORI Electric edition 3... -
Page 11: Adjustment Of Chest And Hip Supports
The chest belt allows for stable patient support at chest height. To release and fasten the belt buckle (1), use the lock button (2) on the upper part of the buckle. The same system is for chest and hip fastening. Pic. 9 LORI Electric edition 3 page 11... -
Page 12: Knee Pads
CAUTION! After each adjustment of the foot platform, make sure that all adjustment screws are securely tightened. Unscrewed elements may cause the adjustable elements to shift automatically, which may result in injury to the patient. page 12 LORI Electric edition 3... -
Page 13: Adjustment Of The Height Of Feet Platforms For Leg Abduction Adapters
(1). Then, shift the platform until you reach the desired height. After reaching the desired height, block the position of the platform by tightening the screw (1). Repeat the same procedure to adjust the second platform. Pic. 11 LORI Electric edition 3 page 13... -
Page 14: Adjustment Of The Tilt Of Feet Platforms For Leg Abduction Adapters
The adjustment (front-back) of the platform can be performed after loosening the screws (1). The adjustment allows to move the foot platform (front-back). After reaching the desired position, block the position of the platform by tightening the screws (1). Pic. 13 page 14 LORI Electric edition 3... -
Page 15: Installation Of The Knee Pad In Front And Supine Verticalization In Leg Abduction Adapters
CAUTION! When adjusting the disconnection of the back support bracket, it is crucial to remain particularly careful, as moving elements may cause hand injuries. LORI Electric edition 3 page 15... - Page 16 (3) until stop. You can precisely adjust the plane of the back support cushion by loosening the screws (1) (Pic. 16) and then setting the position of the back support and retightening the screws (1). Pic. 16 page 16 LORI Electric edition 3...
-
Page 17: Adjustment Of The Lateral Hip Supports Of The Back Support
Hip supports of the back support can be adjusted within the scope of their width, as well as abduction angle. In order to make the adjustment, loosen the screws (1), set the width of the back and the angle, and then tighten the screws. Pic. 18 LORI Electric edition 3 page 17... -
Page 18: Lower Limbs Abduction
There must be no objects in this area, as they may interfere with the movement of the device, resulting in damage to the device or pinching and injuring the patient or device operator. page 18 LORI Electric edition 3... -
Page 19: Device Electrical System
The diode is green, monotonous light – the charging is finished, and the battery is full. Low battery status is indicating by repetetive, short sound signals – which are reminder for pluging the device into the network 100 – 240V to charge the battery again. LORI Electric edition 3 page 19... -
Page 20: Remote Controller Lock
To adjust the tray tilt angle (1), loosen the screws (3) and the adjustment handles (2). Once the angle has been set, tighten the knobs (2) and screws (3) to lock the tray in position. page 20 LORI Electric edition 3... -
Page 21: Adjustment Of The Height And The Front-Back Position Of The Tray
(2), which makes it possible to move the entire table structure in the vertical axis. Pic. 23 CAUTION! When disassembling the table, it is essential to secure the table guides with plugs. LORI Electric edition 3 page 21... -
Page 22: Headrest
Pic. 24 In order to adjust the headrest (1), loosen the adjustment knobs (2), set the headrest in a desired position and tighten the knobs (2). Pic. 25 page 22 LORI Electric edition 3... -
Page 23: Installation And Adjustment Of The Head Support For The Front Stabilisation
Screw (3) enables to adjust the head support to the sides. Handles (4) allow to adjust the angle of the head support, along with its depth. Pic. 26 Pic. 27 LORI Electric edition 3 page 23... -
Page 24: Corrective Hip Strap
Finally, pass the strap (4) through the slots in the corrective hip strap support (3). To release and fasten the belt buckle, press the buckle locking button (5) on top of the buckle. Pic. 29 page 24 LORI Electric edition 3... -
Page 25: Shoulder Protectors
In the case of rear verticalisation, shoulder support is sometimes required for the safety and comfort of the user. The Lori ELECTRIC stander offers an accessory that makes this possible. To adjust the front angle, loosen the knobs (4), then set the required angle and tighten the knobs when the adjustment is complete. -
Page 26: Installation And Adjustment Of The Vest
Cleaning and maintenance LORI ELECTRIC Stander is a mechanical device with a supporting structure made of steel and aluminium covered with a powder coating. A sponge-foam insert is attached to the metal structure and fitted with a cover made of textile fabrics. -
Page 27: The Sponge-Foam Insert
CAUTION! The device is not waterproof. Do not allow the device to come into direct contact with water. Use the device indoors at room temperature. Do not expose the device to direct contact with weather conditions. 10 Nameplate Pic. 33 LORI Electric edition 3 page 27... -
Page 28: Warranty/Service
The manufacturer determines the product life to be 5 years. • The post-warranty service of the device is performed by the manufacturer. Contact details of the service department: LIW Care Technology Sp. z o.o., ul. Golfowa 7, 94-406 Łódź. www.liwcare.pl e-mail: reklamacje@liwcare.pl •... -
Page 29: Warranty Card
LIW Care Technology Sp. z o.o., including the costs of storage and transport of the product. The warranty granted by LIW Care Technology Sp. z o.o. for the product does not affect the rights of the buyer arising from the warranty for defects in the sold item.
