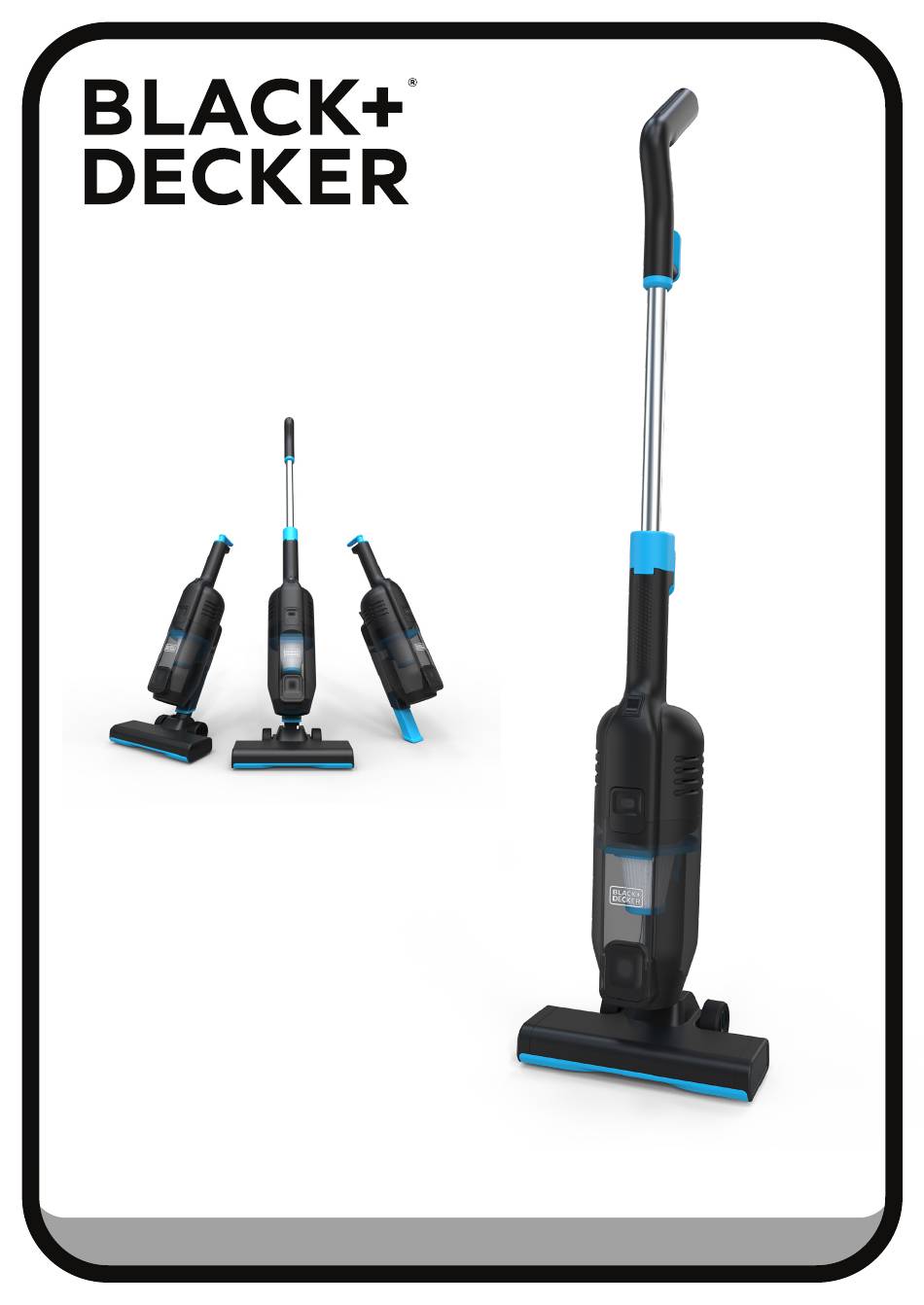

INSTRUCTION MANUAL
Powerful lightweight
corded 3-in-1 vacuum
BDSV1
Please read before returning this product for any reason.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDSV1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Black & Decker BDSV1

  • Page 1 INSTRUCTION MANUAL Powerful lightweight corded 3-in-1 vacuum BDSV1 Please read before returning this product for any reason.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 3 - 4 Safety Product Overview 6 - 9 Getting Started Using Your BDSV1 Storing Your BDSV1 12 - 13 Maintenance Troubleshooting Warranty Please keep this manual for later maintenance of the vacuum and for contacting us.
  • Page 3 DO NOT operate the appliance with a damaged cord or plug. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. DO NOT attempt to modify this product in any way. BDSV1-IB-V5...
  • Page 4: Safety

    SAFETY FCC Information 1: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 5: Product Overview

    PRODUCT OVERVIEW 1 : Top Handle 5: Power Switch 9: Dustbin Door Release Latch 13: HEPA Filter 2: Top Cord Wrap 6: Power Cord 10: Integrated Crevice Tool 14: Floor Nozzle 3: Bottom Cord Wrap 7: Main Vacuum 11: Foam Gasket 4: Metal Tube 8: Dustbin Removal Latch 12: Filter Housing...
  • Page 6: Getting Started

    GETTING STARTED SCAN THE QR CODE Scan QR for Setup and Maintenance Videos and to purchase spare parts. Scan for BDSV1 Instructions and Spare Parts...
  • Page 7: Handle Assembly

    GETTING STARTED HANDLE AND TUBE ASSEMBLY The BDSV1 is designed to be used as a hand vacuum (without the tube) or as a stick vacuum (with the tube and with or without the floor nozzle). Follow the directions below to assemble the vacuum for desired use.
  • Page 8: Tube Assembly

    GETTING STARTED TUBE ASSEMBLY Slide the tube assembly into the top of the main vacuum as shown. Rotate the bottom Cord Wrap so that it snaps into place on the blue tube bracket.
  • Page 9: Floor Nozzle

    GETTING STARTED FLOOR NOZZLE To use the vacuum with the floor nozzle please follow the directions below. Take the main vacuum and position it as shown. Slide the vacuum onto the floor nozzle as shown.
  • Page 10: Using Your Bdsv1

    USING YOUR BDSV1 Plug Power Cord into a polarized outlet. Press the Power Switch to Turn Vacuum ON ( I ). To extend the crevice tool, pull from the tab.
  • Page 11: Storing Your Bdsv1

    STORING YOUR BDSV1 Press the Power Switch to Turn Vacuum off ( O ). Loop the power cord around the bottom and top cord wrap brackets. Clip the molded plug to the power cord to secure. WARNING: To avoid injury, turn vacuum OFF and unplug cord from wall...
  • Page 12: Maintenance

    MAINTENANCE CLEANING DUSTBIN AND FILTERS NOTE: Empty your dustbin and clean filters regularly to ensure optimal perfor- mance. Turn Vacuum off (O). Then unplug vacuum. To remove dirt from the dust cup and filter, hold the vacuum vertically. Depress the Dustbin Removal Latch to release the dust cup as shown.
  • Page 13 MAINTENANCE Empty Dustbin contents into trash. The HEPA filter can be tapped gently to dislodge fine dust and then rinsed under cold water. Allow to FULLY dry before re- assembling. Replace the filter assembly into the top of the dustbin and push down to secure.
  • Page 14: Troubleshooting

    TROUBLESHOOTING VACUUM DOES NOT POWER ON CAUSE SOLUTION 1. Vacuum cleaner is not plugged in firmly. 1. Check electrical outlet. 2. Blown fuse/tripped breaker. 2. Check/replace fuse or reset breaker. WEAK SUCTION CAUSE SOLUTION 1. Filter is clogged or wet. 1.
  • Page 15: Warranty

    WARRANTY The One (1) Year Limited Warranty applies to purchases made from authorized retailers of Silver Point Innovations LLC. Warranty coverage applies to the original owner and to the original product only and is not transferable. We recommend registering your product online at www.blackanddecker.com SilverPoint warrants this product to be free from defects in workmanship and materials, under normal household use and conditions, one (1) year from the date of original purchase and maintained according to the requirements out- lined in this User Manual.
