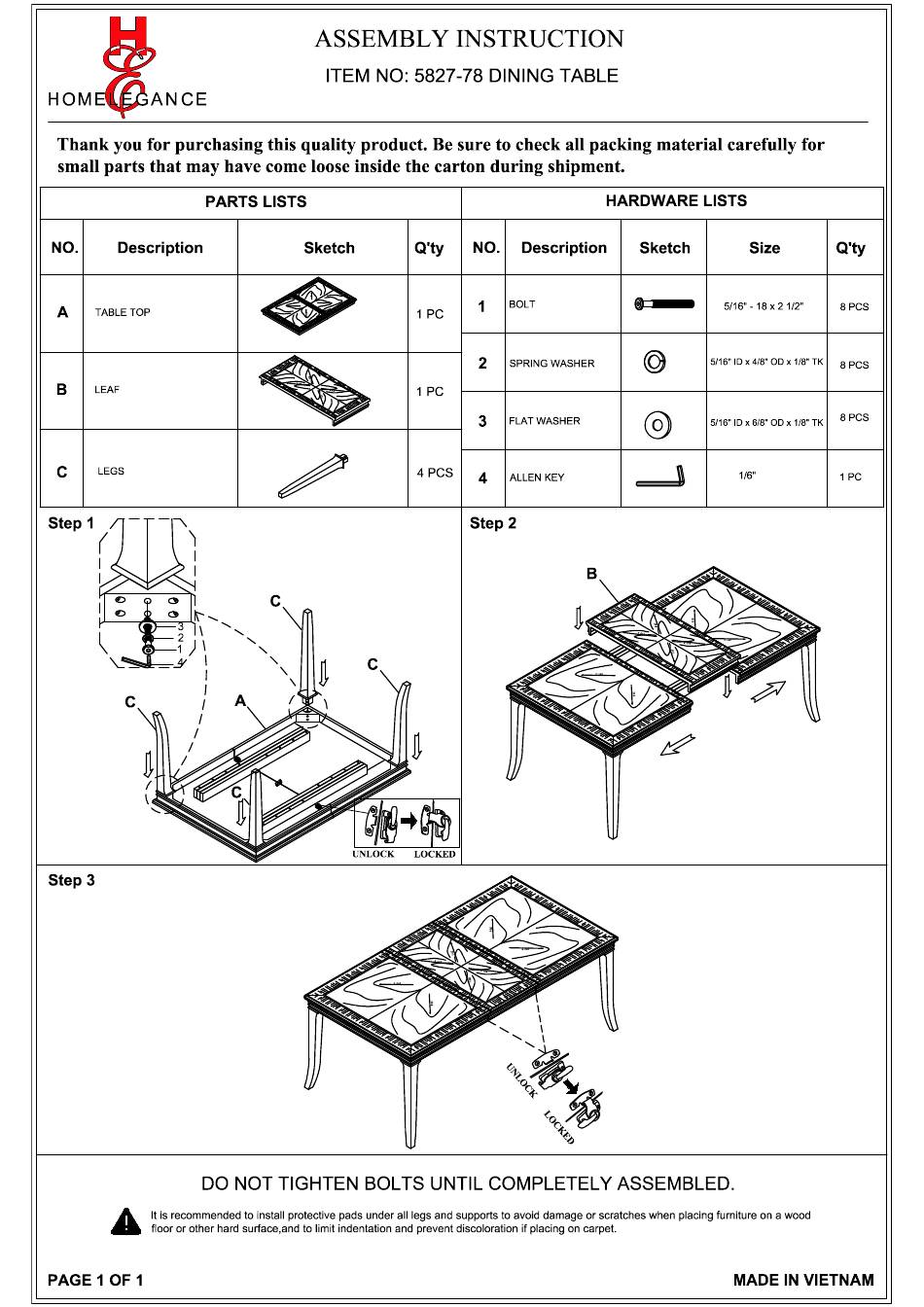

Homelegance Izzy 5827-78 Assembly Instructions

ASSEMBLY INSTRUCTION
ITEM NO: 5827-78 DINING TABLE
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may have come loose inside the carton during shipment.
A
C
NO.
Description Sketch
TABLE TOP
LEG S
Q'ty
1 PC
4 PCS
1
NO. Description
Sketch Q'ty
8 PCS
Size
2
3
4
BOLT
SPRING WASHER
FLAT WASHER
ALLEN KEY
5/16" - 18 x 2 1/2"
8 PCS
8 PCS
1 PC
Step 1
Step 3
PAGE 1 OF 1 MADE IN VIETNAM
It is recommended to install protective pads under all legs and supports to avoid damage or scratches when placing furniture on a wood
floor or other hard surface,and to limit indentation and prevent discoloration if placing on carpet.
DO NOT TIGHTEN BOLTS UNTIL COMPLETELY ASSEMBLED.
G HOMELE ANCE
PARTS LISTS
HARDWARE LISTS
5/16" ID x 6/8" OD x 1/8" TK
5/16" ID x 4/8" OD x 1/8" TK
1/6"
W-OAK
W-OAK
B
LEAF
1 PC
UNLOCK
LOCKED
Step 2
W-OAK
2
1
4
3
A
C
C
C
C
B
