Nature's Generator Lithium 3600 Power Pod User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Nature's Generator
Lithium 3600
Power Pod
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lithium 3600 Power Pod and is the answer not in the manual?

Questions and answers

Related Manuals for Nature's Generator Lithium 3600 Power Pod

Summary of Contents for Nature's Generator Lithium 3600 Power Pod

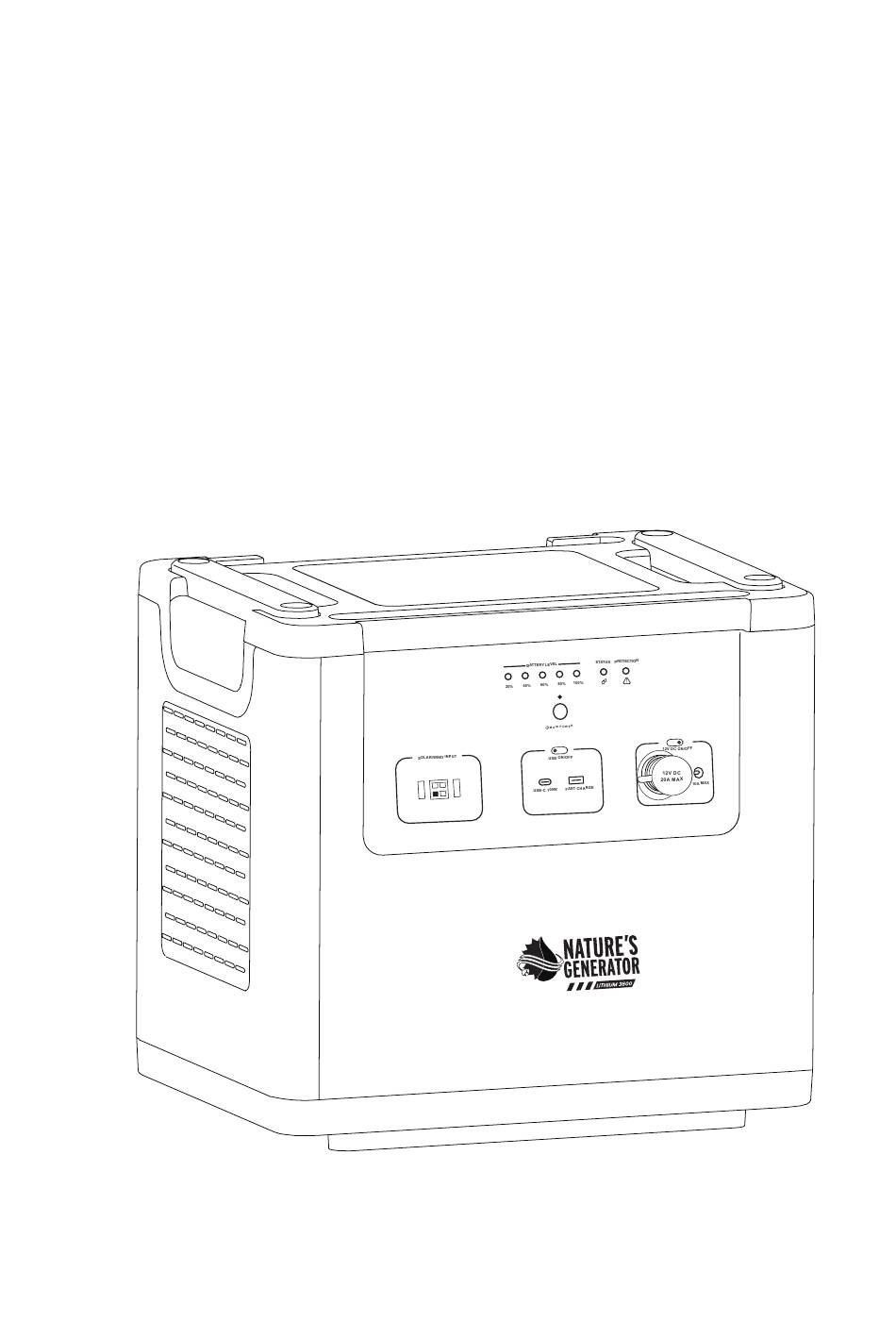

  • Page 1 Nature's Generator Lithium 3600 Power Pod User Manual...

  • Page 2: Table Of Contents

    2.3 Use Your Nature’s Generator Lithium 3600 Power Pod 2.4 Recharge Your Nature’s Generator Lithium 3600 Power Pod 2.5 Connect Your Nature’s Generator Lithium 3600 Power Pod to the Lithium 3600 2.6 Maintain and Store Your Nature’s Generator Lithium 3600 Power Pod 3.0 Troubleshooting...

  • Page 3: Important Safety Instructions

    1.0 Important Safety Instructions 1.1 Safety Instructions 1.1.1 Read these instructions. 1.1.2 Keep this user manual in a safe and accessible place. 1.1.3 Take note of all warnings to avoid injury or damage. 1.1.4 Follow all instructions. 1.1.5 The safety instructions provided herein are for illustrative purposes that include but are not limited to those listed in this manual.

  • Page 4: Warning

    Stop using the Nature's Generator Lithium 3600 Power Pod and refer servicing to qualified service personnel under the following conditions: If liquid has been spilled or objects have fallen into your Nature's Generator Lithium 3600 Power Pod. If your Nature's Generator Lithium 3600 Power Pod has been exposed to rain or water.

  • Page 5: Battery Safety

    1.4.4 Safety Check After completing any service or repair to this device, ask the service technician to perform routine safety checks to determine that your Nature's Generator Lithium 3600 Power Pod is in correct operating condition. 1.4.5 Servicing The servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

  • Page 6: Maintenance Instructions

    1.6.9 Avoid metal objects such as rings or metal tools to touch the battery. 1.7 Storage Instruction 1.7.1 When not using Nature’s Generator Lithium 3600 Power Pod for extended periods of time, turn off the power and remove all electrical connections.

  • Page 7: Instructions Pertaining To Risk Of Fire, Electric Shock, Or Injury To Persons

    1.8 INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS IMPORTANT SAFETY INSTRUCTIONS 1.8.1 WARNING – When using this product, basic precautions should always be followed, including the following: a) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children.
  • Page 8 1.8 INSTRUCTIONS CONCERNANT LE RISQUE D'INCENDIE, DE CHOC ÉLECTRIQUE OU DE BLESSURES AUX PERSONNES INSTRUCTIONS DE SÉCURITÉ IMPORTANTES 1.8.1 AVERTISSEMENT - Lorsque vous utilisez ce produit, les précautions de base doivent toujours être suivies, y compris ce qui suit: a) Lisez toutes les instructions avant d'utiliser le produit. b) Pour réduire le risque de blessure, une surveillance étroite est nécessaire lorsque le produit est utilisé...

  • Page 9: Introduction

    2.0 Introduction Congratulations on your new Nature's Generator Lithium 3600 Power Pod, a great expansion to your Nature's Generator Lithium 3600. 2.1 Unpack Your Nature’s Generator Lithium 3600 Power Pod 2.1.1 Nature's Generator Lithium 3600 Power Pod 2.1.2 This User Guide...

  • Page 10: Get To Know Your Nature's Generator Lithium 3600 Power Pod

    2.2 Get to Know Your Nature’s Generator Lithium 3600 Power Pod 2.2.1 Nature’s Generator Lithium 3600 Power Pod Front View Connects up to 1000W solar panels or up to 150W Solar/Wind Port: wind turbine. Show the battery level. Battery Level LEDs: When the first LED is steady on, it indicates approximately 20% charge.
  • Page 11 2.2.2 Nature’s Generator Lithium 3600 Power Pod Back View Expansion Port: Connect to another Nature's Generator Lithium 3600 Power Pod to extend the run time by increasing the battery capacity. Expansion Cable: The opening for the expansion cable that is stored in the top compartment.

  • Page 12: Use Your Nature's Generator Lithium 3600 Power Pod

    2.3 Use Your Nature’s Generator Lithium 3600 Power Pod Press and hold the Main Power Button for 2 seconds to turn on your Nature's Generator Lithium 3600 Power Pod. The indicator on the top of the Main Power Button will light up. The Battery Level LEDs will show the battery level and the Daisy Chain Status LED will be lighted up if it is connected to Nature's Generator Lithium 3600.

  • Page 13: Recharge Your Nature's Generator Lithium 3600 Power Pod

    Place your Nature's Generator 100W Power Panels where they will get as much direct sunlight as possible. While direct sunlight is always preferred, the power panels will also send a small amount of charge to your Nature's Generator Lithium 3600 Power Pod during hazy or overcast sky conditions.
  • Page 14 Four 100W Power Panels SOLAR/WIND INPUT Six 100W Power Panels SOLAR/WIND INPUT Visit Naturesgenerator.com for More Information...
  • Page 15 Nine 100W Power Panels SOLAR/WIND INPUT Visit Naturesgenerator.com for More Information...
  • Page 16 Place your Nature's Generator 410W Solar Panels where they will get as much direct sunlight as possible. While direct sunlight is always preferred, the power panels will also send a small amount of charge to your Nature's Generator Lithium 3600 Power Pod during hazy or overcast sky conditions.
  • Page 17 The Battery Level LEDS start flashing when Nature's Generator Lithium 3600 Power Pod is being recharged. c. The engine should be running while recharging Nature's Generator Lithium 3600 Power Pod, so the car battery will not be depleted.
  • Page 18 Generator Lithium 3600 Power Pod is being recharged at the same time. c. The Batter Level LEDs do not run when Nature's Generator Lithium 3600 Power Pod is recharged from Nature's Generator Lithium 3600, but the battery level will be increased over the time.

  • Page 19: Connect Your Nature's Generator Lithium 3600 Power Pod To The Lithium 3600

    Please clean your Nature's Generator Lithium 3600 Power Pod with a soft, lint-free cloth. If your Nature's Generator Lithium 3600 Power Pod is especially dirty, moisten a soft, lint-free cloth in a weak detergent solution, squeeze the excess moisture from the cloth, then wipe the cabinet with the cloth.

  • Page 20: Troubleshooting

    3.1 My solar panels cannot recharge my Nature’s Generator Lithium 3600 Power Pod. Please follow these steps. a. If you are not using Nature's Generator solar panels, make sure the other solar panels have similar specifications. b. Make sure the power panels are pointed directly towards the sun. The solar panels may produce little or no power if they are placeed in the shade.

  • Page 21: Technical Specifications

    Please note that some products, services, or features described in this manual may not be available under your purchase contract. Unless otherwise specified in the contract, Nature's Generator makes no representations or warranties of any kind, express or implied, with respect to the contents of this manual.

  • Page 22: Limited Warranty

    6.0 Limited Warranty 6.1 One Year Limited Warranty Natures Generator Inc. warrants to you, the original purchaser of this new product, that the product shall be free of defects in the original manufacture of the material or workmanship for a period of one (1) year from the original date of your purchase of the product (“Warranty Period”).
  • Page 23 6.4 What our Warranty does not Cover? 6.4.1 This warranty does not cover: • Cosmetic damage • Damage due to acts of God, such as lightning strikes • Accident • Misuse • Abuse • Negligence • Commercial use • Modification of any part of the product •...
  • Page 24 V1.4 ENGLISH 24-1111...
