Summary of Contents for Nature's Generator Nature's Power Pod

  • Page 1 Nature's Power Pod User Manual...

  • Page 2: Table Of Contents

    Using Your Nature's Power Pod How to Recharge Your Nature's Power Pod How to Install Your Nature's Power Pod on Top of Nature’s Generator How to Connect Your Nature's Power Pod to Nature’s Generator How to Maintain and Store Your Nature's Power Pod Troubleshooting Technical Specifications...

  • Page 3: Important Safety Instructions

    Do not use near flammable gases or fumes or other apparatus that produces large amounts of heat. Energy and burn hazard Nature's Power Pod has a sealed lead acid battery, which can present a risk of burn from high current because of short-circuit.

  • Page 4: Caution

    Your Nature's Power Pod may contain materials that are regulated for environmental reasons. Your Nature's Power Pod also contains materials that can be recycled and reused. To help protect the environment, contact your local authorities for information about disposal or recycling and about finding a recycler in your area before you dispose of your Nature's Power Pod.

  • Page 5: Introduction

    Introduction Congratulations on your new Nature's Power Pod, a great expansion to your Nature’s Generator. Unpack Your Nature’s Power Pod 1. Nature's Power Pod 2. Accessory Box 3. This user guide Visit Naturesgenerator.com for More Information...

  • Page 6: Get To Know Your Nature's Power Pod

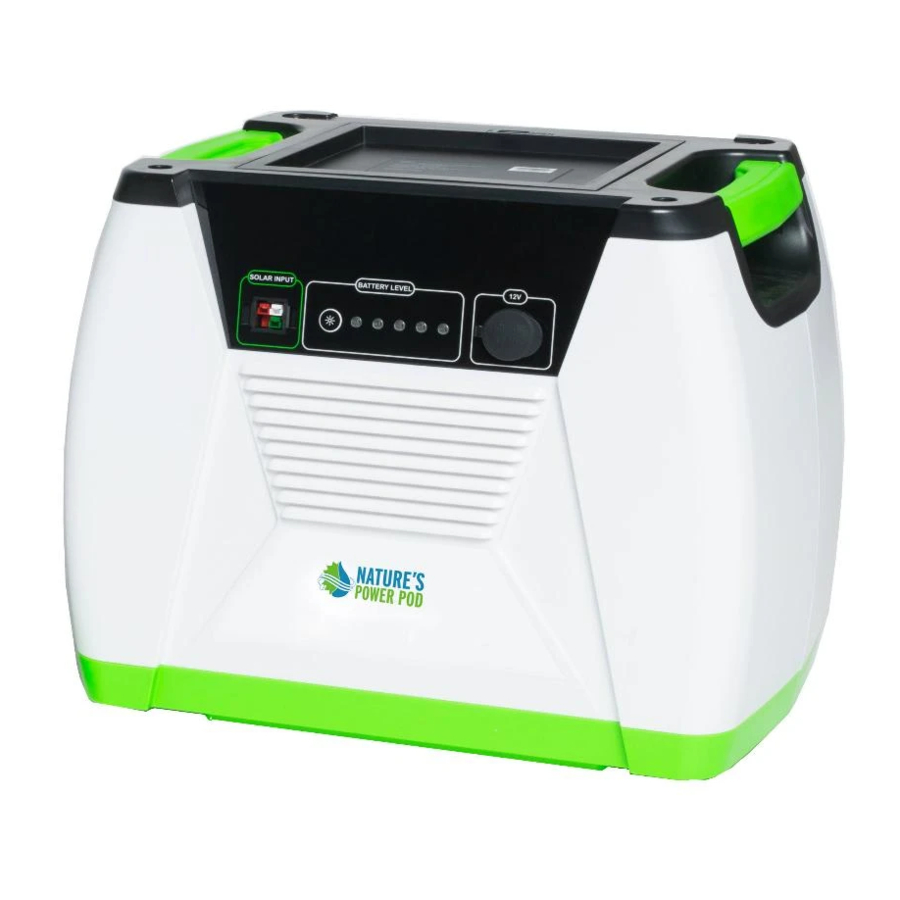

    Get to Know Your Nature’s Power Pod Front Panel LED Light Button: Press it to show the battery charge level. LED Lights: Each light indicates charge in 20% increments. Once your Nature's Power Pod is fully recharged, all LED lights will remain solid.
  • Page 7 Top Compartment Expansion cord: 35 inch long expansion cord. Visit Naturesgenerator.com for More Information...

  • Page 8: Using Your Nature's Power Pod

    Solar panels will also send a charge your unit while in hazy or overcast skies. 2. Insert solar panel plug into Solar Input port on the front of Nature's Power Pod. You will know it is recharging when LED lights start running. The LED lights remain solid when the battery is full or there is not enough power from solar panel.

  • Page 9: How To Install Your Nature's Power Pod On Top Of Nature's Generator

    How to Install Your Nature’s Power Pod on Top of Nature’s Generator What is in the accessory box 1. Brackets 2. Bolts and nuts A: 16mm x 2pcs B: 25mm x 2pcs 3. Pod bar 4. Tools Visit Naturesgenerator.com for More Information...
  • Page 10 Installing Procedures Step 1: Lift Nature's Power Pod and set it on top of Nature’s Generator. Make sure the feet of Nature's Power Pod sit between the handle and top case of Nature’s Generator. Visit Naturesgenerator.com for More Information...
  • Page 11 Step 2: Remove two bolts from Nature's Power Pod with included Allen wrench. Put these two bolts aside for now as they will be reused in step 5. Visit Naturesgenerator.com for More Information...
  • Page 12 Step 3: Put the brackets on the cart. Bracket will match up with the shape of the cart frame. Visit Naturesgenerator.com for More Information...
  • Page 13 Step 4: Use type A bolts and nuts to secure the two brackets. Use wrench to hold the nuts and Allen wrench to tighten the bolts. Visit Naturesgenerator.com for More Information...
  • Page 14 Step 5: Place pod bar on the top of Nature's Power Pod. Insert the bolts that were removed in step 2 by Allen wrench. Visit Naturesgenerator.com for More Information...
  • Page 15 Step 6: Use type B bolts and nuts to secure the brackets and pod bar. Use the wrench to hold the nuts and Allen wrench to tighten the bolts. Visit Naturesgenerator.com for More Information...

  • Page 16: How To Connect Your Nature's Power Pod To Nature's Generator

    You can connect your Nature's Power Pod to your Nature’s Generator to extend the overall run time. 1. Open the top cover of the Nature's Power Pod, locate the expansion cable, and run the expansion cable out of Nature's Power Pod through the opening on the back of the Nature's Power Pod.

  • Page 17: Troubleshooting

    2. Check the cable connection on Nature's Power Pod and make sure it fits tightly. 3. If the LED lights up, but the battery bar is not running. It means Nature's Power Pod is being fully charged by the solar panel or solar panel does not have high enough voltage to recharge the Nature's Power Pod.

  • Page 18: Technical Specifications

    Technical Specifications Battery: Type: AGM Sealed Lead Acid Capacity: 100Ah (1200Wh) Self-discharge: Recommend to recharge it every 4 months Ports: 12V DC Port: up to 20A (240W max) Expansion Cord: 45 inches Charges: Solar Charger: 200watt Battery Level LED lights: 5 LED lights General: Dimensions: 18 x 12 x 15 in (47 x 30 x 38 cm) Operating temperature: 32-104 °F (0-40 °C)

  • Page 19: Limited Warranty

    Products and parts replaced under this warranty become the property of Nature's Power Pod and are not returned to you. If service of products or parts are required after the Warranty Period expires, you must pay all labor and parts charges.
  • Page 20 What does the Warranty not Cover? This warranty does not cover: • Cosmetic damage • Damage due to acts of God, such as lightning strikes • Accident • Misuse • Abuse • Negligence • Commercial use • Modification of any part of the product •...
  • Page 21 V1.0 ENGLISH 17-0714...
