RD1200
CONTENTS
Laser detector safety warnings...................................................................................................2
Safety instructions Battery ..........................................................................................................2
Specified conditions of use .........................................................................................................2
Technical data.............................................................................................................................2
Maintenance ...............................................................................................................................3
EC Declaration of Conformity .....................................................................................................3
Symbols ......................................................................................................................................3
Overview.....................................................................................................................................4
Batteries .....................................................................................................................................5
Clamp .........................................................................................................................................6
Level ...........................................................................................................................................7
Start ............................................................................................................................................8
Direct read out ............................................................................................................................9
Grade Match .............................................................................................................................10
Center Lock ..............................................................................................................................11
Settings.....................................................................................................................................12
Settings.....................................................................................................................................13
Troubleshooting ........................................................................................................................14
Accuracy field check .................................................................................................................15
ENGLISH
1
Advertisement
Table of Contents
Related Manuals for Milwaukee RD1200
Summary of Contents for Milwaukee RD1200
-
Page 1: Table Of Contents
RD1200 CONTENTS Laser detector safety warnings....................2 Safety instructions Battery ......................2 Specified conditions of use ......................2 Technical data..........................2 Maintenance ..........................3 EC Declaration of Conformity .....................3 Symbols ............................3 Overview.............................4 Batteries .............................5 Clamp ............................6 Level ............................7 Start ............................8 Direct read out ..........................9 Grade Match ..........................10 Center Lock ..........................11... -
Page 2: Laser Detector Safety Warnings
Please remove the battery if the device is not in use for a prolonged period of time. ultra course 10,0 mm (± 5 mm) @ 30 m Use only genuine Milwaukee accessories. When using non-recommended accessories, you Receiving area ± 60 mm may receive incorrect measuring values. -
Page 3: Maintenance
Use only Milwaukee accessories and spare parts. Should components need to be replaced Waste batteries, in particular containing lithium and waste Electrical and electronic which have not been described, please contact one of our Milwaukee service agents (see our equipment contain valuable, recyclable materials, which can adversely impact the list of guarantee/service addresses). -
Page 4: Overview

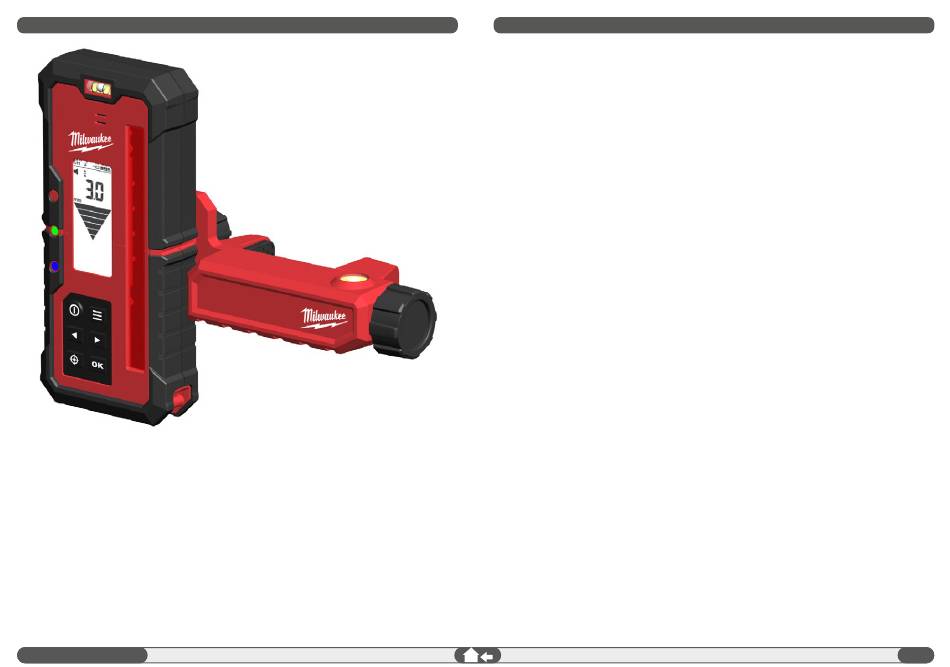

OVERVIEW Clamp connection feature: mount the wall clamp here Back LCD screen Bubble level: for leveling the detektor in vertical position Speaker Sensor: determines the laser beam position Status line: Channel Pairing Fuel gauge Tone Accuracy Units Arrow indicator: shows the direction in which the detector must be moved Center lock: the laser beam will move with the detector Center line: align the laserbeam to this line Grade match: checking the rise or fall of the ground... -
Page 5: Batteries
BATTERIES Only use alkaline batteries. Do not use zinc-carbon batteries. If the detector will not be used for a long time, remove the batteries to protect against corrosion. After switch on the detector the fuel gauge will display the battery life. 100% If 25% is displayed, the batteries must be replaced as soon as possible. -
Page 6: Clamp
CLAMP The detector can be attached to the Milwaukee ROD with the clamp. ENGLISH... -
Page 7: Level
LEVEL Align the laser detector horizontally according to the level. ENGLISH... -
Page 8: Start
START The backlight will illuminate after any button press or when a laser beam is detecting on the sensor. The backlight will stay on for 15 seconds. The timer will reset every time a button is pressed or when a laser is sensed for the first time (i.e. -
Page 9: Direct Read Out
The RD1200 is especially design for the Milwaukee laser M18 RLOHV1200, but can also be used as a detector for other laser with red laser beam. -
Page 10: Grade Match
GRADE MATCH Laser and detector must be paired. Grade match is for checking the rise or fall of the ground between two elevations without complex calculations needed. Grade match feature is only compatible with certain RPM's and accuracy settings and is not compatible with channel link. -
Page 11: Center Lock
CENTER LOCK Laser and detector must be paired. Once the center is found the laser beam will move with the detector. Up or down indicators and number readout will appear while the laser adjusts in real-time. Grade match feature is only compatible with certain RPM's and accuracy settings and is not compatible with channel link. -
Page 12: Settings
SETTINGS Volume of beep Accuracy Units of measure frac Three settings are available The icon on the display will update to show current selection. The measurement setting will show in the display. high (≥ 95 dBA), Detector Accuracy in (dec) in (frac) level low (72 - 90 dBA),... -
Page 13: Settings
SETTINGS Channel Link Pairing Channel Link can be used to eliminate interruptions from other The laser automatically connects to the last paired devices when it is switched on. If the laser does not find a device or if it is to lasers on a busy jobsite, by distinguishing and detecting the be paired with a new device, perform the pairing manually. -
Page 14: Troubleshooting
2 hours to acclimate to ambient temperature before turning on the tool. If the detector freezes, press and hold the power button for 15 seconds or remove the batteries to reset. If problem persists, please contact an authorized MILWAUKEE service center for support. ENGLISH... -
Page 15: Accuracy Field Check
Should any deviation from listed product accuracy be found, please contact a MILWAUKEE service facility. Laser must be Failure to do so could result in rejection of warranty claim.
