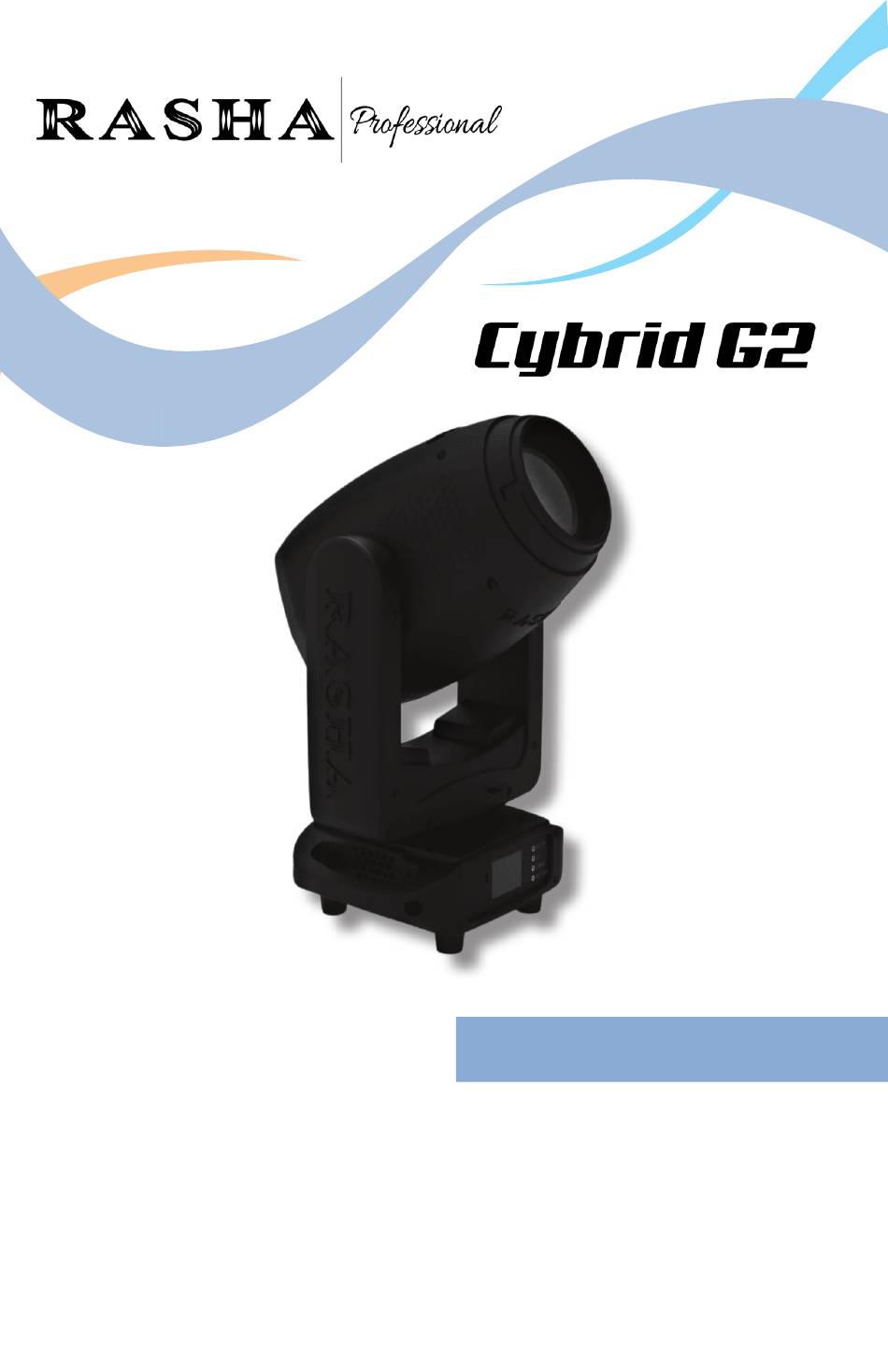

- Page 1 Quick Start Guide Rasha Professional A/S 1800 Rustin Ave. Riverside CA, 92507 951-654-3585 rashaprofessional.com info@rashaprofessional.com...
-
Page 2: Copyright Notice
Discard any older versions of this manual and replace them with the current version. Rasha® is a registered trademark of RASHA PROFESSIONAL A/S (also known as RASHA or Rasha). The RASHA® logo includes the RASHA name and all other trademarks in this manual... -
Page 3: Table Of Contents
Table of Contents Contents Table of Contents Safety Guide Product Info Introduction Overview Display Overview Dimentions Colors & Gobos Tech Specs Menu Map DMX Chart Returns Contact Us Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... -
Page 4: Safety Guide
All applicable Local Codes and regulations apply to the proper installation of this product. When hanging this product, always secure it to a fastening device using a Safety Cable. Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... -
Page 5: Power And Wiring
The maximum Ambient temperature is 113 °F (45 °C). Do not operate this product at a higher temperature. If you have a severe operating problem, stop using this product Immediately. Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... -
Page 6: Product Info
Table Below to wire it. Recepticle Scew Connection Wire (U.S.) Wire (Europe) Colors AC Live Black Brown Brass or Yellow AC Neutral White Blue Silver AC Ground Green/Yellow Green/Yellow Green Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... -
Page 7: Introduction
Fixture Description Introducing Cybrid, a sophisticated and compact LED moving head beam and wash spot luminaire brought to you by Rasha Professional’s family of moving heads. This revolutionary fixture boasts a unique beam effect engine and a carefully calibrated LED emitter, which together transform the light output into a magnificent dynamic ray of actual color mid-air effect, featuring stunning gobos, prism, and smooth color transitions. -
Page 8: Overview
Pan=0 Display Handle Rear Connections Display Overview Display Orientation Window Fixture Settings Menu Auto Menu Menu DMX Signal Fixture Navigation Input LED Error LED Addressing Buttons Window Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... -
Page 9: Dimentions
Dimentions Dimensions (LxWxH) 10.6 x 8.26 x 20.07in (270 x 210 x 510mm) 10.6 in 270 mm 20.07 in 510 mm 8.26 in 210 mm Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... -
Page 10: Colors & Gobos
Colors & Gobos Open Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... -
Page 11: Tech Specs
995 Lux @ 5m (38° Zoom) Construction Housing High-impact flame-retardant thermoplastic Fixture Color Black or White Menu Display 180° Auto/Manual Reversible LCD Menu Display Pan Tilt Locks Yes, both pan & tilt Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... - Page 12 IP Rating IP20 Connections Power Powercon Input & Output Connections Data Connections 3-Pin/ 5-Pin XLR Input & Output Control Control Options DMX, Manual, Auto, Sound DMX Mode 22Ch Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
-
Page 13: Menu Map
Tilt Fine PT Spd Dimmer Dimmer Fine Strobe Colour Gobo Manual Manual DMX Control Rot Gobo Gobo.Rot Gobo.R F Prism1 Prism1.R Auto Focus Frost Zoom Zoom F Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... - Page 14 Pan Tilt Reset Cancel/Confirm Fixture Select Reset Color Reset Cancel/Confirm Reset Settings Gobo Reset Cancel/Confirm Other Reset Cancel/Confirm Program 1 Test Activate Test Pattern Pattern Program 2 Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
- Page 15 Sensor 1 Temperature Hours (H/m) Usage Fixture Usage Hour Info Reset Hours Cancel/ Confirm RDM UID 00:00:00:00:00:00 RDM Infomation Restore Factory Factory X.X.X.X Settings Reset (Password: 1324) Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
-
Page 16: Dmx Chart
18-23 Red/ Blue Step 24-29 Blue Step Color wheel 30-35 Blue/ Yellow Step 36-41 Yellow Step 42-47 Yellow/ Green Step 48-53 Green Step 54-59 Green/ Magenta Step Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... - Page 17 Gobo 6 Step Wheel 70-79 Gobo 7 Step 80-99 Gobo 8 Step Gobo 1 Shake Slow to 100-109 Proportional Fast Gobo 2 Shake Slow to 110-119 Proportional Fast Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
- Page 18 Gobo 7 Step Gobo 1 Shake Slow to 99-11 Proportional Fast Gobo 2 Shake Slow to 112-124 Proportional Fast Gobo 3 Shake Slow to 125-137 Proportional Fast Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
- Page 19 Step 0-127 Prism Indexing Proportional Forwards rotation from 128-189 Proportional fast to slow Prism Rotation 190-193 No rotation Step Backwards rotation from 194-255 Proportional slow to fast Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
- Page 20 Fans mode: Low Step Dimmer curve: Square 80-89 Step Dimmer curve: Invert 90-99 Step Square law 100-109 Dimmer curve: Linear Step 110-119 Dimmer curve: S Curve Step Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
- Page 21 150-159 Total reset Step 160-169 Pan/Tilt reset Step Control 170-179 Color system reset Step 180-189 Gobo wheels reset Step Zoom/focus/frost/prism 190-199 Step wheels reset 200-255 Reserved Step Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
-
Page 22: Returns
Returns You must send the product prepaid, in the original box, and with the original packing and accessories. Rasha Professional will not issue call tags. Call Rasha and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the Claim(s) for the return. -
Page 23: Contact Us
+1 (951) 654 3585 Outside the U.S. contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Rasha Professional A/S 1800 Rustin Ave., Riverside CA, 92507 951-654-3585 rashaprofessional .com...
