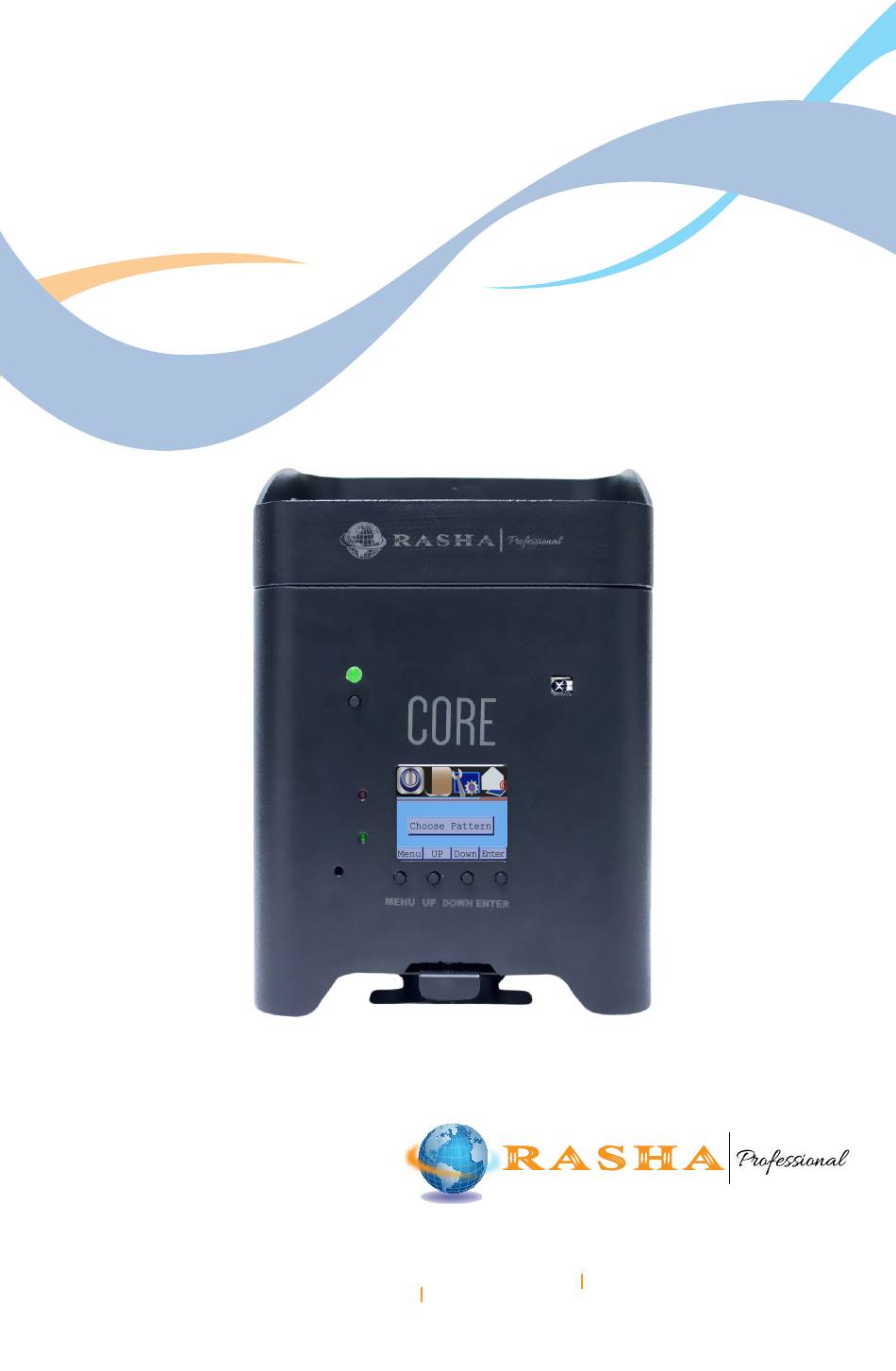

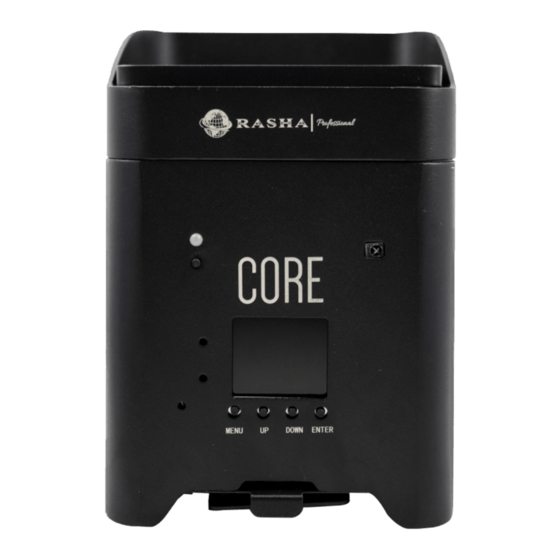

- Page 1 HEX CORE QUICK USER MANUAL RASHA PROFESSIONAL A/S Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
- Page 2 Discard any older versions of Revision this manual and replace with this version. Go to www. rashaprofessional.com for the latest version. Author Date Editor Date Robert Becerra 01/30/17 Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
-
Page 3: Table Of Contents
Dimensions .......... 7 6. Technical Specifications ....16 3. Setup............. 8 Returns ..........17 AC Power ..........8 Contact Us ........18 AC Plug ..........8 Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... -
Page 4: What Is Included
A unique value to be entered or selected in a menu Symbols Meaning Symbols The term “DMX” used throughout this manual refers to the DMX512 digital data transmission protocol Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... -
Page 5: Safety Notes
Outdoor Use Auto-Ranging Power Supply Sound-Activated Replaceable Fuse User-Serviceable Master/Slave The term “DMX” used throughout this manual refers to the DMX512 digital data transmission protocol Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... -
Page 6: Introduction
RGBAW+UV color LEDs, produce RGBAW + Ultraviolet colors. This fixture it has 38 Built in static colors and multicolored shadows. It has Built in 2.4 GHz Wi-Fi control system + IR System. The Hex Core is the most Description new smart and easy fixture. -
Page 7: Overview
OVERVIEW 138 x 144 x 188 138 x 144 x 188 Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... -
Page 8: Setup
If you are not familiar with or need more information about DMX standards, Master/Slave connectivity, or the DMX cables needed to link this product to a DMX controller, download the DMX Handbook from the Rasha website: www.rashaprofessional.com Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com... -
Page 9: Mounting
Make sure the clamps are capable of supporting the weight of this product. Use at least 1 mounting point per product. In addition, use a safety cable to link the product to the structure. Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com... - Page 10 4.4.4. W 0-100 4.5.5. Y 0-100 6. Background Color 4.5.6. U 0-100 6.1.1. 1-9 4.2. Static Color 4.2.1. Color 1-32 5. Set 5.1. DMX Channel 5.1.1. 6CH/10CH Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
-
Page 11: Operations
• Select desired sub menu from main menu to enter corresponding sub menu shown below. There is a of total 15 menu programs, includes class of parameter and status: Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com... - Page 12 Wifi Settings in not reboot, Hard Close If not, Press edit in top step 1. (Led_xxx) you app and reopen. Left Corner (Step 4). Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
-
Page 13: Wireless Dmx
Green Led bulb in rear side of the light it will start to blip(means the successful in transmission). If working in 6 Channel mode make sure that the DMX fader 6 is at full 255 and 2-6 are your colors. Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... -
Page 14: Channel 10
UV (Intensity 0 to 100%) 1-255 If working in 6 Channel mode make sure that DMX faders 6 are to at full 255 and 2-6 are your colors. Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... - Page 15 Auto color change with strobe (Slow to 201-220 and sound fast) Auto color change with Pusle 221-240 and sound Auto color change with Fade 241-255 and sound Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
- Page 16 Color 28 216 - 223 Color 29 224 - 231 Color 30 232 - 239 Color 31 240 - 247 Color 32 248 - 255 Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
-
Page 17: Returns
Double-boxing is recommended. Rasha reserves the right to use its own discretion to repair or replace returned product(s). Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com... -
Page 18: Contact Us
Voice: +1 (615) 942-6927 Outside the U.S.contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com... - Page 19 NOTES Color Chart Reference Color Chart Cont. Description Description Value Value No action (blackout) Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
- Page 20 Rasha Professional A/S 1130 Palmyrita Ave. Ste 320, Riverside CA, 92507 951-654-3585 rashaprofessional .com info@rashaprofessional.com...
