- Page 1 USER MANUAL BatteryMonitor Rev#1...
-
Page 2: Table Of Contents
Important Notices and safety information Limited Warranty Disposal of Old Electrical & Electronic Equipment Revision History Packing Lists Part numbers Basics LXNAV Batery Monitor at a Glance 3.1.1 Key Features 3.1.2 LXNAV Batery Monitor Features 3.1.3 Technical Data General specification Current and voltage measurements 3.2.1... -
Page 3: Important Notices And Safety Information
This LXNAV Batery Monitor product is warranted to be free from defects in materials or workmanship for two years from the date of purchase. Within this period, LXNAV will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts and labor, the customer shall be responsible for any transportation cost. -
Page 4: Disposal Of Old Electrical & Electronic Equipment
Rev #1 January 2025 1.2 Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. -
Page 5: Revision History
Rev #1 January 2025 1 Revision History Date Revision Revised by Description January 2025 Initial release of this manual Page 5 of 18... -
Page 6: Packing Lists
Rev #1 January 2025 2 Packing Lists Battery Monitor 2.1 Part numbers Model Part number Description Batery Monitor Batery Monitor Batery Monitor with built-in Bluetooth module, Gps antenna, Bluetooth antenna, 1x Dipole antenna included LX DAQ + LX DAQ + LX DAQ+ is also a Bluetooth hub for battery monitors. -
Page 7: Basics
app for enhanced flexibility. System Integration: Seamlessly integrates with LXxxxx systems when paired with the LXNAV BT HUB, enabling direct battery data visualization. Energy Efficiency: Features an ultra-low-power sleep mode to minimize battery drain during prolonged inactivity. -
Page 8: Environmental Limitations
Rev #1 January 2025 Current Zero offset accuracy ±10 Current accuracy ±1.4 Current resolution 12.5 Current measurement range Current sampling rate Voltage ADC resolution Voltage Zero offset accuracy ±10 Voltage accuracy ±1.8 Voltage resolution Voltage measurement range Voltage sampling rate Parameter Value RF Communication... -
Page 9: Device Description

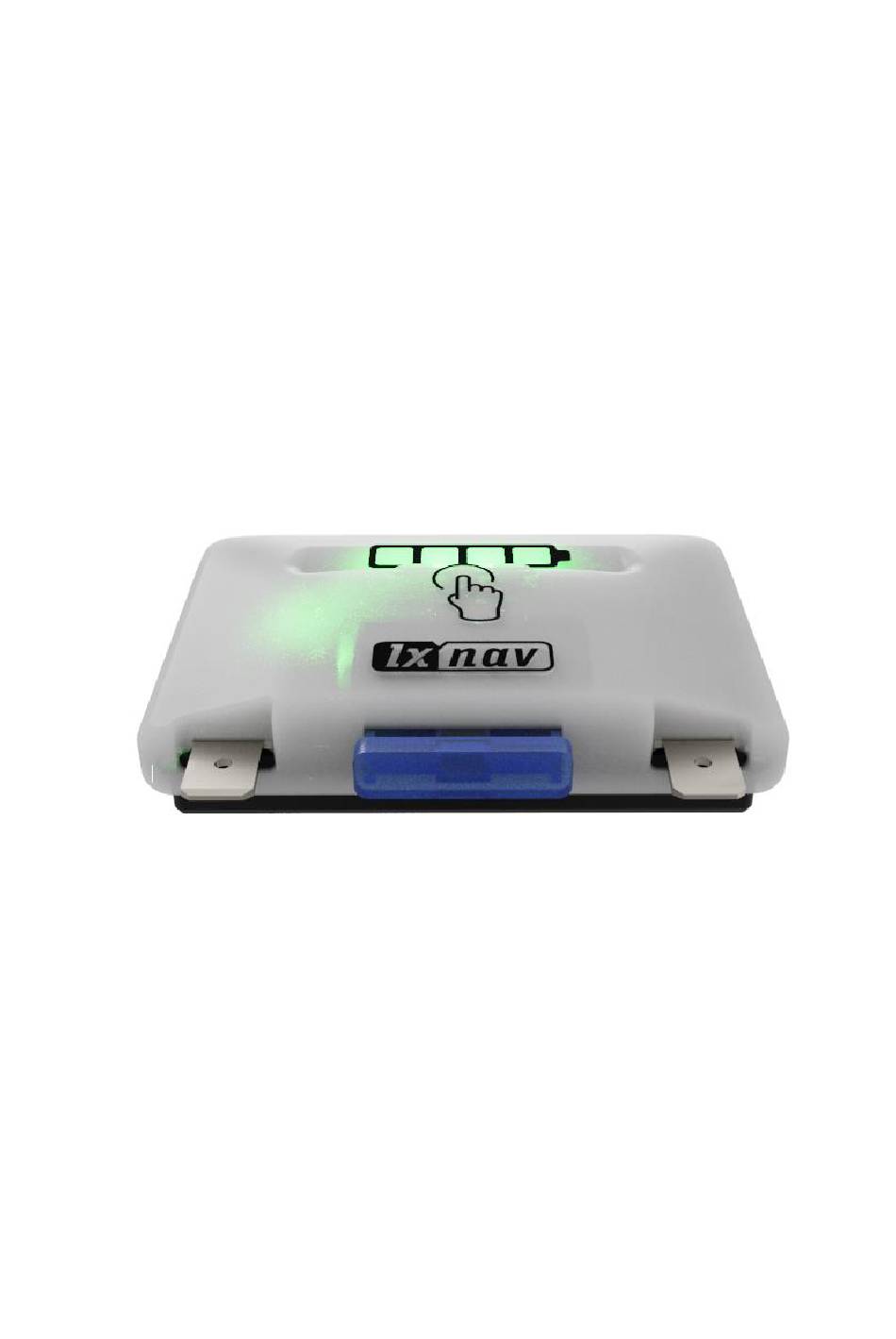

Rev #1 January 2025 4 Device Description The battery monitor consists of two input connection terminals, two output terminals, a fuse, a push button, status LED indicator and battery SOC LED indicator. Negative pole Positive pole battery battery terminal terminal Battery SOC Push button LED indicator... -
Page 10: Input Terminals
Rev #1 January 2025 Positive pole Negative pole battery battery terminal terminal 4.1.1 Input terminals On the battery side, there are two terminals: positive and negative. The terminal spacing is 43 mm, conforming to the standard battery size. For batteries with different sizes, the battery monitor can be ordered with open leads or a specialized connector (e.g., MPX 6-pin AM-1016). -
Page 11: Bluetooth
Rev #1 January 2025 4.4 Bluetooth To connect to the Battery Monitor via Bluetooth, it is necessary to install the corresponding app on your smartphone. Once the app is running, ensure that the Battery Monitor is paired with the smartphone for seamless connectivity. Page 11 of 18... -
Page 12: Batmon App On The Smart Phone
Rev #1 January 2025 5 BatMon App on the smart phone The app is compatible with both Android and iOS platforms. Upon the initial launch, the app will automatically search for nearby devices (Battery Monitors). Users can then select and connect to the desired batteries. -
Page 13: Pairing The Battery
Rev #1 January 2025 5.1 Pairing the battery When the app is launched, it will request permission to access Bluetooth. Once granted, the app will display a list of batteries within range. Selecting a battery will initiate pairing and establish a connection with one or more of the selected batteries. -
Page 14: Alert Settings
Rev #1 January 2025 5.3.2 Alert settings In this setup menu, users can configure alarm settings, including their rules, severity levels, and types. 5.3.3 Application info On this page, users can view detailed information about the application's version, specifications, and helpful tips regarding the functionality of various buttons. -
Page 15: Firmware Update
Rev #1 January 2025 5.3.4 Firmware update On the firmware update page, users must first select the battery to be updated. Once confirmed, the firmware update process will begin. It is important not to interrupt the update procedure by cycling the power. - Page 16 Rev #1 January 2025 Swiping right reveals statistical data about the battery's operation. Users can reset the State of Health (SoH) by pressing the SoH indicator. At the top of the screen are two buttons: one for configuring the battery settings and a trash can icon for removing the battery from the list.
- Page 17 Rev #1 January 2025 Page 17 of 18...
-
Page 18: Installation
44mm. For larger or different models, you must order the battery monitor with open leads or dedicated connector. When the battery monitor is connected to the battery, it is ready to use. 6.1 Connecting LXNAV Battery Monitor The Battery Monitor is designed for direct connection to standard-sized batteries with a terminal distance of 44mm.
