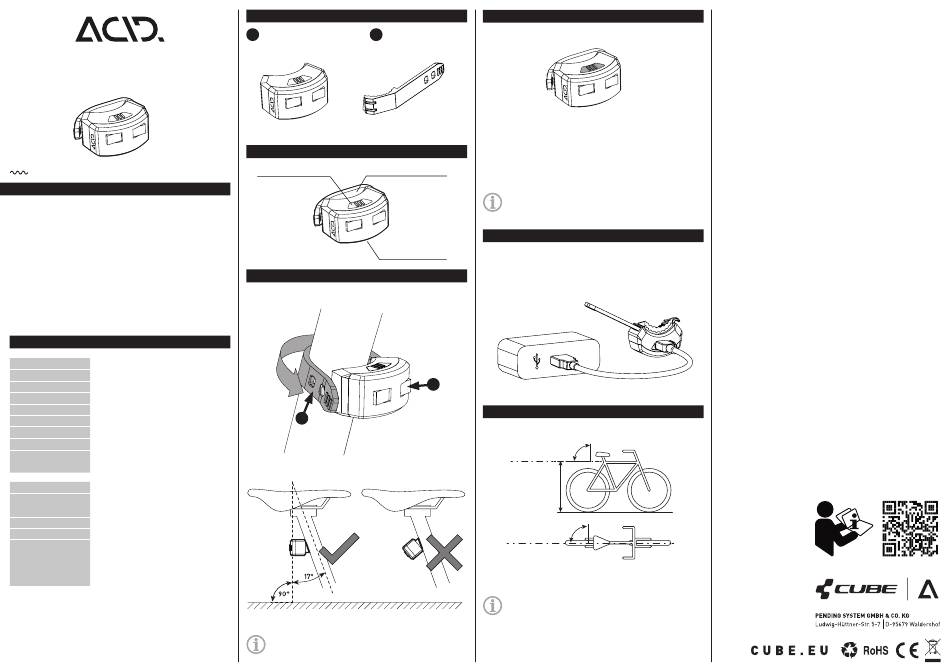

Original Operating Instructions
ACID Rear Light PRO Evolution
EN
K 2442
SEACS-02 Version 1.0
EN
INTENDED USE
This product is intended as a rear light for bicycles facing against the
direction of travel to the rear.
The light emission must not be impaired. The product is intended to be
used outside. The product is not intended to be used for commercial or
industrial applications. Make sure that the USB protection cap is properly
closed during use.
This product complies with German road traffic regulations (StVZO).
Use the product only as described in this manual. Any other use is
considered as not intended and can lead to accidents, serious injury or
damage to the product or vehicle. The product is not a toy for children.
The manufacturer or dealer accepts no liability for damage caused by
incorrect mounting and improper or incorrect use.
Technical Description
Type Name
PRO Evolution (Rear Light)
Light Intensity 5 / 8 cd (low / high)
Light Source LED
Battery
270 mAh Li-Po Battery (integrated)
Housing Plastic
Weight 25 g
Dimension (LxWxH)
35 x 45 x 24 mm (without silicone strap)
IP Protection Class IPX5
Suitable Seatpost ~20 - ~32 mm
Diameters
Light Modes 2
Light ON Time: Mode 1 5 cd ca. 6 h (low)
Mode 2 8 cd ca. 4 h (high)
Brakelight 40 cd
Charge Time ca. 2 h
Battery Indicator green (100%-70%)
orange (69%-50%)
red (49%-15%)
red flashing (15%-0%) switches to Mode 2
An energy output via the integrated USB interface is not possible.
Technical modification reserved.
Product Content
1 2
Rear Light Silicone Strap
Overview
ON/OFF Button + Silicone Strap
Battery Indicator
USB-C Charging Port
Mounting On Seatpost
2
The emergency/brake light function only works correctly if the light is
mounted in the correct position.
Operating The Light
ON = 1x press longer Switch on the rear light by pressing the button longer.
The rear light has 2 light modes, which can be
Changing the mode
= 1x push switched by pushing the button.
Switch off the rear light by pressing the button longer.
OFF = 1x press longer
When the illuminated battery indicator on the light indicates red, the
light must be recharged. If the battery is completely empty, the light
will switch off. Before every ride use the battery indicator to check that
the battery is sufficiently charged. In a discharged state there is a risk
of deep discharge. Recharge the battery as soon as possible.
Recharging The Light
Recharge the rear light as shown in the image with a USB-C charging
cable. Therefor use a USB port or a USB power adapter (max. Input DC 5V,
1000 mA). The battery is fully charged when the LED under the ON/OFF
button light up green.
1
Product Settings
90°
Reference Axis
max. 1200mm
min. 400mm
90°
Reference Axis
IMPORTANT! Check the correct setting and mounting height
of your rear light regularly. The rear light must be mounted in
a range of 250 to 1200 mm above the road surface. It must be
mounted and adjusted so that the reference axis is parallel to the
longitudinal center plane of the vehicle and parallel to the road (see
illustration).
Fit the light as shown in the image in the opposite direction of travel with
battery indicator, ON/OFF button on top.
