Summary of Contents for Cube LITENING C:68 X

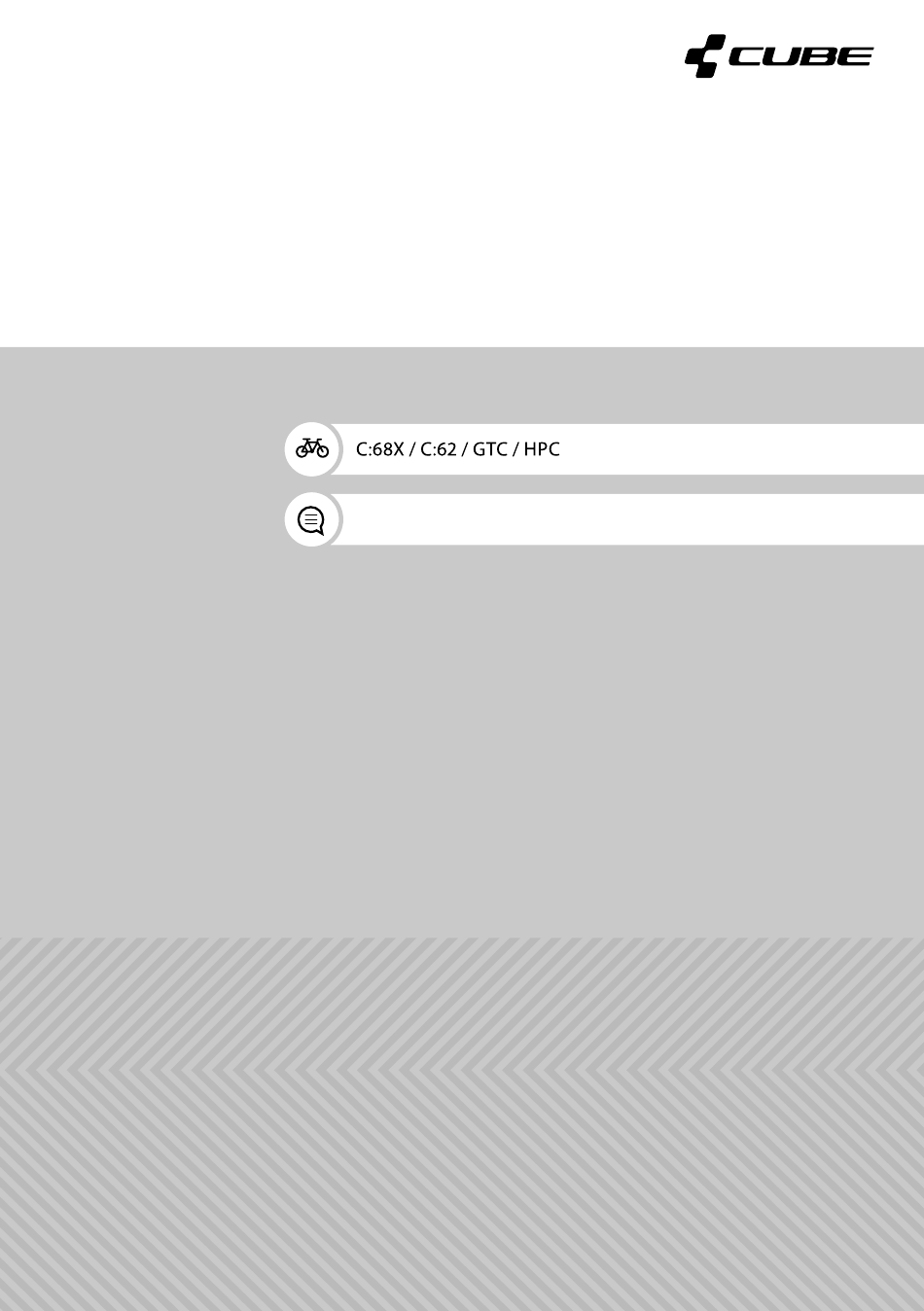

- Page 1 ADDITIONAL INSTRUCTIONS FOR CUBE CARBON FRAME AND (FULL-) CARBON FORKS ENGLISH...
- Page 2 GTC / C:62 CUBE ACCESS GTC / C:62 CUBE STEREO 120 CUBE STEREO 140 C:62 / C:68 CUBE STEREO 140 HYBRID CUBE STEREO 160 C:62 / C:68 CUBE STEREO 160 HYBRID CUBE AMS 100 C:62 / C:68 CUBE AGREE HYBRID...
- Page 3 IMPORTANT NOTES! CUBE C:68X/ C:62 / GTC / HPC • This document must be read carefully prior to assembly and use of the frame/entire bike and should be observed accordingly. • These instructions are additional operating instructions for the C:68X / C:62 / GTC / HPC Series and (full) carbon forks.
-
Page 4: Table Of Contents
C:68 X/ C:62 / GTC / HPC Content About this Owner‘s Manual ..................... Conventions ............................04 1.1.1 Symbol ..............................04 General Notes ............................ 04 Manufacturing process ........................ 05 Use in competition ..........................05 How to use your carbon parts correctly ..................06 Seat clamp/seat post ........................... -
Page 5: About This Owner's Manual
C:68 X/ C:62 / GTC / HPC Dear Customer General Notes We would like to thank you for your choice of a Risk of Personal Injury and Material bike from our Company and thank you for your Damage! trust. With this purchase you have a high-quality, environmentally friendly means of travel which Failure to observe the instructions con- will give you a lot of pleasure and at the same... -
Page 6: Manufacturing Process
C:68 X/ C:62 / GTC / HPC Shock and impact stresses may cause dama- are only of optical kind and do not have any ge not visible externally such as delaminati- effect on quality and performance of the on (separation of fibres from the surround- frame. -
Page 7: How To Use Your Carbon Parts Correctly
C:68 X/ C:62 / GTC / HPC Frame and forks must be examined parti- Aluminium seatposts may only be moun- cularly carefully for damage (e.g. cracks, ted using a carbon assembly paste. delamination, discolouration etc.) before The seat clamp may not be closed if the and after each instance of use in racing. -
Page 8: Bottom Bracket / Crank Bearing System
C:68 X/ C:62 / GTC / HPC 3.6 Bottom bracket / crank The maximum torque of bottle holder fixing screws see pages 10/11. Carbon frames are bearing system approved for bottle holders which can take a The „Pressfit“ bottom bracket must be fitted 750 ml capacity bottle. -
Page 9: Transportation
C:68 X/ C:62 / GTC / HPC • In this case the provided so called “expan- During transportation do not place any objects on the frame and forks and stow so der” or “thread insert “ must be used on a full carbon fork. - Page 10 C:68 X/ C:62 / GTC / HPC The decision as to whether a repair is to be carried out free of charge rests solely with the manufacturing company and in no circum- stances is there any claim to cost-free repair. The special ex gratia provisions only apply to the first owner.
-
Page 11: Assembly Instructions
10 | C:68 X / C:62 / GTC / HPC 7 Assembly Instructions 7.1 The MTB bike frame Seat post assembly Consider max. allowed seat post length (x) including min. insert length (y): 120 mm (y) at 400 mm (x) 120 mm (y) for adjustable seat post (e.g. -
Page 12: The Racing Bike Frame
| 11 C:68 X/ C:62 / GTC / HPC 7.2 The racing bike frame INFO Seat post assembly • LITENING stem clamping 4,5-5Nm Consider max. allowed seat post length (x) including min. insert length (y): • LITENING saddle clamping 5-6Nm 100 mm (y) at 350 mm (x) •... -
Page 13: Liability
12 | C:68 X / C:62 / GTC / HPC Liability Risk of Personal Injury and Material Damage! The manufacturing company accepts no liability for accident damage or conse- quential loss. The user bears the risk in the event of personal injury and material damage.
