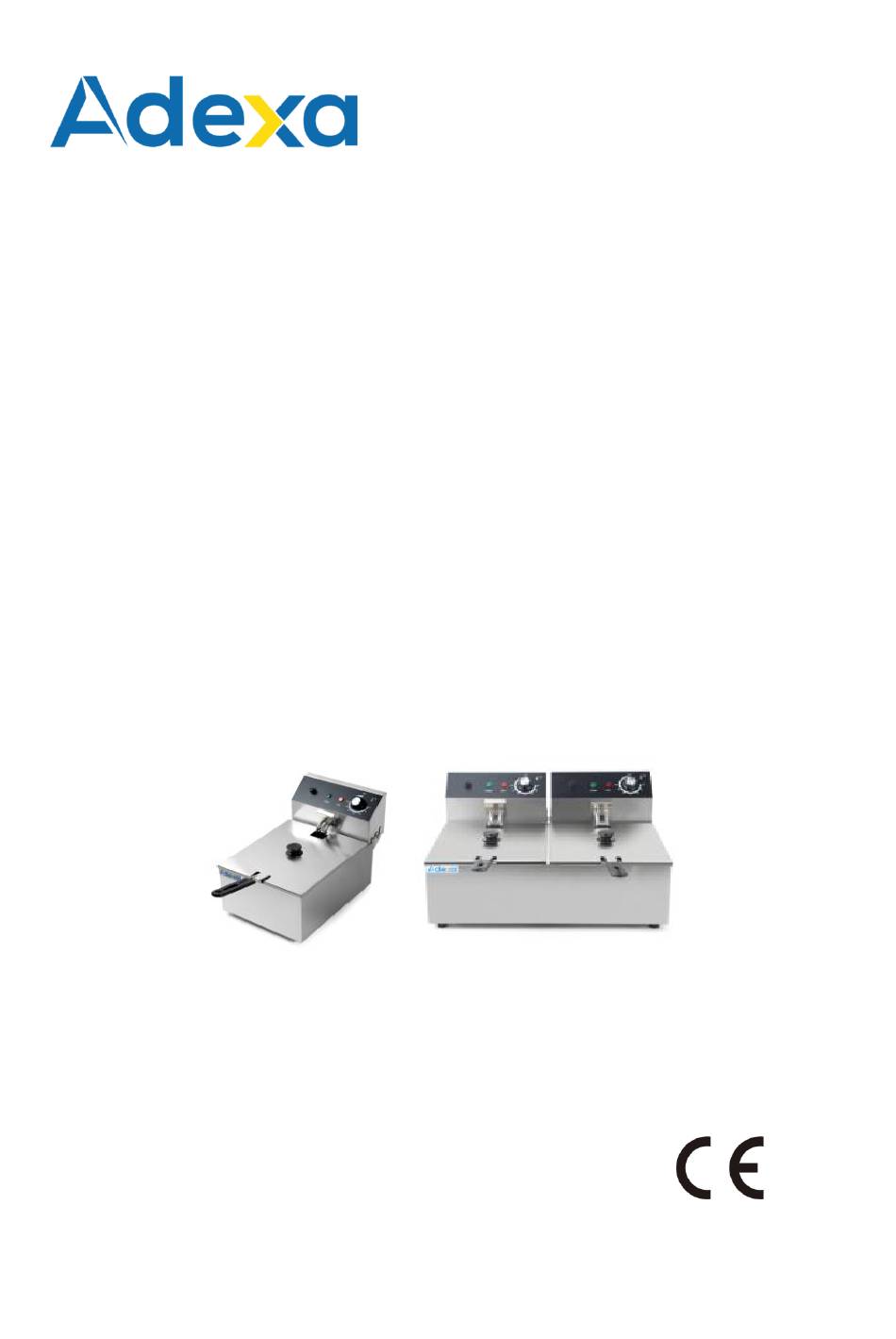

- Page 1 Electric Fryer （1-Tank/2-Tank） User Manual HEF-series (HEF-81, HEF-82A, HEF-83A, HEF-88, HEF-82)
- Page 2 Dear Client and User, Thank you for purchasing and using our product. The information and guidelines provided in this user manual comply with applicable regulations and are based on our extensive knowledge, experience, and current product development standards. Due to certain structural features, additional specifications, or the adoption of new technologies, the actual usage of the product may differ slightly from what is outlined in this manual.
-
Page 3: Table Of Contents
Contents 1. Functional Introduction ................ 4 2. Structure Schematic Diagram & Working Principle ....... 4 3. Basic Features & Parameters ..............6 4. Precautions & Recommendations ............6 5. Working Instructions & Operation Flow ..........7 6. Routine Inspection ................8 7. -
Page 4: Functional Introduction
1. Functional Introduction This product, designed and manufactured by our company, integrates the best features of similar products from both domestic and international markets. It boasts a novel design, a reasonable structure, and user-friendly operation. The product is durable, heats quickly, saves energy, and is easy to maintain. - Page 5 3. A built-in limit-temperature safety protection device ensures that if the oil temperature exceeds the safe limit, the power supply is automatically cut off, preventing overheating. This feature includes a manual reset function for convenience. 4. The micro limit switch adds an additional layer of safety. When the electrical box is lifted, the micro switch activates, cutting off the power supply to prevent the heating element from operating without oil.
-
Page 6: Basic Features & Parameters
3. Basic Features & Parameters 1-Tank 2-Tank 1-Tank 1-Tank 2-Tank Name Electric Fryer Electric Fryer Electric Fryer Electric Fryer Electric Fryer (1-Basket) (2-Basket) (2-Basket) (1-Basket) (2-Basket) Model HEF-81 HEF-82A HEF-83A HEF-88 HEF-82 Voltage（V） 220-240 220-240 220-240 220-240 220-240 Power（kW） 2.5KW 2.5KW+2.5KW 2.5KW+2.5KW 2.8KW... -
Page 7: Working Instructions & Operation Flow
3. Always unplug the appliance and turn off the power supply before cleaning. 4. Do not spray water directly on the product when cleaning, as it may cause electric shock. 5. Avoid hitting or placing heavy objects on the product. Improper handling can cause damage and create safety hazards. -
Page 8: Routine Inspection
the basket and hang it on the slot at the front of the tank to drain excess oil. For larger food items, place them directly into the tank for frying. 7. After completing your work, turn the thermostat counterclockwise to the "off" position and disconnect the appliance from the power supply. -
Page 9: Cleaning And Maintenance
7. Cleaning and Maintenance 1. To prevent accidents, always turn off the power supply before cleaning the appliance. 2. After use, clean the surface and power cord with a damp cloth containing a non-corrosive detergent. Avoid spraying water directly onto the appliance, as water infiltration can damage electrical components and pose a safety risk. -
Page 10: Photos And Diagrams
9. Photos and Diagrams Basket information Step1 Step2 Step 3 Step 4... - Page 11 FRYER CONFIGURATIONS ECONOMIC FRYER: FRYER WITH HANDLE: FRYER WITH TAP: BIG CAPACITY FRYER...
-
Page 12: Declaration Of Conformity
HEF101V, HEF102V, HEF11L, HEF11L2, HEF131V, HEF161C, HEF161V, HEF162C, HEF162V, HEF26, HEF262, HEF81, HEF81A, HEF82A, HEF83A, HEF88, HEF8L, HEF8L2. Application of This Declaration of Conformity is issued under the sole responsibility of the importer: Adexa Territory Legislation & Direct Limited. Council Directives(s) For the object of this declaration, the essential requirements and principal safety objectives have been demonstrated.
