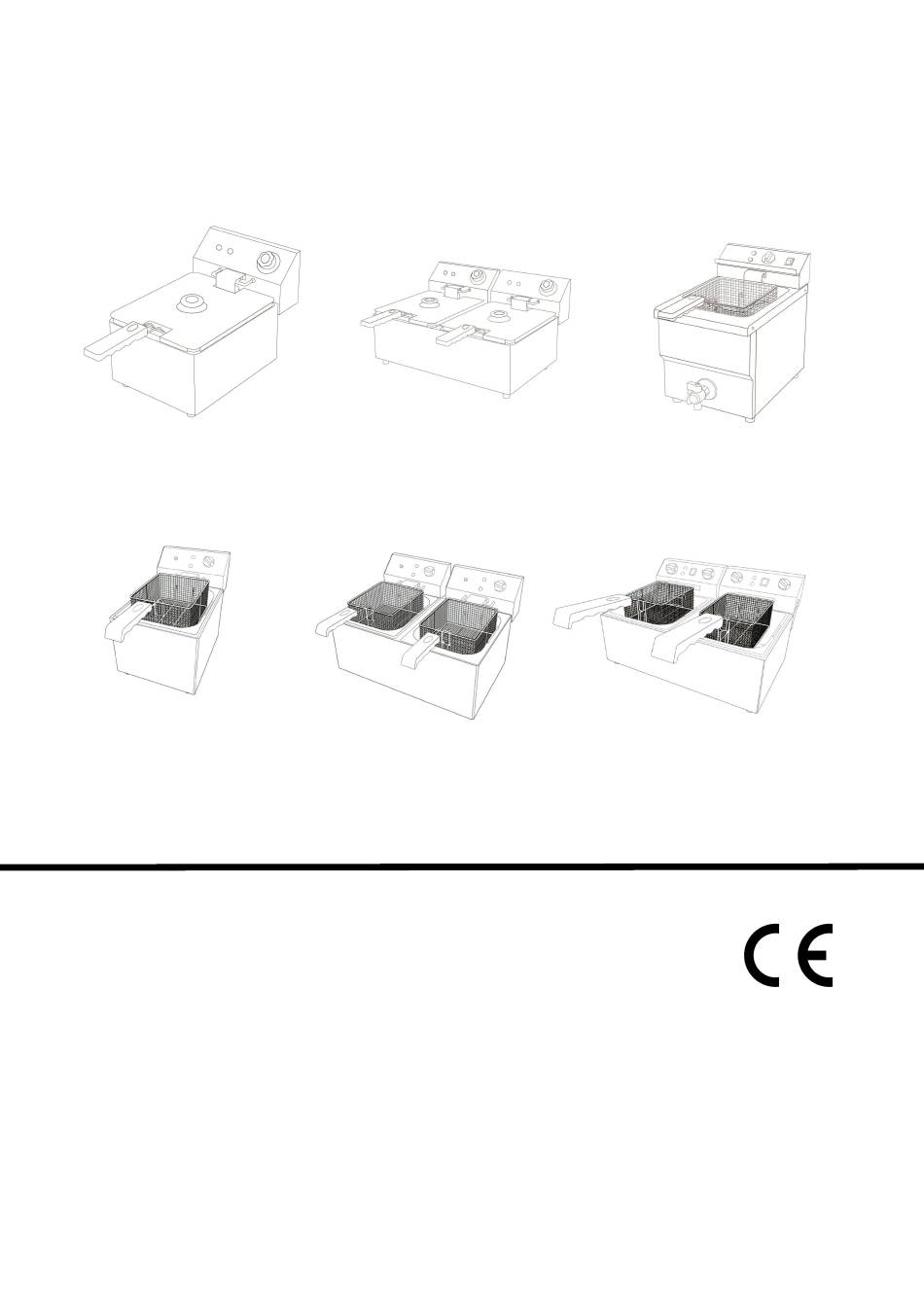

Installation and Operating Manual
Commercial Deep Fryer
Model :
FRY-10L
FRY-20L
FRY-101v
FRY-20L
and "Bold
Please carefully read this manual before using this product.Please pay extra attention to those wording in
"RED"
Black".
Make sure you are familiar with all of the safety and usage instructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRY-10L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Adexa FRY-10L

Summary of Contents for Adexa FRY-10L

  • Page 1 Installation and Operating Manual Commercial Deep Fryer Model : FRY-10L FRY-20L FRY-101v FRY-20L and “Bold Please carefully read this manual before using this product.Please pay extra attention to those wording in “RED” Black”. Make sure you are familiar with all of the safety and usage instructions.
  • Page 2 Keep this manual in a safe place for future reference. WARNING: The installation, maintenance and servicing of this product must be carried out by a qualified technician. You should consult local and national standards to comply with the following: Health & safety at work legislation ...

  • Page 3: Features And Controls

    If the electrical circuit is overloaded with other appliances, your appliance may not operate properly. It should be operated on a separate electrical circuit from other appliances Features and Controls Electric Fryer Parts FRY-10L: 1. Power indicator (green) 2. Thermostat indicator (yellow) 3.

  • Page 4: Specifications

    Electric Fryer Parts FRY-10L-2: 1. Power indicator (green) 2. Thermostat indicator (yellow) 3. Temperature control knob 4. Heating element cover 5. Basket hook 6. Night cover 7. Main housing 8. Rubber feet 9. Basket handle(basket not shown) 10.Reset button - located on back of machine Note: The Dual Fryer has 2 plugs, one plug supplying power to each side.
  • Page 5 50~200℃ 10L+10L 550*415*290 Remarks:”-2” at the end of Model No. means dual version of single version.For instance, FRY-10L-2 means dual version of FRY-10L.Each working station of Dual deep fryers are identical to Single deep fryer. OPERATING INSTRUCTIONS These fryers are plug-in products but commercial safety regulations require additional earthing to be carried out. Only a qualified technician should install the product.
  • Page 6 BURNS. Hot oil is capable of causing severe burns. For fryer with detachable oil tank models(FRY-10L,FRY-10L-2,FRY-101v,FRY-101v-2,EF-12L,EF-12L-2) only: 12. When temperature of the oil cools down, remove the heating element cover, control box and element then pour the old oil out of pot.

  • Page 7: Helpful Hints

    5. Grasp oil pan handles. They will slide up and out to allow oil pan removal from Deep Fryer body. 6. CAUTION: Oil in oil pan is heavy! Use care when moving. 7. Carefully strain the oil from the oil pan into a suitable container. (See DRAINING & RECYCLING OIL for complete details.) NOTE: It is best to work over a sink or garbage can in case of any spillage.
  • Page 8 Temperature safety reset switch This unit is equipped with a switch that cuts off power if the oil temperature reaches 465°F (240°C). This switch has a manual reset. The reset switch and cover is usually located on the back panel of the unit,EF-12L series on the Front. Determine what caused the safety switch to activate and correct it. Possible causes include:dirty oil, low oil level and element not properly submerged in oil.
