REFRIGERATED COUNTERS (FAN COOLING)
Kasap Tip Dik Buzdolapları
CONTENTS
Page
2
Page
3
Page
3
Page
4
Page
4
Page
4
Page
5
Page
6
Page
7
Page
8
Page
9
Page
18
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMP.150.60.01 and is the answer not in the manual?

Questions and answers

Related Manuals for Adexa EMP.150.60.01

Summary of Contents for Adexa EMP.150.60.01

  • Page 1: Table Of Contents

    REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları CONTENTS GENERAL INFORMATION Page PRODUCT DESCRIPTION Page TECHNICAL INFORMATION Page TRANSPORTATION Page UNPACKING Page INSTALLATION Page SAFETY INSTRUCTIONS Page OPERATION Page CLEANING & MAINTENANCE Page TROUBLESHOOTING Page SPARE PART LIST- EXPLODING DRAWING Page ELECTRIC CIRCUIT SCHEMA Page...

  • Page 2: Ageneral Information

    REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları GENERAL INFORMATION Before installing the appliance, read operation and maintenance instructions carefully.Wrong installation and part changing may damage the product or may cause injury on people.These are not in our company’s responsibility to damage the appliance intentionally,negligence,detriments because of disobeying instructions and regulations,wrong connections.Unauthorized intervention to appliance invalidates the warranty.

  • Page 3: A1 Product Description

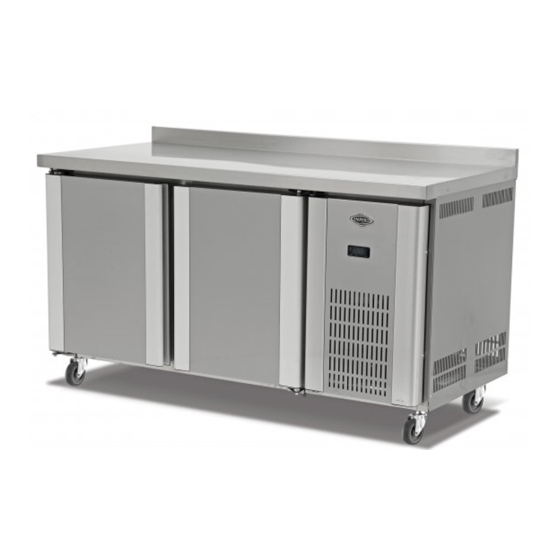

    Kasap Tip Dik Buzdolapları PRODUCT DESCRIPTION *The Professional Refrigerated Counters(Fan Cooling) ,that provides high efficiency has been designed to be used in industrial kitchen. Packaging Product Code Dimensions (mm) Weight (kg) Dimensions (mm) EMP.150.60.01 1500x600x850 1540x630x970 EMP.150.70.01 1500x700x850 1540x730x970 EMP.200.60.01 2000x600x850 2040x630x970 EMP.200.70.01...

  • Page 4: A3 Transportation

    REFRIGERATED COUNTERS (FAN COOLING) TRANSPORTATION Kasap Tip Dik Buzdolapları *This appliance can not be moved by hand from area to area.It must be moved on pallet with forklift truck. UNPACKING *Please unpack the package according to the security codes and ordinances of current country and get rid from the pack.Parts which contacts with food are produced by stainless steel.All plastic parts are marked by material’s symbol.

  • Page 5: Csafety Instructions

    REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları SAFETY INSTRUCTIONS *Do not use the appliance in insufficient lighted place. *Do not touch the moving attachments while the appliance operates. *Do not install the appliance in the presence of flammable or explosive materials. ...

  • Page 6: Doperation

    REFRIGERATED COUNTERS (FAN COOLING) OPERATION Kasap Tip Dik Buzdolapları *Control Panel; A : Degree increase B : Degree reduce C : Indicator ON/OFF D : SET approval button E : ON position F : OFF position *Operating;  Clean the inner and outer surface of the appliance with warm cloth before first use.Then clean with wet cloth and dry.

  • Page 7: Ecleaning & Maintenance

    REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları CLEANING & MAINTENANCE  CLEANING AND MAINTENANCE AFTER EVERY USE  Always turn off the appliance and disconnect from the power supply before cleaning.  Clean the inner surfaces and shelves with moist cloth and then dry after every evacuation of material.

  • Page 8: Ftroubleshooting

    REFRIGERATED COUNTERS (FAN COOLING) TROUBLESHOOTING Kasap Tip Dik Buzdolapları Check if the appliance is plugged in. THE APPLIANCE DOESN’T OPERATE Check the electrical connections and voltage. Check if the fuse is on or off. Check the motor. THE APPLIANCE IS NOISY If the connection pipes contact with compressor,remove it.

  • Page 9: Gspare Part List- Exploding Drawing

    REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS EMP.150.60.01 - EMP.150.70.01...
  • Page 10 REFRIGERATED COUNTERS (FAN COOLING) SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.150.60.01 PRODUCT NAME P. CODE Kasap Tip Dik Buzdolapları MOTOR REAR COVER SHEET Y.EMP.150.60.01.001-R1 COMPRESSOR Y.EMP.150.60.01.002-R1 CONDENSER Y.EMP.150.60.01.003-R1 FAN WING Y.EMP.150.60.01.004-R1 FAN CIRCLE WIRE Y.EMP.150.60.01.005-R1 FAN MOTOR Y.EMP.150.60.01.006-R1 WATER DRAIN PLASTIC Y.EMP.150.60.01.007-R1...
  • Page 11 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.150.70.01 PRODUCT NAME P. CODE MOTOR REAR COVER SHEET Y.EMP.150.70.01.001-R1 COMPRESSOR Y.EMP.150.70.01.002-R1 CONDENSER Y.EMP.150.70.01.003-R1 FAN WING Y.EMP.150.70.01.004-R1 FAN CIRCLE WIRE Y.EMP.150.70.01.005-R1 FAN MOTOR Y.EMP.150.70.01.006-R1 WATER DRAIN PLASTIC Y.EMP.150.70.01.007-R1 RIGHT OUTER SIDE SHEET...
  • Page 12 REFRIGERATED COUNTERS (FAN COOLING) SPARE PART LIST- EXPLODING DRAWINGS Kasap Tip Dik Buzdolapları EMP.200.60.01 - EMP.200.70.01...
  • Page 13 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.200.60.01 PRODUCT NAME P. CODE MOTOR REAR COVER SHEET Y.EMP.200.60.01.001-R1 COMPRESSOR Y.EMP.200.60.01.002-R1 CONDENSER Y.EMP.200.60.01.003-R1 FAN WING Y.EMP.200.60.01.004-R1 FAN CIRCLE WIRE Y.EMP.200.60.01.005-R1 FAN MOTOR Y.EMP.200.60.01.006-R1 WATER DRAIN PLASTIC Y.EMP.200.60.01.007-R1 RIGHT OUTER SIDE SHEET...
  • Page 14 REFRIGERATED COUNTERS (FAN COOLING) SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.200.70.01 Kasap Tip Dik Buzdolapları PRODUCT NAME P. CODE MOTOR REAR COVER SHEET Y.EMP.200.70.01.001-R1 COMPRESSOR Y.EMP.200.70.01.002-R1 CONDENSER Y.EMP.200.70.01.003-R1 FAN WING Y.EMP.200.70.01.004-R1 FAN CIRCLE WIRE Y.EMP.200.70.01.005-R1 FAN MOTOR Y.EMP.200.70.01.006-R1 WATER DRAIN PLASTIC Y.EMP.200.70.01.007-R1 RIGHT OUTER SIDE SHEET...
  • Page 15 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS EMP.255.60.01 - EMP.255.70.01...
  • Page 16 REFRIGERATED COUNTERS (FAN COOLING) SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.255.60.01 Kasap Tip Dik Buzdolapları PRODUCT NAME P. CODE MOTOR REAR COVER SHEET Y.EMP.255.60.01.001-R1 COMPRESSOR Y.EMP.255.60.01.002-R1 CONDENSER Y.EMP.255.60.01.003-R1 FAN WING Y.EMP.255.60.01.004-R1 FAN CIRCLE WIRE Y.EMP.255.60.01.005-R1 FAN MOTOR Y.EMP.255.60.01.006-R1 WATER DRAIN PLASTIC Y.EMP.255.60.01.007-R1 RIGHT OUTER SIDE SHEET...
  • Page 17 REFRIGERATED COUNTERS (FAN COOLING) Kasap Tip Dik Buzdolapları SPARE PART LIST- EXPLODING DRAWINGS PRODUCT CODE : EMP.255.70.01 PRODUCT NAME P. CODE MOTOR REAR COVER SHEET Y.EMP.255.70.01.001-R1 COMPRESSOR Y.EMP.255.70.01.002-R1 CONDENSER Y.EMP.255.70.01.003-R1 FAN WING Y.EMP.255.70.01.004-R1 FAN CIRCLE WIRE Y.EMP.255.70.01.005-R1 FAN MOTOR Y.EMP.255.70.01.006-R1 WATER DRAIN PLASTIC Y.EMP.255.70.01.007-R1 RIGHT OUTER SIDE SHEET...

  • Page 18: Helectric Circuit Schema

    REFRIGERATED COUNTERS (FAN COOLING) ELECTRIC CIRCUIT SCHEMA Kasap Tip Dik Buzdolapları EMP.150.70.01 – EMP.255.70.01 Large lighted 0-1 Digital Compressor and Refrigerator inner Terminal switch Indicator condenser fan cooling fan...
