Summary of Contents for Phaetus Dragon Hotend HF

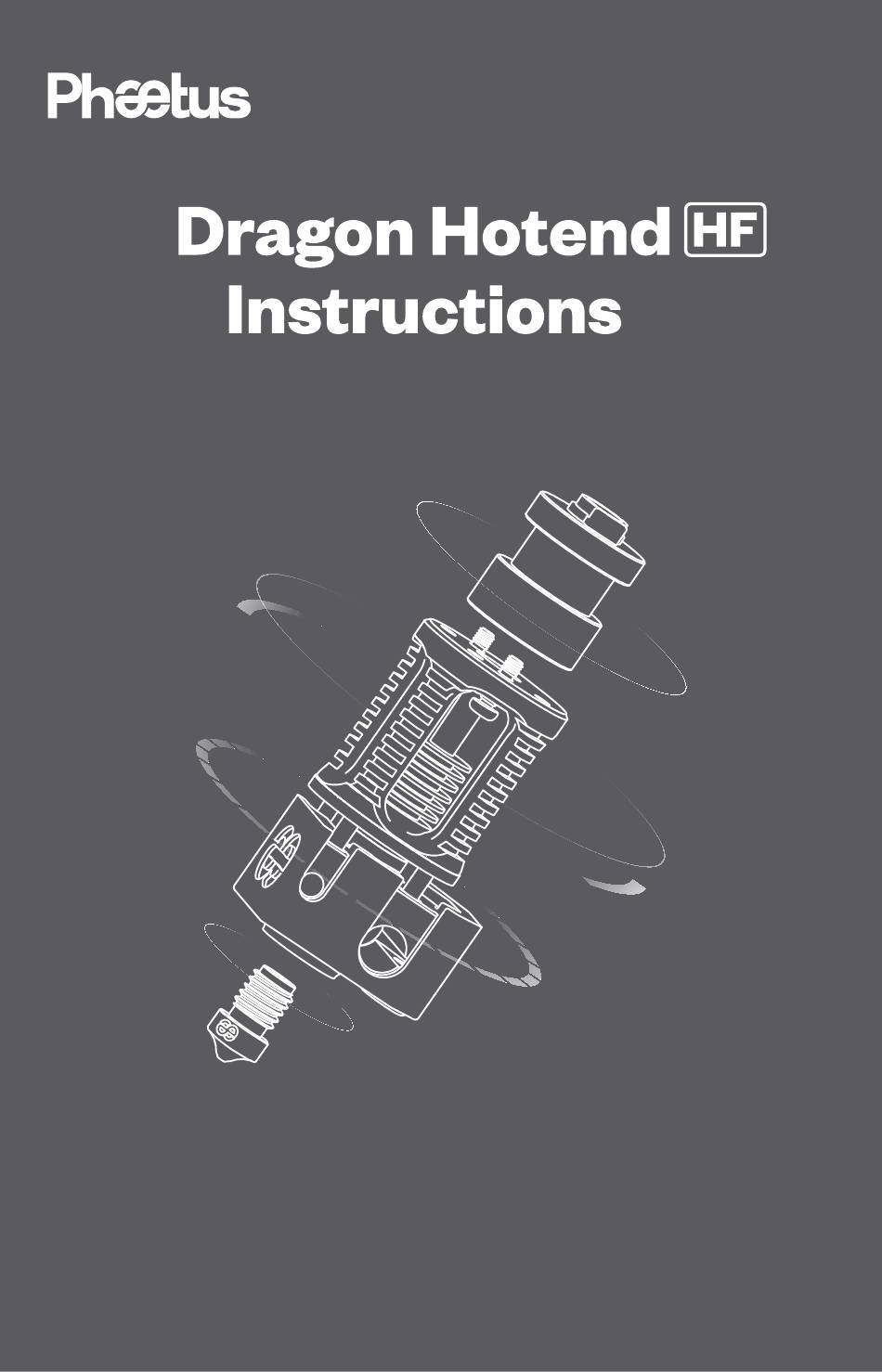

- Page 1 ® Please read and keep this manual carefully before using our products properly...
-
Page 2: Product Appearance
Product Appearance Born For Enthusiasts Thank you for buying Phaetus' Dragon HF Hotend. www.phaetus.com... -
Page 3: Product Features
Product Features Superior thermal Well-designed isolation of heatbreak compact structure Reinforced High temperature rigid structure resistance Compatible Filaments Compatible with all filaments, including: PLA, ABS, PETG, TPU, PP, PC, Nylon, PEEK, PEI. www.phaetus.com... -
Page 4: Specifications
Parts & Accessories M2.5 x 8 Screw *4pcs (for Voron V0) M1.4 x 12 Screw *2pcs H1.27 / H1.5 / H2.0 Hexagon bar *1pcs H8.0 Open - ended wrench *1pcs Heat conducting silicone grease *1pcs Brass sleeve *1pcs Collect clip *1pcs www.phaetus.com... -
Page 5: Product Exploded View
Product Exploded View Bowden Collect Collect Clip Adaptor Heat Dissipation Frame M2 Cup Head Screw Heatbreak Heatblock M1.4 *12.0 Screw M3.0 *8.0 Screw M3.0 *3.0 Screw Silicone Sock Nozzle www.phaetus.com... - Page 6 • The hotend is mainly composed of copper alloy material which has the advantage of faster heating and better heat dissipation. • Standard all metal kit, with overall high ℃ temperature resistance up to 500 www.phaetus.com...
- Page 7 Other company and product names mentioned herein may be trademarks of their respective companies. Every effort has been made to ensure that the information in this manual is accurate. Phaetus is not responsible for printing or clerical errors. www.phaetus.com...
- Page 8 欢迎使用 Welcome Bienvenu Willkommen Bienvenida Välkommen This user guide helps you get started using Dragon Hotend And discover all the amazing things it can do on a 3D printer...
-
Page 9: Assembly Steps
2 holes of the heat dissipation frame, align with the 2 threaded holes of the adaptor, and tighten them with a 2.0 hexgon bar. 2. Screw the heatbreak into side A of the heatblock with the 7.8mm open – ended wrench using strength about 4.5nm. www.phaetus.com... - Page 10 4 holes on the side A of the heatblock, press them tightly. Meanwhile, please note that the top of the heatbreak should be completely close to the holes on the top of the heatsink. If not properly aligned, heatbreak could be damaged during hot – tightening. www.phaetus.com...
- Page 11 B of the heatblock (4 holes). Attention: Excessive tightening of the M1.4*12 screw may damage the thread, or lead to screw fracture and hex nut sliding teeth, etc. www.phaetus.com...
- Page 12 first (the brass sleeve is shown in the figure below), and the port should be sealed with the heat conducting silicone grease carried in the attachment, and then put it into the heatblock and lock them with the head screw. www.phaetus.com...
- Page 13 www.phaetus.com...
- Page 14 4. The tightening torque of the hot nozzle is about 2.5nm, which is about the pressure applied by one finger on the small wrench. ATTENTION: Do not touch the hotend directly with your hands during heating and within a period of time after heating. www.phaetus.com...
- Page 15 www.phaetus.com...
