- Page 1 Dragonfly BMO Hotend Assembly Instructions Please read and keep this manual carefully before using our products properly...

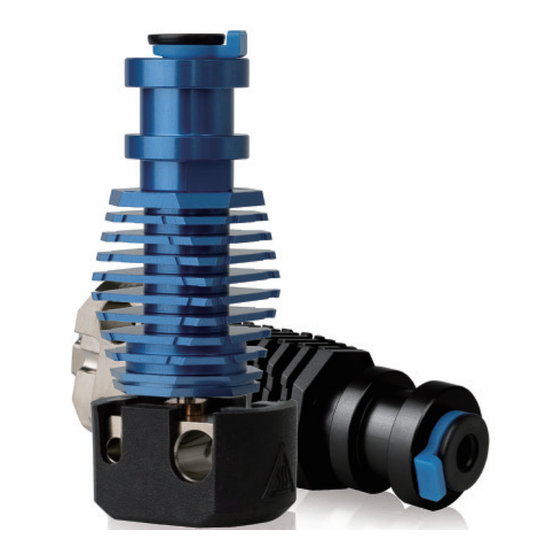

- Page 2 Product Appearance Exclusive Choice for High Configuration Thank you for buying Phaetus' Dragonfly BMO Hotend. www.phaetus.com...
-
Page 3: Product Features
High temperature efficient heat resistance dissipation Compatible Filaments Compatible with all filaments, including: PLA, ABS, PETG, TPU, PP, PC, Nylon, PEEK, PEI and composite materials containing abrasive additives, such as carbon fiber, steel, wood, boron carbide, tungsten and phosphorescent pigment. www.phaetus.com... - Page 4 Product Net Weight: BMO 38g Parts & Accessories Hexagon bar (1.27/1.50/2.00 each) Open wrench (5mm/12mm each) M1.4 Inner hexagon screws *2pcs M2.5 Hexagon socket head screws *4pcst Collect clip *1pcs Brass tube *1pcs Silicone sock *1pcs Thermal conductive silicone *1pcs www.phaetus.com...
-
Page 5: Product Exploded View
Product Exploded View Bowden collect Collect clip Adaptor Heat sink Heat break Heat block M1.4 Screw M3 Screw Silicone sock www.phaetus.com... - Page 6 • Overall high temperature resistance up to 500 • Heat sink and heat break adopt conical surface fitting design, increase heat dissipation. • Low roughness of heat break. Ra0.3, which allow a smoother movement of filament. • High printing precision, no filament plugging. www.phaetus.com...
- Page 7 Ender 3 Pro Ender 5 / Ender 5 Plus Enter 5 Pro Compatible with all V6 hotend interfaces Prusa I3 MK3/MK3S Titan extruders BMG extruders To view the version of this Dragonfly Hotend product , see the information on the packaging. www.phaetus.com...
- Page 8 Welcome Bienvenu Willkommen Bienvenida Välkommen This user guide helps you get started using Dragonfly Hotend And discover all the amazing things it can do on a 3D printer...
- Page 9 Supported 3D Printer Models 1. Insert the bowden collect into the top of the adaptor, and stick the collect clip between the bowden collect and the adaptor to fix the bowden collect. 2. Fix the adaptor onto the heat sink. www.phaetus.com...
- Page 10 4. Screw the heat break into the side - A of heat block by using 5mm open - ended wrench (Attention: Side - A of heat block should be completely attached to the heat break). www.phaetus.com...
- Page 11 2 through holes on the heat block, are align with the 2 holes on the heat sink. 6. Put two M1.4 screws into the rib and use 1.27 hexagonal bar for locking. www.phaetus.com...
- Page 12 7. Screw two M3 head screws into the correct holes on the B - side of the heat block respectively by using 1.5 hexagonal bar. 8. Put the silicone sock onto the heat block. www.phaetus.com...
- Page 13 (brass tube as shown below), and the port should be sealed with a thermal conducting adhesive (attached), then put it into a heat block, and be secured with a jackscrew. www.phaetus.com...
- Page 14 4. The tightening torque of the hot nozzle is about 2.5 Nm, which is about the pressure exerted by a finger slightly on a small wrench. ATTENTION: Do not touch the hotend directly with your hands during heating and within a period of time after heating. www.phaetus.com...
