Introduction
SMC's EZ PCI Card 10/100 is a dual-speed Fast Ethernet card for PCI local bus-compliant computers. A true
plug-and-play device, this card is auto-configurable upon power up and also supports auto-negotiation to
automatically select the optimum speed and communication mode of an attached device. This EZ PCI Card
10/100 complies with ACPI and OnNow PC98/ PC99 and also supports Remote LAN Wakeup for remote
management. Software can be loaded and updated, configurations changed, data backed up and inventory
checked, all from a central location. See "Remote LAN Wakeup" on page 5 for more information.
Features and Benefits
• Compatible with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet standards
• Full- and half-duplex support for both 10 Mbps and 100 Mbps speeds
• Auto-negotiation selects 10/100 Mbps and full/half duplex automatically
• Supports full-duplex operation for up to 200 Mbps of bandwidth
• Automatic configuration set up using the PCI computer's BIOS setup program
• Supports Remote LAN Wakeup for efficient centralized desktop management
• Supports optional boot ROM for remote booting of a management PC's operating system
• ACPI and OnNow/PC98/99 compliance reduces power consumption
Hardware Description
The EZ PCI Card 10/100 is equipped with:
• 1 RJ-45 connector for 10/100 Mbps connections
• 1 Socket for optional boot ROM
• 1 LED indicator

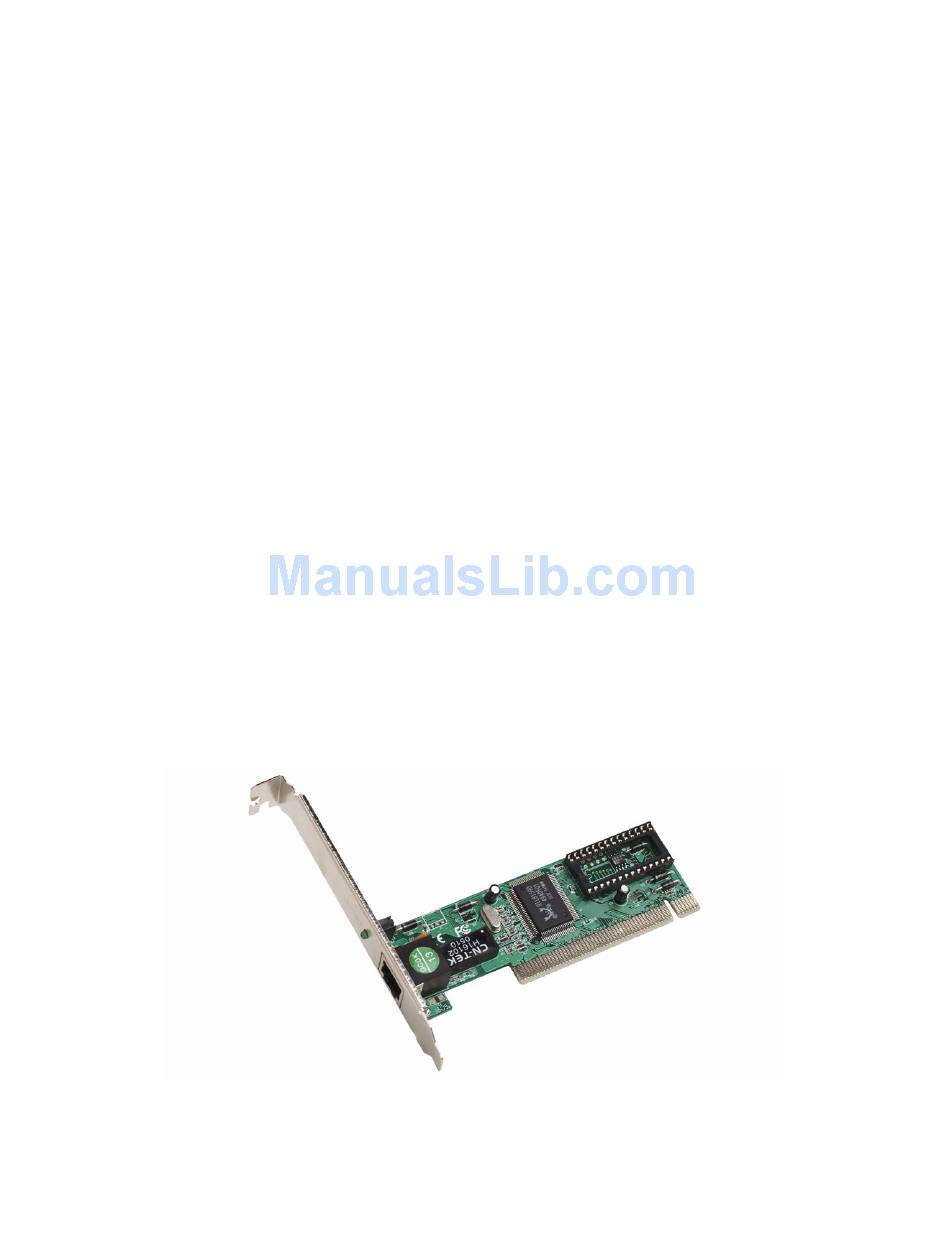

The components of the EZ PCI Card 10/100 are shown in the figure below:
LED Indicator
The SMC1255TX includes one status LED indicator, for LINK/Activity.
7
