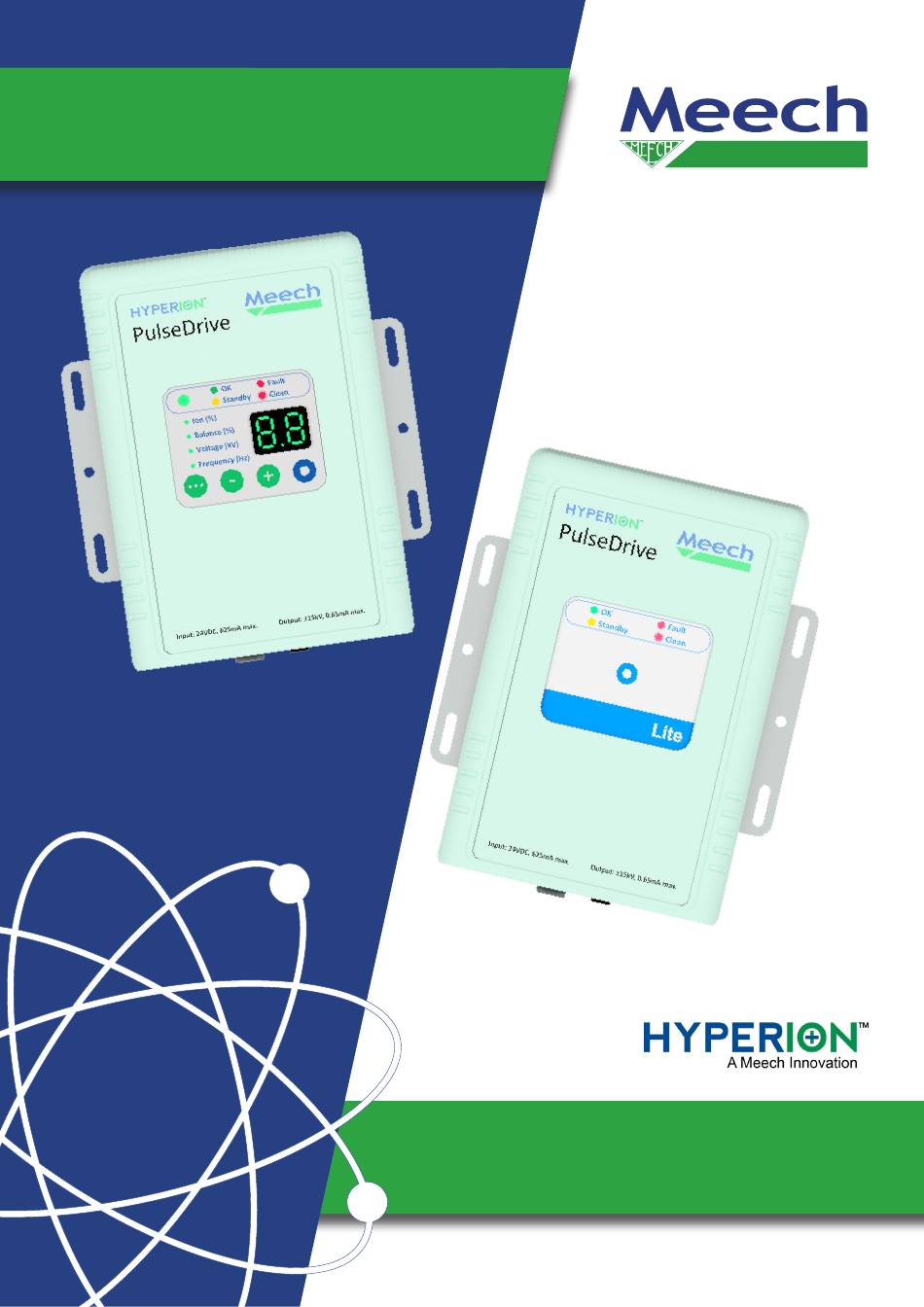

- Page 1 Operating Manual Hyperion PulseDrive Pulsed DC Controller...
-
Page 2: Table Of Contents
15. Repairs & warranty ........................26 Products shown in this document may be covered by one or more patents, patents applied for and/or registered designs and/or trademarks. For further information, please refer to our head office or visit www.meech.com. M0038 – REV2 CN0556... -
Page 3: Safety Instructions
1.Safety instructions Before using this product, read the following safety and operating notes to ensure your own personal safety and to help protect your equipment. Failure to do so could result in injury. Connected equipment may require additional safety instructions. Observe all safety instructions for additional equipment before operating. -
Page 4: General Safety
Before installing, performing repairs or maintenance on the equipment, ensure the system is electrically isolated. Failure to do so could result in injury. • Check the equipment and cables for any damage. If damaged, contact your local Meech representative before continuing. •... -
Page 5: Introduction
The Hyperion PulseDrive Pulsed DC Controller is powered from a 24VDC power supply and produces an output of up to ±15kV depending on the model variant, capable of driving Meech DC ionising equipment. Splitters can be used to provide additional output connections where needed. -
Page 6: Package Contents
Guide model code All variants M0039 * = Suitable for 924EX ** = Suitable for 976EX 3.1.Options The following items can be purchased from Meech to supplement & provide extra functionality to the PulseDrive. Item Product code Switchmode power adaptor A900IPS-SM2MS... -
Page 7: Component Overview
5.Component overview 5.1.PulseDrive Plus The PulseDrive Plus features a keypad with a seven-segment display to both view and modify its output settings. It also features a status LED to alert the user should any parameter fall outside a predetermined range. -
Page 8: Pulsedrive Lite
5.2.PulseDrive Lite The PulseDrive Lite features a status LED to alert the user should any parameter fall outside a predetermined range. A BarMaster or SmartControl is required to both view and modify its output settings. -
Page 9: Pulsedrive Plus Hl Variants
The PulseDrive must NOT be used/placed in EX rated zones. The PulseDrive Plus HL variants are intended to drive Meech EX ionising bars, which are designed for use within Hazardous Locations. Each HL variant has the bar it must be used with, as well as its maximum output voltage stated on the label on top of its casing. -
Page 10: Installation
6.Installation 6.1.Mechanical installation The PulseDrive should be mounted on a surface capable of supporting 1kg, in a well-ventilated area, away from any sources of potential contamination. Clearance of 150mm is recommended to allow for electrical connections. Notice – Unit failure through contamination will invalidate the warranty. Ensure the unit is protected from sources of contamination. - Page 11 2. The set of 3.4mm holes & slots in the brackets are intended for mounting the unit. Mounting hole positions - Rear view...
-
Page 12: Ionising Product Connection
6.2.Ionising product connection The following sections detail how to directly connect 2x Meech DC ionising products via the ports on the connector end of the PulseDrive Plus, as well as detailing the necessary electrical inputs. Example of safe connection to a Meech 924S product Caution –... - Page 13 Images below show the PulseDrive Plus model, however the instructions are applicable to all variants. Caution – Injury due to electric shock. Before making any connections, ensure the PulseDrive is electrically isolated. 1. Remove the transit cap.
- Page 14 2. Insert the connectors of the DC ionising product into the PulseDrive, then fasten the threaded plug. Ensure the connection polarity is correct.
- Page 15 3. If 2x Meech DC ionising products are being connected (Plus variants only), remove the output blanking plugs and repeat step 2.
- Page 16 4. Connect the 24VDC supply cable into the 24VDC input port. 5. If required, connect the control cable into the remote-control input port.
-
Page 17: Grounding & 24Vdc Supply
7.1.Powering using a Meech 24VDC power supply This refers to the use of a Meech A900IPS-SM2MS to power the PulseDrive. • Meech 24VDC power supplies are grounded internally & are supplied with a 3 wire IEC C5 cable. • The ground connection must be correctly connected at the mains connection. -
Page 18: Powering Using Customers Own 24Vdc Power Supply
7.2.Powering using customers own 24VDC power supply It is the customers responsibility to check that the 24VDC power supply being connected is grounded. • The 24V power supply must be protected with a 2A fuse. • Connection to the PulseDrive is through the M8 24VDC input 4-pin socket. The figure below shows the pin numbers of the connector. -
Page 19: Monitoring
8.Monitoring The Meech Hyperion PulseDrive continually monitors its internal health and can trigger an alarm should any parameter fall outside a predetermined range. This includes parameters such as ion current monitoring, meaning that the user can be alerted when an ionising bar needs cleaning. -
Page 20: Electronic Alarms
8.2.Electronic alarms 8.2.1.Remote monitoring • Remote monitoring is provided by Pins-2&4 of the 24VDC input port. These signals output approximately 0V/24V and are suitable for direct connection to a PLC input, or to control an external 24V relay. • On unit power-up, Pins-2&4 will remain in Hi state for up to 60 seconds before they are used as outputs. - Page 21 * = Please refer to the BarMaster operating manual. ** = Using NPN (default Hi) or PNP (default Lo) allows for multiple products to be connected in parallel, triggering a common alert without interfering with each other’s operation. *** = Using N+P does not allow for any products to be connected in parallel.
-
Page 22: Operation
9.Operation Notice – Ionising equipment will not operate at their optimum and may be damaged if the PulseDrive’s output parameters are incorrectly set. Ensure the PulseDrive’s output parameters are correct for the connected ionising equipment. There are multiple variations of PulseDrive, suitable for a wide range of applications. The main differences between the variants, are their output capabilities and the built-in functionality offered by the Plus. -
Page 23: Remote Control Port
9.1.Remote control port The 4-pin remote control input port on the connector end of the PulseDrive, can toggle the unit in and out of standby mode. This is done by connecting either Remote input A or B (Pin–2 or Pin–4) to 0V ground (Pin–3). -
Page 24: Keypad Operation (Plus Variants Only)
9.2.Keypad operation (Plus variants only) The keypad on the PulseDrive Plus allows the user to both view and modify the output settings (Ion %, Balance, Voltage, Frequency). Lock / Unlock Keypad Press & hold (2 seconds): Toggles the 2s Lock/Unlock keypads locked state When Keypad is Unlocked... -
Page 25: Technical & Construction Data
10.Technical & construction data 141mm x 118mm x 55mm (LxWxH) (With mounting brackets) Dimensions 141mm x 97mm x 51mm (LxWxH) (Without mounting brackets) Weight 600g Maximum ambient temperature 55°C Mounting 2x 3.4mm holes, 4x 3.4mmx10mm slots To comply with UL 62368-1, the PulseDrive must be mounted at a Mounting height height ≤2m FR ABS... -
Page 26: Technical Drawings
15.Repairs & warranty The Hyperion PulseDrive Pulsed DC Controller is warrantied by Meech International Ltd. to the original purchaser against defects in material and workmanship for 2 years after shipment. - Page 27 Meech CE Gábor László utca 2 Budapest 1041 Hungary Tel: +36 1 7977039 / +36 30 2803334 Email: ce@meech.com View and save a digital version of this operating manual by © Meech International 2024 following the QR code or visiting www.meech.com/downloads:...
