Meech 233v3 Manual

Feature
Extended pulse rate/frequency range (0.5 to
20
Hz).
Extended balance adjustment.
Through hole POT adjustment controls.
Integral air connections supplied as
standard.
Built in alarm circuit with auto shutdown.
Provision for remote alarm indicator and 24V
supply (through 8-way DIN connector).
Provision for remote ON/OFF switching.
SSDC output option.
Light and compact.
Technical Characteristics
Dimensions
Weight
Power
Input Voltage
Input Frequency
Meech Static Eliminators Ltd 2005
Benefit
Lower frequencies enable emitted ions to
travel
extended distances and thereby increase
the effective
range of static control. There is also greater
flexibility in
the positioning of bars.
Finer, more accurate adjustment of ion
balance.
Prevents inadvertent adjustment by
operators after
installation set up.
Easy, tidy connection of air supply pipe(s).
Detection of a fault in the ionisation system
results in
automatic shutdown, thereby preventing
serious damage
to the system.
Enables system installations to be monitored
from
remote locations. No additional external
power supply is
required to power remote indicators.
Allows system to be operated from remote
locations.
Provides tight balance in applications where
air flow is
required (e.g. Model 243 ionising bar).
Minimum space requirement.
94mm x 157mm x 35mm (h x w x d)
0.3Kg
5W
24V DC
47 – 63Hz
PRODUCT DATA

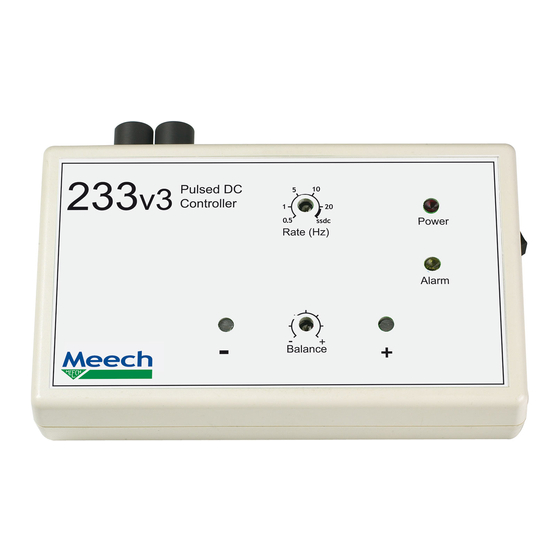

MODEL 233v3
Pulsed DC Controller
Description
The Model 233v3 Pulsed DC
Controller has been designed to
operate with the Series 200 range
of ionisers for ESD applications.
The 233v3 is light, compact and
features lockable plug and socket
connectors for quick release. It also
provides the option of Steady State
DC (SSDC) output.
