    Introduction The Meech Model 233v3 Pulsed DC Controller has been designed to power any of the Meech 200 series range of PDC products.

  • Page 6: Unpacking And Inspection

    Unpacking And Inspection The Model 233v3 Power Supply was carefully packed at the factory in a container designed to protect it from accidental damage. Nevertheless, we recommend careful examination of the carton and contents for any damage. If damage is evident, do not destroy the carton or packing material and immediately notify the carrier of a possible damage claim.

  • Page 7: How To Use Your Controller

    Meech switch mode power supply is provided. The mains supply to the switch mode must be electrically grounded. If using anything other than the Meech 24V supply please note the zero volt (0V) must be electrically grounded (connected to earth).
  • Page 8 For Best Results 1. Keep target area clear and free from obstructions to ion flow. 2. Keep work area clear of all static generative materials. 3. Only use approved static control grounding methods and material handling equipment.

  • Page 9: Control Adjustments

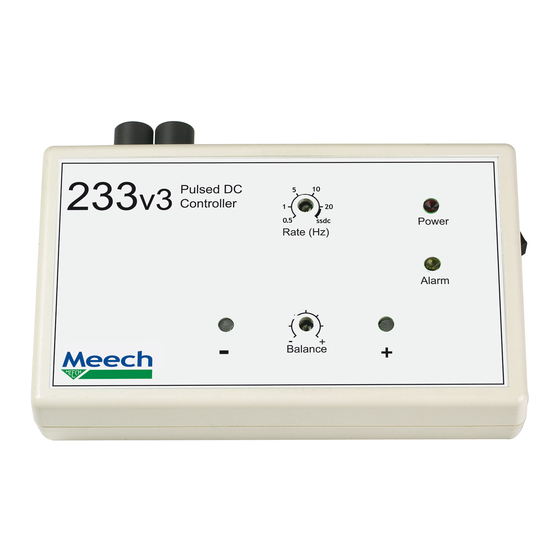

    Control Adjustments There are two adjustments that can be made on the 233v3 controller; BALANCE, and RATE . The BALANCE of positive and negative ion output can be adjusted to increase polarity bias by simply turning the balance control towards either positive (right) or negative (left).

  • Page 10: Alarm

    An 8 way DIN socket is provided to mirror the alarm function to a central control panel (see specification for connection detail). LED Displays The 233v3 has four indicator lights 1. Power light (Red) - Illuminated when 24VDC supply is provided to the unit.

  • Page 11: Technical Specification

    Technical Specification Model 233v3 Power supply Input voltage 24V D.C (+/- 5% 0.25A max- source must have earth return) Input connector 2.5mm jack - centre positive Output voltage Adjustable between 4kV D.C. and 8kV D.C. Output current 120 Micro amps.

  • Page 12: Cleaning Instructions

    Cleaning Instructions Your Meech Pulsed DC Controller was designed to be virtually maintenance free. Be sure the unit is switched off and disconnected from the mains supply. The outside case may be wiped down with a soft damp cloth. Let dry for a minute and turn back on.

  • Page 13: Fault Finding

    High voltage electrical equipment should not make contact with water. The Model 233v3 Power Supply and attached ionising products form part of a system. To verify where a fault may have occurred it is important to test each item of the system individually.
  • Page 14 If the controller is found to be functional, test each of the attached products independently following the instructions detailed in the appropriate Operation and Maintenance manual. If the 233v3 controller is found to be faulty please contact your local distributor or Meech Static Eliminators Ltd. ( Tel. +44(0)1993 706700).

  • Page 15: Repairs And Warranty

    Repair and Warranty The Meech Model 233v3 Pulsed DC Controller is warranted by Meech Static Eliminators Ltd to the original purchaser against defects in material and workmanship for one year after purchase. Should any malfunction occur, please return the Ioniser directly to us.
