Meech HYPERION 233v4 Operating Manual

Pulsed dc controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

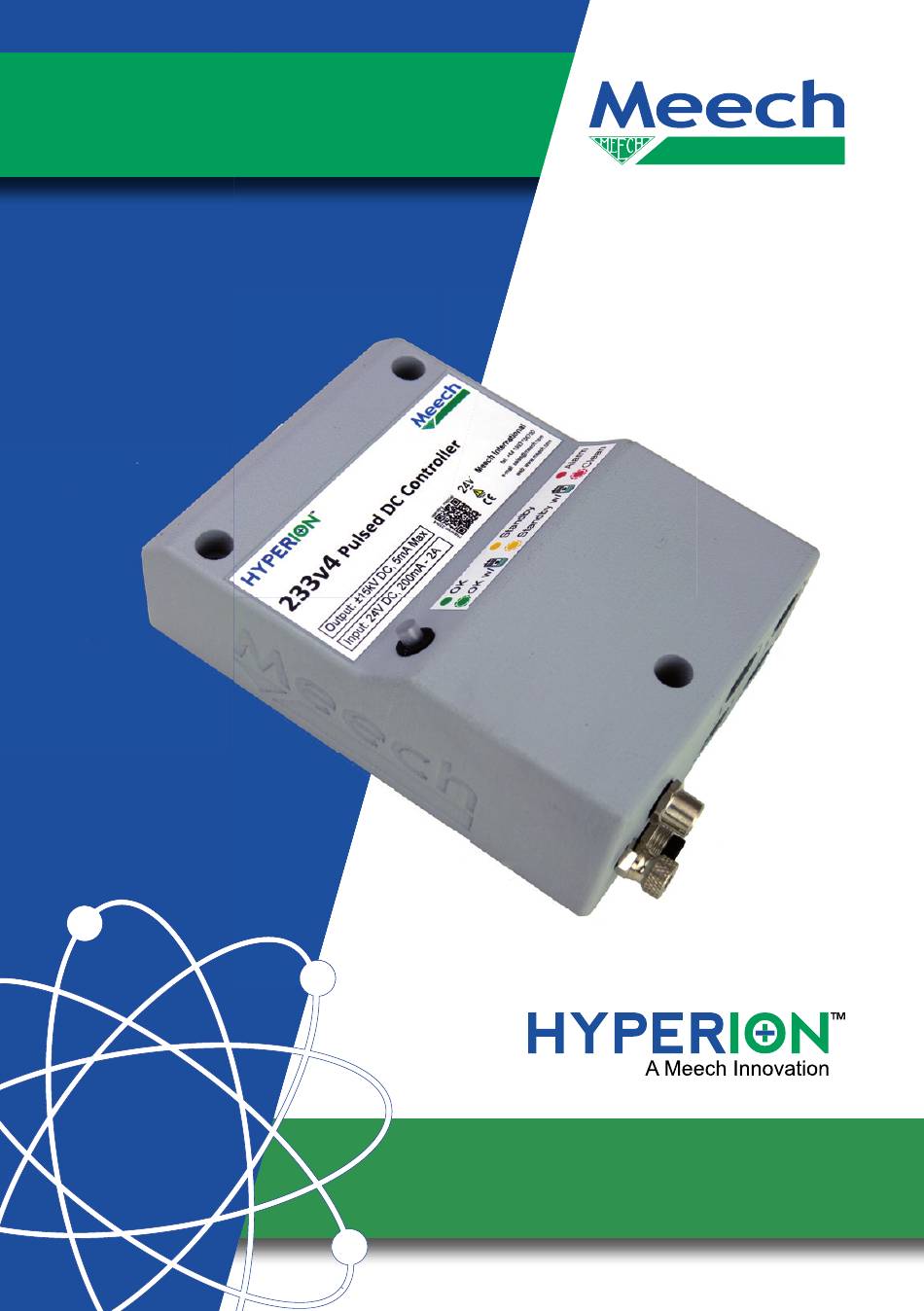

Operati ng Manual
Hyperion 233v4
Pulsed DC Controller
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HYPERION 233v4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Meech HYPERION 233v4

Summary of Contents for Meech HYPERION 233v4

  • Page 1 Operati ng Manual Hyperion 233v4 Pulsed DC Controller...

  • Page 2: Table Of Contents

    Products shown in this document may be covered by one or more patents, patents applied for and/or reg- istered designs and/or trade marks. For further information please refer to our Head Office or visit www. meech.com. Document version: 2 Software version: 3.02.05 © Meech Static Eliminators Ltd., 04.01.2022...

  • Page 3: Introduction

    Introduction The Hyperion 233v4 Pulsed DC Controller is a compact and powerful 15kV controller. It was principally designed to directly power two Meech pulsed DC ionisers. If more ionisers are required, they can be connected via splitters. The versatility and flexibility of the 233v4 make it suitable to use in a wide range of industries.

  • Page 4: Package Contents

    Unpacking and Inspection The Model 233v4 has been carefully packed at the factory in a container designed to protect it from accidental damage. Nevertheless, we recommend careful examination of the carton and contents for any damage. If damage is evident, do not destroy the carton or packing material and immediately notify the carrier of a possible damage claim.

  • Page 5: Features And Benefits Of The 233V4 Pulsed Dc Controller

    Features and Benefits of the 233v4 Pulsed DC Controller Overall look The Hyperion 233v4 is a compact pulsed DC controller. It is constructed of DuraForm PA (Nylon 12) with dimensions of 46 x 93 x 129mm. High Voltage Output The 233v4 has an adjustable output voltage from 2kV to 15kV. The 233v4 will be configured to suit the type of installation and the type of ionising equipment connected to it.
  • Page 6 Clean Pin Alert LED The 233v4 has 6 modes. The local LED illuminates either red, green or amber to indicate it’s current operation. Below are the 6 modes for the LED status: Green Continuous - HT on „ Green Flashing - HT on, BarMaster connected „...
  • Page 7 Remote Signal In the case of the Clean Pin Alert signal, the Cleaning Alert LED will activate. This can be monitored remotely to alert the operator to attend to the controller. Sealed Construction IP67 construction allows the controller to be mounted in areas subject to wash-down or spillage.

  • Page 8: Installation

    COPYRIGHT © MEECH STATIC ELIMINATORS THIS DOCUMENT AND THE INFORMATION THEREIN IS THE PROPERTY OF THE MEECH GROUP AND SHOULD NOT BE COPIED IN WHOLE OR PART OR USED FOR MANUFACTURE OR OTHERWISE DISCLOSED WITHOUT THE PRIOR WRITTEN CONSENT OF MEECH INTERNATIONAL Connect ionising equipment using grey HT connections „...
  • Page 9 Failure to do so, will result in damage to the ioniser or the 24V supply and will void the warranty. A grounding post on the controller is provided for this purpose. Meech recommend that, for certainty, the controller is grounded using this post, in...
  • Page 10 Connection to the 233v4 is via an M8 4 Pin connector. With the following pin- outs: Male connector on Controller Female connector on Cable Colour Function Specification Brown Input White Output Clean pin 0V/24V Blue Input 0V/ Ground Black Output HT Failure 0V/24V For the first 60 seconds of start-up, the unit is in communications mode and will output 24V on both alarm lines.
  • Page 11 233v4 controller is connected to ground. The Meech switchmode power supply has a C5 socket and a 2000mm cable to an M8 Connector. A break-out wire from the power supply provides the Clean Pin Alert output signal.

  • Page 12: Dual Alarm Alert

    Dual Alarm Alert - Remote Monitoring Remote monitoring of the need to clean the bar is provided by the output signal on pin 2 (white) and fault alert is provided on pin 4 (black). The signal is 0V-24V suitable for direct connection to a PLC input. The output impedance of the signal is 10kΩ. The output can also be configured to power an external relay to provide volt-free contacts for other monitoring systems.
  • Page 13 Alarm Logic Level This is given by the configuration of the “Alarm True” setting using the BarMaster. Alarm True = hi This means the logic on both the alarm pins is active high. Alarm True = lo This means the logic on both the alarm pins is active low.

  • Page 14: Output Drive

    Output Drive There are 3 different output drive options which are designed to fulfill the vast majority of user requirements and to allow easy integration to PLC equipment. Option 1 - NPN Transistor-driven switch which presents a pull-up resistor to 24VDC on the alarm pin. This configuration is the same for both alarm pins (pin-2 and pin-4).
  • Page 15 Option 2 - PNP Transistor-driven switch which presents a pull-down resistor to GND on the alarm pin. This configuration is the same for both alarm pins (pin-2 and pin-4). 2.2kΩ Simplified Diagram of PNP output Logic Table Alarm True = Hi Start State Solid Green Flashing Red...
  • Page 16 Option 3 - N+P This option presents the combination of both of the previous cases, NPN and PNP, however, the alarm lines are hard-driven to either 24VDC or GND.This configuration is the same for both alarm pins (pin-2 and pin-4). Note: When ‘a’...

  • Page 17: Operation

    Getting Started The 233v4 must be configured to suit the installation and the ionising equipment connected to it. Before you receive your 233v4, Meech, if required, will preset the controller to suit your application. This includes applying basic settings of the output power, rate and balance as well as alarm functionality and the lock option.
  • Page 18 This value should only be set when the ionisers have been cleaned, „ otherwise the performance of the system will be reduced. During use, ionisers become contaminated which reduces their performance. Setting the Rate The 233v4 features a variable output frequency. The frequency that the 233v4 should be set to depends on the ionising product and the distance to the target object.
  • Page 19 Setting the Balance The output of the 233v4 can be biased to negative or positive. The adjustment changes the percentage of time that each HT output is switched on. The maximum bias is 80% to either positive or negative. 50% positive 80% negative Changing the balance of the output changes the relative amount of positive and negative ions produced by the ioniser.
  • Page 20 Input/Output Connections Remote On/Off The output of the 233v4 can be turned on and off remotely via the 3 pin female socket located on the connection panel. A 3 pin M8 connection to volt-free contacts will allow the 233v4 to be switched on when the contacts are made.

  • Page 21: Barmaster

    The BarMaster is connected in line with the controller’s 24V power supply cable. The power cable is connected to the BarMaster and, in turn, its cable is connected to the 233v4 controller. Note: The Meech BarMaster does not come with the 233v4 and must be purchased separately. WARNING It is recommended to turn-off the 24V power supply to the controller and wait a few seconds before disconnecting the power cable from the controller.

  • Page 22: Adjustments

    The display on the BarMaster will show data including: Model No and Software version 233v4 / VXXX XXXX/XX Frequency 1-20Hz Balance 20%-80% Positive Alarm 20%-90% Ion Level 0%-99% Reset Ion Ref Calibration command. Adjustments Frequency Your Hyperion controller is set to a default frequency that provides good performance across its operating range.
  • Page 23 Reset Ion Ref. This function is used to set reference performance level when the ioniser is clean. It is set by Meech during initial calibration. It should be reset after making changes to either the balance or the frequency of the output.

  • Page 24: Maintenance

    Maintenance The only maintenance required is that the exterior of the 233v4 Pulsed DC Controller should be cleaned regularly with a dry cloth to keep it free from dust and other contaminants. IP67 construction allows the controller to be mounted in areas subject to occasional wash-down or spillage.

  • Page 25: Fault Finding

    Fault Finding Tests must be completed by a qualified electrical engineer. If in doubt contact the Meech head office or your local distributor. CAUTION: Whilst no danger to personnel exists, it is essential that any high voltage ionising equipment makes no contact with water or water based fluids.
  • Page 26 HT connections (see page 23) To reduce the time it takes to resolve a problem with a Hyperion product, the following process must be completed before requesting assistance from Meech. Cleaning If regular cleaning of the ionising equipment is not carried out, the controller will detect a drop in performance from the ioniser and this will trigger the Clean Pin alert.
  • Page 27 LED will show. Should the solid red LED persist, connect your BarMaster and follow the Troubleshooting section or contact your local Meech distributor. Using a high voltage probe (RS 610 281) and meter (RS 610 590) can be used to measure the voltage output of the ionisers.
  • Page 28 Support Procedure If the above procedure does not rectify the problem, by supplying the following information when you first contact Meech will ensure your claim is processed quickly: 1. Connect to a BarMaster and turn on the equipment 2. A readout will appear on screen and we will require the following information: a.

  • Page 29: Technical Construction

    Technical Construction Supply Voltage 24V DC Input Connection 4 Pin M8 Connector 2-15kV Pulsed DC, adjustable with Output Voltage BarMaster Number of Outputs 4 (2 Positive, 2 Negative) Adjustable with BarMaster or Output Frequency SmartControl Touch from 1-20Hz Adjustable with BarMaster or Output Balance SmartControl Touch from 80:20 to 20:80 Pos:Neg...

  • Page 30: Repairs And Warranty

    Repairs And Warranty The Meech 233v4 Controller is warranted by Meech Stati c Eliminators Ltd. to the original purchaser against defects in material and workmanship for two years aft er shipment. The 233v4 requires a grounded 24V DC supply. The 0V line must be connected to ground.

  • Page 31: Technical Drawing

    Technical Drawing...
  • Page 32 Gábor László utca 2 Budapest 1041 Hungary Tel: +36 1 7977039 / +36 30 2803334 Email: ce@meech.com View and save a digital version of this operati ng manual by © Meech Internati onal 2022 following the QR code or visiti ng www.meech.com/downloads:...
