- Page 1 User Manual Surface Resistance Meter ® Part No.: 7100.SRM200.K Wolfgang Warmbier GmbH & Co. KG | Untere Gießwiesen 21 | D-78247 Hilzingen | +49 (0)7731 8688 0 | www.warmbier.com...
-
Page 2: Scope Of Supply

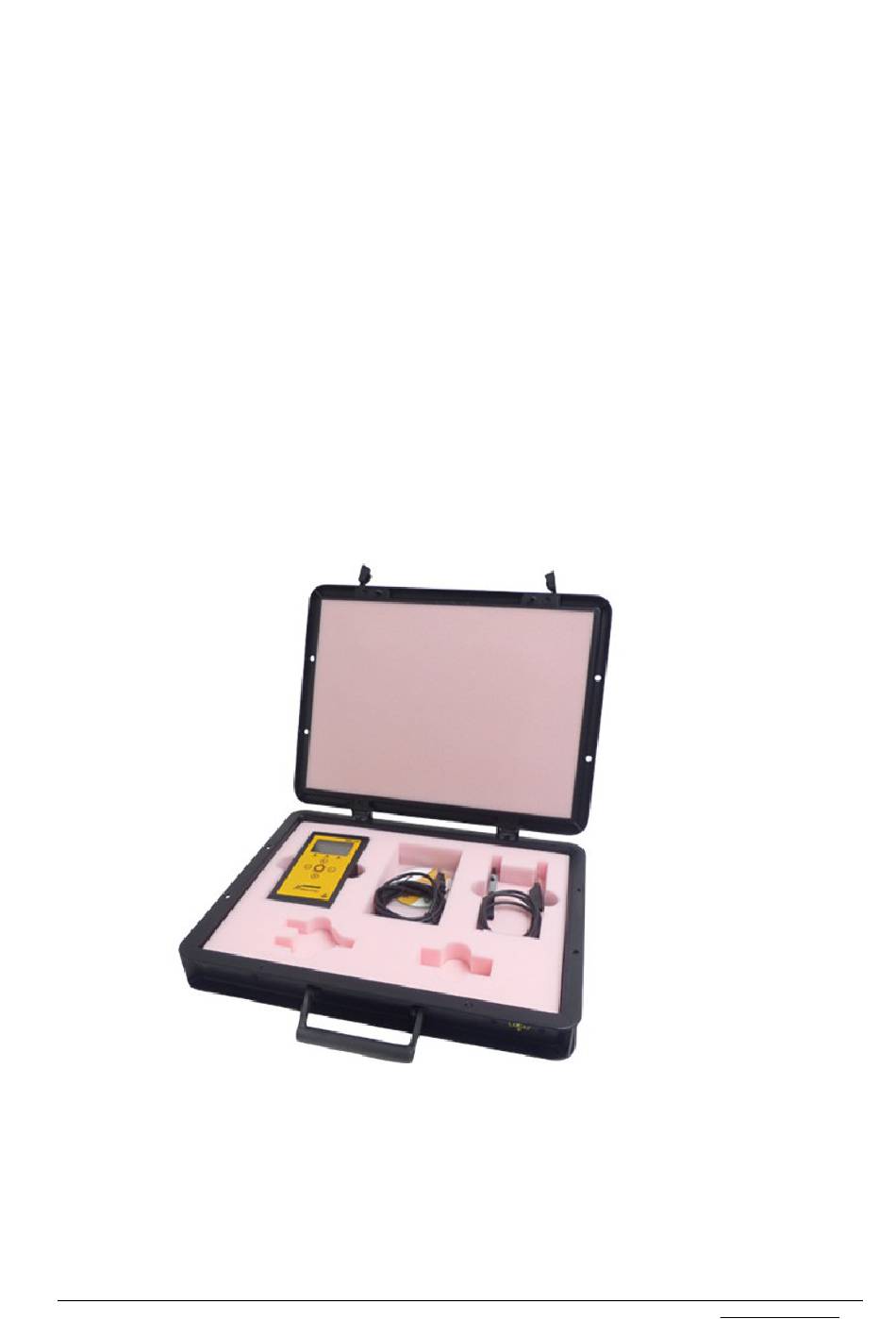

® User Manual - SRM Part No.: 7100.SRM200.K ____________________________________________________________________________________ n Scope of Supply · Surface resistance meter SRM ® · Connecting cable 1 m · Alligator clip · USB-data cable type A / mini · Conductive carrying case · User manual available for download (www.warmbier.com) ·... -
Page 3: Charging And Replacing The Battery
® User Manual - SRM Part No.: 7100.SRM200.K ____________________________________________________________________________________ n Warning The tester must not be used in potentially explosive atmospheres! Discharge flashovers or measurements on electrostatically charged, insulating or live materials must be avoided! Use of the device in energy systems is not permitted! n Charging and replacing the battery The charge status of the battery is permanently shown on the display. -
Page 4: Description Of The Operating And Display Elements
® User Manual - SRM Part No.: 7100.SRM200.K ____________________________________________________________________________________ n Description of the operating and display elements 1. Sockets for external probes 2. LCD display 3. LED of the resistance range Resistance range Definition Green < 1x10 Electrostatic conductive W - 9x10 Yellow ≥... - Page 5 ® User Manual - SRM Part No.: 7100.SRM200.K ____________________________________________________________________________________ n Overview LCD Display Measured value (V) View result mode active Assigned limit (D) Delete mode active Set limit exceeded Value is below selected limit Relative humidity Temperature Storage folder Date Time Battery status n Measurement of the surface resistances...
- Page 6 ® User Manual - SRM Part No.: 7100.SRM200.K ____________________________________________________________________________________ n Further measurements with external electrodes By connecting external electrodes, a volume resistance or point-to-point resistance can also be measured. · Measurement of the volume resistance R PUSH TO TEST Test object Metal counter electrode Insulating base Only one of the...
-
Page 7: Measurement Storage
® User Manual - SRM Part No.: 7100.SRM200.K ____________________________________________________________________________________ n Measurement storage The evaluation software can be used to transfer the stored measured values to a PC for further processing. The following functions are available: Ø Receive measurement data from the device Ø... -
Page 8: Folder Name
® User Manual - SRM Part No.: 7100.SRM200.K ____________________________________________________________________________________ n Folder name MENU - press button Folder Name - select ▼▲ - select folder to change OK - enter text ▼▲ - select character OK - insert character MENU - back to folder names MENU - back to menu n Timeout MENU - press button... -
Page 9: Device Return And Environmentally Compatible Disposal
® User Manual - SRM Part No.: 7100.SRM200.K ____________________________________________________________________________________ n Device return and environmentally compatible disposal This instrument complies with IEC 63000:2016 (Restriction of the use of certain hazardous substances [RoHS]) and with the requirements according to category 9 of the ElectroG (monitoring and control instruments).
