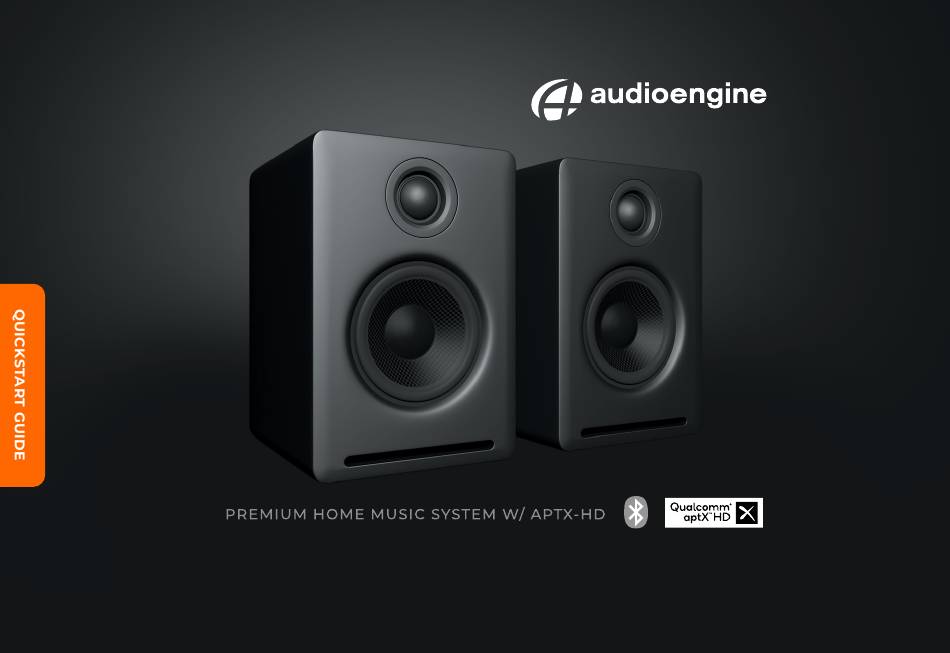

- Page 1 AUDIOENGINE...
- Page 2 FOR THE MOST INFORMATION • FAQs • Setup videos • Technical specifications • Support information • Troubleshooting tips • Step-by-Step guide • Customer support • Warranty/Return information...
-
Page 3: What's In The Box
WHAT’S IN THE BOX A2+ powered (left)speaker A2+ passive (right) speaker Microfiber speaker bag x2 Microfiber accessory bag Quickstart guide USB-C cable Mini-jack audio cable, 1.5 meters (~5 feet) Speaker wire (16AWG), 2 meters (~6.5 feet) Detachable AC power cable Power supply... -
Page 4: Left Speaker
LEFT SPEAKER (active) STEREO RCA INPUT STEREO RCA OUTPUT BLUETOOTH PAIR BUTTON OUTPUT TO RIGHT SPEAKER POWER SUPPLY CONNECTION FRONT BACK... -
Page 5: Right Speaker
RIGHT SPEAKER (passive) INPUT FROM LEFT SPEAKER FRONT BACK... -
Page 6: Quick Setup
QUICK SETUP 1. Verify that the volume/power knob on the rear panel of the left (powered) speaker is in the OFF position by rotating the knob to the left until it clicks off. 2. Connect the included speaker wire to the A2+ left (powered) speaker terminal and to the right (passive) speaker terminal. -
Page 7: Power Connection
POWER CONNECTION 3. Connect the cable from the external power supply to the power supply connection on the A2+ left (powered) speaker rear panel. 4. Connect the AC power cord to the other end of the power supply and plug the cord into a functioning power outlet. A light on the power supply should be illuminated. -
Page 8: Wireless Connection
WIRELESS CONNECTION 1. Turn power on via rear panel volume/power knob. A2+ will automatically go into Bluetooth “pair mode” and the pair button on the rear panel will start flashing. - Page 9 CONNECTION On your device turn on Bluetooth and go to Bluetooth preferences. Select “Audioengine A2+” to pair and connect. The Pair indicator light on the A2+ rear panel should now be solid. Play your music and adjust the volume on both your speakers and your device to your desired listening levels.
-
Page 10: Rca Input
RCA INPUT WIRED CONNECTION 1. Connect a stereo RCA cable to the stereo RCA input on the active left A2+ rear panel and then to the stereo RCA output on your device. 2. Play your music and adjust the volume on both your speakers and your device to your desired listening levels. - Page 11 1. Connect the included USB-C cable to the USB-C input on the active left A2+ rear panel and then to the USB-C output on your device. 2. If using Windows, the A2+ should be recognized automatically. For MacOS, under System Preferences/Sound/Output, select “Audioengine A2+”.
- Page 12 RCA OUTPUT WIRED CONNECTION 1. Connect a stereo RCA cable to the stereo RCA output on the active left A2+ rear panel and then to the stereo RCA input on your device. 2. Play your music and adjust the volume on both your speakers and your device to your desired listening levels.
- Page 13 3.5mm WIRED CONNECTION 1. Connect the included 3.5mm mini-jack audio cable to the stereo mini-jack input on the active left A2+ rear panel and then to the stereo mini-jack output on your device. 2. Play your music and adjust the volume on both your speakers and your device to your desired listening levels.
-
Page 14: Troubleshooting Tips
TROUBLESHOOTING TIPS A2+ is plugged in but the power indicator is not illuminated. Ensure the AC power cord is connected to the power supply unit and a functioning AC power outlet. Check that the cable at the other end of the power supply is correctly connected to the rear panel of the left speaker. If the power supply light is on but you are experiencing an audio-related issue with a wired connection. -
Page 15: Warranty Information
WHAT WE ASK FROM YOU You will be responsible for shipping charges to Audioengine or to an authorized dealer. We recommend you keep the original shipping materials to prevent shipping damage if service is needed. Audioengine cannot be responsible for any damages incurred during shipping due to poor packing, so please pack well and make sure to insure your shipment. -
Page 16: Safety Information
SAFETY INFORMATION Please read these instructions before using this product. Keep these instructions for future reference. Heed all warnings on the product and in this guide. Follow all instructions. Do not use this apparatus near water or moisture. Clean only with a dry cloth and as directed by the manufacturer. Do not block any ventilation openings. -
Page 17: Fcc Part 15 Notice
FCC PART 15 NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.) This device may not cause harmful interference. 2.) This device must accept any interference received, including interference that may cause undesired operation. -
Page 18: Information For Users On Disposal Of Old Equipment
2024 AUDIOENGINE LLC. © ALL RIGHTS RESERVED Audioengine and Audioengine A2+ are trademarks of Audioengine. The Bluetooth name and the Bluetooth trademarks are owned by Bluetooth SIG, Inc. and are used by Audioengine under license. The aptX® mark and logos are registered trademarks of Qualcomm Technologies International, Ltd.
