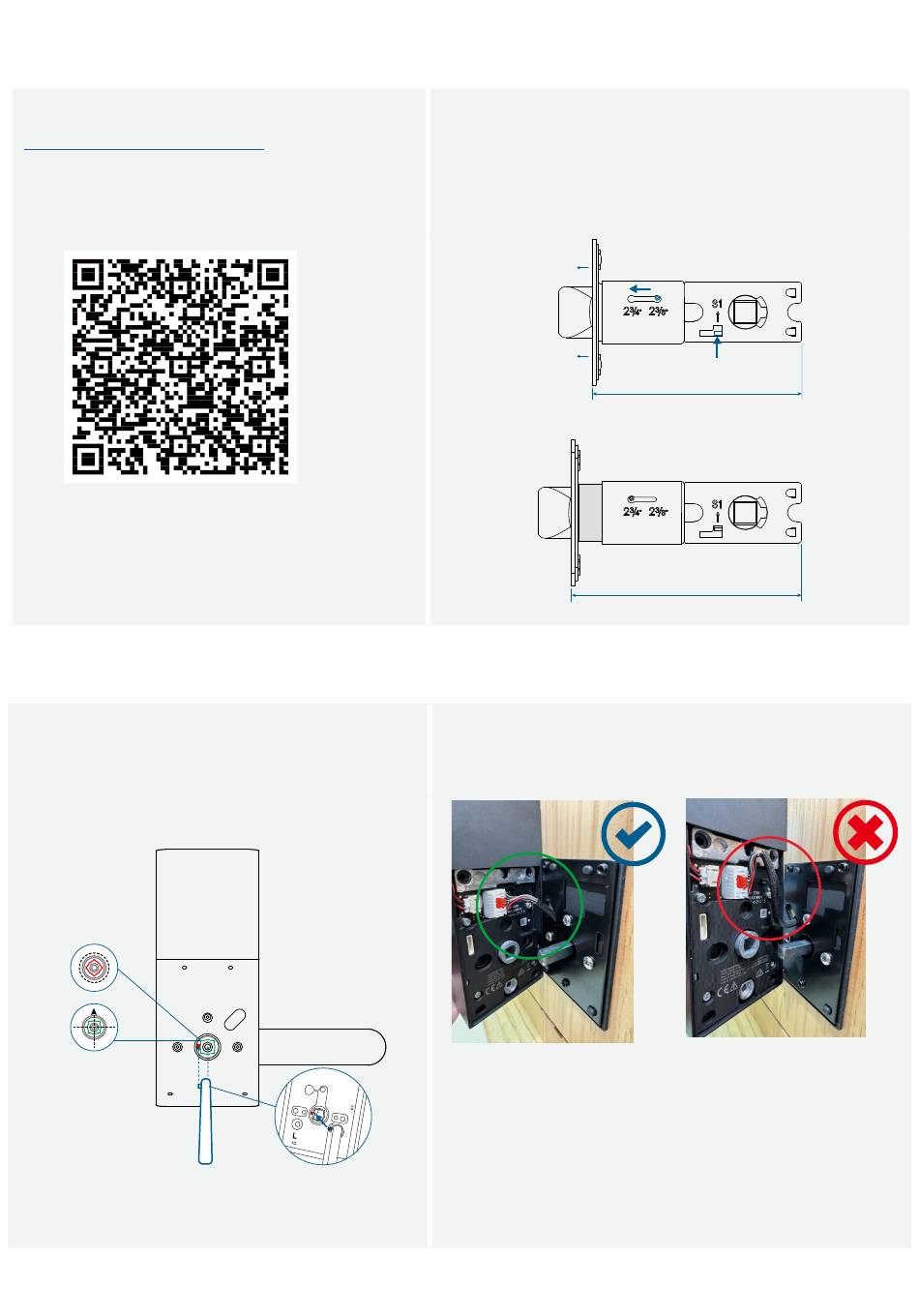

Key Steps to a Successful Installation
Before Proceeding
• View the installation video before you proceed.
https://youtu.be/9niPWO5002w
During Installation
• Thoroughly check that the spindle is securely
installed and cannot be pulled out, otherwise
the lock might fail. (Refer to
installation)
• If the backset of your door is 2¾ in (70 mm), you will need to
Step 3
for spindle
extend the latch.
Push the S1 tab upward and hold it (1), press down the knob
(2), slide the knob toward the 2¾ position, and pull out the
faceplate (3).
• Make sure that the S1 tab is ALWAYS upward when
extending the latch.
• Make sure the cable is tucked into the cavity on the back
of the interior assembly.
2 ⅜ in (60 mm)
2 ¾ in (70 mm)

Advertisement
