EUFY C220 Quick Start Manual

Security smart lock
Hide thumbs Also See for C220:

Advertisement

Table of Contents

QUICK START GUIDE

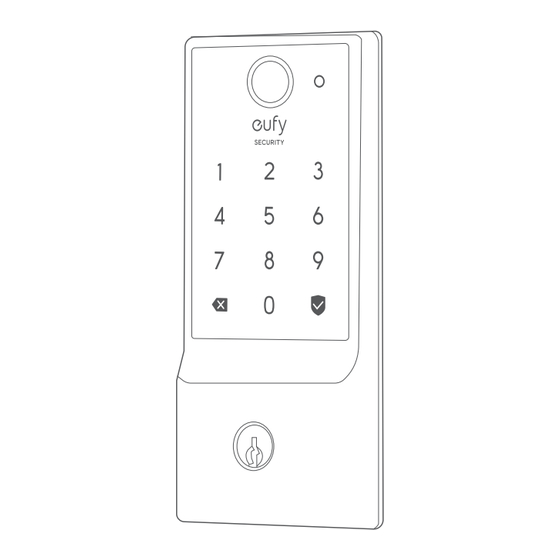

eufy Security Smart Lock C220
Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are
trademarks of Anker Innovations Limited, registered in the United States and other
countries. All other trademarks are the property of their respective owners.
Model: T8506
V01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C220 and is the answer not in the manual?

Questions and answers

carol neilson
June 15, 2025

can i lock this manually as I leave the house?

0

Subscribe to Our Youtube Channel

Related Manuals for EUFY C220

Summary of Contents for EUFY C220

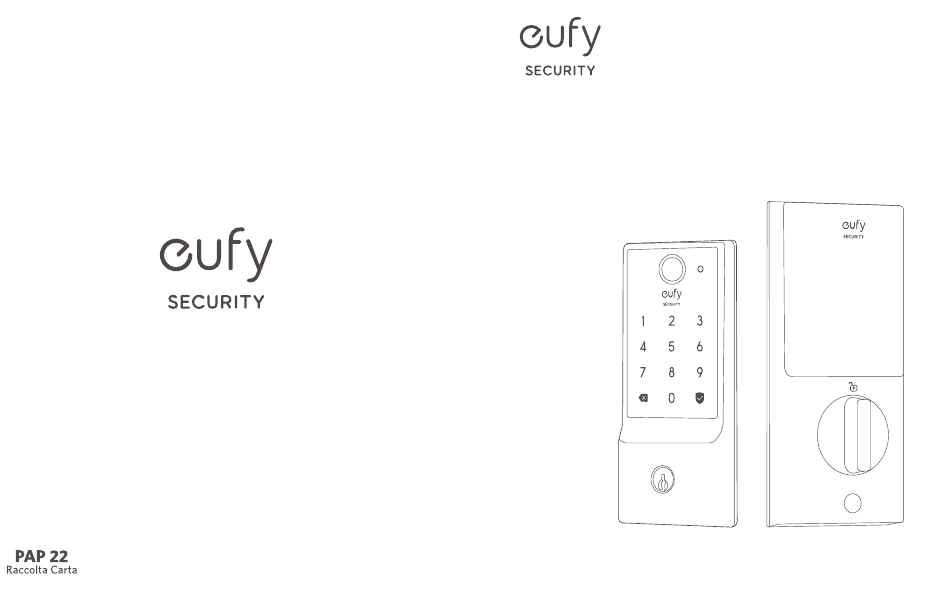

  • Page 1 QUICK START GUIDE eufy Security Smart Lock C220 Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.
  • Page 2 AT A GLANCE ① ② ① ③ ④ ② ③ ⑤ ④ ⑥ ① Fingerprint Button ② Battery Indicator ① Battery Compartment ③ Keypad ② Setup Button ④ Status Light and Lock / Unlock Button ③ Thumbturn ④ Screw Hole •...

  • Page 3: What's Included

    INSTALLATION WHAT'S INCLUDED Step 1. Prepare the Door For Smart Lock Installation 1. Remove the existing lock and check your door. (Step 2) Deadbolt Installation Set 2. Check if your door has holes like the one below. Standard US doors are already compatible.
  • Page 4 Step 2. Install Deadbolt *Check the latch hole before inserting the deadbolt. If the latch hole is round, refer to diagram A. If the latch hole is rectangular, refer to diagram B. 1. Check your door to see if the deadbolt requires adjustment. ❶...

  • Page 5: Step 3. Install Exterior Assembly

    Step 3. Install Exterior Assembly Step 4. Install Interior Assembly • Remove the spacer before installation if you have a 38 mm cross bore. 1. Detach the back cover from the interior assembly. Cross Bore Diameter 1 ½" / 38 mm 2.
  • Page 6 3. Secure the back cover with screws. 5. Mount the interior assembly. Make sure both wires are tucked into the cabin on the back of the interior assembly. Tightly fasten the screws in place. Set the screws with your hands, then use a screwdriver to secure them.
  • Page 7 6.Install the 8 AA batteries provided with the correct polarity. Don't put on the cover until the system setup is done in the app. *For your convenience, please first install the bottom layer of 4 AA batteries. Batteries Friendly Reminder: When removing the batteries, first remove the upper layer, then gently pull the ribbon to lift the remaining batteries out of the compartment.

  • Page 8: Step 5. Install Strike Plate

    Strike Platey Strike Screws Make sure the depth of the 2.Follow the in-app instructions to add the Smart Lock C220 to your device list. latch hole on door frame is • Please visit https://support.eufylife.com/s/ or scan the QR code for more information.
  • Page 9 NOTICE FCC Radio Frequency Exposure Statement The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20cm. Notice: Shielded cables Warning All connections to other computing devices must be made using shielded cables •...

  • Page 10: Customer Service

    • maintien d’une batterie dans un environnement à très haute température pouvant provoquer une explosion ou la fuite de liquide ou de gaz inflammables; support@eufy.com • batterie soumise à une pression de l’air extrêmement faible pouvant provoquer une explosion ou la fuite de liquide ou de gaz inflammables.
