FT 100
EN Non-contact thermometer
Instructions for use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Beurer FT 100

Summary of Contents for Beurer FT 100

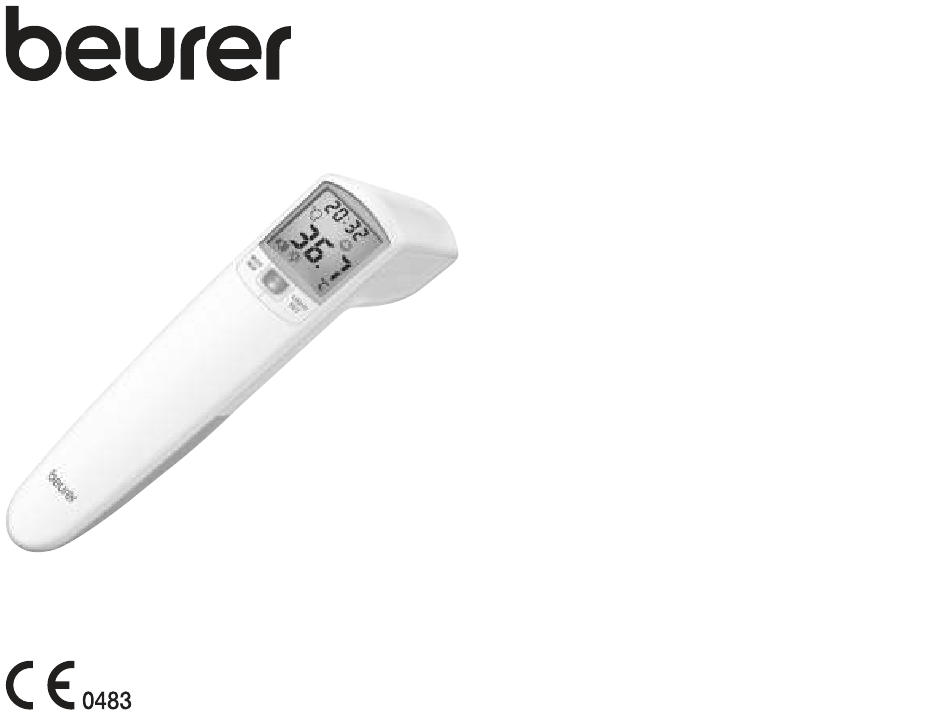

  • Page 1 FT 100 EN Non-contact thermometer Instructions for use...

  • Page 2: Table Of Contents

    ENGLISH Contents 1. Signs and symbols ........4 9. Measuring object temperature/room 2. Intended use ..........5 temperature ..........21 3. Warnings and safety notes ......6 10. Error messages ........22 3.1 Risks to the user ........6 11. Batteries ..........23 3.2 Risks to the device .........7 12.
  • Page 3 Please read these instructions for use carefully and observe the information they contain. With kind regards, Your Beurer team Included in delivery Check that the exterior of the delivery cardboard packaging is intact and make sure that all components are present.

  • Page 4: Signs And Symbols

    1. Signs and symbols The following symbols appear in these instructions for use and on the device: WARNING Warning notice indicating a risk of injury or damage to health. IMPORTANT Safety note indicating possible damage to the device/accessory. Note Note on important information. Observe the instructions for use Application part, type BF Disposal in accordance with the Waste Electrical and Electronic Equipment...

  • Page 5: Intended Use

    Storage/Transport Permissible storage and transport temperature and humidity Operating Permissible operating temperature and humidity Device protected against foreign objects ≥ 12.5 mm and against water drip- IP 22 ping at an angle Serial number Important information/tip Cross-reference with another section Dispose of packaging in an environmentally friendly manner 2.

  • Page 6: Warnings And Safety Notes

    • After physical activity, a bath or spending time outdoors, wait approx. 30 minutes before you take a measurement on your forehead. • The FT 100 thermometer is only designed for the measuring area on the human body stat- ed in the instructions for use.

  • Page 7: Risks To The Device

    • The measurements taken by you are for your information only – they are no substitute for a medical examination. Consult a doctor before you undertake any medical treatment. • Clean the thermometer after each use (w 12. Cleaning the device). •...

  • Page 8: Information About This Thermometer

    • Protect batteries from excessive heat. • Risk of explosion! Do not throw batteries into a fire. • Do not charge or short-circuit batteries. • If the device is not to be used for a relatively long period, take the batteries out of the bat- tery compartment.
  • Page 9 Beurer tip • Temperatures measured with di erent thermometers should never be compared with one another. • Tell your doctor what type of thermometer you used to take your temperature and on what part of the body. Also bear this in mind if you are diagnosing yourself.
  • Page 10 Beurer tip Taking the body temperature provides a current measurement of a person’s temper- ature. If you are uncertain about interpreting the results or if the values are abnor- mal (e.g. fever), please consult your doctor. This also applies in the case of slight temperature changes if there are other symptoms of illness such as agitation, heavy sweating, flushed skin, fast pulse rate, tendency to collapse, etc.

  • Page 11: Unit Description

    5. Unit description 1 Display 2 MODE/MEM button 3 Fever/distance indicator 4 LIGHT/SET button 5 Measuring sensor 6 Distance sensor / SCAN button 8 Battery compartment lid Buttons Functions MODE Sets the measurement mode. MODE/MEM Displays the saved measurements. LIGHT Manual switch on of the illumi- LIGHT/SET nated display.
  • Page 12 Display description 1 Year/date/time display 2 Room temperature mode 3 Forehead temperature mode 4 Object temperature mode YEAR 5 Temperature/memory space number display DATE 6 Acoustic signal symbol 7 Illuminated display symbol 8 Year 9 Memory function 10 Date 11 Measurement ≥ 38.0 °C (≥ 100.4 °F) “fever” 12 Measurement <...

  • Page 13: Initial Use

    6. Initial use If there is a battery isolation strip, pull it out of the battery compart- ment. The thermometer automatically switches on and the settings menu appears in the display (w 7. Switching on and setting the ther- mometer). 7.
  • Page 14 • Insert the batteries or press and hold the LIGHT/ SET button for 4 seconds when the thermome- ter is switched on. The time format flashes on the display (Fig. 1). • Use the MODE/MEM button to set your preferred time format, and confirm with the LIGHT/SET but- Fig.
  • Page 15 The hour flashes on the display (Fig. 4). • Use the MODE/MEM button to set the hour, and confirm with the LIGHT/SET button. The minute flashes on the display (Fig. 5). • Use the MODE/MEM button to set the minute, and confirm with the LIGHT/SET button.
  • Page 16 The acoustic signal symbol flashes on the display (Fig. 7). You can activate/deactivate the acoustic signals (de- vice activation, measurement in progress, measure- ment completion). • To activate the acoustic signals, use the MODE/ MEM button to select , and confirm with the LIGHT/SET button.

  • Page 17: Forehead Measurement

    The display lights up for 5 seconds. The automatic and manual illuminated display cannot be used while measure- ment is in progress. 8. Forehead measurement Beurer tip Remember: • Physical activity, increased perspiration on the forehead, taking vasoconstrictive medication and skin irritations can distort the measurement.
  • Page 18 • To switch on the thermometer, briefly press the / SCAN but- ton. After a short self-test, the device is ready for forehead tem- perature measurement. The device is in forehead temperature mode. You can tell this from the symbol on the display. Fig.
  • Page 19 Measuring distance Measuring distance 4 to 6 cm NOT 4 to 6 cm Once the thermometer has If the measuring distance is not detected the correct measur- 4 to 6 cm, the fever/distance in- ing distance of 4 to 6 cm, the dicator flashes blue (the device Fig.
  • Page 20 If the measurement is more than 38 °C (100,4 °F), if the fever/ distance indicator lights up in red and if appears on the display (Fig. 14), this indicates that the body temperature is above the normal range. Fig. 14 The measurement is automatically saved with the date/time and the “fever”...

  • Page 21: Measuring Object Temperature/Room Temperature

    9. Measuring object temperature/room temperature If you want to measure an object temperature with this thermometer, switch to object temperature mode. • With the thermometer switched on, briefly press the MODE/MEM button. The device switches to the object temperature mode (Fig. 15). •...

  • Page 22: Error Messages

    10. Error messages Error Problem Solution message Measurement during self-test, device Wait until the forehead symbol stops not yet ready for measurement. flashing. Room temperature below 10 °C or Room temperature must be between over 40 °C (<50 °F, >104 °F). 10 °C and 40 °C (50 °F –...

  • Page 23: Batteries

    11. Batteries Changing the batteries The device requires two AAA (LR03) batteries. • Open the battery compartment. To do this, push the battery compartment down. • Take the used batteries out of the battery compartment. • Insert new batteries. Make sure that the batteries are inserted the correct way round. •...

  • Page 24: Cleaning The Device

    12. Cleaning the device • The measuring sensor is the most sensitive part of the thermometer. Be very care- ful with the measuring sensor when cleaning the device. • Do not use any harsh cleaning products. • Always observe all safety notes for users and the device. 3.

  • Page 25: Technical Data

    Precise instructions for checking accuracy may be requested from the service address. We reserve the right to make technical changes to improve and develop the product. Type FT 100 Measurement method Non-contact infrared measurement Basic functions...
  • Page 26 Measuring distance 4 to 6 cm from the measuring point Measurement range and Forehead temperature measurement accuracy of forehead 34 °C to 42.2 °C (93.2 °F to 108 °F) temperature measurement Measurement accuracy 34 °C to 42.2 °C: ± 0.2 °C (93.2 °F to 108 °F: ±...

  • Page 27: Guidelines

    2 x AAA (LR03) batteries Batteries last for approx. 2000 measurements Extra activated functions such as acoustic signal or illuminated display reduce the battery life. The serial number is located on the device or in the battery compartment. 16. Guidelines This device complies with EU Medical Devices Directive 93/42/EEC, the German Medical Devices Act (Medizinproduktegesetz), the ASTM (American Society for Testing and Mate- rials) E 1965 - 98 and the European Standard EN60601-1-2 (in accordance with CISPR11,...

  • Page 28: Warranty / Service

    • Failure to comply with the above can impair the performance of the device. 17. Warranty / service Beurer GmbH, Söflinger Straße 218, 89077 Ulm, Germany (hereinafter referred to as “Be- urer”) provides a warranty for this product, subject to the requirements below and to the extent described as follows.
  • Page 29 The buyer will then receive further information about the processing of the warranty claim, e.g. where they can send the product and what documentation is required. A warranty claim shall only be considered if the buyer can provide Beurer, or an authorised Beurer partner, with –...
  • Page 30 – damage that arises during transport between manufacturer and customer, or between service centre and customer; – products purchased as seconds or as used goods; – consequential damage arising from a fault in this product (however, in this case, claims may exist arising from product liability or other compulsory statutory liability provisions).
  • Page 32 Factory address: No. 858, Jiao Tong Rd., Wujiang Economic Development Zone, Suzhou City, Jiangsu Province, P.R.C. Phone number: 0512-82078288 Product Name: Touch Free Infrared Thermometer, Model: FT 100 ISO Standard: ISO 80601-2-56:2017 China medical production Licence No: SSYJXSCX20040018 Manufactured in China Beurer GmbH •...
