Electric 4 to 8 Frame Stainless
Steel Honey Extractor
BEE-V004E
Assembly Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEE-V004E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo BEE-V004E

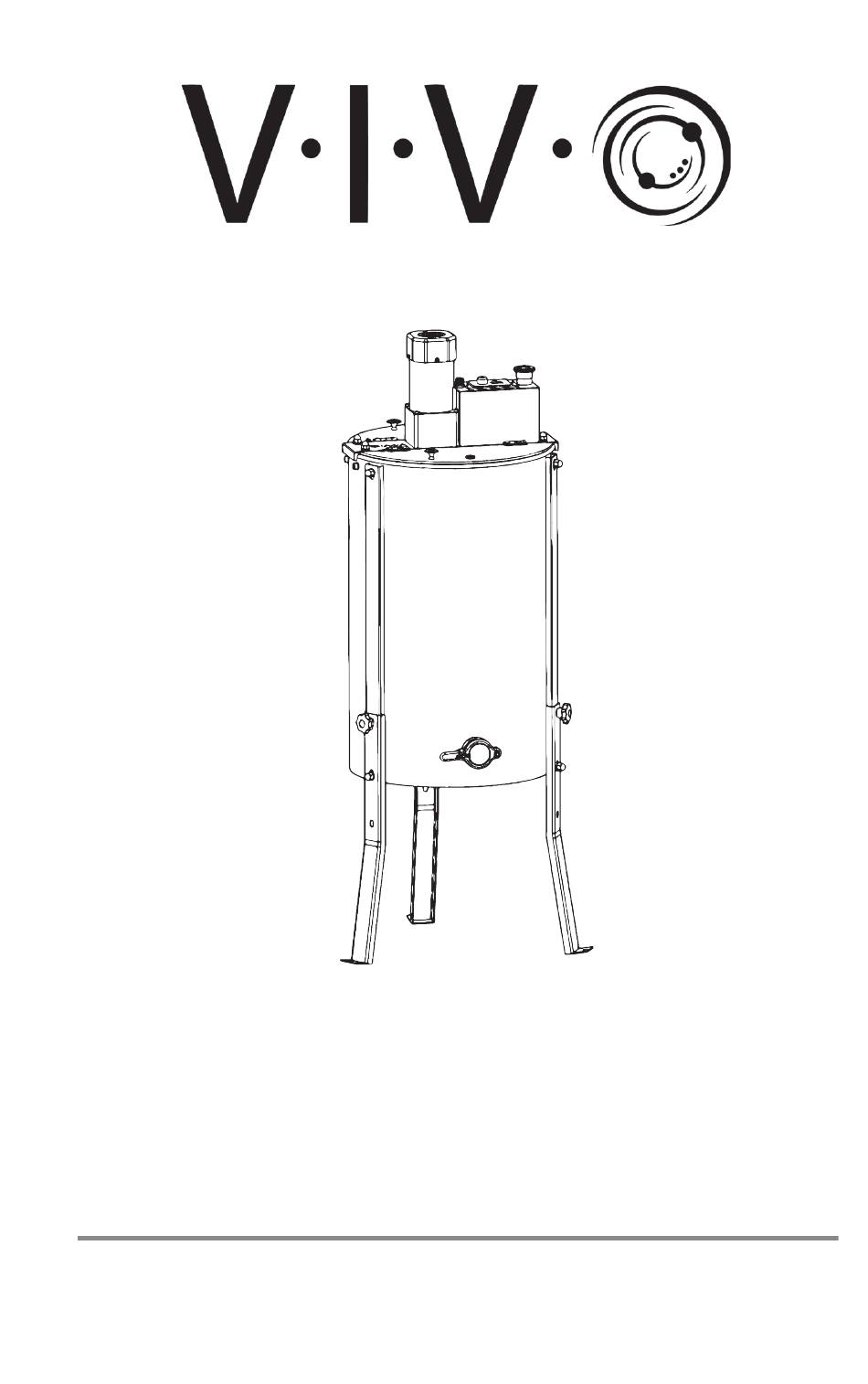

  • Page 1 Electric 4 to 8 Frame Stainless Steel Honey Extractor BEE-V004E Assembly Manual...
  • Page 2: Electrical Safety Instructions

    If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 3: Package Contents

    Package Contents A (x1) B (x3) C (x2) Drum D (x1) E (x1) Honey Gate Power Cable Included Hardware & Tools S-A (x3) S-B (x3) S-C (x12) S-D (x12) S-E (x3) Plastic Knob M8 Washer M4x12 Screw M4 Nut Concrete Anchor T-A (x1) 3mm Allen...
  • Page 4: Assembly Steps

    Assembly Steps STEP 1 Remove Cap Nuts and Washers from bottom of Drum (A). Washer...
  • Page 5 STEP 2 Attach Legs (B) to Drum (A) using the previously removed hardware in the lower holes and Plastic Knobs (S-A) with M8 Washers (S-B) in the upper holes.
  • Page 6 STEP 3 Carefully cut the zip-ties around the basket inside Drum (A). Use a wrench to remove the pre-installed Cap Nuts (A1) and Lock Washers (A2) from the top of Drum and remove the entire Electrical Unit. Electrical Unit...
  • Page 7 STEP 4 Remove the large flat Hex Nut from the back of Honey Gate (E). Hex Nut Position Honey Gate (E) inside the hole in the bottom of Drum (A). Reach inside the Drum with the previously removed Hex Nut and thread and tighten it back onto the Honey Gate. Inside Drum Wing Hex Nut...
  • Page 8 STEP 5 Reattach the Electrical Unit to the Drum (A) using the previously removed Cap Nuts (A1) and Lock Washers (A2). Electrical Unit...
  • Page 9 STEP 6 Remove the protective film from Lids (D). Line up the holes on Lids with the hinges on Electrical Unit and loosely attach using M4x10mm Screws (S-H) and M4 Nuts (S-I). Once all 12 M4 Nuts have been partially threaded, tighten them by hand.
  • Page 10 For Additional Stability * Optional * Pre-Drilling Instructions Drill mounting holes using illustration shown Drill Bit: 3/8” (10mm) Position the extractor where desired and mark Hole Depth: the foot locations using a pencil. 2.2” (55mm) Remove the pre-installed nuts and washers from Concrete Anchors (S-G), then use a hammer to tap in the Concrete Anchors flush with the floor.
  • Page 11 Operating Instructions Thorough Cleaning: See step 3 on Page 6 to remove the electrical unit from the Drum (A). Using mild dish soap and warm water, scrub the Drum and basket clean. Completely rinse the parts and dry with a soft cloth. See step 5 on Page 8 to reattach the electrical unit when dry. Thorough cleaning is needed before first time use and before each extraction session.
  • Page 12: Last Updated

    Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
