XAG Smart Remote Controller 4 User Manual

Hide thumbs

Advertisement

Table of Contents

XAG Smart Remote Controller 4
User Manual
Version 1.0
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart Remote Controller 4 and is the answer not in the manual?

Questions and answers

Related Manuals for XAG Smart Remote Controller 4

Summary of Contents for XAG Smart Remote Controller 4

  • Page 1 XAG Smart Remote Controller 4 User Manual Version 1.0...
  • Page 2 To User Dear user, thank you for choosing XAG's products. For safety purposes and better user experience, it is highly recommended that you read this manual carefully and strictly follow the instructions hereof. Contact Us Manufacturer: Guangzhou Xaircraft Technology Co., Ltd.

  • Page 3: List Of Items

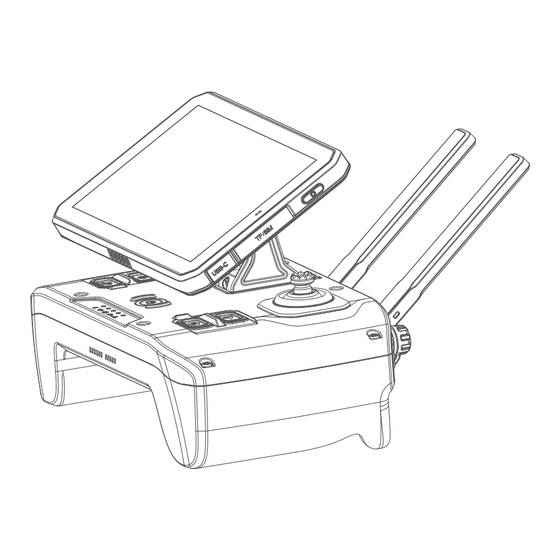

    Introduction The XAG Smart Remote Controller 4 (SRC4 or "remote controller") is a two-handed agricultural remote controller equipped with a screen. Its dual knobs and multiple buttons are specifically designed for XAG's agricultural drones. The integration of Wi-Fi communication technology enables smooth operation of agricultural equipment, significantly improving the efficiency of manual remote control operations.
  • Page 4 Overview ② ① ③ ④ ⑤ ⑥ ⑭ ⑯ ⑮ ⑬ ⑰ ⑦ ⑪ ⑨ ⑧ ⑫ ⑩ ⑱ ① Screen ⑦ RTH ⑬ L ② Antenna ⑧ Obstacle Avoidance ⑭ F1 Knob ③ Screen Power Button ⑨ Joystick Lock Indicator ⑮...
  • Page 5 Button Button Action Description Long Press Return to home Short press to hover. Short Press Hover/Resume Long press to resume operation. Long Press Enable obstacle avoidance Obstacle Avoidance Short Press Disable obstacle avoidance Short press for a downward view. Short Press FPV View Switching Press again for a forward view.

  • Page 6: Status Indicators

    Status Indicators When the remote controller is on, indicators will show the status of the remote controller and the drone. Description Power Solid Green Battery level 51%-100% Solid Yellow Battery level 21%-50% Solid Red Battery level 1%-20% Blinking Fast charging Power off Description Device Connection Status...

  • Page 7: Joystick Mode

    Joystick Mode The Joystick Mode is classified into Japanese Hand, American Hand, and Chinese Hand, with American Hand (Mode 2) as the default factory setting. You can change the mode in "System Settings" - "Joystick Mode". Japanese Hand (Mode 1) Forward Ascend Left Joystick...

  • Page 8: How To Use

    Warning This product is intended for use exclusively with XAG's products. Using the remote controller with non-XAG products is likely to result in incompatibility issues. Any loss or legal liability arising from such usage shall be borne by the user.
  • Page 9 Unfold Antenna Spread out the antennas and adjust them to the appropriate positions. Rotate the antennas clockwise to change the orientation. Note The signal strength varies depending on the position of the antenna. When operating the drone remotely, you can adjust the antenna orientation to optimize signal reception. Several factors affect the signal between the remote controller and the drone, including antenna position, antenna tightness, obstructions, and interference from other Wi-Fi signals.

  • Page 10: Firmware Update

    Firmware Update Before using the device, you must check if the firmware version is up to date. If not, make sure to install the latest version. 1. On the home screen, tap "System Settings" - "Firmware Update" to check for updates. 2.
  • Page 11 Start Motors Before take-off, you can start the motors by performing the following two joystick maneuvers. If the throttle is not applied within 3 seconds after releasing the joysticks, the motors will stop automatically. Warning Do NOT push the joysticks to start motors while the drone is flying because it will stop the motors and cause the drone to crash.
  • Page 12 3. Tap the "Field Boundary" to switch between "Obstacle" and "Non-spraying Zone". Fly the drone around the obstacle/non-spraying zone, and short press button "L" (press button "R" to undo) to mark the boundary points of the obstacle or non-spraying zone. 4.

  • Page 13: Specifications

    Specifications Model M3SRC4AH Dimensions 128.5 125 mm × × Weight 1 kg Operating Frequency (Wi-Fi) 2.400 ~ 2.4835 GHz ; 5.725 ~ 5.850 GHz 2.400 GHz ~ 2.4835 GHz : ≤ 33 dBm (FCC) ≤ 20 dBm (CE/SRRC/MIC) Effective Isotropic Radiated Power (Wi-Fi) 5.725 GHz ~ 5.850 GHz : ≤...
  • Page 14 MIC: LTE B1、LTE B3、LTE B5、LTE B8、LTE B18、 4G Operating Frequency (LTE) LTE B19、LTE B26、LTE B41 4G Maximum transmit power Class 3（23dBm ± 2dB）for LTE-TDD bands GNSS Frequency Band BDS : B1；GPS : L1C；GLONASS : L1；Galileo : E1 Operating System Android Charging Voltage/Current 5 V ⎓...
  • Page 15 FCC/ISED Compliance Notice This device complies with Part 15 of the FCC Rules and ISED licence-exempt RSS standard.Oper- ation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) This device must accept any interfer- ence received,including interference that may cause undesired operation.
  • Page 16 Informations sur l'exposition RF L'aéronef est conforme aux limites d'exposition aux rayonnements FCC/ISED établies pour un environnement non contrôlé. Afin d'éviter tout risque de dépassement des limites d'exposition aux radiofréquences FCC/ISED, la proximité humaine de l'antenne ne doit pas être inférieure à 0 cm en fonctionnement normal.
  • Page 17 Warning: Operation of this equipment in a residential environment could cause radio interfer- ence. “Hereby, [Guangzhou Xaircraft Technology CO.,LTD.], declares that this [XAG Smart Remote Controller 4] is in compliance with the essential requirements and other relevant provisions of 2014/53/EU.
  • Page 18 FCC Importer's Declaration of Conformity Brand name / model number：M3SRC4AH This device complies with part 15 of the FCC Rules. Operation is subject to the following two con- ditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 19 NCC statement 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或 變更原設計之特性及功能。低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾 現象時，應立即停用，並改善至無干擾時方得繼續使用。前述合法通信，指依電信管理法規定作業之 無線電通信。低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 Without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as per- formance to a approved low power radio-frequency devices. The low power radio-frequency devices shall not influence aircraft security and interfere legal communications;...
  • Page 20 6. To the maximum extent permitted by law, XAG shall not be liable for any loss caused by your use of this product outside the instructions in this Disclaimer and User Manual. Furthermore,...
  • Page 21 However, this does not imply that partial or all terms contained in this Disclaimer are necessarily invalid. 12. To the extent permitted by law, XAG reserves the right for final explanation and revision of the terms and conditions stated hereinabove. XAG also has the right to update, modify or terminate these terms and conditions via its official website, User Manual, online App, etc.,...
  • Page 22 @XAGofficial @xag_official @XAG Official This document is subject to update without prior notice. © Guangzhou Xaircraft Technology CO., LTD. All Rights Reserved. All information in this User Manual (including but not limited to any text description, illustrations, photos, methods, processes, etc.) belongs to Guangzhou Xaircraft Technology CO., LTD. and is protected by copyright law.

This manual is also suitable for:

M3src4ah
