Krups XL 2000 Manual

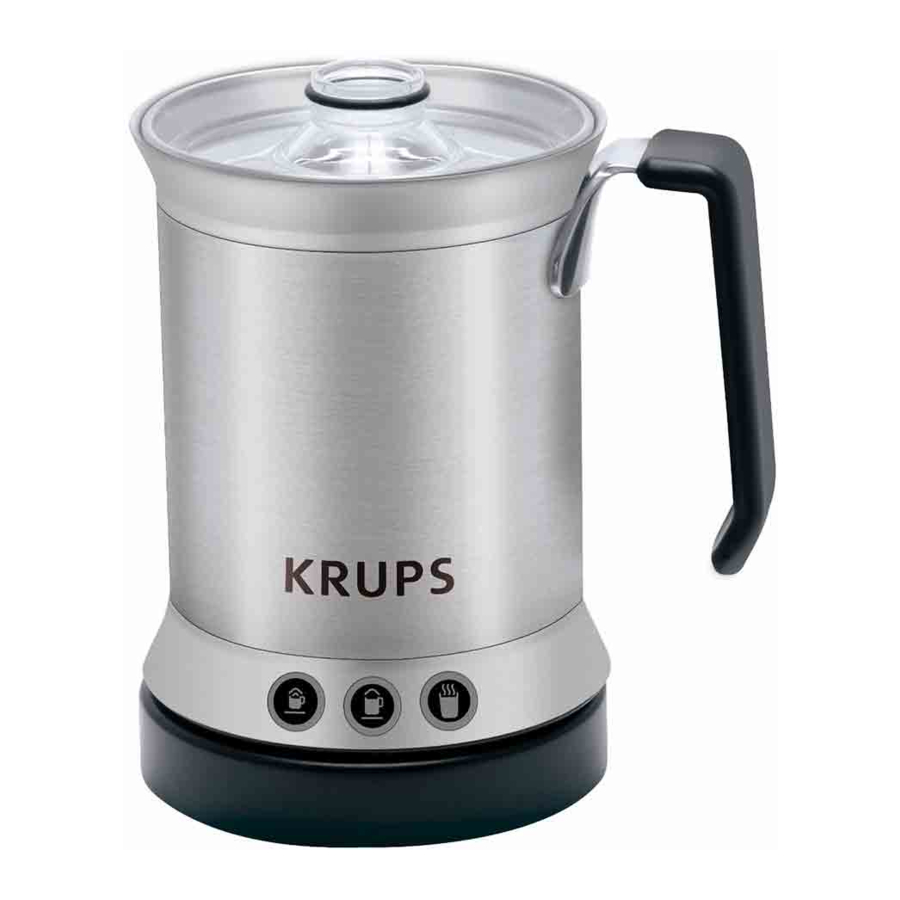

DESCRIPTION OF THE APPLIANCE

1. Transparent anti-spill lid
2. Multi-directional pouring rim
3. Aluminium jug with non-stick coating (easy to clean) and brushed stainless steel trim
4. Base with 360 rotation
5. Stainless steel coated with soft touch satin finish plastic
6. 3 preparation control panel: one button for each recipe
7. Removable emulsifier
8. Graduation for the hot milk recipe (max. volume of milk)
9. Graduation for the Caffe Latte recipe (max. volume of milk)
10. Graduation for the Cappuccino recipe (max. volume of milk)
11. Power cord storage under the base

INSTRUCTIONS FOR USING THE APPLIANCE

3 steps for optimum results

1. Pour the milk
2. Select your recipe
3. Serve

CLEANING

DO NOT CLEAN THE APPLIANCE IN A DISHWASHER
The non-stick coating on the inside of the pot means that you can clean it easily. Here's how to go about it:
Remove the appliance from its electrical power base.

1. Remove the emulsifier from the jug
2. Clean the jug using warm water and washing-up liquid with a sponge or a non-abrasive cleaner
3. Rinse the jug with clear, warm water.
4. Dry the appliance.

Remember to fit the emulsifier again, ensuring that it is clipped into place (clicks into position).

IF USING FOR SUCCESSIVE CYCLES

1. Cappuccino Function: For reasons of efficiency (temperature and quality of froth) and hygiene, if you want to heat quantities of milk several times in a row, we advise that you rinse the inside of the pot under cold water, in order to prevent the formation of a skin of milk in the bottom of the jug.
2. Caffe Latte Function: In order to ensure that this recipe works well, take care to clean the inside of the pot between each use in order to remove the skin of milk which forms there, and use cold milk straight out of the fridge.

THE VARIOUS PREPARATIONS

This appliance allows milk to be heated and/or frothed in three different ways to obtain different froths and temperatures. We can use pasteurised (fresh) milk or UHT, skimmed, semi-skimmed or whole milk, either from the refrigerator or at room temperature. The use of special milks such as micro filtered (which has more bacteria filtered out than pasteurised), unpasteurised, fermented (such as buttermilk) and enriched, may give less satisfactory results especially in terms of the quality of the froth.
However we recommend that you use very fresh milk or that has only been opened recently. For each preparation, the maximum amount of milk is indicated by a raised line inside the jug and the minimum level is when the liquid covers the emulsifier.

Cappuccino
50% hot milk
50% frothed milk
Min. temperature: 70°C
Max. quantity of milk: 150 ml
Preparation: Check that the emulsifier is fitted.

1. Pour in the milk but do not fill above the maximum level (150 ml), but ensure that the emulsifier is covered by using a minimum amount of 50 ml.
2. Press the button. The button will light up and the appliance will start operating automatically.
   • The motor starts intermittently and then operates at low speed.
   • When the preparation reaches the ideal temperature, the motor accelerates to froth the milk.
   • When the button light switches off: your preparation is ready to be served at the ideal temperature and mixture made from an approximate proportion of 50% milk and 50% froth.
3. Serve the frothed milk into a cup then add your espresso or coffee to the preparation.

Caffe Latte
80% hot milk
20% frothed milk
Min. temperature: 70°C
Max. quantity of milk: 225 ml
Preparation: Check that the emulsifier is fitted.

1. Pour in the milk but do not fill above the maximum level (225 ml), but ensure that the emulsifier is covered by using a minimum amount of 50 ml.
2. Press the button. The button will light up and the appliance will start operating automatically.
   • The motor starts intermittently and then operates at low speed.
   • When the preparation reaches the ideal temperature, the motor accelerates.
   • When the button light switches off: your preparation is ready to be served at the ideal temperature and a proportion of milk and frothed milk of around 80/20.
3. Serve the frothed milk into a cup then add your espresso or coffee to the preparation.

Hot milk
>90% hot milk
Min. temperature: 80°C
Max. quantity of milk: 300 ml
Preparation: Check that the emulsifier is fitted.

1. Pour in the milk but do not fill above the maximum level (300 ml), but ensure that the emulsifier is covered by using a minimum amount of 50 ml.
2. Press the button. The button will light up and the appliance will start operating automatically.
   • The motor starts intermittently and then its speed automatically adapts to the volume of milk to be heated.
   • When the button light switches off: your preparation is ready to be served at the ideal temperature (hotter than the Cappuccino and the Café Latte preparations – around 10°C more). The result obtained generally has a proportion of froth of less than 10%.
3. Serve the hot milk into a suitable cup.

PROBLEMS AND CORRECTIVE ACTIONS

SAFETY INSTRUCTIONS

• Read the instructions carefully before using for the first time and keep them in a safe place: Krups may not be held responsible for any incorrect use.
• The appliance must only be plugged into mains socket with an earth pin. Check that the supply voltage matches that marked on the rating plate of the appliance.
• Do not place the appliance on a hot surface such as a hob or use it close to a naked flame.
• Unplug the appliance immediately if you notice that the appliance is not operating correctly.
• Do not pull on the power cord to unplug it.
• Do not let the power cord dangle from a table or a work top.
• Do not leave your hand on the power cord or the hot parts of the appliance.
• Do not immerse the appliance, the power cord or plug in water or any other liquid.
• Do not wash the appliance in the dishwasher.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety
• Children should be supervised to ensure that they do not play with the appliance.
• If the power cord, the plug or the appliance do not operate correctly or if they are damaged, do not use the appliance so as to avoid any danger, and have the appliance repaired by an KRUPS approved service centre.
• Unplug the appliance as soon as you have finished using it, when it is not be used for some time and when you clean it.
• Except for cleaning and descaling, following the instructions for use of the appliance, all other work on the appliance must be carried out by an KRUPS approved service centre.
• Any incorrect connection invalidates the guarantee.
• The use of adapters and/or extensions is not recommended.
• Your guarantee does not apply if the appliance is not cleaned or maintained regularly or if there is a foreign body in it (see separate document).
• Protect the appliance from damp and frost.
• All of our appliances are subject to quality control checks. Operating tests are carried out on the appliances at random, which is why some may have traces of use.
• Note that the body of stainless steel Automatic Milk Frother becomes hot during operation. During use, do not touch the metal jug as this will become hot.
• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• Your appliance must only be used with its own base.
• Never immerse the appliance or its base in water. The electrical connections must not come into contact with water.

If you have any problem problems or queries, please contact our Customer Relations Team first for expert help and advice:
0845 602 1454 - UK
(01) 677 4003 - Ireland
or consult our website - www.krups.co.uk
