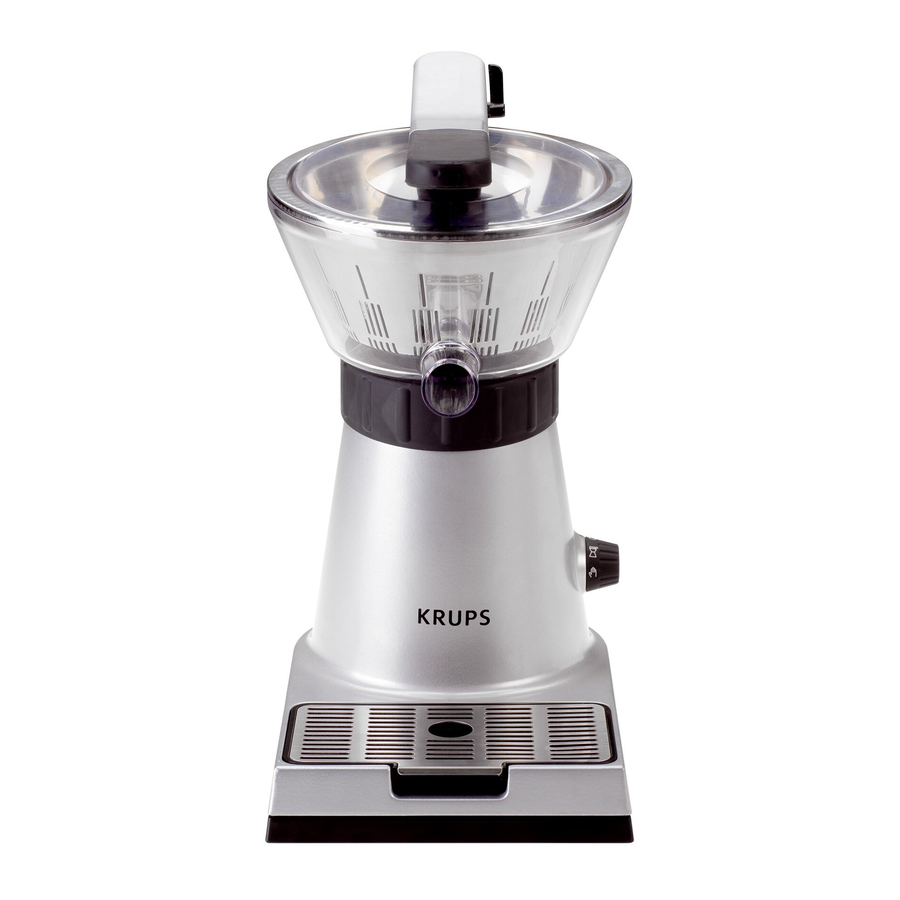

KRUPS CITRUS EXPERT ZX7000 - Electric Acrylic Citrus Juicer Manual

IMPORTANT SAFEGUARDS

Read all instructions carefully before using.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Use appliance only for its intended use.
• To protect against risk of electrical shock, do not immerse the base in water or any other liquid.
• Close supervision is necessary when any appliance is used near children. This appliance is not intended for use by children.
• Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
• Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away during operation to reduce the risk of injury to persons, and/or damage to the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return the appliance to an authorized KRUPS Service Center for examination or repair.
•
  The use of attachments not recommended or sold by KRUPS may cause fire, electric shock or injury.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter.
• Do not let cord contact hot surface, including the stove.
• The appliance is not intended to prepare large quantites of food at one time.
• A rubber/plastic spatula or wooden spoon may be used, when the appliance is in "off" position and unplugged.
• This appliance is for household use only. Any servicing other than cleaning and user maintenance should be performed by an authorized KRUPS Service Center.

SAVE THESE INSTRUCTIONS

CAUTION

• This appliance complies with applicable technical rules and standards at the time of manufacture.
• Do not leave the appliance within reach of children.
• An electrical appliance is not a toy and should be kept out of reach of children.
• This appliance is intended for household use only. Do not use it for commercial purposes. Any servicing other than cleaning and user maintenance should be performed by the nearest authorized KRUPS Service Center.
• Check voltage to be sure that the voltage indicated on the rating label matches your voltage.
• Do not immerse the appliance in water or any other liquid.
•
  To reduce the risk of fire or electric shock, do not remove the base. No user serviceable parts inside. Repairs should be done by an authorised KRUPS Service Center only.
• Keep your hands and the cord away from hot parts during operation.
• Never clean with harsh or abrasive cleaners or sponges.
• Clean using gentle dishwashing liquid and warm water. Dry all parts carefully before next use.
• Do not place or use the appliance on hot surfaces such as stoves, hotplates, or near open gas flames.
• Do not unplug the unit by pulling on the cord. Instead grasp plug and pull to disconnect.
• Only use the appliance on a stable working surface away from water splashes.

SHORT CORD INSTRUCTIONS

1. We do not recommend using an extension cord withthis device.
2. If an extension cord is absolutely necessary,
   1. the marked electrical rating of the extension cord should be at least as great as the electrical rating of the machine,
   2. the longer cord should be arranged so that it will notdrape over the counter top or table top where it can be pulled on by children or tripped over.
3. This machine has a polarized plug (one blade is widerthan the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. In the interest of improving products, Krups reserves the right to change specifications without prior notice.

DESCRIPTION OF PARTS

1. Pressing lever
2. Lever pin
3. Splash guard
4. Fruit press
5. Universal cone for all citrus fruits
6. Pulp filter
7. Transparent bowl

G1. Pouring spout

8. "Drip stopper" accessory (according to model)
9. Drip tray grid
10. Drip tray
11. ON/OFF selector knob
12. Citrus Press Arm

BEFORE USING YOUR APPLIANCE FOR THE FIRST TIME

• Before first use, remove all packaging, stickers, and accessories. Remove the small lever pin (B) in the bag attached to the pressing lever (A), it will be needed later when assembling the citrus press. Rinse all removable parts (C-D-E-F-G-H-I-J) and dry carefully.
  Wipe the outside of the citrus press with a clean damp cloth.

ASSEMBLING YOUR DEVICE

ENSURE THE ON/OFF SELECTOR KNOB IS IN THE OFF POSITION AND THE CITRUS PRESS IS NOT PLUGGED IN WHEN ASSEMBLING.

• Remove the small lever pin (B) in the bag attached to the pressing lever (A)

• Holding the black portion of the pressing lever (A) horizontally, slip the silver end of the pressing lever (A) into the notches at the top of the citrus press arm (L). Note the hole on the silver end of the pressing lever (A) should be on the right side.

• While holding the pressing lever (A) in place, align the hole on the right side of the lever with the hole in the shaft. Hold the black end of the lever pin (B), and push the lever pin (B) into the hole.
• The lever can now be moved up and down.
• Put the lever (A) in its upper position.
• Rest the lever in the upright position so that the round notches on the center of the underside of the handle are visible. Press the clear splash guard (C) onto the round notches, it will click in place. Align the notches on the black fruit press (D) with the metal bar in the center of the round notches, then turn clockwise one quarter turn to lock into place. Once locked in place, the fruit press (D) cannot be pulled off, but can be moved up and down.

• Slip the drip tray (J) and drip tray grid (I) in place.

• Rest the lever in the up position. Slide the clear bowl (G) onto the black plastic shaft of the citrus press. Align the clear bowl (G) so that the plastic pouring spout (G1) is on the front, to the left of the center (7:00 position), then turn counter-clockwise so that the pouring spout (G1) is centered and the bowl is locked in place.

• Place the pulp filter (F) inside the clear bowl (G).

• Slide the juicing cone onto the center of the black axis in the center of the pulp filter (F) and check that the cone rotates smoothly both clockwise and counter-clockwise.
• Ensure that the ON/OFF selector knob (K) on the right side of the base of the appliance is in the OFF position before plugging in the citrus press. Your citrus press is now assembled and ready to use.

• Your citrus press offers two different modes of use:
  • A "lever-operated" function for squeezing your citrus fruits quickly and cleanly.

  • A "manual" mode for squeezing your fruit by hand.


USING YOUR DEVICE

• Your citrus press can be used with or without the pressing lever (A). The lever will help press citrus fruits against the rotating juicing cone for clean, efficient extraction and is helpful when pressing larger fruits, or large quantities of citrus fruits.
• In manual mode, fruit is pressed by hand against the rotating juicing cone (E).
• There are three positions on the ON/OFF selector knob:

  OFF position

  Pressing with lever

  Manual pressing

To press citrus fruit using the pressing lever:

• Raise the lever to the upper position. Place a glass on the drip tray (J), under the pouring spout (G1). Cut your citrus fruits in half.
• Place your fruit cut side down on the cone, applying gentle pressure. Turn the ON/OFF selector knob (K) to the LEVER position. Lower the lever to press the fruit between the fruit press (D) and cone. The citrus press will start working automatically, and the cone will rotate. Center fruit and maintain constant pressure for best results.
• When pressing is complete, close the drip stopper (H) and remove your glass.

Pressing by hand:

• Raise the lever to the upper position. Place a glass on the drip tray (J), under the pouring spout (G1). Cut your citrus fruits in half.
• Turn the ON/OFF selector knob (K) to the MANUAL position. Place your fruit cut side down on the cone (E), applying pressure against the cone. The cone will automatically start rotating once pressure is applied. Keep fruit centered and maintain constant pressure for best results.
• When pressing is complete, close the drip stopper (H) and remove your glass.

FOR BEST RESULTS

• For optimal juice extraction, press fruit at room temperature. Roll fruit on a table, using the palm of your hand to apply gentle pressure before cutting in half.

CLEANING

• The removable parts (C-D-F-G-H-I-J) can be washed in the upper level of the dishwasher. Wash with warm water and gentle dishwashing liquid.
• The pressing lever (A) and the lever pin (B) cannot be washed in the dishwasher. Wipe with a soft damp cloth to clean. Always dry before re-assembling.
• Rinse the pulp filter (F) after juicing for easy cleaning. Once pulp has dried on the filter, soak in warm water to loosen the pulp and then wipe with a sponge. Do not use abrasive or harsh chemical cleaners or sponges to clean the removable parts.
• Note the underside of the base includes a cord wrap that can be used to organize excess powercord length or store the powercord when the appliance is not in use.
