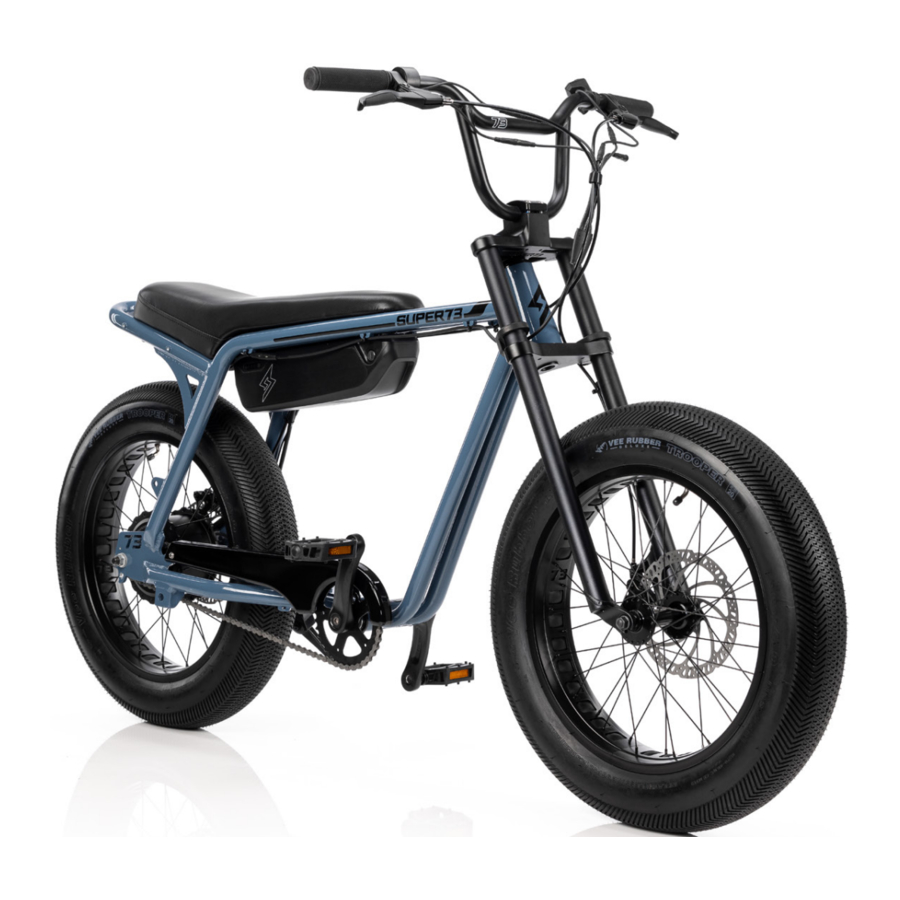

SUPER73 Z MIAMI Manual

Please read the instructions entirely before assembly to ensure the proper functioning of the Super73. Failure to do so could result in serious injury or death and the risk of potential injury to those around the user.
TIP VIDEO
View our assembly video and follow the step-by-step instructions on our website at https://eusupport.super73.com/hc/en-us/.
Please read all assembly instructions in full before beginning the build of your new bike.
If any damage has occurred to your Super73 during transit, please submit photos to Super73 by emailing us at customercare-eu@Super73.com.

• 1 x lithium-ion battery
• 2 x keys for the battery
• 1 x battery charger
• 1 x set of pedals
• 1 x two-sided open-end wrench with 15mm and 13mm ends
• 1 x 5mm hex wrench

CHECKLIST:

1. WHEELS
   ‡ Check the condition of both tires and make sure that the tread is in good condition, and free from punctures, cracks, and deformations.
   ‡ Maintain proper tire pressure. We recommend a range of 20-25 psi (1.381.72 bar) dependent on the weight of the rider and the type of terrain. ‡
   Make sure that the wheels are true and properly dished.
   ‡ Make sure that the wheels are properly seated in the dropouts and that the wheel nuts are tight and secure.
2. BATTERY
   ‡ Check that the battery is inserted securely: push the battery into its holder until it clicks into the lock. Remove the key from the lock and pull the battery to check if it has indeed locked into place.
   Check the charge status of the battery. Familiarize yourself with battery charging and storage best practices.
   TIP
   More information on battery maintenance in our Maintenance & Components section of this handbook.
3. BRAKES SYSTEM
   ‡ Pull both brake levers. You should feel an obvious pressure point and the levers should not be able to touch the handle.
   TIP
   More information on brakes in our Maintenance & Components section.
4. CABLES
   ‡ Look out for any loose cables.
   ‡ Make sure that every male and female plug is properly connected.
   ‡ There should be no strain on any wiring near the fork when turning the handlebars from left to right.
   ‡ Verify that the wiring on the frame is secure and free from any moving parts that may damage the wiring. This includes any wires and brake cable lines near the wheel or other moving parts.
5. DISPLAY
   ‡ Check that your display turns on and functions properly.
6. KICKSTAND
   ‡ Make sure that the kickstand is tightly secured, and not rubbing against the ground or tires.

OPERATING THE BIKE

Batteries that have not been fully inserted and locked can come loose during a ride and fall out. This can cause a crash and damage the battery.
Do not place the key or any other metal object into the charging port as this can result in a short circuit, rendering your battery nonchargeable and in need of replacement. This will void the warranty.
Do not sit on an e-bike while the kickstand is supporting the e-bike.
Perform the brake pad bed-in process before your first ride.

1. POWERING BIKE ON


• Disengage the kickstand, grab the brake handle to engage the brakes, and seat yourself on the Super73.
• Switch the battery to the "I" position to turn the bike on.
• Once the display screen is illuminated, the throttle or pedal assist will be active and you're ready to ride.

2. CHANGING THE INFORMATION VIEWED ON THE DISPLAY


• Quick press the "O" button to toggle the information viewed on the display.
  • Speed (mph/kmh)
  • Range (miles/km)
  • Pedal Assist (0-4)
  • Total (miles/km)

3. OPERATING THE HEADLIGHT


• The Super73-Z Miami comes equipped with a front headlight and rear light.
• To activate the headlight, press and hold down the up "^" button on the display until the lights illuminate. Follow the same step to turn off the lights.
• The rear light will get brighter when the brake levers are engaged whether the headlight is on or off.

4. Pedal assist
   To select your pedal assist mode, follow these steps once the display has been turned on and you are seated on the Super73:


• Press on the menu "O" button briefly to switch between display views until "Assist" appears on the screen.
• Press the up " ^ " button to increase the pedal assist level. To decrease the assist level, press the down "v" button. Pedal assist ranges from 1-4, with 0 meaning pedal assist is turned off. The higher the level, the more electric assistance you'll get, and the less you'll have to pedal.
• Level 1 (ECO) - 25% Speed Power
• Level 2 (TOUR) - 50% Speed Power
• Level 3 (SPORT)- 75% Speed Power
• Level 4 (SUPER) - 100% Speed Power
• Once you begin pedaling, the pedal assist sensor will activate the motor and you will begin to accelerate to the selected assist level.

5. BRAKING


• The brake levers are equipped with brake sensors that cut power to the motor when either of the levers are compressed. The Z employs Tektro mechanical brake systems. The right lever will activate the rear brakes when compressed, and the left lever will activate the front brakes when compressed.
• The Super73 brake orientation is as follows:
  Rear brake = right lever
  Front brake = left lever

6. SETTINGS MENU


• Hold down the "O" button on display to activate the settings menu.
• Settings parameters:
  • Contrast (display window contrast 0-100).
  • Units (standard is set to mi/F).
  • Position (changes the orientation of display if it is on the left or right side of the bike).
  • Back-light (display back-light power 0-100).
  • Version is the software version of the system.
  • Coin is the battery level inside display.

SUPER73 APP

Never ride your e-bike and adjust settings on your app while the e-bike is in motion.
Pull over and practice safe riding. Operating your e-bike and the app simultaneously, you put yourself at risk for collision and serious injury.

IN EUROPE / MODELS WITHOUT THROTTLE
Please check our website for instructions or ask your dealer.
For more information on using the Super73 App, please refer to the Super73 App page https://eu.super73.com/pages/mobile-app?_pos=2&_psq=app&_ss=e&_v=1.0 on our website.
Scan the QR code to download the SUPER73 app!

GENERAL WARNINGS

Like any sport, cycling involves risk of injury and it is the rider's responsibility to assume potential risks and injury involved when riding. By choosing to ride a bicycle, you assume the responsibility for that risk. You need to know and practice the rules and safety regulations of riding this bicycle. Proper use and maintenance of your bicycle reduces risk of injury. Check your local, state, or country regulations for electric bike laws. For example, check the minimum age for using an electric bike, as this differs in various regions.
Riders must have the physical condition, reaction time, and mental capability to ride and manage traffic, road conditions, and sudden situations. Also, respect the laws governing E-Bike use in accordance with each region. If you have an impairment or disability (i.e. visual impairment, hearing impairment, physical impairment, cognitive/language impairment, seizure disorder, etc.), consult your physician before riding any bicycle.
NOTICE: Only take on tasks for which you have the necessary knowledge and tools. It is recommended that users pay special attention to all of the general operating rules below before operating their Super73 bike.

• When riding, obey the same road laws as other road vehicles, including giving right of way to pedestrians and stopping at red lights and stop signs.
• Use correct hand signals to indicate turning or stopping.
• Pay attention to the path ahead. Avoid potholes, gravel, wet or oily roads, curbs, train tracks, speed bumps, and other obstacles.
• Keep both hands on the handlebar at any time, especially when steering or braking.
• Walk your e-bike across all train tracks.
• Expect the unexpected, such as opening car doors or cars backing out of driveways.
• Be extra cautious at intersections and when preparing to pass other vehicles or other cyclists.
• Familiarize yourself with all of the e-bike features. Practice using the brakes and throttle.
• If you are wearing loose pants, secure the bottom using leg clips or elastic bands to prevent them from being caught in the chain.
• Wear proper riding clothes and avoid wearing open-toe shoes.
• Don't carry passengers or cargo that will interfere with your ability to control the e-bike.
• Never ride and use the app simultaneously. Pull over in a safe spot before adjusting any app settings or set your destination in the navigation while parked in a safe spot.
• Don't use music devices such as headphones while riding. This will restrict your hearing and impair your awareness of your surrounding environment.
• Maintain a comfortable stopping distance from all other objects, riders, and vehicles. Safe braking distances are based on a variety of forces, such as weather, traffic and lighting conditions, among other variables.

WET WEATHER
It is recommended to not ride in wet weather. The Super73 is not meant for use in puddles, heavy rain, and streams. Never immerse this product in water as the electrical system may be damaged. Take extra care while riding in wet conditions. Feet or hands can slip in wet conditions and lead to serious injury from a fall. Brake earlier as it will take longer to slow than when operating in dry conditions. Decrease riding speed. Wear reflective clothing and use approved safety lights. Road hazards are more difficult to see when wet, proceed with caution.

RIDING AT NIGHT
Be safe! It is recommended to not ride at night. Ensure your Super73 is equipped with a full set of correctly positioned and clean reflectors. Use a properly functioning lighting set comprised of a white front light and red rear light. Wear reflective and light-colored clothing. Slow down and use familiar roads with street lighting, if possible.

FOR PARENTS AND GUARDIANS
As a parent or guardian, you are responsible for the activities and safety of your child. The Super73 is not designed for use by children under the age of 16. Obey local regulations and always wear a helmet.

REPLACEMENT PARTS
Use only genuine parts from Super73 for safety-critical components including: battery, charger, motor, throttle, display, controller, lighting components, and wiring harnesses. Failure to do so could cause injuries, damage the bike, and invalidate the warranty.
When replacing components such as tires, inner tubes, and brake pads, use only parts that comply with Super73 recommended specifications in sizing and quality as directed.

TAMPERING
Do not, in any way, tamper with the electrical components of the Super73. Tampering includes opening the protective casing of the motor, battery, charger, or breaking any tamper evident seals, as well as any other modifications of components or the electrical system. Tampering with any of the electrical system could result in serious personal injury or damage to the bike.

IMPORTANT SAFETY INSTRUCTIONS

When using this product, basic precautions should always be followed, including the following:

• Read all the Owner's Handbook instructions before using the product.
• To reduce the risk of injury, close supervision is necessary when the product is used by children.
• Always wear an approved bicycle helmet whenever using this product and ensure that all helmet manufacturer instructions are used for fit and care of your helmet. Failure to wear a helmet when riding may result in serious injury or death in the event of an accident.
• Ensure the Pre-ride Safety Check is performed on your bicycle after assembly and before each and every use of your SUPER73 (including the first ride).
• It is your responsibility to familiarize yourself with the laws and requirements of operation of this product in the area(s) where you ride.
• Ensure handlebar grips are not damaged and properly installed. Loose or damaged grips can cause you to lose control and fall.
• Off-road riding requires close attention and specific skills, as it presents variable conditions and hazards which accompany the conditions. Wear appropriate safety gear and do not ride alone in remote areas.
• Bicycles and bicycle parts have strength and integrity limitations, and extreme riding should not be performed, as you risk damaging the components or becoming seriously injured.
• After any incident, you must consider your bike unsafe to ride until an inspection is made, according to the provided safety check in the user handbook. Consult with a professional cycle mechanic for a comprehensive inspection.
• Failure to properly charge, store, or use your battery will void the warranty and may cause a hazardous situation, including a risk of fire.
• Extreme care should be taken when using the pedal assist sensor and propulsion on this product. Ensure you understand, and are prepared for the power assistance to engage as soon as pedaling is underway.
• You should check the operation of the brake inhibitor switches before each ride. The brake system is equipped with an inhibitor that shuts down the power to the electric motor whenever the brakes are engaged.
• Users must understand the operation of the throttle and pedal assist levels before using, and take ample care in their usage at speeds appropriate for each region and user experience level. Use the lowest assist level until you are comfortable with the bike and feel confident in controlling the power.
• Because E-Bikes are heavier and faster than normal bicycles, they require extra caution and care while riding.
• Do not remove the front, rear or pedal reflectors.
• Never ride the e-bike while under the influence of drugs or alcohol or while intoxicated in any manner.
• Any after-market modifications to any electrical component on your SUPER73 not expressly approved by SUPER73 may void the warranty and create an unsafe riding experience.
• Do not put fingers or hands into the product, including the wheels, tires, battery and electrical system, as this will give rise to a risk of injury.
• Do not use this product if the flexible power cord or output cable is frayed, has broken insulation, or any other signs of damage.
• This equipment is not intended to be used at ambient temperatures less than 4°C (40°F) or above ambient temperatures of 30°C (85°F).
• The battery is intended to be charged when the ambient temperature is between 40°F (4°C) and 85°F (30°C). Never charge the battery when ambient temperatures are outside this range.
• The A-weighted emission sound pressure level at the driver's ears is less than 70 Db(A).
• Some parts of your SUPER73 bike will heat up during usage, such as brake rotors or chargers; be careful not to touch them immediately after use.
  SAVE THESE INSTRUCTIONS

MAINTENANCE SCHEDULE

Intensive use of the Super73 may cause possible damage to the frame and the fork. It is important to inspect the frame and the fork and look for signs of cracks. A broken or cracked frame and fork can cause an accident and injury. Refer to the Intended Use section.
In order to prolong the life expectancy of your bike, here is an example of a maintenance schedule, under intended use, that we recommend:

1. BEFORE AND AFTER EACH RIDE
   ‡ Check the alignment of the wheels.
   ‡ Check the state of charge of the battery.
   ‡ Check that brakes function properly.‡
   Check tires for any punctures.
   ‡ Store the bike carefully in a clean and dry place.
   ‡ Check that your kickstand is tightly secured.
   ‡ Check for loose cables or wires that may be strained when turning the front wheel from left to right.
   ‡ Inspect all hardware to ensure it is properly tightened.
2. EVERY MONTH
   ‡ Inspect the handlebar and steer tube for any unusual movement.
   ‡ Check the cables, tires, handles.
   ‡ Check the wear of brake rotors, brake pads, and replace them if necessary.
   ‡ Check the tension of the spokes, and ensure that the wheels are true and properly dished.
   ‡ Lube the chain and check the tension in the chain.
   ‡ Inspect all hardware to ensure it is properly tightened
3. EVERY SIX MONTHS (depending on frequency and type of use)
   ‡ Inspect the frame, fork and look for signs of cracks in the metal.
   ‡ Check the bottom bracket and crankshaft and tighten the bolts on each crank.
   ‡ Check and grease the wheel hubs, headset, all parts in friction.

TIP
For your own safety, if any of the recommended maintenance procedures are not within your skill set, we advise taking your Super73 to an E-bike specialist or professional cycle mechanic for inspection.

Do not continue to ride your Super73 if any failure of hardware including bolts and fasteners integral to the brake system or wheel assembly should occur. Riding your Super73 with failed or missing hardware may put you at risk for potential injury or death.

MAINTENANCE & COMPONENTS

Before performing any work on your Super73 electronics system, turn off the system and remove the battery. Involuntary activation of the Super73 system will give rise to a risk of injury, death and/or property damage.

WASHING AND CARING FOR YOUR BIKE
Dirt, salt, and other elements can damage your bike. Regularly clean your Super73 and protect it against corrosion. Use clear water for cleaning and a gentle soap if necessary to dissolve grease and other residues. Do not spray water directly onto your Super73.
Instead, use a lightly damp cloth to wipe down any dirt or debris. After drying your bike, treat surfaces with a care product. Finally, wipe all parts with a clean, soft cloth.

Do not clean your Super73 with a strong water jet or steam jet from a short distance, and take particular care not to spray water on or near the battery. This can damage the battery and create a risk of fire. In addition, the water can get past the seals and get inside the bearings. Lubricants are then diluted, increasing friction. In the long run, the bearing surfaces will deteriorate.

TIRES / WHEELS
The Super73-Z Miami has tire sizes of 20" x 4" tires with inner tubes and a rim liner. The inner tube size for the tires is 20" x 4.25" or 20" x 4". The tires are designed for durability and safety for regular cycling activities. However, tires must be checked before each use for proper inflation and condition.
Proper inflation, good maintenance, and quick replacement will help ensure that the operational characteristics of your bike will be maintained and dangerous conditions avoided.
Tires must be inflated using a pump with a Schrader valve tip with a recommended pressure between 1.24-1.72 bar (18-25 PSI). Check the condition of the tires and rims for damage, cracks or deformation. The minimal tightening torque of the wheel nuts is 21.69 Nm ( 16ft/lb).
It is essential that the proper air pressure is maintained in the tires all the time. Do not under-inflate or over-inflate your tires. Low pressure can cause loss of control and tires that are too inflated can burst. Failure to maintain proper air pressure rating indicated in the handbook may at any time result in tire and / or wheel failure.
Inflate your tires from a regulated air source with an available manometer. Inflating your tires with an unregulated air source could over-inflate them, resulting in an exploded tire. When tire wear becomes obvious or a hole in the tire is found, you must replace the tires and/or tubes before using the bike, otherwise injury to operators and/or damage to your bike could occur.
In addition to proper inflation, correct wheel alignment helps to decrease tire wear. If you find a tire is worn unevenly, have a professional cycle mechanic check the wheel alignment.

HELMETS / REFLECTORS
A properly fitting ANSI or SNELL, (or CE if you are located in Europe), approved bicycle safety helmet should be worn at all times when riding your bicycle, or recommended per your local laws. Always wear a properly fitted helmet that covers the forehead when riding a bicycle. Many states require specific safety devices. It is your responsibility to familiarize yourself with the laws of the state where you ride and to comply with all applicable laws, including properly equipping yourself and your bike as the law requires.
Reflectors are important safety devices that are designed as an integral part of your bicycle. Federal regulations require every bicycle to be equipped with front, rear, wheel, and pedal reflectors. These reflectors are designed to pick up and reflect street-lights and car lights in a way that helps you to be seen and recognized as a moving bicyclist. Check reflectors and their mounting brackets regularly to make sure they are clean, straight, unbroken, and securely mounted.

BRAKES
Brakes are an integral part of the operation of your bike and must be properly maintained, adjusted, and replaced when necessary. If any of these tasks are not within your skill set, we recommend taking your bike to an E-Bike specialist or professional cycle mechanic.
Mechanical brake lines require maintenance not only on the pads and rotors but also on the mechanical brake cable.
For optimum braking performance, SUPER73 bikes are equipped with Tektro disc brakes. Tektro brake adjustment manuals are available on www.tektro.com.
The Super73 brake orientation is as follows:
Rear brake = right lever
Front brake = left lever
Brake Models: Mechanical (M280) https://www.tektro.com/products.php?p=25
Brake pads: Tektro E10.11 https://www.tektro.com/products.php?p=216
The wear of the pads on a mechanical disc brake can be regulated by unscrewing the cable tension knob. There is a complementary adjustment of the inner pad which can be tightened closer or removed from the disc by screwing it in or out with a 5 mm Allen key.
To ensure maximum service life of the brake components, avoid contamination of the pads and the disc by greasy substances.
Regularly check the condition of your cables, ducts or harness and the wear of your pads.
Some discs are only compatible with "resin" pads. Do not use a metal pad with discs marked "resin".
For better ergonomics and safety, we advise you to adjust the brake levers in a position that places it as a natural extension of the user's arms. If you have any questions or concerns, please contact SUPER73.

NEW BRAKE PAD & ROTOR BED-IN PROCESS
Any time you replace your brake pads, rotors, or both, it is important they are properly bedded for optimal performance. To bed your brakes properly after replacement, accelerate your bike up to and then engage your brakes to bring the bike to a near stop, then repeat the process up to 8-10 times. This process allows your pads to wear evenly as well as remove surface glaze and contamination from installation. Surface glaze on pads may cause "squealing brakes."

REPLACING THE PADS
When pads are worn, make sure to adjust both clearances between the rotor and pad so that they are equal and balanced. If only one side is adjusted, it may cause braking failure.

1. Pads and pad holders are held in place by a cotter pin on the caliper. To remove the pads and pad holder, straighten the cotter pin and remove, then gently push out the pads and holder. This may be easier to achieve by using an Allen wrench.
2. Once free of the caliper, the pads may be easily removed from the pad holder.

LIGHTING SYSTEM
The Super73-Z Adventure includes a lighting system that is directly connected to the bike's electrical system. If either the rear or front light is no longer operable, please contact Super73 for troubleshooting and parts orders. Replacement components should be purchased directly from Super73. Please avoid the use of any third-party component that connects directly to the e-bike's electrical system. There are no batteries in the lights. Make sure the front and rear lights are clean before riding. If they are dusty, or dirty, clean them with a damp cloth for optimal visibility and safety.

SEAT
It is not possible to adjust the seat height of the Super73 e-bike. It is fixed to the frame by bolts. The minimum seat clamping torque on the frame is 6.78 Nm (5lb /ft). For maintenance, use a cloth and water with a gentle soap for cleaning. Avoid leaving the seat too long in the sun, as the fabric can be damaged by the sun's UV rays. Avoid wearing clothes that may puncture or tear the seat.
The e-bike and its parts are subject to wear and tear, like other mechanical products and parts. Moreover, various materials and parts react differently to wear and abrasion. If the life of a component is exceeded, it is possible that it will suddenly fail, which may present hazards to the rider. Any type of cracks, streaks, or color changes in highly stressed components could indicate the failure of the component. It is highly recommended that use of the e-bike is suspended until all failed components are replaced. It is important to use genuine, properly specified parts for safety-critical components during the replacement of worn parts.

DERAILLEUR
Derailleur components will require regular maintenance, cleaning, and greasing in order to keep the movement of these components fluid and in good working order. It is recommended to regularly inspect the gears for signs of damage or wear.
Proper alignment of the derailleur is required for optimal performance of gear shifting. Derailleurs are fitted with limit screws that stop the derailleur from moving too far inward or too far outward. The adjustment to these limit screws require skill and may take time to achieve optimal results. Please seek derailleur maintenance help from a professional cycle mechanic if gear shifting becomes abnormal which is usually indicated by loud shifting or irregular rhythm in chain movement.

STORAGE, PARKING, AND TRANSPORTATION

• Park in accordance with local rules and regulations if you're in a public place.
• Park indoors whenever possible. If you must park outdoors in rain or wet conditions, do not do so for an extended period of time, and afterward park in a dry location to allow the bike systems to dry out. When any bike is exposed to wet conditions, it requires more frequent maintenance and cleaning to prevent rust and corrosion, and to ensure all systems work safely.
• Avoid parking or storing your bike in direct sunlight and/or excessive heat, such as inside of a parked car on a hot day.
• Switch the power and any lights off to conserve battery power. Remove the key from the bike and ensure the battery is locked to the frame in the off position or use the key to remove the battery and bring it with you for security.
• Lock up your bike to reduce risk of theft. Register your bike with BikeIndex or 529 Garage to increase the chance you'll get your bike back in the unfortunate event it's stolen.
• When pushing or carrying the bike, turn off the power to avoid accidental acceleration from the motor, e.g. by mistakenly engaging the throttle.
• Only use racks (i.e., a bike rack for your car or other vehicle) designed for the size and weight of your ebike. Pay particular attention to whether the rack can accommodate the width of the tires.
• When carrying your ebike on a rack for transport, remove the battery, and place/ wrap it securely inside your vehicle, making sure it can't roll around and that its plugs and connectors are protected. This will reduce the weight of the bike, make lifting and loading it easier, and keep your battery safe.
• Do not leave a battery in direct sunlight or any location that is or may become excessively hot or cold, like a parked car, for extended periods.
• Before using public transportation—buses, trains, etc.—to transport your ebike, check with the relevant transportation authority for any rules governing weight limits, tire widths, lithium-ion batteries, or any other rules that might pertain to ebikes.
• Avoid transport of any Super73 on a vehicle rack during rain, which may cause water damage to the electrical components. Contact Super73 support if you have questions.
