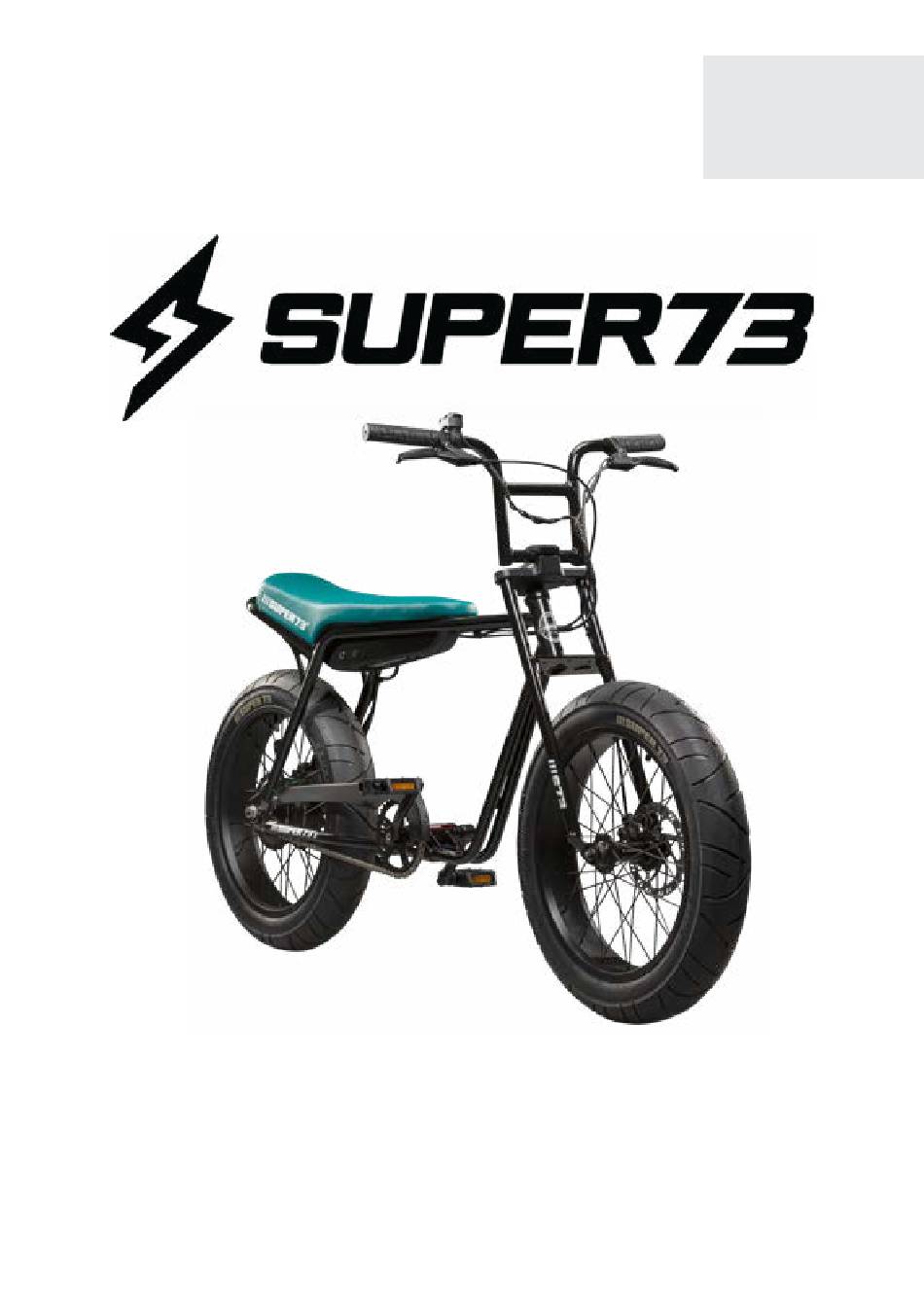

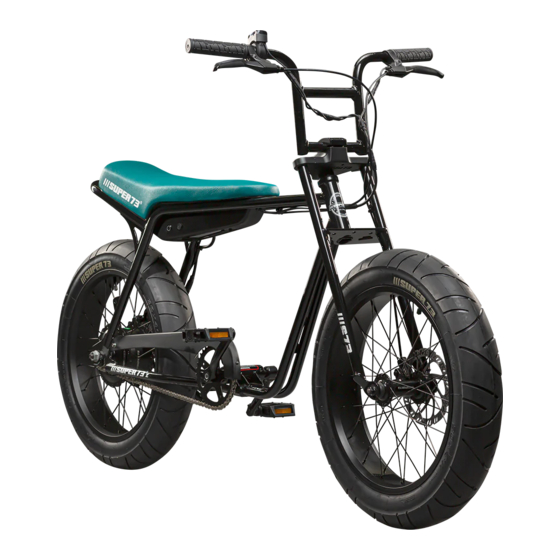

- Page 1 2020 V.05 OWNER’S HANDBOOK ASSEMBLY & MAINTENANCE SUPER73-Z1/ZG...
-
Page 2: Contact Information
This handbook contains information on the Super73 electric bikes. Always store this Owner’s Manual with the Super73 and refer to it for information whenever necessary. The information contained in this publication is based on the latest information available at the time of printing. -
Page 3: Table Of Contents
TABLE OF CONTENTS Contact Information General Information Diagram of Z1/ZG Legal Information Intended Use Unpacking Instructions Assembly Instructions Registration Pre-Ride Safety Check Operating the Bike General Warnings Safety Maintenance Schedule Maintenance and Components Warranty... - Page 4 MISSION STATEMENT SUPER73 exists to create adventure and community. We strive to bolster adventurous exploration through innovation, create positive and forward-thinking experiences with integrity, and cultivate enthusiastic support and vision for the community.
-
Page 5: General Information
EUROPE - PREAMBULE Super73 electric bikes purchased in Europe and sold for use in Europe have been tested, certified and are conform to security requirements of EPAC (Electric Power Assisted Cycle) according to EN 15194, have a maximum speed of 25 km/h and a 250 Watt motor power output. -
Page 6: Diagram Of
DIAGRAM OF THE SUPER73 Z1 / ZG Seat Assembly with Battery and Controller Street Tire Charging Port Power Button Chainguard Crank Set Bottom Bracket Rear Dropout... - Page 7 Throttle (Z1) or Speed Levels Control Panel (ZG) Handlebar Clamp Wiring Harness Lower Fork Brake Rotor Pedals Front Dropout...
-
Page 8: Legal Information
Please observe the permitted overall weight of 275 lbs (125 kg). DANGER! If the user rides the Super73 beyond its intended use, there may be a risk of an accident, serious injury, or death and the risk of injury to those around the user. -
Page 9: Unpacking Instructions
UNPACKING INSTRUCTIONS DANGER Please read the instructions entirely before assembly to ensure the proper functioning of the Super73. Failure to do so could result in serious personal injury or damage to the bike. VIDEO View our assembly video to follow step-by-step instructions on our website in the Support section at www.super73.com. -
Page 10: Assembly Instructions
ASSEMBLY INSTRUCTIONS DANGER ! Do not ride with a bike that has not passed 100% safety verification before each ride as described in the section pre-ride safety check on pg. 14. HANDLEBAR INSTALLATION A. Use the 5mm hex wrench to remove the bolts of the handlebar clamp. B. - Page 11 2. INSTALL PEDALS A. Install and tighten the pedals using the 15 mm open wrench. Look for a letter marking “L” “R” on each respective pedal and make sure you install the left pedal on the left crank, the right pedal on the right crank. B.
- Page 12 Power output will vary depending on battery capacity. If your battery is at 20%, for example, it won’t have as much power as a fully charged battery. If your Super73 has been shipped to you along with the battery, please fully charge the battery first. When a battery leaves the factory, it’s not fully charged as required by international air and sea legislation.
-
Page 13: Registration
ASSEMBLY IS FINISHED! You’re almost ready to ride. Your Super73 should look like below. Before your first ride, please verify your bike is safe to ride using the Pre-ride safety check on pg. 14. REGISTER YOUR SUPER73 All original owners must register on our website to validate your warranty. -
Page 14: Pre-Ride Safety Check
PRE-RIDE SAFETY CHECK DANGER! Use the following checklist before each ride to verify your bike is safe to ride. Make sure the brakes have already been applied before getting on to your bike. CHECKLIST: 1. WHEELS ‡ Check the condition of both tires making sure the tread is in good condition free from punctures, cracks, and deformations. -
Page 15: Operating The Bike
6. TURNING OFF THE BIKE When you are done riding your Super73 it is important to turn off the power properly. a. Turn off the system by first pressing the gray button on the throttle or speed level control panel. -
Page 16: General Warnings
NOTICE: Only take on tasks for which you have the necessary knowledge and tools. It is recom- mended that users pay special attention to all of the general operating rules below before operating their Super73 bike. • When riding, obey the same road laws as all other road vehicles, including giving right of way to pedestrians and stopping at red lights and stop signs. - Page 17 WET WEATHER Take extra care while riding in wet conditions. The Super73 is not meant for use in puddles, heavy rain, and streams. Never immerse this product in water as the electrical system may be damaged. Take extra care while riding in wet conditions. Feet or hands can slip in wet conditions and lead to serious injury from a fall.
-
Page 18: Safety
SAFETY The following safety notes provide additional information on the safe operation of your Super73 and should be closely reviewed. Failure to review these notes can lead to serious injury or death. • All users must read and understand this manual before first use. Additional manuals for components used on your bicycle may also be provided and should be read before use in addition to this manual. -
Page 19: Maintenance Schedule
MAINTENANCE SCHEDULE DANGER! Intensive use of the Super73 may cause possible damage to the frame and the fork. It is important to inspect the frame and the fork and look for signs of cracks. A broken or cracked frame and fork can cause an accident and injury. Refer to the Intended Use section of this manual. -
Page 20: Maintenance And Components
MAINTENANCE & COMPONENTS DANGER! Before performing any work on your Super73 electronics system, turn off the system. Involuntary activation of the Super73 system poses a risk of injury. TIRES / WHEELS The Z/ZG has tire sizes of 20” x 4.25” rubber tires with inner tubes and a rim liner. - Page 21 For optimum braking performance, Super73-Z1/ZG bikes are equipped with Tektro mechanical disc brakes. For brake adjustment instructions, visit the support section of our website at www.Super73.com or review Tektro brake adjustment manuals on www. tektro.com. For any manufacturing issues or questions regarding Tektro brakes, you can contact your local Tektro representative: www.tektro.com...
- Page 22 BATTERY The battery is the most important component of your Super73. Following a few simple rules, you can optimize its life: • Do not store a discharged battery. It could go into deep discharge which will reduce its life.
- Page 23 Doing so without proper certification is punishable by law. Immediately remove the battery from the Super73 if you notice damage to the electrical system and visit your local E-bike Specialist for inspection or contact Super73 directly.
-
Page 24: Warranty
SEAT It is not possible to adjust the seat height of the Super73. It is fixed to the frame by bolts. For maintenance, use a cloth and water with a gentle soap for cleaning. Avoid leaving the seat too long in the sun, as the fabric can be damaged by the sun’s UV rays. - Page 25 Super73 undertakes to either repair faulty system components and/or to replace such components, at the discretion of Super73. Upon identifying a fault with a Super73 bike, the owner must contact the Company or a local authorized Super73 dealer to initiate the warranty process. Any component to be repaired under this Warranty must be transported to the dealer at the owner’s own expense and...
- Page 26 6. In the case of use of the battery in systems that are not approved for such use with this particular Product. 7. In the case of the operation of the Super73 system with batteries other than the batteries designed for the Super73 system (refer to owner’s manual).
