SUPER73 -S2 Owner's Handbook Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

EN

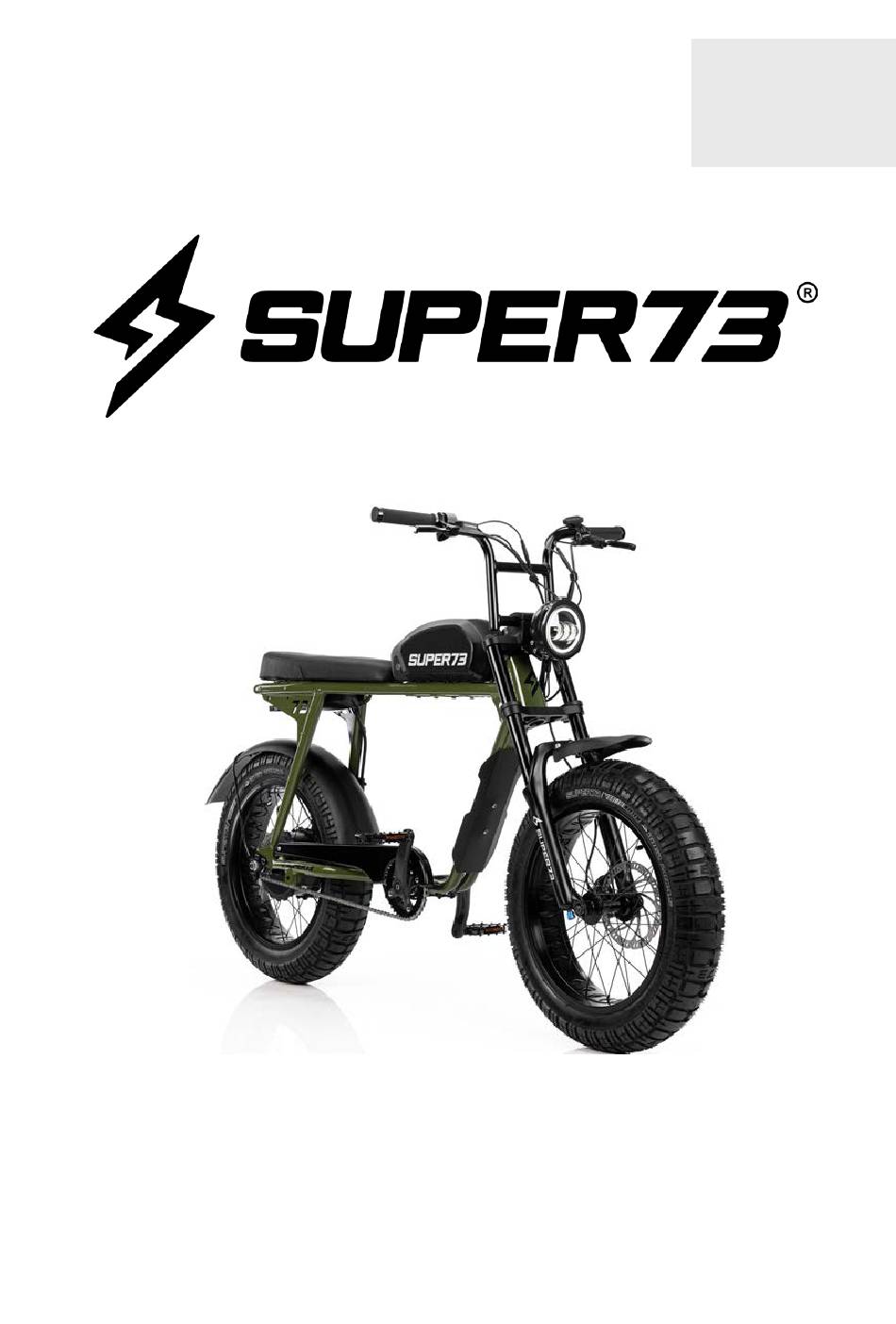

V.1 2022
OWNER'S HANDBOOK
ASSEMBLY & MAINTENANCE
SUPER73-S2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Super73-S2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SUPER73 Super73-S2

Summary of Contents for SUPER73 Super73-S2

  • Page 1 V.1 2022 OWNER’S HANDBOOK ASSEMBLY & MAINTENANCE SUPER73-S2...

  • Page 2: Contact Information

    (translation of Original instructions). This handbook contains information on the Super73 electric bikes. Always store this Owner’s Handbook with the Super73 and refer to it for information whenever necessary. The information contained in this publication is based on the latest information available at the time of printing.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Contact Information General Information Diagram of S2 Legal Information Intended Use Getting Started Assembly Instructions Registration Pre-ride Safety Check Operating the Bike Super73 Ride App General Warnings Safety Maintenance Schedule Maintenance and Components Warranty...
  • Page 4 MISSION STATEMENT Super73 exists to create adventure and community. We strive to bolster adventurous exploration through innovation, create positive and forward-thinking experiences with integrity, and cultivate enthusiastic support and vision for the community.

  • Page 5: General Information

    Please perform a safety check before each use, as described on in the “Pre-ride Safety Check” section on pg. 14 of this handbook. Do not ride your Super73 if it has been assembled incorrectly. Riding an incorrectly assembled bike may put your own safety at risk as well as others.
  • Page 6 DIAGRAM OF THE SUPER73-S2 REAR HUB MOTOR CRANK SET BOTTOM BRACKET REAR DROPOUT...
  • Page 7 THROTTLE (RIGHT SIDE) BATTERY DISPLAY (LEFT SIDE) FRONT DROPOUT AIN RING BRAKE ROTOR...

  • Page 8: Legal Information

    Please observe the permitted overall rider weight of 325 lbs (147kg). DANGER! If the user rides the Super73 beyond its intended use, there may be a risk of an accident, serious injury, or death, as well as risk of serious injury to those around the...

  • Page 9: Getting Started

    GETTING STARTED DANGER! Please read the instructions entirely before assembly to ensure the proper functioning of the Super73. Failure to do so could result in serious injury or death and the risk of potential injury to those around the user. VIDEO View our assembly video to follow step-by-step instructions on our website at support.super73.com...

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS DANGER ! Do NOT ride your Super73 if it has been assembled incorrectly. Riding an incorrectly assembled bike can put your own safety at risk as well as others. Before your first ride, perform the pre-ride safety check on pg. 14.
  • Page 11 2. INSTALL PEDALS A. Install and tighten the pedals using the 15 mm open wrench. Look for a letter marking “L” “R” on each respective pedal and make sure you install the left pedal on the left crank, and the right pedal on the right crank. The right pedal is screwed on in a clockwise direction.
  • Page 12 Power output will vary depending on battery capacity. If your battery is at 20%, for example, it won’t have as much power as a fully charged battery. If your Super73 has been shipped to you along with the battery, please fully charge the battery first. When a battery leaves the factory, it’s not fully charged as required by international air and sea legislation.

  • Page 13: Registration

    Write down below the following information for future reference: Location or website of purchase: ______________________________________________ Date of purchase: ___________________________________________________________ Model name: Super73-S2 Bike Serial #: _______________________________________________________________ (Engraved on the underside of the bottom bracket in between the pedal cranks) Battery Serial #: ____________________________________________________________ Battery Key #: ______________________________________________________________ We recommend that you keep your original receipt with this handbook.

  • Page 14: Pre-Ride Safety Check

    Make sure the brakes have already been applied before getting on to your bike. If the assistance mode is turned on, your Super73 will start moving as soon as you push on the pedal. The unfamiliar push can otherwise cause a fall, hazard, or accident.

  • Page 15: Operating The Bike

    • Total (miles) 3. OPERATING LIGHTS • The Super73 RX model comes equipped with a front headlight and rear brake light. • To activate the lights, press and hold down the up “^” button on the display until the lights illuminate. Follow the same step to turn off the lights.
  • Page 16 3. PEDAL ASSIST To select your pedal assist mode, follow these steps once the display has been turned on and you are seated on the Super73: • Press on the menu “O” button briefly to switch between display views until “Assist” appears on the screen.
  • Page 17 6. CHANGING RIDING MODES • Your Super73 is equipped with MultiClass Mode selection. The bike defaults to a Class 2 mode. It is the rider’s responsibility to follow local E-Bike regulations. Be sure you are up to date with your local motor vehicle codes.
  • Page 18 Super73. Never change suspension adjustment unless you are thoroughly familiar with the suspension system instructions and recommendations, and always check for changes in the handling and braking characteristics of the Super73 after a suspension adjustment by taking a careful test ride in a hazard-free area.
  • Page 19 Adjusting Rebound Rebound is adjusted with the dial located on the bottom of the right stanchion. • Turn the rebound dial clockwise to slow your suspension rebound (damper increase). • Turn the rebound dial counterclockwise to speed up the rebound (damper decrease).

  • Page 20: Super73 Ride App

    Unlimited Mode: up to 28mph with throttle or pedal assist Unlimited Mode is intended for private property or off-road use only For more information on using the Super73 App, please refer to the Super73 App page https://super73.com/super73-app on our website.

  • Page 21: General Warnings

    NOTICE: Only take on tasks for which you have the necessary knowledge and tools. It is recommended that users pay special attention to all of the general operating rules below before operating their Super73 bike. • When riding, obey the same road laws as all other road vehicles, including giving right of way to pedestrians and stopping at red lights and stop signs.
  • Page 22 RIDING AT NIGHT Be safe! It is recommended to not ride at night. Ensure your Super73 is equipped with a full set of correctly positioned and clean reflectors. Use a properly functioning lighting set comprised of a white front light and red rear light.
  • Page 23 CHARGER • Do not use this battery charger on other electrical devices. • Do not use any third-party charger or charging method on the battery. • Do not allow children to use the charger without supervision. • Do not allow the charger to be submerged in water and/or other liquids. If the charger is submerged, discontinue use.
  • Page 24 Do not remove the front, rear or pedal reflectors. • Any after-market modifications to any eletrical component on your Super73 not expressly approved by Super73 may void the warranty and create an unsafe riding experience. • Do not put fingers or hands into the product.

  • Page 25: Maintenance Schedule

    MAINTENANCE SCHEDULE DANGER! Intensive use of the Super73 may cause possible damage to the frame and the fork. It is important to inspect the frame and the fork and look for signs of cracks. A broken or cracked frame and fork can cause an accident and injury. Refer to the Intended Use section on pg.

  • Page 26: Safety

    TIRES / WHEELS The Super73-S2 has tire sizes of 20”x4.5” in the front and 20”x5” in the rear with inner tubes and a rim liner. The inner tube size for the tires is 20”x4.5 or 20”x5”. The tires are designed for durability and safety for regular cycling activities.
  • Page 27 Mechanical brake lines require maintenance not only on the pads and rotors but also on the mechanical brake cable. For optimum braking performance, Super73 bikes are equipped with Tektro disc brakes. Tektro brake adjustment manuals are available on www.tektro.com. The Super73 brake orientation is as follows:...
  • Page 28 The contact details of the distributors and places of services: http://www.tektro.com/ service-a.php?t=1 BATTERY The battery is the most important component of your Super73. By following the best practices below, you can optimize its life: • Do not store a discharged battery. It could go into deep discharge which will reduce its life.
  • Page 29 Doing so without proper certification is punishable by law. Immediately remove the battery from the Super73 if you notice damage to the electrical system and visit your local E-bike Specialist for inspection or contact Super73 directly.
  • Page 30 SEAT It is not possible to adjust the seat height of the Super73. It is fixed to the frame by bolts. The minimum seat clamping torque on the frame is 6.78 (Nm) 5lb / ft. For maintenance, use a cloth and water with a gentle soap for cleaning. Avoid leaving the seat too long in the sun, as the fabric can be damaged by the sun’s UV rays.

  • Page 31: Warranty

    (b) The person seeking warranty coverage is the original and first owner of the bike (warranty is not transferable in the case of a re-sale). (c) The bike was used in accordance with its intended purpose. The Super73 bike is intended for use on paved roads.
  • Page 32 710-00001-RevB...
