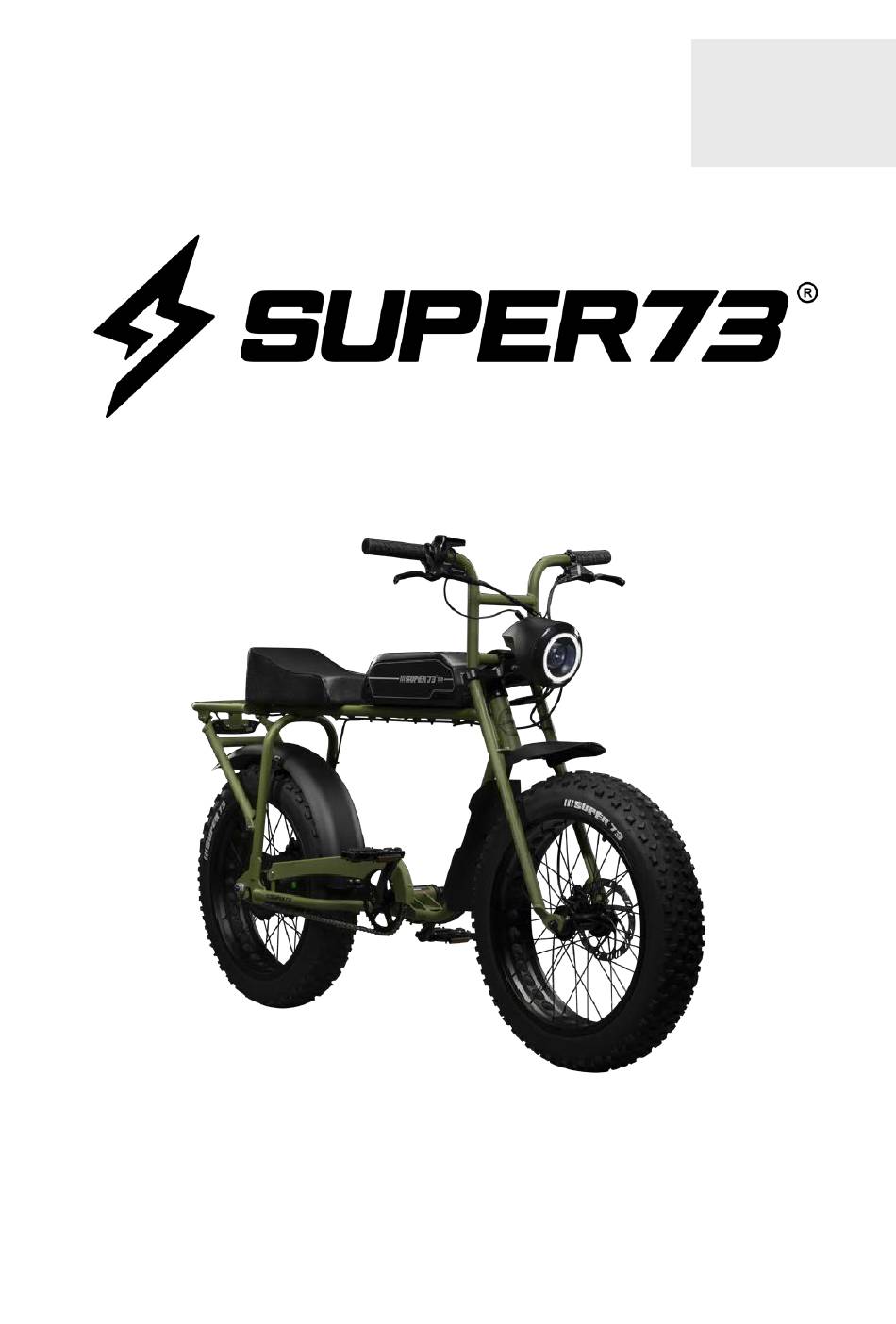

- Page 1 V.24 2022 OWNER’S HANDBOOK ASSEMBLY & MAINTENANCE SUPER73-S1...
-
Page 2: Contact Information
(translation of Original instructions). This handbook contains information on the Super73 electric bikes. Always store this Owner’s Handbook with the Super73 and refer to it for information whenever necessary. The information contained in this publication is based on the latest information available at the time of printing. -
Page 3: Table Of Contents
TABLE OF CONTENTS Contact Information General Information Diagram of S1 Legal Information Intended Use Getting Started Assembly Instructions Registration Pre-ride Safety Check Operating the Bike General Warnings Safety Maintenance Schedule Maintenance and Components Warranty... - Page 4 MISSION STATEMENT Super73 exists to create adventure and community. We strive to bolster adventurous exploration through innovation, create positive and forward-thinking experiences with integrity, and cultivate enthusiastic support and vision for the community.
-
Page 5: General Information
Please perform a safety check before each use, as described on in the “Pre-ride Safety Check” section on pg. 15 of this handbook. Do not ride your Super73 if it has been assembled incorrectly. Riding an incorrectly assembled bike may put your own safety at risk as well as others. - Page 6 DIAGRAM OF THE SUPER73-S1 REAR HUB MOTOR CHAIN RI CRANK SET BOTTOM BRACKET REAR DROPOUT...
- Page 7 THROTTLE (RIGHT SIDE) BATTERY DISPLAY (LEFT SIDE) FRONT DROPOUT BRAKE ROTOR...
-
Page 8: Legal Information
Please observe the permitted overall rider weight of 325 lbs (147kg). DANGER! If the user rides the Super73 beyond its intended use, there may be a risk of an accident, serious injury, or death, as well as risk of serious injury to those around... -
Page 9: Getting Started
GETTING STARTED DANGER! Please read the instructions entirely before assembly to ensure the proper functioning of the Super73. Failure to do so could result in serious injury or death and the risk of potential injury to those around the user. VIDEO View our assembly video to follow step-by-step instructions on our website at support.super73.com... -
Page 10: Assembly Instructions
ASSEMBLY INSTRUCTIONS DANGER ! Do NOT ride your Super73 if it has been assembled incorrectly. Riding an incorrectly assembled bike can put your own safety at risk as well as others. Before your first ride, perform the pre-ride safety check on pg. 15. - Page 11 2. INSTALL PEDALS A. Install and tighten the pedals using the 15 mm open wrench. Look for a letter marking “L” “R” on each respective pedal and make sure you install the left pedal on the left crank, and the right pedal on the right crank. The right pedal is screwed on in a clockwise direction.
- Page 12 4. HEADLIGHT INSTALLATION A. Locate the two headlight mounting screws, remove the two mounting screws from the crown, and set aside. Align the headlight mounting bracket with the two holes on the top fork crown, and loosely tighten the mounting screws back in place. Using a 5mm allen wrench, tighten the mounting screws in place to secure the headlight to the crown.
- Page 13 Power output will vary depending on battery capacity. If your battery is at 20%, for example, it won’t have as much power as a fully charged battery. If your Super73 has been shipped to you along with the battery, please fully charge the battery first. When a battery leaves the factory, it’s not fully charged as required by international air and sea legislation.
-
Page 14: Registration
Write down below the following information for future reference: Location or website of purchase: ______________________________________________ Date of purchase: ___________________________________________________________ Model name: Super73-S1 Bike Serial #: _______________________________________________________________ (Engraved on the underside of the bottom bracket in between the pedal cranks) Battery Serial #: ___________________________________________________________ Battery Key #: _____________________________________________________________ We recommend that you keep your original receipt with this handbook. -
Page 15: Pre-Ride Safety Check
Make sure the brakes have already been applied before getting on to your bike. If the assistance mode is turned on, your Super73 will start moving as soon as you push on the pedal. The unfamiliar push can otherwise cause a fall, hazard, or accident. -
Page 16: Operating The Bike
(1-3 seconds). The throttle is now active and you’re ready to ride. 2. OPERATING LIGHTS • The Super73 S1 model comes equipped with a front headlight and rear brake light. • To activate the front headlight, press the power button on the display once and the light will illuminate. - Page 17 • Press the “M” button briefly to switch between assist modes. • The S1 defaults to “Throttle Only” (no pedal assistance) when powered on, and the pedal assist mode section of the display on the bottom will be blank. Basic overview of pedal assist settings •...
-
Page 18: General Warnings
NOTICE: Only take on tasks for which you have the necessary knowledge and tools. It is recommended that users pay special attention to all of the general operating rules below before operating their Super73 bike. • When riding, obey the same road laws as all other road vehicles, including giving right of way to pedestrians and stopping at red lights and stop signs. - Page 19 RIDING AT NIGHT Be safe! It is recommended to not ride at night. Ensure your Super73 is equipped with a full set of correctly positioned and clean reflectors. Use a properly functioning lighting set comprised of a white front light and red rear light.
- Page 20 CHARGER • Do not use this battery charger on other electrical devices. • Do not use any third-party charger or charging method on the battery. • Do not allow children to use the charger without supervision. • Do not allow the charger to be submerged in water and/or other liquids. If the charger is submerged, discontinue use.
-
Page 21: Safety
Do not remove the front, rear or pedal reflectors. • Any after-market modifications to any eletrical component on your Super73 not expressly approved by Super73 may void the warranty and create an unsafe riding experience. • Do not put fingers or hands into the product. -
Page 22: Maintenance Schedule
DANGER! Do not continue to ride your Super73 if any failure of hardware including bolts and fasteners integral to the brake system or wheel assembly should occur. Riding your Super73 with failed or missing hardware may put you at risk for potential injury or... -
Page 23: Maintenance And Components
TIRES / WHEELS The Super73-S1 has tire sizes of 20” x 4” tires with inner tubes and a rim liner. The inner tube size for the tires is 20” x 4.25” or 20” x 4”. The tires are designed for durability and safety for regular cycling activities. - Page 24 Mechanical brake lines require maintenance not only on the pads and rotors but also on the mechanical brake cable. For optimum braking performance, Super73 bikes are equipped with Tektro disc brakes. Tektro brake adjustment manuals are available on www.tektro.com. The Super73 brake orientation is as follows:...
- Page 25 The contact details of the distributors and places of services: http://www.tektro.com/ service-a.php?t=1 BATTERY The battery is the most important component of your Super73. By following the best practices below, you can optimize its life: • Do not store a discharged battery. It could go into deep discharge which will reduce its life.
- Page 26 Doing so without proper certification is punishable by law. Immediately remove the battery from the Super73 if you notice damage to the electrical system and visit your local E-bike Specialist for inspection or contact Super73 directly.
- Page 27 SEAT It is not possible to adjust the seat height of the Super73. It is fixed to the frame by bolts. The minimum seat clamping torque on the frame is 6.78 (Nm) 5lb / ft. For maintenance, use a cloth and water with a gentle soap for cleaning. Avoid leaving the seat too long in the sun, as the fabric can be damaged by the sun’s UV rays.
-
Page 28: Warranty
(b) The person seeking warranty coverage is the original and first owner of the bike (warranty is not transferable in the case of a re-sale). (c) The bike was used in accordance with its intended purpose. The Super73 bike is intended for use on paved roads.
