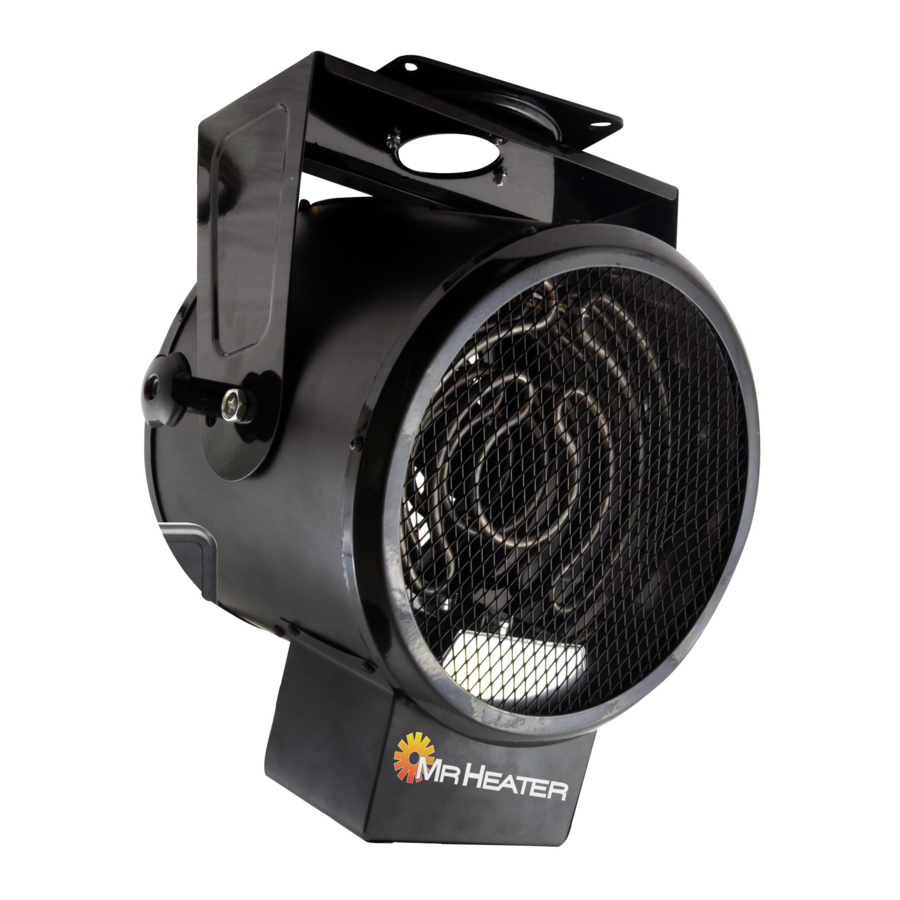

Mr Heater MH530FAET, MH530FAERT Manual

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word, Please read the manual and pay attention to these symbols.

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

SPECIFICATIONS

Model: MH530FAET MH530FAERT
Heat Output BTU/WATTS 18084/5300 18084/5300
Airflow (CFM) 246 246
Electrical Supply 240Vac 240Vac
Thermostat 32°F - 185°F 32°F - 185°F
Power Cord 4' POWER CABLE INCLUDED 4' POWER CABLE INCLUDED
Dimensions: (L"xW"xH") 13.18"x12.2"x13.97" 14.37"x13.77"x16.14"
Weight (lbs.) 16.7 LBS. 17.75 LBS.
Clearance to Combustibles
Outlet (M) 6' (1.8M) 6' (1.8M)
Rear (M) 2' (.6M) 2' (.6M)
Sides (M) 2' (.6M) 2' (.6M)

Assembly & Installation

  • Remove the heater and all of the packaging material from the box.
  • Check all of the packing material for loose parts and set aside.
  • Thoroughly inspect the heater for damage. If any is found do not contact the place of purchase. Please call the Manufacturer at 800-251-0001.

INCLUDED IN THE BOX:

  • Heater
  • Hanging bracket
  • Mounting plate
  • Swivel Plate
  • Angle adjustment knobs
  • Heater fastening bolts
  • 4-8 mm Nuts, Bolts and lock washers

To Assemble, use the 8 mm nuts, bolts and lock washers to the attach the swivel plate and the Mounting Plate to the hanging bracket See figure 1. The nut and lock washer should be on the underside.

Next, Locate a space to hang the heater on the ceiling. The selected space should leave enough room to maintain the clearance to combustibles outlined in the specifications table and should be located within 4 feet of your power connection or the location of where you plan to mount the junction box your heater will be supplied from.
Once a location has been selected, fasten the mounting bracket and accompanying hanging kit with 4 appropriately sized lag. bolts/or wall anchors that can support the weight of the heater (not included). The weight of your heater can be found in the specifications table. The best option is to attach the anchors directly into a solid surface like a joist or plywood. If that is not available consult with your local hardware store for other options. There are many different Drywall anchors or masonry anchors that will work.

Once you have selected a location and mounted the hanging brackets you can now hang the heater. It is recommend that you have help for this step. While you or your helper is holding the heater in place, Install the two large Phillips head bolts and angle adjustment knobs. See figure 2. At this point the heater should look like the photo on the front of this manual.

Wiring information:
The heaters covered in this manual are designed to be installed and serviced by only licensed trained professionals. Heaters should only be installed on a dedicated 240 volt circuit with a 30 amp double pole breaker. Refer to NEC code ANSI/NFPA NO. 70-2011 for specifics.

Remote Thermostat:
Units equipped with a remote thermostat will need to have the cradle for the thermostat mounted in an appropriate location. Using two wall anchors, (not included) mount the Thermostat cradle to the wall. Select a location within 3.5 feet of the heater, The cradle should be mounted in a location as to not be affected by the air flow of the heater. if possible do not mount on an uninsulated wall or in direct sunlight. That may cause the heater to cycle unnecessarily.

Operational Information

Heat is created by electric current passing through coiled metal elements bringing them up to very high temperatures. The fan then passes room air over the hot elements exchanging cold air for warm. The air moving over the coils keeps them from reaching temperatures that are not safe for the normal operation of the heater, Therefor it is important to keep all combustible materials and any objects that may be sucked into the fan blades at a safe distance (please refer to the specification table for appropriate clearances). Make sure that, the fan blades remain unobstructed at all times. Keep unit clean and dust free. Do not block unit intake or exhaust at any time. If damage has occurred please refer to the parts listing in this manual and contact the manufacturer for a replacement.

The electrical circuit must be properly grounded, failure to do so may result in electric shock or property damage.

Always plug or wire heaters directly into a wall receptacle or appropriate junction box. Never use with an extension cord or relocatable power tap (outlet/power strip)
These Electric forced air heaters are specifically designed to be permanently installed by hanging from ceiling or overhead structure, Do not attempt to use them as a portable heater.

Starting Instructions

  1. With the heater properly installed and the power supplied to the unit move the heat selection knob to the setting you want. There are both high and low settings, along with a fan only option, Refer to Figure 3, for information about each setting.
  2. Turn thermostat to desired setting, Clockwise will increase the set point, counter clockwise will reduce the setting, An audible click can be heard when the current temperature in the space is matched on the dial.
  3. The Heating element and fan will remain on until the temperature setting is reached. The heating element will cycle on and off as needed.

CONTROL

Control Overview

To Stop Heating

  1. Rotate the thermostat knob to the lowest position.
  2. Rotate the power switch in to the "off" position.

Maintenance


Never attempt to service the heater while the unit is hot or in use. Only qualified service technicians should service these units.

  • Thoroughly inspect the unit prior to use.
  • Keep heater clean and free of dust and debris.
  • The use of an air compressor can be used to blow out the dust from the heater case. Be sure to only use moderate air pressure as to not damage any internal components.
  • A soft dry cloth should be used for cleaning of outer shell and mounting brackets.
  • The fan motor is sealed and does not need to be lubricated.

For service:
Please call Toll-Free 800-251-0001
www.mrheater.com
Our office hours are 8:00 AM - 5:00 PM, EST, Monday through Friday. Please include the model number, date of purchase, and description of problem in all communication.

Troubleshooting

Unit does not work
  • Defective thermostat or wrong thermostat setting
  • Open circuit breaker or fuse
  • Thermal overload switch has been tripped
  • Damaged or defective plug or outlet
Heating coils runs continuously
  • Defective thermostat or wrong thermostat setting
  • Heat losses higher than unit capacity (unit undersized)
Elements are on but motor does not rotate
  • Defective Motor
  • Blocked fan blades
Enclosure is extremely hot
  • Defective thermal protection
  • Blocked air vents
  • Defective motor
Desired room temperature cannot be reached
  • One or more elements are defective
  • Defective thermostat or wrong thermostat setting
  • Voltage lower than that written on Rat e tag
  • Heat losses higher than unit capacity (unit undersized)
Overheating
  • Defective thermostat or blocked inlet or outlet (HLS tripped)
  • Defective Motor (slow motor operation)


USE ONLY MANUFACTURER'S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH. REPLACEMENT PARTS ARE ONLY AVAILABLE DIRECT FROM THE FACTORY AND MUST BE INSTALLED BY A QUALIFIED SERVICE AGENCY.

WIRING DIAGRAM MH530FAERT/MH530FAET

MH530FAERT/MH530FAET CIRCUIT DIAGRAM
Circuit Diagram - MH530FAERT/MH530FAET

PARTS LIST

MH530FAERT
Parts Overview - Part 1 - MH530FAERT

# P/N DESCRIPTION QTY
1 41252 Outlet screen 1
2 41253 Heating Coil 1
3 41224 High Limit Switch 80C 1
4 41254 Internal Chamber 1
5 41223 High Limit Switch K40 1
6 41259 Relay 1
7 41216 LED 1
8 41264 Outer Barrel 1
9 41256 Control Box 1
10 N/A Wire Ties 1
11 41270 Thermostat 1
12 41214 Knob 2
13 41237 Remote Thermostat Housing Top 1
14 41273 Setting Control Switch 1
15 41239 Remote Thermostat Housing Bottom 1
16 41240 Remote Thermostat Wall Mount Cradle 1
17 41241 Bolt 2
18 41242 Angle Adjustment Knob 2
19 41243 Fan Screen Bracket 1
20 41244 Fan Guard 1
21 41245 Fan Motor 1
22 41246 Fan Blade 1
23 41247 Mounting Plate 1
24 41248 Swivel Plate 1
25 41249 Mounting Bracket 1
26 41250 Power Cord 1
27 41251 Thermostat Cord 1

MH530FAET
Parts Overview - Part 2 - MH530FAET

# P/N DESCRIPTION QTY
1 41252 Outlet screen 1
2 41253 Heating Coil 1
3 41254 Internal Chamber 1
4 41241 Bolt 2
5 41242 Angle Adjustment Knob 2
6 41247 Mounting Plate 1
7 41248 Swivel Plate 1
8 41249 Mounting Bracket 1
9 41243 Fan Screen Bracket 2
10 41244 Fan Guard 2
11 41245 Fan Motor 1
12 41246 Fan Blade 1
13 41264 Outer Barrel 1
14 41250 Power Cord 1
15 41266 Strain Relief 1
16 41214 Knob 2
17 41218 Thermostat Spacer 1
18 41216 LED 1
19 41270 Thermostat 1
20 41271 Control Box 1
21 41258 Selector Switch Spacer 1
22 41273 Setting Control Switch 1
23 41259 Relay 1
24 41223 High Limit Switch K40 1
25 41224 High Limit Switch 80C 1
26 N/A Wire Ties 1

IMPORTANT INSTRUCTIONS


If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

  • This heater has hot or arcing parts inside. Do not use it in areas where gasoline, paint or other flammable liquids are used or stored.
  • Service must be performed by a qualified service agency.


DO NOT OPERATE THIS HEATER UNTIL YOU READ AND UNDERSTAND THIS INSTRUCTION MANUAL FOR SAFETY, OPERATION, AND MAINTENANCE INSTRUCTIONS.

Use of this heater in any means not described in this manual may cause fire, electric shock, personal injury and/or property damage.

This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 6 feet ( 1.8 m) from the front of the heater and keep them at least 2 feet (.6 m) away from the sides and rear

In order to avoid unintended cycling of the heater, always turn off when not in use.

Do not cover the power supply wiring or run the wiring under any carpet or rugs. Arrange cord and connections away from traffic patterns so it is not a tripping hazard.

Connect unit to only properly grounded outlets and adequately sized and grounded electrical systems.

Do not use this unit with unapproved or under sized electrical connections or wiring. They may overheat and cause a risk of fire.

Do not expose to wet conditions; unit is intended for indoor use only.

This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heate where it may fall into a bathtub or other water container.

Do not insert or allow any foreign objects to enter the unit via the intake or exhaust vents on the unit. Failure to observe this warning may result in electric shock, fire or damage to the unit.

To prevent fire do not block either the air intake or exhaust in any manner. Do not use on soft surfaces like a bed, where openings may get blocked.

Unit is equipped with internal active electrical components that spark during use. Do not use in areas where fumes from gasoline, paint or other flammable liquids
may be present.

Extreme caution must be used when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.

Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Discard heater, or return to authorized service facility for examination and/or repair,

Do not use outdoors.

Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.

GENERAL INFORMATION
RETAIN THIS MANUAL FOR FUTURE REFERENCE, FOR QUESTIONS, PROBLEMS, MISSING PARTS BEFORE RETURNING TO RETAILER PLEASE CALL WITH MODEL NUMBER AND SERIAL NUMBER OF HEATER: 1-800 321-0001
MONDAY-FRIDAY 8-5 PM EASTERN TIME
OR E-MAIL USING THE MR. HEATER WEBSITE:
WWW.MRHEATER.COM
In order to provide the best service possible Mr. Heater is now giving you more ways to in touch with us:
FACEBOOK: Find us on Facebook
TWITTER: Find us on twitter
YouTube: There are now informational videos on YouTube
WEBSITE: Mr. Heater's full line of product are now at
WWW.MRHEATER.COM

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Mr Heater MH530FAET, MH530FAERT Manual
